Pick the pixel pitch from the closest viewing distance. A simple rule of thumb: the closest comfortable distance in metres is about the same number as the pixel pitch in millimetres, and the image looks best from about two to three times that distance. So a 1.5 mm LED wall looks smooth from about 1.5 metres and best from 3 to 4.5 metres, while a 2.5 mm wall suits rooms where the nearest viewer sits 5 metres or more away. Control rooms and close-view boardrooms use 0.78 to 1.2 mm, most boardrooms and lobbies use 1.2 to 1.8 mm, and auditoriums and atriums use 2 to 2.5 mm.
What Pixel Pitch Means
Pixel pitch is the distance between the centres of two neighbouring LED pixels, in millimetres. A smaller pitch packs more pixels into the same area, so the image stays smooth when people stand closer. Stand too close to a coarse pitch and you see individual dots; stand far away and the dots blend into a smooth picture, which is why the right pitch depends on the room, not on the brochure.
The distances are rules of thumb for typical video and presentation content. Small text, spreadsheets and dashboards need you to sit a little farther back, or choose a finer pitch. See all models in our LED cabinet collection and all-in-one LED displays.
How Pixel Pitch Sets the Resolution
The resolution of an LED wall is the width divided by the pixel pitch. Three examples from our range show how this works:
MAXHUB LX220V18: 220 inches at 1.2 mm also gives 4K, because the larger screen spreads the same pixels over a bigger area.
If your content is 4K and people sit close, check that the wall size and pitch together reach 3,840 pixels across. If the content is Full HD or the audience sits far away, a coarser pitch is enough.
Common Mistakes When Choosing Pixel Pitch
Choosing from the back row: size the pitch from the front row or the operator desk, the closest point anyone looks from.
Paying for pitch nobody can see: in a large hall, a 1.2 mm wall looks the same as 2.5 mm from 8 metres away.
Trianze Tech measures the room, the closest and farthest viewing points, the daylight and the content you will show, then recommends the pixel pitch, wall size and controller with a layout drawing. We install LED walls in Dubai, Abu Dhabi and across the UAE and support them after handover. See our LED video wall solutions.
Pixel pitch is the distance in millimetres from the centre of one LED pixel to the next. A smaller number means the pixels are closer together, the image looks smoother from close up and the wall has more pixels for the same size.
What viewing distance is right for a 1.5 mm pixel pitch?
As a rule of thumb, viewers should be at least about 1.5 metres away from a 1.5 mm wall, and the image looks best from about 3 to 4.5 metres. This suits most boardrooms and lobbies. The Samsung IF015H cabinet and the Samsung P1.5 130 inch all-in-one display both use a 1.5 mm pitch.
How do I work out the resolution of an LED wall?

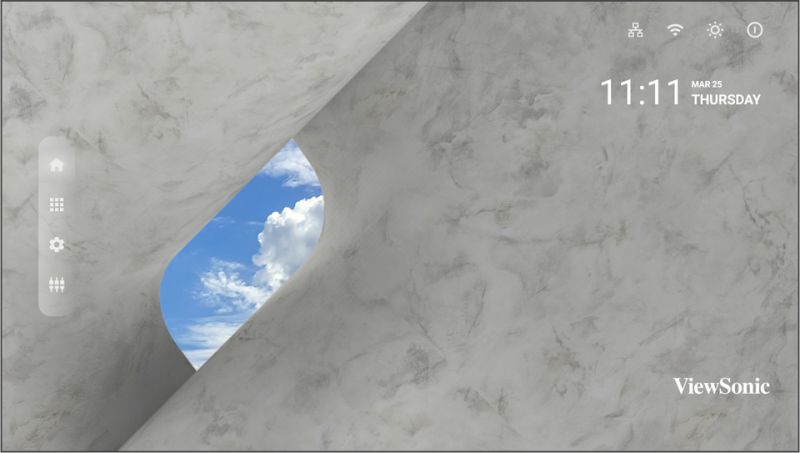

Divide the wall width in millimetres by the pixel pitch. A wall 4,000 mm wide at 1.5 mm pitch is about 2,667 pixels across. To reach 4K (3,840 pixels across), divide the width by 3,840: a wall about 3.6 metres wide needs roughly 0.94 mm, which is why the 163 inch ViewSonic LDP163-091 uses 0.93 mm for native 4K.
Is a finer pixel pitch always better?
No. A finer pitch only helps if people stand close enough to see the difference. In a large auditorium where the nearest seat is 6 metres away, a 2.5 mm wall looks just as smooth as a 1.2 mm wall, and the finer pitch would add cost without a visible benefit. Choose the pitch from the closest viewing distance.
What pixel pitch do I need for a control room?
Operators usually sit 1 to 3 metres from the wall and read small text, so control rooms use fine pitch LED of about 0.78 to 1.2 mm, such as LG MAGNIT 0.78 mm or 0.94 mm, or narrow bezel LCD panels.
