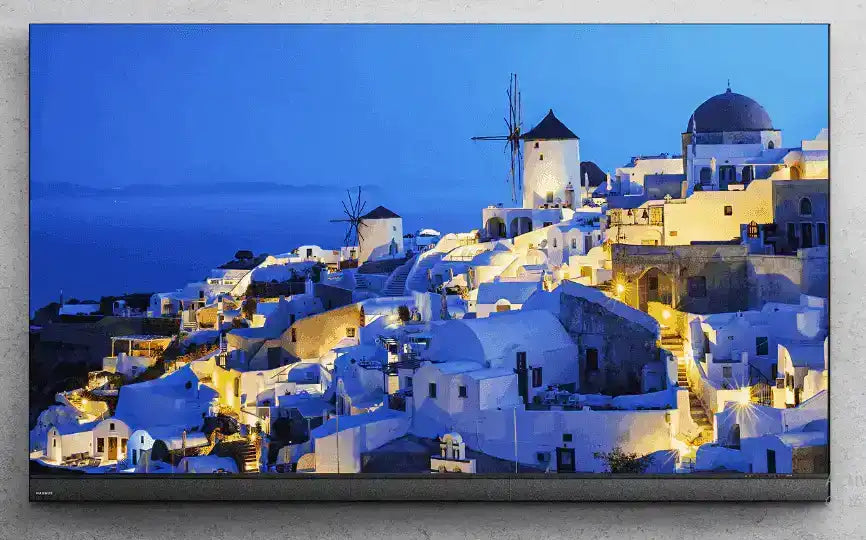

MAXHUB LX220V18: Raptor Series V3 220 Inch 4K All-in-One DvLED Display
MAXHUB LX220V18 is the flagship of the Raptor Series V3, a 220 inch Direct View LED display featuring Flip Chip COB technology and true 4K UHD resolution. Purpose-built for large venues, auditoriums, and the most demanding executive boardrooms, it delivers exceptional image fidelity at massive scale alongside integrated Android 13 and immersive six-driver audio.
Key Features
- 220 inch Flip Chip COB LED, 1.2mm pixel pitch, true 4K UHD (3840x2160), 100-600 nits adjustable brightness
- Ultra-fine pixel pitch delivers sharp detail even at close viewing distances for a display of this scale
- Android 13 with 8-core CPU, 4-core GPU, 6 TOPS NPU, 8GB RAM, 64GB storage, optional Windows PC module
- 6-chamber, 6-driver immersive audio system with Sky-Wave Sound simulated overhead effect, up to 120W output
- Front-access maintenance for module-level servicing without wall removal
Technical Specifications
| Spec | Detail |
|---|---|
| Screen | 220 inch Flip Chip COB LED, 1.2mm pixel pitch, 3840x2160 (4K UHD), 6,500:1 contrast |
| Weight | Approximately 515kg gross weight |
| Compute | 8-core CPU, 4-core GPU, 6 TOPS NPU, Android 13, 8GB RAM, 64GB storage |
| Audio | 6-chamber, 6-driver system, Sky-Wave Sound simulated overhead audio, up to 120W |
| Connectivity | 4x HDMI in, HDMI out, USB-C, USB 3.0, PoE LAN, RS232, WiFi 6, Bluetooth 5.3 |
| Installation | Wall-mounting bar included, front-access maintenance, LED lifespan 100,000+ hours |
Why Buy the MAXHUB LX220V18 from Trianze Tech?
- Genuine MAXHUB DvLED hardware sourced through Trianze Tech
- Flagship 4K all-in-one LED display for the most demanding boardrooms, venues, and auditoriums
- Professional AV integration and installation support across Dubai, Abu Dhabi, and the GCC
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
DvLED (Direct View LED) uses individual LED diodes to form the image directly, rather than a backlit LCD panel, delivering higher brightness, contrast, and seamless scalability to very large sizes without a bezel dividing multiple screens together.
It ships with a built-in Android 13 system as standard, and an optional Windows PC module can be added for organisations that need a full Windows environment for their applications.
It uses front access maintenance, meaning individual LED modules can be removed and serviced from the front of the display without needing rear clearance or removing the unit from the wall.
It features an immersive built-in system with 4 full-range speakers plus 2 low-frequency speakers, delivering up to 120W maximum output power and 95dB maximum sound pressure level.
Yes, it supports BYOM (Bring Your Own Meeting), letting users connect their own laptop to the room hardware, and is compatible with mainstream video conferencing platforms and MAXHUB MTR certified accessories.
