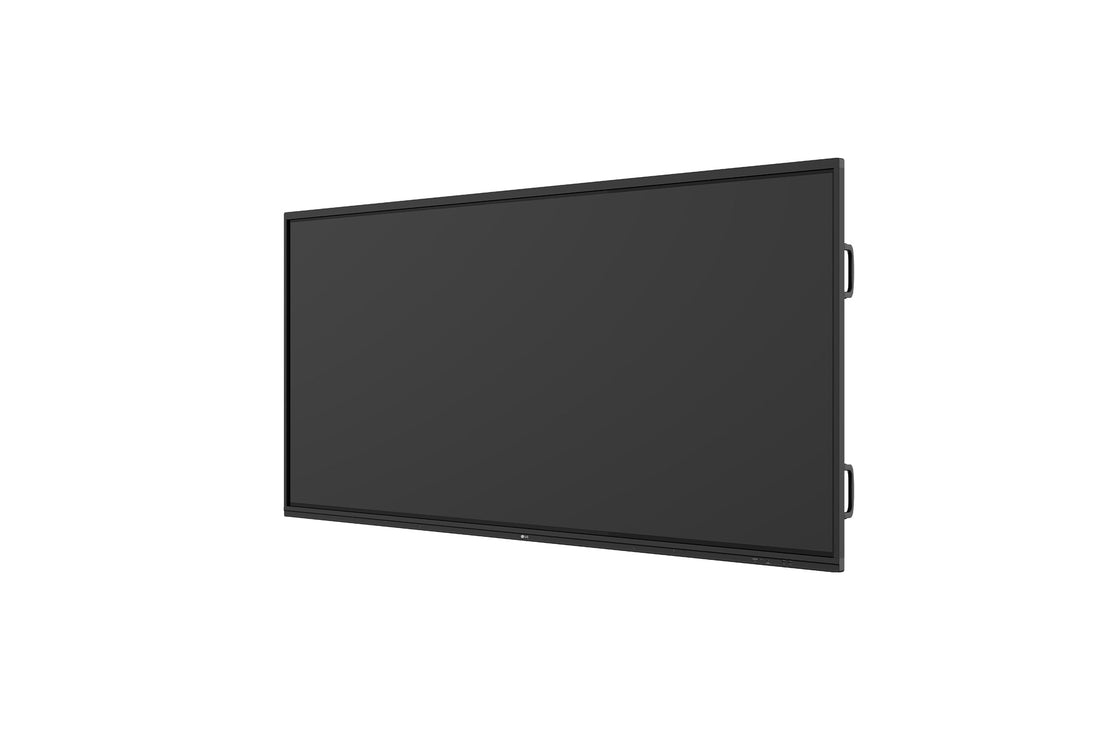

LG CreateBoard 105TR5WP 105 inch 21:9 interactive display

Interactive and Multi-Touch Video Walls: How They Work and Which to Choose

By Trianze Tech Team

Planning an interactive or multi-touch video wall? Book a site survey or WhatsApp our AV consultants and we will recommend the right touch solution for your space.

An interactive video wall lets people touch and control content on a large screen. There are four practical ways to build one: a single very large interactive display such as the 105 inch LG CreateBoard 105TR5WP; a touch overlay fitted to a commercial display, such as the LG KT-T550; touch-enabled displays tiled side by side, such as the Samsung QM55B-T or LG 55TC3D; or one infrared touch frame across a whole multi-panel wall, sized to the finished wall. The right choice depends on the size, the number of people touching at once and whether the content is one shared canvas or separate screens.

Four Ways to Build a Touch Wall

Approach Example from our range What the listing states Best for
Single large interactive display LG CreateBoard 105TR5WP 105 inch 21:9, 5K, 50 point touch, built-in OPS slot Boardrooms, briefing centres, no seams
Touch overlay on a display LG KT-T550 55 inch IR overlay, up to 10 touch points, USB, 3 mm tempered glass Adding touch to an existing 55 inch LG display
Tiled touch displays Samsung QM55B-T, LG 55TC3D QM55B-T: capacitive touch, 4K; 55TC3D: P-cap, up to 40 touch points Kiosks, wayfinding, product walls with separate screens
One IR frame across a video wall Specified per project with panels from our video wall range Frame sized to the finished wall, one PC runs the touch content Large shared touch canvases in lobbies and showrooms

Single Large Interactive Display

If the touch area you need is up to about 105 inches, one display avoids bezels completely. The LG CreateBoard 105TR5WP is 105 inches wide in a 21:9 shape with 5K resolution and 50 point touch, and interactive panels from our interactive flat panel range go up to 98 inches. This is usually the simplest and most reliable route. Compare brands in our interactive panel brands guide.

Touch Overlays

A touch overlay turns a compatible commercial display into a touch screen. The LG KT-T550 is an infrared overlay for compatible 55 inch LG commercial displays with up to 10 touch points, USB connection (no separate power adapter), 3 mm anti-glare tempered glass and support for Windows, macOS, Linux and Android. It suits projects that already have the display or need a specific display model.

Tiled Touch Displays

Several touch displays mounted together give a wall of individual touch screens. The Samsung QM55B-T is a 55 inch 4K display with capacitive touch, the Samsung QM43R-T a 43 inch 4K display with PCAP touch and 10 touch points, and the LG 55TC3D a 55 inch P-cap display with up to 40 touch points. Each screen runs its own content, which suits wayfinding, catalogues and visitor information.

One Touch Frame Across a Whole Wall

For a single shared canvas larger than one display, an infrared touch frame is built to the size of the finished wall and fitted in front of a narrow bezel LCD video wall. One PC runs the touch application across the whole wall. Narrow bezel panels such as the Samsung VH55C-R (0.44 mm combined bezel) keep the lines thin. We size the frame, mounting and PC for each project; see our LED vs LCD guide for choosing the wall itself.

Things to Plan Before You Buy

  • Touch points: how many people will touch at once; 10 points suit one or two users, 40 to 50 suit groups.
  • Content: touch walls need touch-ready software; one shared canvas needs one PC driving the whole wall.
  • Mounting height: mount so the touch area is reachable, typically lower than a viewing-only wall.
  • Outdoors: use outdoor-rated touch screens such as the LG 55XE3P-B (3,500 nits, IP56, IK10 glass).

Interactive Video Walls in Dubai and Abu Dhabi

Trianze Tech designs and installs interactive walls for lobbies, showrooms, briefing centres and museums across the UAE, including the display, touch layer, PC, mounting and content setup. See our LED video wall solutions and digital signage solutions, or request a video wall quote.

Call +971 58 161 3661 | Chat on WhatsApp

Frequently asked questions

Can a video wall be made touch-sensitive?

Yes. The common ways are to use a single very large interactive display, to fit a touch overlay to a commercial display, to tile touch-enabled displays, or to fit one infrared touch frame across a whole multi-panel wall. Which one fits depends on the size you need and how many people will touch it at once.

What is the biggest single interactive screen you supply?

The LG CreateBoard 105TR5WP is a 105 inch 21:9 display with 5K resolution (5120 x 2160) and 50 point multi-touch. It gives a very wide touch surface without any bezels.

How does a touch overlay work?

A touch overlay is a frame with glass that mounts on the front of a display and senses touch with infrared light. The LG KT-T550, for example, fits compatible 55 inch LG commercial displays, supports up to 10 touch points and connects to the PC by USB without a separate power adapter.

Can people touch across the seams of a multi-panel touch wall?

With one infrared frame across the whole wall, yes, the touch area covers the full wall including the bezel lines, and one PC runs the content. With separate touch displays tiled together, each panel is its own touch screen, which suits kiosks and wayfinding better than one large shared canvas.

Can a touch screen work outdoors?

Yes, with an outdoor-rated model. The LG 55XE3P-B is a 55 inch outdoor touchscreen with 3,500 nits brightness, IP56 protection and IK10 rated glass, rated for 24/7 operation.

Who supplies and installs interactive and multi-touch video walls in Dubai and Abu Dhabi?

Trianze Tech supplies, installs and supports interactive and multi-touch video walls across Dubai, Abu Dhabi and the rest of the UAE, from site survey and design to installation, testing and handover training. Call +971 58 161 3661 or message us on WhatsApp to book a survey.
