Outdoor Digital Signage in UAE Heat: Brightness, IP Rating and Cooling

By Trianze Tech Team

Planning an outdoor screen in the UAE? Book a site survey or WhatsApp our AV consultants and we will recommend the right outdoor display for your space.

An outdoor screen in the UAE needs three things: brightness of about 3,000 to 4,000 nits to beat the sun, a sealed IP56 rated enclosure with impact-rated glass against dust, sand and rain, and a location planned around heat, because even outdoor displays list a lower maximum temperature in direct sunlight. Examples from our range include the Samsung OH75A (over 3,500 nits, IP56, IK10), the Samsung OH55DX (3,000 nits, IP56, integrated cooling) and the LG 55XE4F-M (4,000 nits, IP56, IK10).

Outdoor Displays in Our Range

Model Brightness Protection Other listed details

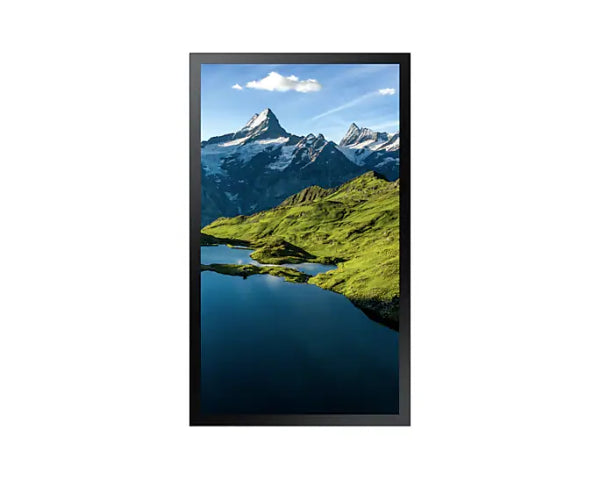

Samsung OH75A Over 3,500 nits IP56, IK10 75 inch 4K, 24/7 operation
Samsung OH55DX Up to 3,000 nits IP56 Integrated cooling system, anti-glare panel, 24/7
LG 55XE4F-M 4,000 nits IP56, IK10 glass Portrait or landscape, HDBaseT
LG 55XE3P-B 3,500 nits typical IP56, IK10 glass Touchscreen, -30 to 50 degrees C without direct sun, -30 to 40 degrees C in direct sun

Heat: Plan the Location

UAE summer temperatures and direct sun are the biggest risk to outdoor screens. Read the operating temperature on the specification: the LG 55XE3P-B, for example, lists up to 50 degrees C without direct sunlight but up to 40 degrees C in direct sunlight with its cooling system running. To keep a screen within its rating:

  • Use shade: canopies, overhangs and covered walkways reduce direct sun on the screen.
  • Choose the orientation: where possible, avoid screens facing the strongest afternoon sun.
  • Keep airflow clear: do not block the display's cooling vents with enclosures or signage frames.
  • Schedule brightness: run lower brightness at night to reduce heat and power.

Dust, Sand and Rain

IP56 means the screen is protected against dust and strong water jets. Outdoor models also use impact-rated glass, such as the IK10 rated tempered laminated glass on the LG 55XE4F-M, which matters in public spaces.

Window-Facing Screens Are Not Outdoor Screens

Window-facing displays such as the LG 55XS4P and Samsung OM46B reach 4,000 nits but sit indoors behind glass. The LG 55XS4P lists 0 to 40 degrees C without direct sunlight and 0 to 30 degrees C with direct sunlight, so shop windows that trap heat need ventilation. See our signage brightness guide.

Outdoor Signage in Dubai and Abu Dhabi

Trianze Tech surveys each outdoor location for sun, heat, power and mounting, then supplies and installs the display, structure and content system. See our digital signage solutions, the digital signage collection and our signage cost factors guide.

Call +971 58 161 3661 | Chat on WhatsApp

Frequently asked questions

What brightness does an outdoor screen need in the UAE?

For direct sun, choose about 3,000 to 4,000 nits. In our range, the Samsung OH55DX is 3,000 nits, the Samsung OH75A is over 3,500 nits and the LG 55XE4F-M is 4,000 nits.

What IP rating should an outdoor display have?

Look for a fully sealed outdoor rating such as IP56, which the Samsung OH75A, Samsung OH55DX, LG 55XE4F-M and LG 55XE3P-B all list. IP56 protects against dust and strong water jets, which covers sand, dust and rain.

Can outdoor displays handle UAE summer temperatures?

Check the operating temperature in the specification and plan the location. For example, the LG 55XE3P-B lists operation from -30 to 50 degrees C without direct sunlight and -30 to 40 degrees C in direct sunlight, using its cooling system. Shade, canopies and the screen's orientation help keep a display within its rating in summer.

Is a window-facing display the same as an outdoor display?

No. Window-facing displays, such as the LG 55XS4P and Samsung OM46B, are very bright but are designed to sit indoors behind glass. The LG 55XS4P lists 0 to 40 degrees C without direct sunlight and 0 to 30 degrees C with direct sunlight, so ventilation behind the shop window matters.

Do outdoor screens need protective glass?

Yes. Outdoor models use toughened glass rated against impact, for example IK10 rated tempered laminated glass on the LG 55XE4F-M and 55XE3P-B, and IK10 on the Samsung OH75A.

Who supplies and installs outdoor and window-facing digital signage in Dubai and Abu Dhabi?

Trianze Tech supplies, installs and supports outdoor and window-facing digital signage across Dubai, Abu Dhabi and the rest of the UAE, from site survey and design to installation, testing and handover training. Call +971 58 161 3661 or message us on WhatsApp to book a survey.
