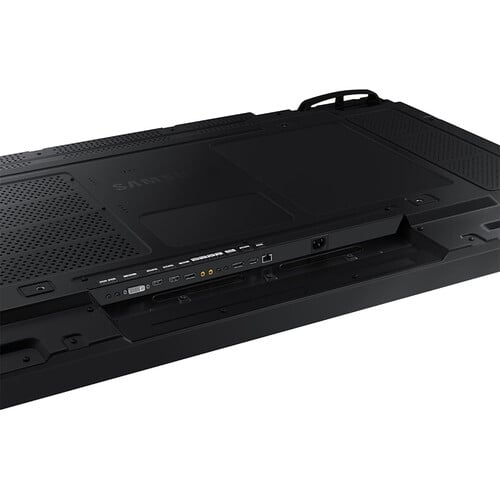

Samsung VH55C-R 55" Video Wall Display | 700-Nit 24/7 Signage | 1.7mm Ultra-Narrow Bezel | Dubai UAE Stock
Samsung VH55C-R 55" Video Wall Display | 700-Nit 24/7 Signage | 1.7mm Ultra-Narrow Bezel | Dubai UAE Stock
Samsung VH55C-R 55" Video Wall Display | 700-Nit 24/7 Signage | 1.7mm Ultra-Narrow Bezel | Dubai UAE Stock
Brand
:
Samsung
Model
:
VH55C-R / LH55VHCRBGBXUE
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung VH55C-R represents a significant engineering milestone in the evolution of professional video wall infrastructure for the Middle Eastern market. By refining the bezel architecture to a razor-narrow 1.7mm (bezel-to-bezel), Samsung has effectively minimized the visual "grid" effect that typically distracts from high-resolution digital storytelling. This model features an advanced anti-glare surface with a 28% haze coating, specifically designed to maintain text legibility and image depth in the brightly lit, glass-heavy architectural environments common in Dubai and Abu Dhabi. Furthermore, the integration of multi-step factory calibration and real-time color adjustment via mobile applications ensures that enterprise users can achieve uniform brightness and chromatic accuracy across dozens of panels, guaranteeing that corporate brand identities are rendered with total precision.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code VH55C-R, featuring the primary Middle East manufacturer part number code LH55VHCREBMG/ZN alongside international engineering validation stock codes LH55VHCREBGB/EN and LH55VHCREBXM.
- Visual Panel and Backlight Architecture: Features a premium 55-inch Direct-lit LED (D-LED) professional panel that achieves a native resolution of 1920 x 1080 pixels per unit, optimized for high-density multi-screen video wall configurations.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits, coupled with an advanced 28 percent haze glass coating that diffuses harsh reflections from Dubai’s natural sunlight to maintain optimal contrast levels.
- Contrast Performance and Color Depth: Engineered around a native 1200:1 static contrast ratio with a dynamic ratio of 45,000:1, utilizing high-bit processing to represent millions of unique color coordinates for lifelike visual rendering.
- Integrated Signal and Daisy-Chain Processing: Outfitted with DisplayPort 1.2 Loop-Out technology, enabling the transmission of Ultra-High Definition (4K) content across multiple screens without the need for external graphic splitters or matrix hardware.
- Physical Enclosure and Mounting Mechanics: Features a precision razor-narrow bezel measuring 1.15mm on the top and left sides and 0.55mm on the bottom and right, with standard VESA 600 x 400 millimeter mounting points for secure structural installation.
- Signal and Management Interface Ports: Configured with two HDMI 2.0 input ports, one DisplayPort 1.2 input, one DVI-D terminal, a USB 2.0 media slot, and industrial RJ-45 and RS-232C ports for remote network management and command-line control.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for integration with video conferencing backbones supporting Microsoft Teams Rooms (MTR) and Zoom Rooms via external compute modules.
- Collaborative Endpoint Support: Native structural compatibility with Samsung MagicINFO systems for centralized content scheduling and remote hardware health monitoring across UAE regional offices.
- Automation Control Integration: Features direct driver and structural compatibility with Crestron Connected, Extron, and AMX automated boardroom control architectures for seamless system integration.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ECAS requirements.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications, ensuring immediate acceptance by corporate facilities management and health and safety officers.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1211.5 millimeters, a total frame height of 682.3 millimeters, and a physical depth thickness of 70.0 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes with an outer shipping width of 1398 millimeters, a box height of 844 millimeters, and a package depth of 257 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 19.4 kilograms to allow for precise structural load-bearing calculations on UAE interior fit-out walls.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 27.6 kilograms per crated cargo box, ensuring seamless dispatching through regional logistics routes in Dubai and Abu Dhabi.
Key Features
The Samsung VH55C-R represents a significant engineering milestone in the evolution of professional video wall infrastructure for the Middle Eastern market. By refining the bezel architecture to a razor-narrow 1.7mm (bezel-to-bezel), Samsung has effectively minimized the visual "grid" effect that typically distracts from high-resolution digital storytelling. This model features an advanced anti-glare surface with a 28% haze coating, specifically designed to maintain text legibility and image depth in the brightly lit, glass-heavy architectural environments common in Dubai and Abu Dhabi. Furthermore, the integration of multi-step factory calibration and real-time color adjustment via mobile applications ensures that enterprise users can achieve uniform brightness and chromatic accuracy across dozens of panels, guaranteeing that corporate brand identities are rendered with total precision.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code VH55C-R, featuring the primary Middle East manufacturer part number code LH55VHCREBMG/ZN alongside international engineering validation stock codes LH55VHCREBGB/EN and LH55VHCREBXM.
- Visual Panel and Backlight Architecture: Features a premium 55-inch Direct-lit LED (D-LED) professional panel that achieves a native resolution of 1920 x 1080 pixels per unit, optimized for high-density multi-screen video wall configurations.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits, coupled with an advanced 28 percent haze glass coating that diffuses harsh reflections from Dubai’s natural sunlight to maintain optimal contrast levels.
- Contrast Performance and Color Depth: Engineered around a native 1200:1 static contrast ratio with a dynamic ratio of 45,000:1, utilizing high-bit processing to represent millions of unique color coordinates for lifelike visual rendering.
- Integrated Signal and Daisy-Chain Processing: Outfitted with DisplayPort 1.2 Loop-Out technology, enabling the transmission of Ultra-High Definition (4K) content across multiple screens without the need for external graphic splitters or matrix hardware.
- Physical Enclosure and Mounting Mechanics: Features a precision razor-narrow bezel measuring 1.15mm on the top and left sides and 0.55mm on the bottom and right, with standard VESA 600 x 400 millimeter mounting points for secure structural installation.
- Signal and Management Interface Ports: Configured with two HDMI 2.0 input ports, one DisplayPort 1.2 input, one DVI-D terminal, a USB 2.0 media slot, and industrial RJ-45 and RS-232C ports for remote network management and command-line control.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for integration with video conferencing backbones supporting Microsoft Teams Rooms (MTR) and Zoom Rooms via external compute modules.
- Collaborative Endpoint Support: Native structural compatibility with Samsung MagicINFO systems for centralized content scheduling and remote hardware health monitoring across UAE regional offices.
- Automation Control Integration: Features direct driver and structural compatibility with Crestron Connected, Extron, and AMX automated boardroom control architectures for seamless system integration.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ECAS requirements.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications, ensuring immediate acceptance by corporate facilities management and health and safety officers.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1211.5 millimeters, a total frame height of 682.3 millimeters, and a physical depth thickness of 70.0 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes with an outer shipping width of 1398 millimeters, a box height of 844 millimeters, and a package depth of 257 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 19.4 kilograms to allow for precise structural load-bearing calculations on UAE interior fit-out walls.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 27.6 kilograms per crated cargo box, ensuring seamless dispatching through regional logistics routes in Dubai and Abu Dhabi.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung VH55C-R directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Video wall installations in high-traffic commercial spaces or public hubs generate massive ambient air movement, pulling lint and dust into the rear cooling vents of standard panels. This particulate buildup can settle on internal light arrays, leading to overheating or dark spots. The VH55C-R includes a verified IP5X dust-proof rating, insulating critical operational sub-components and circuit tracts to guarantee continuous 24/7 durability with reduced maintenance overhead.
Deep commercial display panels that protrude past 100mm require deep structural recess carving to avoid breaking strict international fire and safety walkway compliance codes. The sleek structural layout of the VH55C-R restricts total panel depth to a thin 69.9mm. When matched with low-profile video wall bracket hardware, the entire digital layout hangs flush to the partition face, preserving walking clearance across transport hubs in Africa and the CIS region.
Calibrating a massive display wall historically required complex photometer hardware, dedicated computer links, and hours of tuning. The VH55C-R overcomes this via compatibility with the Samsung Color Expert Pro Mobile platform. Using the camera sensor on a compatible smartphone, installers can run automated white balance and chromaticity sweeps across layout setups up to a 3x3 matrix simultaneously, balancing color saturation within minutes across sites in Almaty or Cairo.
Yes. Equipped with the sixth-generation Samsung Smart Signage Platform (SSSP 6.0) and an embedded quad-core SoC layer running MagicINFO S6, the display possesses standalone media processing power. Via native DisplayPort 1.2 loop-out digital channels, the system accepts a master high-definition feed and loops uncompressed UHD layouts across daisy-chained configurations up to a 10x10 array (100 panels) without requiring external matrix graphic cards or distribution amplifier hubs.
