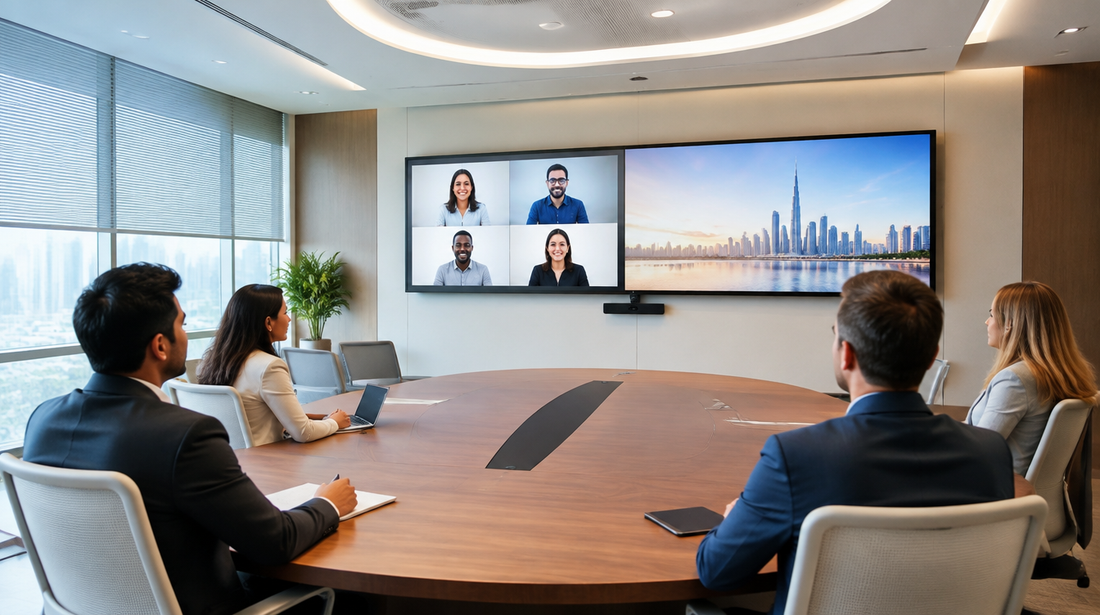

A Microsoft Teams Signature Room needs a curved table with participants seated on one side facing the display, an intelligent ultrawide front-of-room camera positioned below the display and above table height, and adjustable zoned lighting with dimmable controls and window shades. Microsoft's own guidance sizes a typical Signature Room at roughly 25 feet wide by 14 feet deep to comfortably fit six to eight people, with a standard 30-inch table height. The curved geometry keeps in-room participants able to see each other while staying face-to-face with remote attendees in Front Row, which is the core design principle every other element in the room, camera placement, lighting, display height, is built around. Full room dimensions and equipment placement details are published in Microsoft's own Teams Rooms planning guidance, which Trianze references directly when scoping a new Signature Room build for a UAE client.
Table Geometry: Why Curved Beats Rectangular for Signature Rooms
A curved table seats everyone facing the front of the room in one continuous arc, so no participant has their back to the camera and every in-room attendee remains visible to remote participants in the Front Row video strip.
A traditional rectangular boardroom table seats people along both long sides facing each other, which works for in-room conversation but leaves half the table facing away from the camera during a hybrid call. Microsoft's Signature Room specification exists specifically to fix this: a curved table at standard 30-inch height, sized to the room's roughly 25 by 14 foot footprint, keeps six to eight people all oriented toward the display and camera simultaneously. Trianze designs the table geometry first in any Signature Room project, since every other element, camera field of view, display width, lighting zones, is sized around it.
Camera Elevation: Getting Eye Contact Right
The front-of-room camera sits below the display and above the top of the table, a narrow vertical band that keeps the camera close enough to eye level that remote participants don't appear to be looked down on or up at during the call.
This positioning needs an intelligent, ultrawide-angle camera rated for the room's actual width and depth, not a generic webcam mounted wherever convenient. Getting the elevation wrong by even a few inches changes the perceived eye contact for every remote participant in every meeting held in the room, which is why Trianze treats camera height as a fixed design constraint tied to the table and display geometry, not a field adjustment made during installation. See our Executive Boardrooms & Smart Meeting Spaces practice for how camera, display, and table geometry are specified together.
Lighting: Zoned and Dimmable, Not Fixed
A Signature Room needs lighting that can be tuned per meeting, since the same room hosting a bright morning presentation and a video call with dimmed ambient light needs different settings without anyone manually adjusting individual fixtures.
| Element |
Signature Room requirement |
| Table |
Curved, ~30" height, sized for room's footprint |
| Camera |
Ultrawide, below display, above table height |
| Lighting |
Dimmable, zoned, with blinds/shades |
| Typical room size |
~25ft wide x 14ft deep for 6-8 people |
Zoned dimmable lighting paired with adjustable blinds or shades lets a room compensate for daylight changes throughout the day, a real factor in UAE offices with significant natural light, without requiring a facilities call every time the room's use case shifts from presentation to video call. Trianze specifies lighting control as part of the same integrated system driving the display, camera, and control panel, not a separate electrical scope handled independently.
Ready to design a Signature Room for your Dubai or Abu Dhabi office? Request a quote for a full room design consultation.
Related Reading
See also: Microsoft Teams Rooms vs Zoom Rooms: What UAE Offices Should Know Before Choosing for the platform decision that comes before designing the room itself.
Frequently Asked Questions
What size room do I need for a Microsoft Teams Signature Room?
Microsoft's guidance sizes a typical Signature Room at approximately 25 feet wide by 14 feet deep, comfortably fitting six to eight people around a curved table at standard 30-inch height. Rooms outside this footprint can still work, but table geometry, camera field of view, and lighting zones need re-calculating for the actual dimensions.
Why does a Signature Room use a curved table instead of rectangular?
A curved table seats everyone facing the front of the room in one continuous arc, keeping every in-room participant visible to the camera and face-to-face with remote attendees in Front Row. A rectangular table leaves participants on both long sides, half of them facing away from the camera.
Where should the camera be positioned in a Signature Room?
The camera sits below the front-of-room display and above the top of the table, a narrow band that keeps it close to eye level so remote participants don't appear to be looked down on or up at during calls. It needs to be an intelligent ultrawide-angle camera rated for the room's actual dimensions.
What lighting does a Signature Room need?
Adjustable, zoned, dimmable lighting with blinds or shades to control natural light. This lets the room adapt between bright in-person presentations and dimmed video-call ambiance without manual per-fixture adjustment, particularly relevant in UAE offices with significant natural daylight that shifts throughout the working day.
Does Trianze Tech design and build complete Signature Rooms?
Yes, Trianze designs table geometry, camera placement, lighting zones, and display specification together as one integrated system for Microsoft Teams Signature Rooms across Dubai, Abu Dhabi, and the wider UAE, rather than treating each element as a separate procurement decision handled by different vendors.
