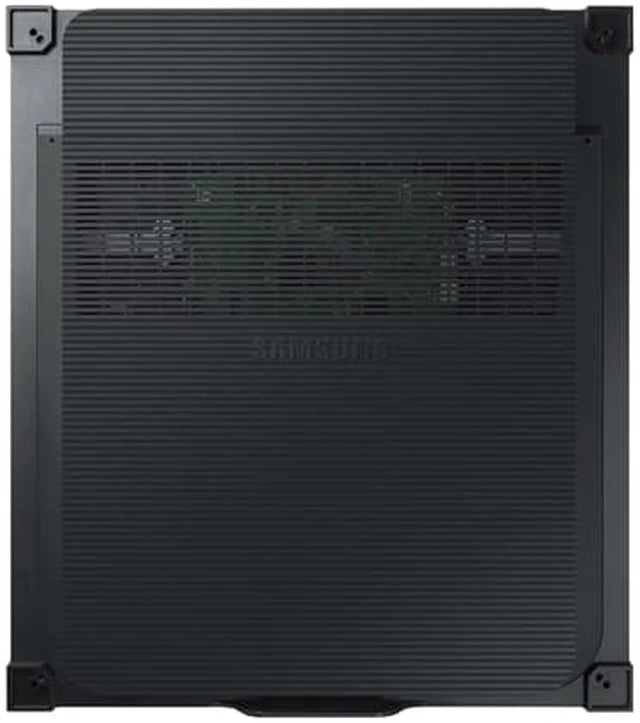

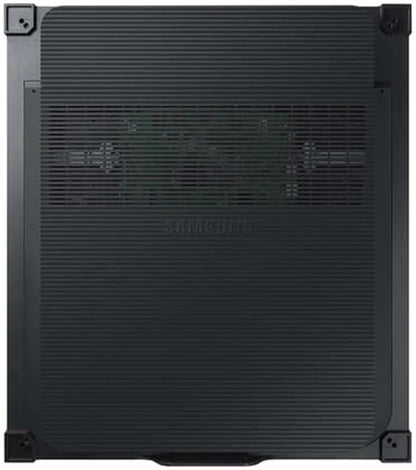

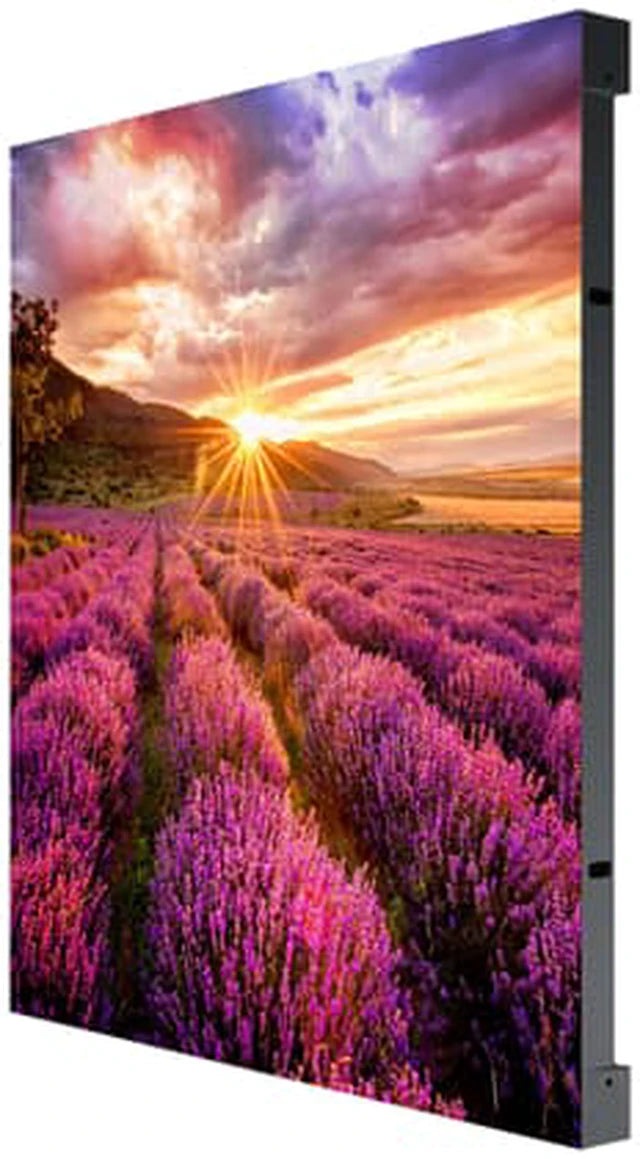

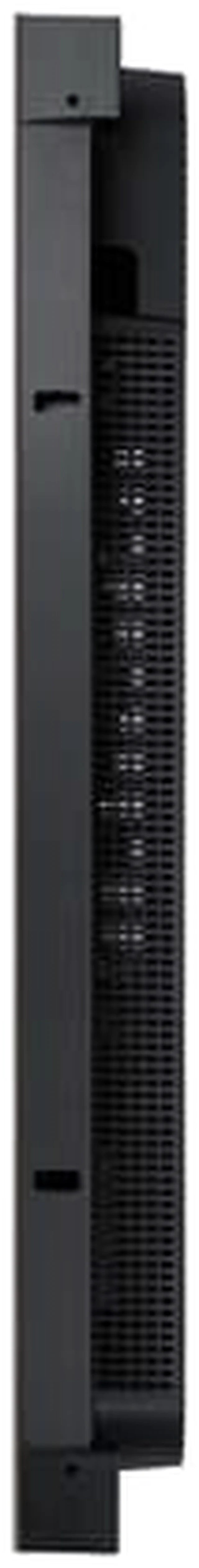

Samsung IF015H: 1.5mm Pixel Pitch Indoor Direct-View LED Cabinet
Model
:
IF015H
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Samsung IF015H: 1.5mm Pixel Pitch Indoor Direct-View LED Cabinet
Samsung's IF015H is a fine-pixel-pitch indoor direct-view LED cabinet built for retail, lobby, and control-room video walls across Dubai and the GCC. It sits below The Wall MicroLED range on price while still delivering a seamless, high-density image for close-viewing commercial spaces.
Key Features
- 1.5mm pixel pitch SMD LED cabinet, 800 nit brightness
- 320 x 360 pixel resolution per cabinet, 480 x 540 x 65mm cabinet dimensions
- 160 degree horizontal viewing angle, 14.5-bit colour depth, 100% NTSC colour gamut
- 100,000 hour rated LED lifetime
- Tiles into large-format custom video walls
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | IF015H (LH015IFHSAS/ZA) |
| Pixel Pitch | 1.5mm |
| Resolution per Cabinet | 320 x 360 pixels |
| Cabinet Dimensions | 480 x 540 x 65mm |
| Brightness | 800 nit |
| Viewing Angle | 160 degrees horizontal |
| Operating Temperature | 0C to 40C |
| LED Lifetime | 100,000 hours |
| IP Rating | IP20 (indoor use) |
| Certifications | UAE MoIAT, ESMA, CE, RoHS (subject to final unit configuration) |
Why Buy the Samsung IF015H from Trianze Tech?
Trianze Tech is a UAE-based Pro AV and IT distributor with dedicated local project support in Dubai for video wall deployments.
- Sourced through Samsung's authorized commercial display distribution channel for the UAE and GCC
- Project-based configuration: cabinet count, wall dimensions, and mounting structure engineered to your space
- Professional site survey, structural mounting, and installation support across Dubai, Abu Dhabi, and the wider GCC
- Local UAE warranty backing and after-sales support
- Custom quotation based on final wall size and project scope
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Samsung IF015H has a 1.5mm pixel pitch SMD LED cabinet rated at 800 nit brightness, delivering a seamless, high-density image for close-viewing commercial spaces.
Each IF015H cabinet measures 480 x 540 x 65mm and delivers 320 x 360 pixels, tiling with other cabinets to build a larger custom video wall.
The Samsung IF015H carries a 100,000 hour rated LED lifetime, reducing cabinet replacement frequency over the life of the installation.
The Samsung IF015H offers a 160 degree horizontal viewing angle with 100% NTSC colour gamut and 14.5-bit colour depth.
The Samsung IF015H cabinet's part number is LH015IFHSAS/ZA.
Trianze Tech stocks the Samsung IF015H in Dubai with fast delivery and project installation across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
