Key Features

The VSYS VSVW02-46T is a highly specialized architectural integration tool designed to solve the most persistent challenge in large-scale commercial video walls: rapid serviceability. Standard mounting hardware requires entire display matrices to be disassembled simply to replace a single faulty cable or media player. The VSVW02-46T completely eliminates this operational downtime by utilizing a fluid, push-to-pop scissor extension mechanism. With a gentle push on the screen bezel, the display extends smoothly outward up to 215mm, providing instant, unobstructed rear access for IT technicians. Combined with its advanced lateral shift brackets and precision micro-leveling dials, this modular mount guarantees perfect, zero-bezel alignment, making it the definitive structural backbone for NOC control rooms, premium retail storefronts, and executive briefing centers across the UAE.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: The core VSVW02-46T pop-out video wall bracket is fully stocked and immediately available from our central Dubai warehousing hub, trackable via its regional Middle East MPN (VS-VSVW02-46T-ME) and international stock configuration codes (VS-VSVW02-46T-INT), ensuring enterprise buyers bypass international shipping delays for urgent multi-screen rollouts.

• Supported Panel Types & Resolution: Structurally optimized to act as the perfect foundation for narrow-bezel commercial LCD, OLED, and direct-view LED video wall panels, safely accommodating high-density 4K UHD and 8K displays from 37 inches up to 70 inches.

• Backlight, Nits & Haze Coating Compatibility: Built with the 45kg structural rigidity required to safely support ultra-bright, continuous-duty screens featuring 500-nit to 1000-nit D-LED backlights, while the precise +3° to -3° rotational leveling adjustment ensures perfect alignment without compromising the viewing angles of advanced anti-glare coatings.

• Contrast Ratio & Color Processing Depth Preservation: The rigid 2.0mm steel wall plate and 2.5mm cold-rolled steel articulating arms completely eliminate mechanical flex, preserving the display’s native contrast ratios, backlighting uniformity, and exact color matching across complex multi-monitor grids.

• I/O Ports, Computing/OS Chips & Certifications: The push-to-pop extension guarantees unhindered physical access to rear-facing HDMI/DisplayPort daisy-chains, integrated System-on-Chip (SoC) boards, and flush-mounted OPS media players, all while passing rigorous industrial strength testing certified to hold four times its approved weight.

• Universal VESA Standards: Highly adaptable to global commercial standards, natively supporting a wide array of VESA mounting hole patterns spanning from 200x200mm up to an expansive 600x400mm configuration.

Enterprise Software & UC Platform Ecosystem Compatibility

• Microsoft Teams Rooms & Zoom Rooms: Provides the perfect pop-out structural backbone for large dual-screen or quad-screen "Front Row" display configurations running Microsoft Teams Rooms and Zoom Rooms natively in high-end corporate amphitheaters.

• Cisco Webex & Crestron Connected: The deep 215mm extension profile provides ample spatial allowance to flawlessly house and route the heavy-duty data cabling, shielded CAT6 trunks, and external IP control nodes demanded by Crestron NVX digital media routing and Cisco Webex telepresence arrays.

• Extron & AMX Routing Integration: The open-architecture wall plate and pop-out depth allow for a clean wireway, explicitly providing room to conceal Extron AV-over-IP decoders or AMX signal baluns directly behind each individual display for a pristine architectural finish.

Regional Regulatory & Electrical Compliance

• MoIAT Safety Standards: The hardware structure, cold-rolled steel alloy composition, and integrated anti-theft locking systems strictly comply with the United Arab Emirates Ministry of Industry and Advanced Technology (MoIAT) guidelines for heavy commercial infrastructure safety in public spaces.

• Electrical Routing Safety: The scissor arm extension pathways are specifically gauged to safely route thick, native UK-standard 3-pin Type G electrical power cord plugs running 220V-240V, entirely preventing severe power cord bend-radius violations or cable shearing when the mount is articulated.

• International Certifications: Forged under strict industrial quality controls bearing comprehensive CB, CE, and RoHS compliance markers, ensuring all structural steel components and fine-texture black powder coatings are free from hazardous substances and entirely safe for enclosed corporate environments.

Logistics, Packaging & Spatial Handling Parameters

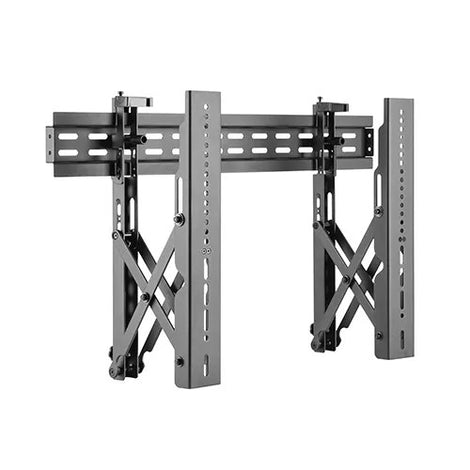

• Net Unpacked Dimensions: The raw hardware measures exactly 760 millimeters in overall width, 465 millimeters in height, and collapses to a flush 68 millimeters in depth against the wall, extending to a maximum service depth of 215 millimeters when fully popped out.

• Gross Shipping Box Dimensions: The enterprise packaging is highly condensed and optimized for rapid regional logistics, utilizing a footprint measuring 800 millimeters in length, 500 millimeters in width, and 90 millimeters in depth to drastically reduce volume weight metrics for local courier fleets.

• Net Hardware Weight: The premium 2.0-millimeter and 2.5-millimeter cold-rolled steel construction yields a highly durable, yet manageable net product weight of exactly 6.8 kilograms.

• Gross Freight Shipping Weights: Fully packaged alongside all requisite masonry anchors, drywall stud hardware, lateral shift brackets, and VESA mounting kits, the gross shipping weight totals exactly 8.1 kilograms, flawlessly calibrated for high-volume bulk palletization across UAE supply chains.
