Key Features

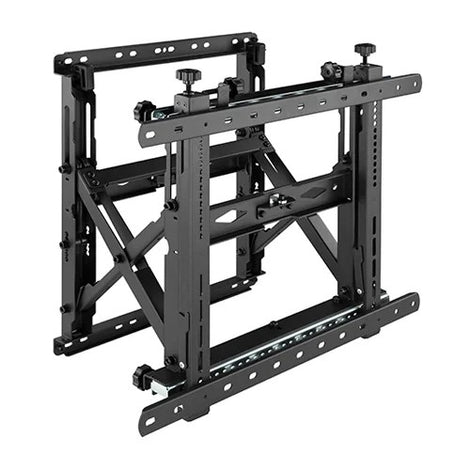

The VSYS VSVW13-46T is a foundational breakthrough in high-density digital signage integration, explicitly engineered to solve the most complex challenge of large-scale video walls: accessibility. In standard multi-monitor grids, servicing a central display requires dismantling the entire array. The VSVW13-46T eliminates this downtime with an industrial-grade pop-out release system. By simply pushing on the screen bezel, the heavy-duty scissor arms extend the display outward up to 325mm, engaging a mechanical kickstand that provides engineers instant access to rear components. Combined with precision 6-axis micro-adjustments that guarantee razor-thin bezel alignment, this modular bracket is the definitive structural backbone for high-end control rooms, retail displays, and executive briefing centers across the UAE.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: The core VSVW13-46T pop-out video wall mount is fully stocked and warehoused at our primary Dubai logistics facility, identifiable via its regional Middle East MPN (VS-VSVW13-46T-ME) and international stock configuration codes (VS-VSVW13-46T-INT), guaranteeing that enterprise procurement teams receive immediate localized availability for large-scale multi-screen rollouts without cross-border shipping delays.

• Supported Panel Types & Resolution: Structurally reinforced to accommodate the heaviest, narrow-bezel commercial panel technologies, effortlessly carrying high-density 4K UHD, 8K, and direct-view LED video wall monitors ranging from 45 inches up to 70 inches.

• Backlight, Nits & Haze Coating Compatibility: Built with the immense 70kg structural rigidity required to safely support ultra-heavy, continuous-duty screens featuring 700-nit to 1500-nit extreme D-LED backlights, while the precise +2° to -3° tilt adjustment ensures zero mechanical sag behind high-end anti-glare display grids.

• Contrast Ratio & Color Processing Depth Preservation: The exceptionally stiff 2.5mm pickling sheet wall plate entirely eliminates micro-flexing and mechanical stress on the mounted displays, perfectly preserving native contrast ratios, backlighting uniformity, and exact color matching across complex multi-monitor matrixes.

• I/O Ports, Computing/OS Chips & Certifications: The pop-out extension mechanism and integrated service kickstand guarantee unhindered physical access to rear-facing HDMI/DisplayPort daisy-chains, integrated System-on-Chip (SoC) boards, and OPS slot PCs, all while passing rigorous industrial strength testing certified to hold four times its approved weight rating.

• Universal VESA Standards: Highly adaptable to global commercial standards, natively supporting both landscape and portrait orientations with VESA mounting hole patterns spanning from 200x200mm up to 600x400mm.

Enterprise Software & UC Platform Ecosystem Compatibility

• Microsoft Teams Rooms & Zoom Rooms: Provides the perfect pop-out structural backbone for massive dual-screen or quad-screen Front Row display configurations running Microsoft Teams Rooms and Zoom Rooms natively in high-end corporate amphitheaters.

• Cisco Webex & Crestron Connected: The deep 325mm extension profile provides ample spatial allowance to flawlessly house and route the heavy-duty data cabling and external IP control nodes demanded by Crestron NVX digital media routing and Cisco Webex telepresence arrays.

• Extron & AMX Routing Integration: The open-architecture wall plate and mechanical kickstand allow for a clean wireway, explicitly providing room to conceal Extron AV-over-IP decoders or AMX signal baluns directly behind each individual display for a pristine video wall finish.

Regional Regulatory & Electrical Compliance

• MoIAT Safety Standards: The hardware structure and integrated pop-out locking safety mechanism strictly comply with the United Arab Emirates Ministry of Industry and Advanced Technology (MoIAT) guidelines for heavy commercial infrastructure safety in public spaces.

• Electrical Routing Safety: The scissor arm extension pathways are specifically designed to safely route thick, native UK-standard 3-pin Type G electrical power cord sockets running 220V-240V, entirely preventing severe power cord bend-radius violations or cable shearing when the mount is pushed in or popped out.

• International Certifications: Forged under strict industrial quality controls bearing comprehensive CB, CE, and RoHS compliance markers, ensuring all steel components and fine-texture powder coatings are free from hazardous substances and entirely safe for enclosed corporate and government environments.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Dimensions: The raw hardware measures exactly 640 millimeters in overall width, 544 millimeters in height, and collapses to a flush 120 millimeters in depth against the wall, extending to a maximum service depth of 325 millimeters.

• Gross Shipping Box Dimensions: The enterprise packaging is highly condensed and optimized for rapid regional logistics, utilizing a footprint measuring 680 millimeters in length, 580 millimeters in width, and 140 millimeters in depth to drastically reduce volume weight metrics for local courier fleets.

• Net Hardware Weight: The premium 2.5-millimeter pickling sheet steel and 2.0-millimeter cold-rolled arm construction yield a highly durable, yet manageable net product weight of exactly 8.5 kilograms.

• Gross Freight Shipping Weights: Fully packaged alongside all requisite masonry anchors, drywall stud hardware, micro-adjustment hex tools, and VESA mounting kits, the gross shipping weight totals exactly 10.2 kilograms, flawlessly calibrated for high-volume bulk palletization across UAE supply chains.
