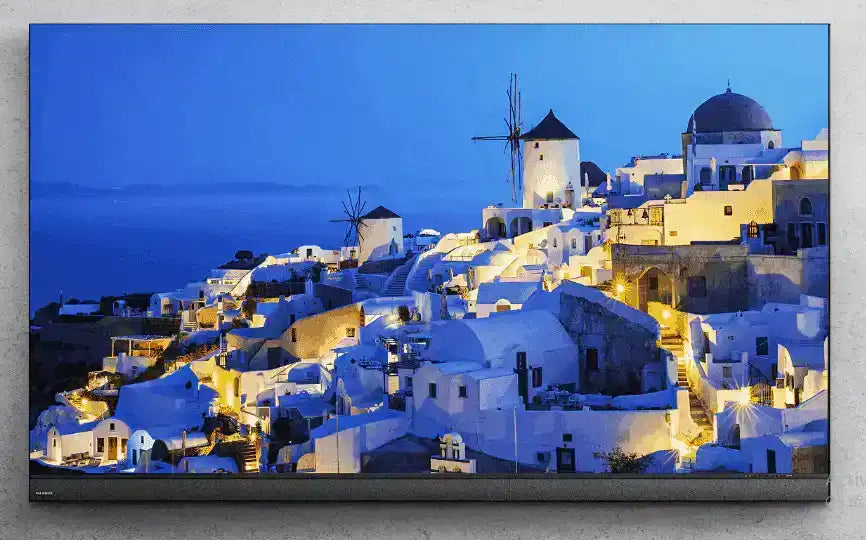

MAXHUB LX180V07: Raptor Series V3 180 Inch All-in-One DvLED Display
Model
:
LX180V07
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
MAXHUB LX180V07: Raptor Series V3 180 Inch All-in-One DvLED Display
MAXHUB LX180V07 is a state-of-the-art Direct View LED display purpose-built to transform boardrooms, auditoriums, and large meeting spaces into immersive, high-impact environments. With integrated Android 13, six high-performance speakers, and front-access maintenance, it delivers a true all-in-one large-format solution for spaces demanding maximum visual scale.
Key Features
- 180 inch 2.0mm pixel pitch SMD LED, Full HD (1920x1080), 100-600 nits adjustable brightness
- 3840Hz refresh rate eliminates flicker on camera recordings and broadcast capture
- Android 13 with octa-core processor, 8GB RAM, optional Windows PC module
- 6-driver immersive audio system (4 full-range + 2 low-frequency), up to 120W output
- Front-access maintenance for module-level servicing without wall removal
Technical Specifications
| Spec | Detail |
|---|---|
| Screen | 180 inch SMD LED, 2.0mm pixel pitch, 1920x1080, 6,500:1 contrast, 160/140 degree viewing angle |
| Weight | Approximately 185kg net weight |
| Compute | Octa-core (4x Cortex-A76+4x Cortex-A55, 2.4GHz), Android 13, 8GB RAM |
| Audio | 4 full-range + 2 low-frequency drivers, up to 120W, 95dB max SPL |
| Connectivity | 4x HDMI in, HDMI out, USB-C, USB 3.0, PoE LAN, RS232, WiFi 6, Bluetooth 5.3 |
| Installation | Wall-mounting bar included, front-access maintenance, LED lifespan 100,000+ hours |
Why Buy the MAXHUB LX180V07 from Trianze Tech?
- Genuine MAXHUB DvLED hardware sourced through Trianze Tech
- Premium large-format all-in-one LED display purpose-built for executive boardrooms and auditoriums
- Professional AV integration and installation support across Dubai, Abu Dhabi, and the GCC
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
DvLED (Direct View LED) uses individual LED diodes to form the image directly, rather than a backlit LCD panel, delivering higher brightness, contrast, and seamless scalability to very large sizes without a bezel dividing multiple screens together.
It ships with a built-in Android 13 system as standard, and an optional Windows PC module can be added for organisations that need a full Windows environment for their applications.
It uses front access maintenance, meaning individual LED modules can be removed and serviced from the front of the display without needing rear clearance or removing the unit from the wall.
It features an immersive built-in system with 4 full-range speakers plus 2 low-frequency speakers, delivering up to 120W maximum output power and 95dB maximum sound pressure level.
Yes, it supports BYOM (Bring Your Own Meeting), letting users connect their own laptop to the room hardware, and is compatible with mainstream video conferencing platforms and MAXHUB MTR certified accessories.
