ViewSonic LDP135-151: 135 Inch Direct View LED Video Wall with 1.56mm Pixel Pitch

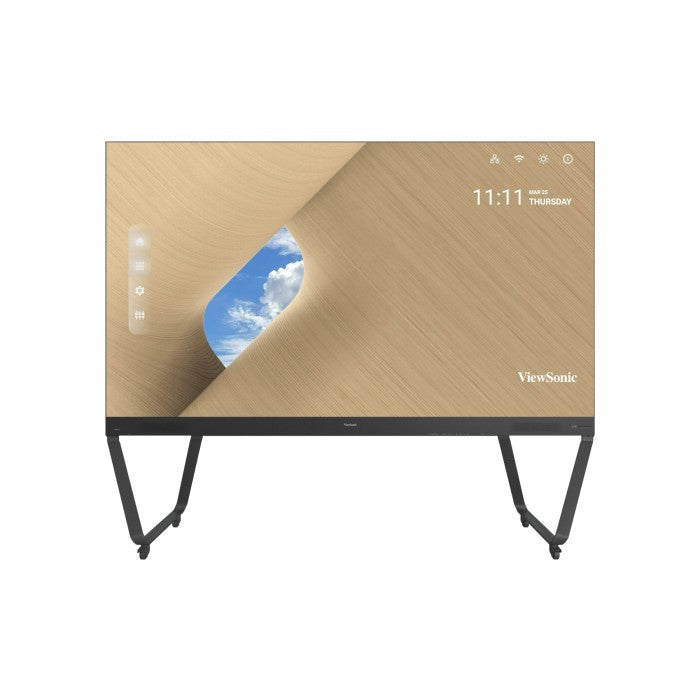

The ViewSonic LDP135-151 is a modular Direct View LED video wall with a 1.56mm pixel pitch, built to run standalone or join with a second unit to form a 32 by 9 ultra wide video wall for command centers and trading floors.
Key Features
- 1.56mm pixel pitch Direct View LED wall with 1920 x 1080 Full HD resolution
- Two units join to form a 32 by 9 ultra wide video wall configuration
- Harman Kardon dual 20W audio system built in
- HDBaseT and USB-C connectivity for flexible source integration
Technical Specifications
| Pixel Pitch | 1.56mm |
| Resolution | 1920 x 1080 Full HD |
| Screen Size | 135 inch |
| Brightness | 600 nits |
| Contrast Ratio | 6,000:1 |
| Refresh Rate | 4,440Hz |
| Viewing Angle | 160 degrees horizontal and vertical |
| LED Life | 100,000 hours |
| Operating Rating | 24/7 |
| Dimensions | 118.5 x 71.1 inch, 25mm slim profile, 57mm with wall mount |
| Weight | 120kg net, 225kg gross |
| Embedded System | Android 9.0, MTK9669 CPU, 4GB DDR4, 64GB storage (56GB usable) |
| Connectivity | HDMI 1.4 x2, HDMI 2.0 x2, HDMI 2.1 x1, HDMI 2.0 out x2, USB 2.0 x3, USB-C x1, RJ45, HDBaseT, RS232, IR in |
| Speakers | Harman Kardon dual 20W |
| Power | 1,500W typical, 2,500W max |
| Warranty | 3 year limited, parts, labor, on site service and pixel performance policy |
Why Buy the LDP135-151 from Trianze Tech?
- Genuine ViewSonic Direct View LED hardware sourced and supported locally in the UAE
- Professional AV integration and on site installation across Dubai, Abu Dhabi and the GCC
- Backed by ViewSonic's 3 year limited warranty with local after sales support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ViewSonic LDP135-151 has a 1.56mm pixel pitch Direct View LED wall delivering a native 1920 x 1080 Full HD resolution across its 135 inch screen, with 600 nits brightness and a 6,000:1 contrast ratio.
Yes, two LDP135-151 units can be joined together to form a 32 by 9 ultra wide video wall configuration, making it suited to trading floors, command centers and other applications needing an extra wide display format.
The LDP135-151 ships with the modular LED cabinets, integrated wall mounting frame, power cord, remote control, a quick start guide, a maintenance tool, a LAN cable, an IR extender and 7 spare LED PCB modules for maintenance.
The ViewSonic LDP135-151 weighs 120kg net and approximately 225kg gross including packaging, so the wall or structure supporting the modular cabinet system must be rated for a heavy fixed installation load.
The LDP135-151 includes 2x HDMI 1.4, 2x HDMI 2.0 and 1x HDMI 2.1 inputs, 2x HDMI 2.0 outputs, 3x USB 2.0 ports, a USB-C port, RJ45 LAN, HDBaseT, RS232 control and an IR input.
Trianze Tech stocks the ViewSonic LDP135-151 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
