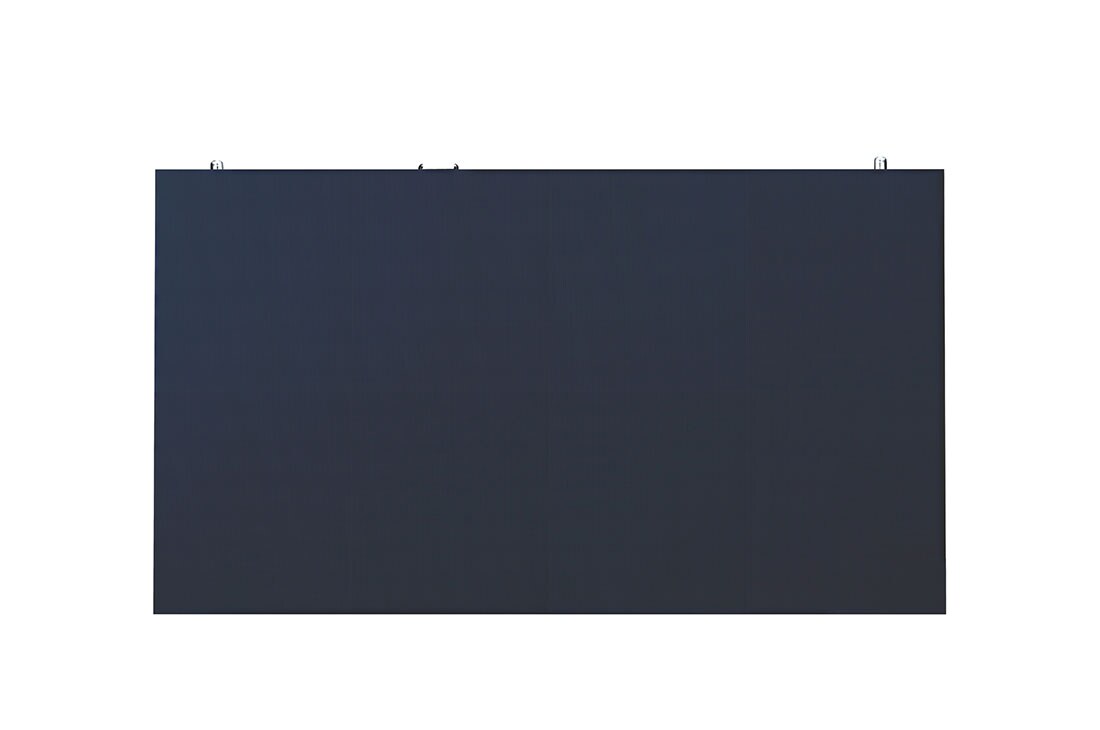

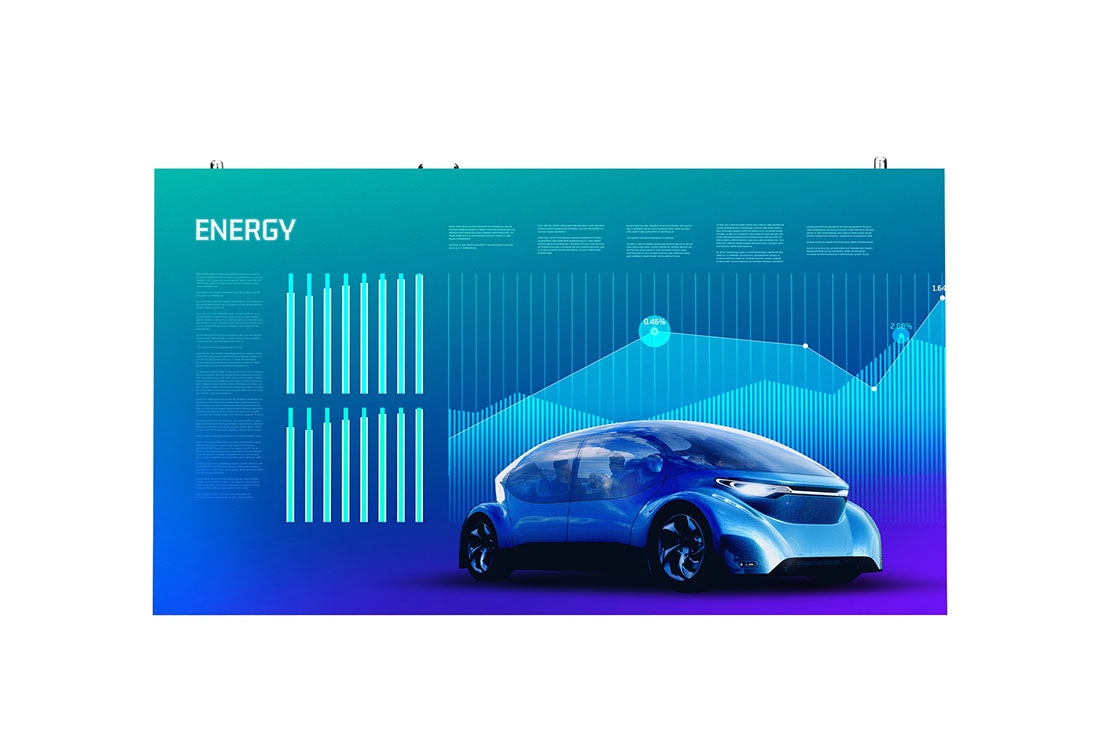

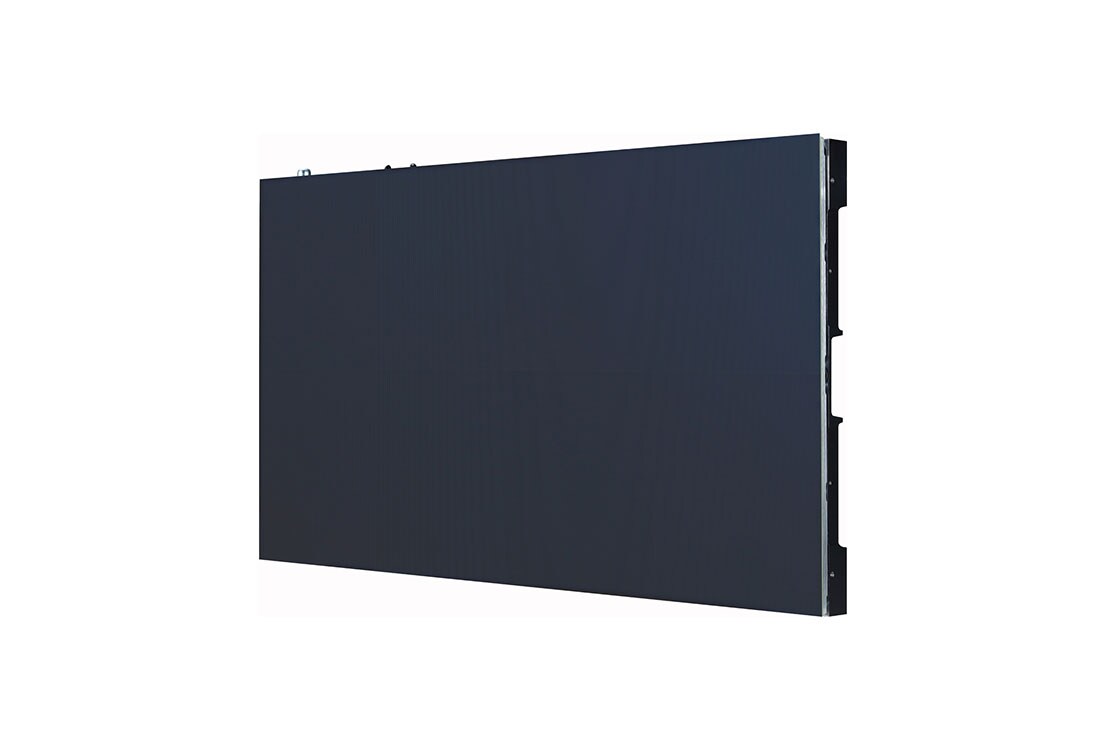

LG MAGNIT Pro LSAP012 1.25mm Micro LED Display Cabinet
Model
:
LSAP012
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
LG MAGNIT Pro LSAP012 1.25mm Micro LED Display Cabinet
A ProAV grade Micro LED display cabinet built for boardrooms, virtual production, and broadcast studios across Dubai, Abu Dhabi, and the UAE, powered by the Megapixel HELIOS LED Processing Platform.
Key Features:
- 1.25mm pixel pitch with 1,000 nit minimum brightness after calibration
- Powerful UI/UX through the Megapixel HELIOS LED Processing Platform, including real-time mapping, multi-user control, and hyper-speed seam correction
- 24,000:1 contrast ratio at 10 lux with full black coating for exceptional black immersion
- TÜV certified wide color viewing angle for consistent color from virtually any position
- Sturdy die-cast aluminum cabinet construction resists dust, EMI, and physical impact
Technical Specifications:
| Technical Parameter | Specification |
| Brand & Model | LG LSAP012 |
| Pixel Configuration | Micro LED |
| Pixel Pitch | 1.25mm |
| Module Resolution | 240 x 90 |
| Cabinet Resolution | 480 x 270 |
| Cabinet Dimensions | 600 x 337.5 x 44.9mm |
| Weight per Cabinet | 7.8 kg |
| Cabinet Material | Die Casting Aluminum |
| Max Brightness (Calibrated) | 1,000 nits |
| Contrast Ratio | 24,000:1 at 10 lux |
| Viewing Angle | 150 x 150 Degrees |
| Processing Depth | 22-bit Internal Processing, HDR10 |
| Frame Rate | 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz |
| Controller | Megapixel VR HELIOS |
| Service Access | Front |
| IP Rating | IP50 Front, IP20 Rear |
| Lifetime (Half Brightness) | Up to 100,000 Hours |
| Fire Protection | BS476 Part 7, Class 1 |
| Warranty | 3 Year Limited |
Why Buy the LG LSAP012 from Trianze Tech?
- Genuine LG stock with full manufacturer warranty
- Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
- Dedicated AV integration support for premium video wall projects
- Competitive pricing with flexible corporate and government quotes
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It is a separately purchased LED processing platform that unlocks real-time mapping, multi-user control, superior color control, and hyper-speed seam correction using a game controller.
It supports 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 Hz, giving flexibility for film, broadcast, and video production workflows.
It uses a die-cast aluminum cabinet designed to resist dust, electromagnetic interference, flame spread, and physical impact.
Yes, it has TUV Rheinland certified wide viewing angle performance, maintaining consistent color whether viewed head-on or from an angle.
It delivers a 24,000:1 contrast ratio measured at 10 lux, supported by full black coating for deep, immersive blacks.
