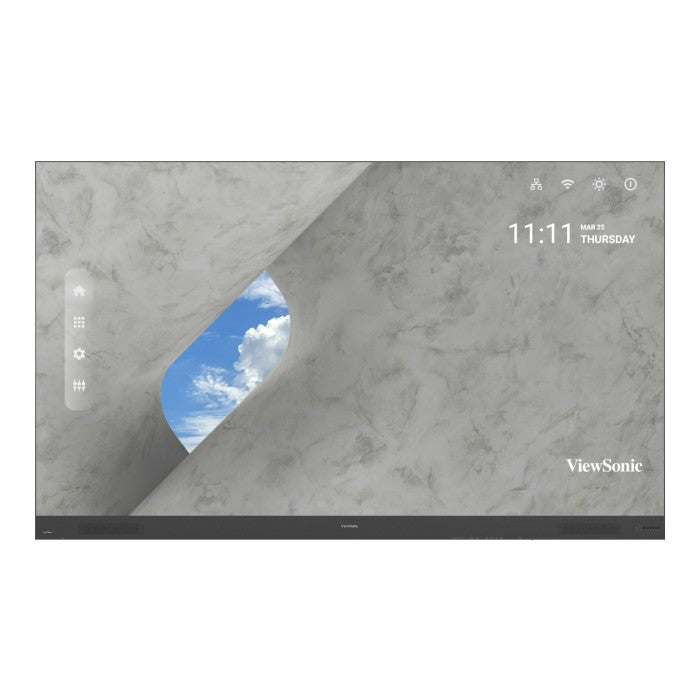

ViewSonic LDP163-181: 163 Inch Direct View LED Video Wall with 1.88mm Pixel Pitch
Model
:
LDP163-181
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
ViewSonic LDP163-181: 163 Inch Direct View LED Video Wall with 1.88mm Pixel Pitch
The ViewSonic LDP163-181 is a modular Direct View LED video wall built for large venue signage, combining a 1.88mm pixel pitch with 600 nits brightness and built in Harman Kardon audio across a seamless 163 inch display.
Key Features
- 1.88mm pixel pitch Direct View LED wall with 1920 x 1080 Full HD resolution
- Harman Kardon dual 20W passive radiator audio system built in
- Android 9.0 embedded media player with 4GB RAM and 64GB storage
- HDBaseT and multi format HDMI connectivity with 802.11n Wi-Fi
Technical Specifications
| Pixel Pitch | 1.88mm |
| Resolution | 1920 x 1080 Full HD |
| Screen Size | 163 inch |
| Brightness | 600 nits |
| Contrast Ratio | 6,000:1 |
| Refresh Rate | 4,440Hz |
| Color Gamut | 120% Rec.709 |
| Viewing Angle | 160 degrees horizontal and vertical |
| LED Life | 100,000 hours |
| Operating Rating | 24/7 |
| Cabinet Dimensions | 3610 x 2145.3 x 25mm, 57mm with wall mount |
| Weight | 170kg net, 278kg gross |
| Embedded System | Android 9.0, MTK9669 CPU, 4GB DDR4, 64GB storage (56GB usable) |
| Connectivity | HDMI 1.4 x2, HDMI 2.0 x3, HDMI 2.1 x1, HDMI 2.0 out x1, USB 2.0 x3, RS232, RJ45, IR in, 802.11n Wi-Fi |
| Speakers | Harman Kardon dual 20W passive radiator system |
| Power | 1,860W typical, 2,660W max |
| Warranty | 3 year limited, parts, labor, on site service and pixel performance policy |
Why Buy the LDP163-181 from Trianze Tech?
- Genuine ViewSonic Direct View LED hardware sourced and supported locally in the UAE
- Professional AV integration and on site installation across Dubai, Abu Dhabi and the GCC
- Backed by ViewSonic's 3 year limited warranty with local after sales support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ViewSonic LDP163-181 has a 1.88mm pixel pitch Direct View LED wall delivering a native 1920 x 1080 Full HD resolution across its 163 inch screen, with 600 nits brightness and a 6,000:1 contrast ratio.
Both are 163 inch Direct View LED walls, but the LDP163-181 has a coarser 1.88mm pixel pitch at 1920 x 1080 Full HD resolution, while the LDP163-091 uses a finer 0.93mm pitch delivering native 4K resolution at the same screen size, making the LDP163-091 sharper for close viewing distances.
Yes, the LDP163-181 includes a Harman Kardon dual 20W passive radiator audio system built into the cabinet, so no separate speakers are required for most installations.
The ViewSonic LDP163-181 weighs 170kg net and approximately 278kg gross including packaging, so the wall or structure supporting the modular cabinet system must be rated for a heavy fixed installation load, with installation carried out by trained AV technicians.
The LDP163-181 includes 2x HDMI 1.4, 3x HDMI 2.0 and 1x HDMI 2.1 inputs, an HDMI 2.0 output, 3x USB 2.0 ports, RS232 control, RJ45 LAN, an IR input and 802.11n Wi-Fi.
Trianze Tech stocks the ViewSonic LDP163-181 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
