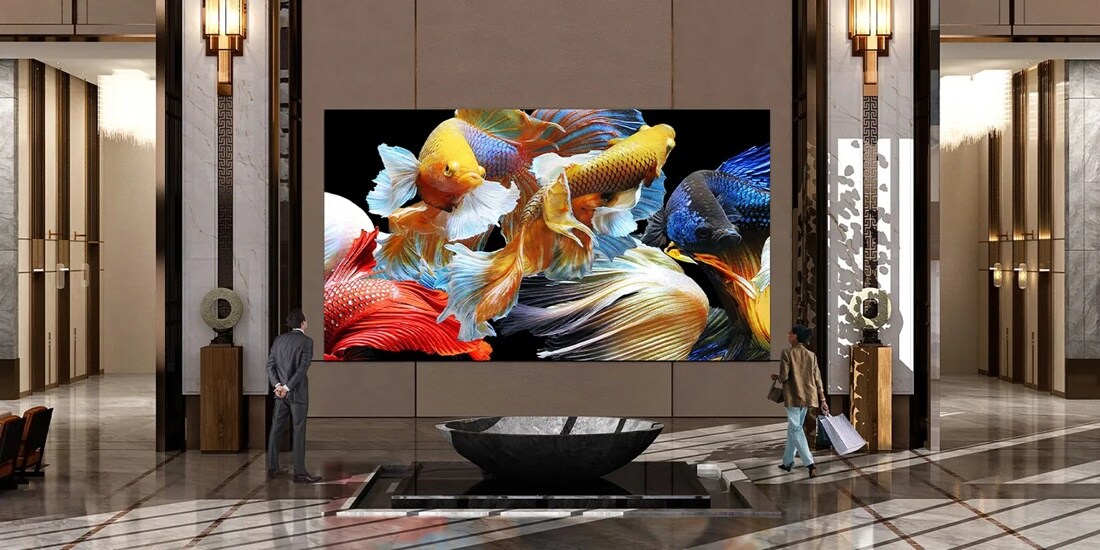

• LG MAGNIT LMPB009 Micro LED display lifestyle installation in hotel lobby

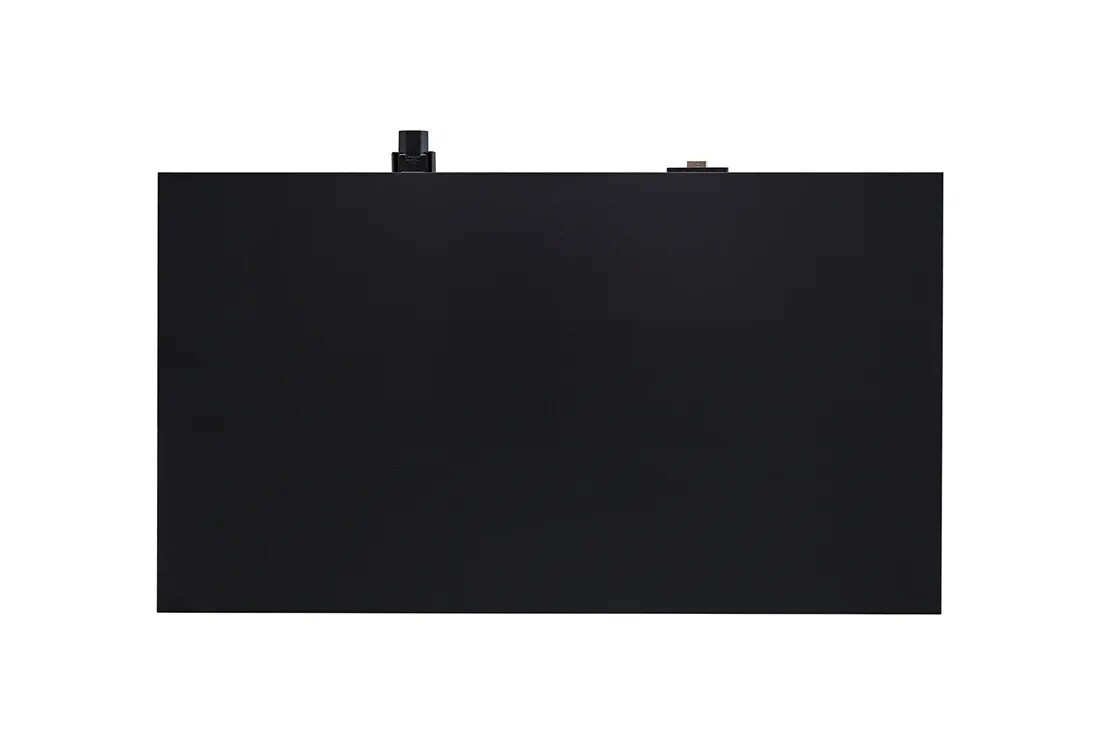

  • LG MAGNIT LMPB009 Micro LED display front view

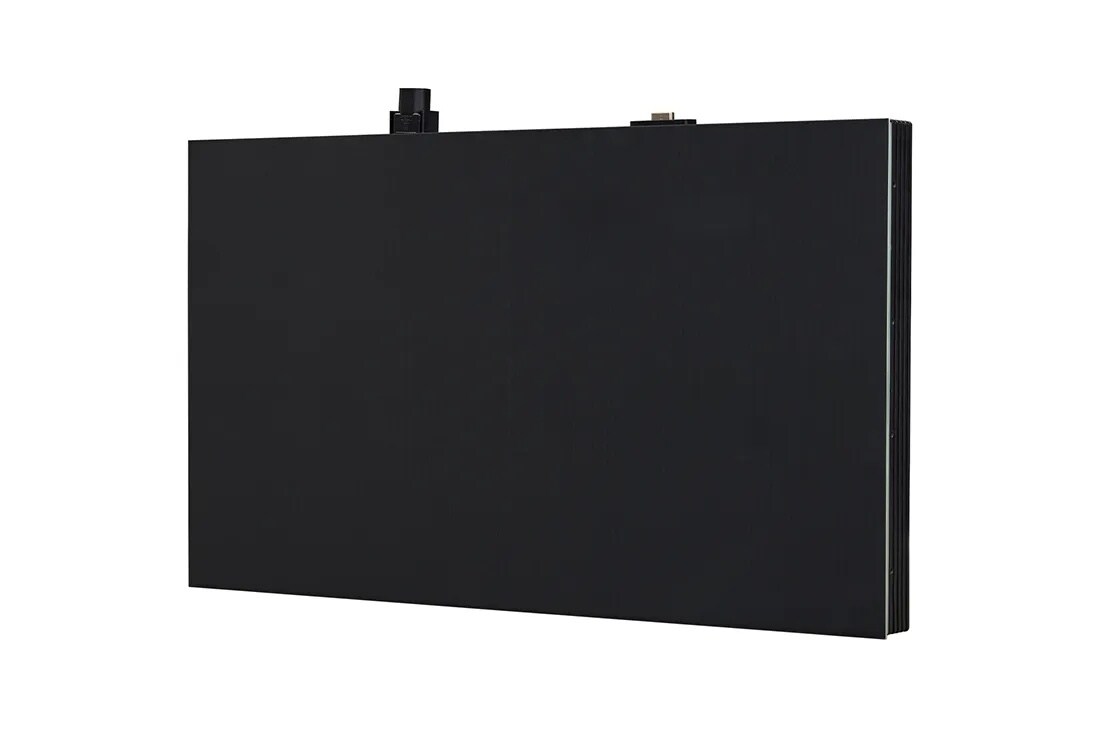

  • LG MAGNIT LMPB009 Micro LED display left angle view

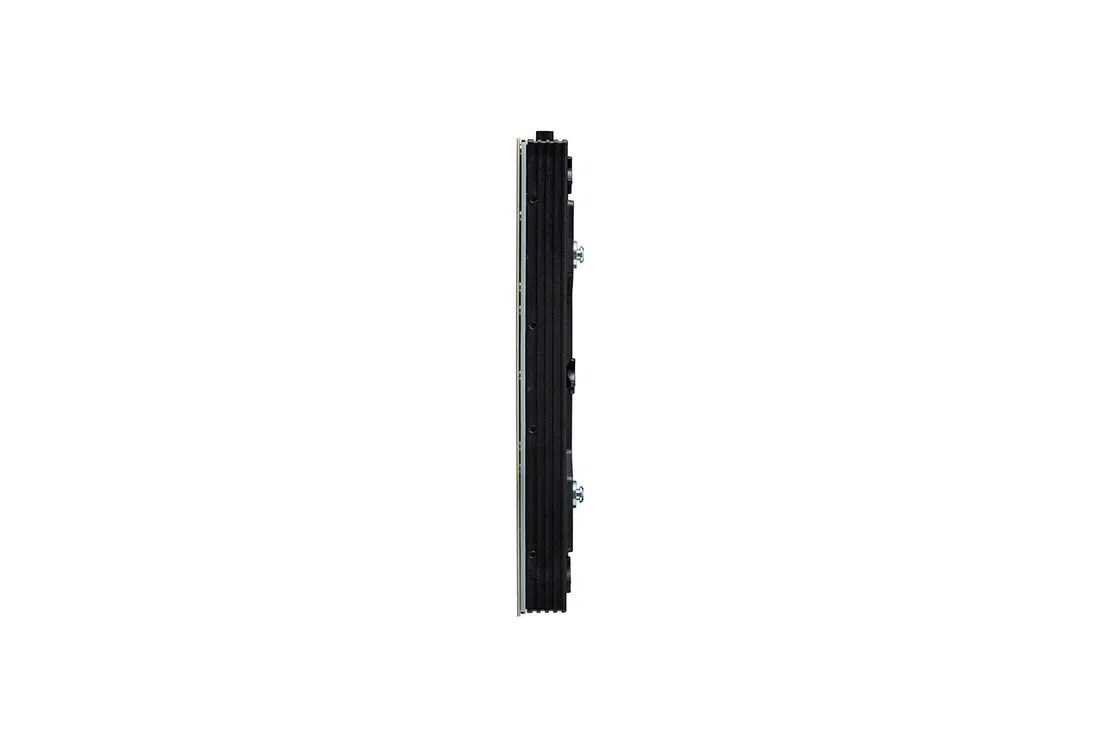

  • LG MAGNIT LMPB009 Micro LED display side view
1 4

LG MAGNIT Gen 2 LMPB009BANA 0.94mm Micro LED Display Cabinet

  • 40,000:1 Contrast Ratio: Delivers deep, immersive blacks essential for critical monitoring.
  • Cable-Less Modular Design: Removes inter-cabinet cabling for a cleaner, faster installation.
  • Line-to-Dot Defect Recovery: Converts pixel line errors into isolated dots for uninterrupted uptime.
  • 10km Signal Transmission Range: SFP+ compatibility allows the controller to sit far from the display.
Brand :LG
Model : LMPB009BANA

Part of Our Solution Strategic Digital Signage & Managed Video Walls
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Network Operations Centers: Deep contrast supports detail-oriented monitoring of critical data.
  • Security Control Rooms: High motion clarity suits real time video feed monitoring.
  • Traffic Management Facilities: Wide color viewing angles suit large multi operator command rooms.
  • Auditoriums: Extended controller distance suits large presentation venues.
LG MAGNIT LMPB009 Micro LED display lifestyle installation in hotel lobby
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

LG MAGNIT Gen 2 LMPB009BANA 0.94mm Micro LED Display Cabinet

A high resolution Micro LED display cabinet built for control room environments, network operations centers, and premium presentation spaces across Dubai, Abu Dhabi, and the UAE.

Key Features:

  • 0.94mm pixel pitch for high resolution visuals in close to mid range viewing environments
  • 1,000 nit peak brightness, 500 nit typical, calibrated for professionally lit environments
  • Up to 40,000:1 contrast ratio with full black coating and advanced surface treatment
  • 96/100/120Hz frame rates for smooth broadcast and real-time visualization content
  • Cable-less signal transmission design, requiring only connections to the system controller and power source

Technical Specifications:

Technical Parameter Specification
Brand & Model LG LMPB009BANA
LED Type Micro LED
Pixel Pitch 0.94mm
Module Resolution 320 x 120
Cabinet Resolution 640 x 360
Cabinet Dimensions 600 x 337.5 x 39.8mm
Weight per Cabinet 5.4 kg
Max Brightness (Calibrated) Up to 600 nits
Contrast Ratio 40,000:1
Frame Rate 96 / 100 / 120 Hz
Viewing Angle 160 x 160 Degrees
Processing Depth 20-bit, HDR10 and HDR10 Pro
Service Access Front
IP Rating IP50 Front, IP20 Rear
Lifetime (Half Brightness) Up to 100,000 Hours
Signal Transmission SFP+ Compatible, Up to 10km from Controller
Warranty 3 Year Limited

Why Buy the LG LMPB009BANA from Trianze Tech?

  • Genuine LG stock with full manufacturer warranty
  • Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
  • Dedicated AV integration support for premium video wall projects
  • Competitive pricing with flexible corporate and government quotes

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Package Contents

  • 1x LG LMPB009BANA Micro LED display cabinet
  • Priced and quoted per cabinet; full video wall sizing calculated based on project requirements

Warranty

  • 3 year limited warranty, honoured in the UAE through Trianze Tech

Sustainability

  • Common cathode drive IC technology reduces power consumption during operation and standby

Expandability

  • Modular cabinet architecture allows scaling to custom screen sizes for future expansion
  • SFP+ compatible controller placement up to 10km away supports large scale future installations

Distribution

  • Stocked and distributed in the UAE by Trianze Tech, serving control room and network operations center clients across Dubai, Abu Dhabi, and the GCC

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
It converts pixel defects that would normally appear as a full line error into a single isolated dot, minimizing visual disruption.
No, it uses a cable-less signal transmission design, requiring only connections to the system controller and power source.
With SFP+ compatibility, the controller can be placed up to 10 kilometers away from the display.
Yes, it supports HDR10 and LG's own HDR10 Pro processing for enhanced dynamic tone mapping.
It supports front service access, along with z-axis depth adjustment from both the front and rear for greater installation flexibility.
