Key Features

The Samsung VMB-U Series introduces an incredibly reliable and versatile solution for businesses looking to implement impactful multi-screen layouts without overextending project budgets. Featuring a optimized 46-inch form factor, this display fits perfectly into compact retail spaces, corporate corridors, and dynamic info hubs where larger 55-inch modules might overwhelm the architecture. Its 3.5mm bezel-to-bezel alignment creates a highly smooth, continuous visual array that keeps text, data feeds, and branding materials readable. Backed by extensive multi-step factory calibration, the VM46B-U balances brightness and color properties across every individual unit in the matrix straight out of the shipping box.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Documented under primary manufacturing production model identifier VM46B-U, tracking official regional GCC distribution part numbers, including LH46VMBUBGBXUE and LH46VMBUBGBXXK.

• Visual Panel and Native Resolution Structure: Utilizes a commercial-grade 46-inch IPS-type panel delivering a crisp native Full HD resolution of 1920 x 1080 pixels per individual display module.

• Luminance and Reflectivity Shielding: Delivers a stable 500 nits of continuous brightness, paired with an advanced non-glare haze panel coating to preserve text legibility under harsh commercial showroom lighting.

• Contrast Performance and Color Mechanics: Operates with a native 1200:1 static contrast ratio, utilizing an expanded internal pipeline to smoothly reproduce up to 16.7 million distinct color shades across a 72 percent NTSC color gamut.

• Daisy-Chain Interface Logic Architecture: Engineered for high-bandwidth multi-screen routing via native DisplayPort 1.2 input and loop-through outputs, supported by dual HDMI 2.0 digital terminal inputs.

• Physical Enclosure Border Metrics: Designed with an ultra-narrow border measuring 2.25mm on the top/left edges and 1.25mm on the bottom/right edges, culminating in a balanced 3.5mm bezel-to-bezel seam.

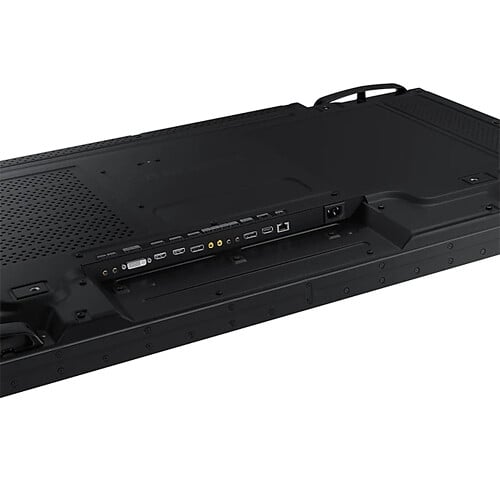

• Signal, Management, and Network Ports: Configured with industrial RS-232C control input/output terminals, an RJ-45 Ethernet port for network administration, standard USB 2.0 ports, and traditional 3.5mm stereo audio interfaces.

• Dust Mitigation and Longevity Certification: Earns an official IP5X interior ingress protection rating, preventing airborne dust particles from accumulating on critical internal electronic boards to prevent operational degradation.

Enterprise Software & UC Platform Ecosystem Compatibility

• Industrial Automation System Readiness: Fully prepared for instant integration into Crestron Connected, AMX, and Extron IP Link control environments.

• Advanced Content Management Support: Natively compatible with the modern Samsung VXT CMS platform and legacy MagicINFO network infrastructure for instantaneous remote scheduling.

• Mobile Calibration Integration: Fully integrates with the Samsung Color Expert Pro Mobile application, allowing technicians to fine-tune white balance across the entire wall using a mobile device camera sensor.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Holds comprehensive product safety and energy efficiency certifications from the UAE Ministry of Industry and Advanced Technology (MoIAT).

• Local Power Optimization: Ships standard with a premium, fused UK 3-pin Type G electrical power cord configured to match UAE national utility grid specifications (220V - 240V at 50/60Hz).

• International Facilities Sign-Off: Fully certified with global CB Scheme, CE, and RoHS standards for immediate regulatory acceptance within premium commercial properties.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Hardware Dimensions: Features clean individual structural outer boundary metrics tracking a width of 1022.1 millimeters, a height of 576.6 millimeters, and an ultra-slim cabinet depth of 69.9 millimeters.

• Gross Protective Shipping Dimensions: Enclosed in durable freight packaging designed to withstand rugged transit, measuring 1193 millimeters in width, 719 millimeters in height, and 257 millimeters in depth.

• Net Hardware Mass Displacement: Weighs a highly optimized 15.7 kilograms per unmounted screen unit, allowing for precise structural load calculations on pop-out video wall mount systems.

• Gross Freight Transit Weight Infrastructure: Reaches a total combined package shipping mass of 22.2 kilograms per crated cargo box, ensuring safe, uniform handling throughout regional logistics pipelines.
