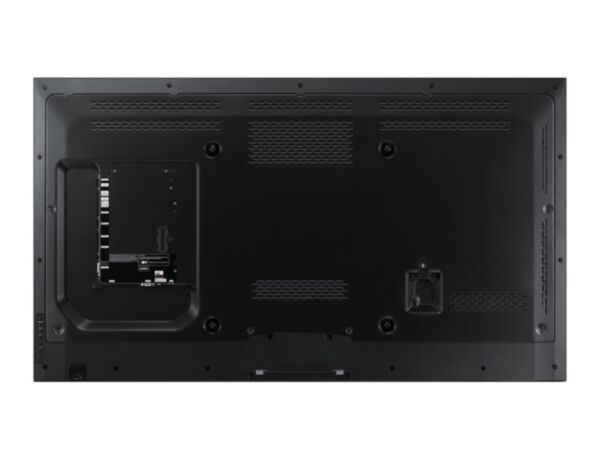

Samsung UEC Series 55" UE55C Ultra-Thin Edge-Lit LED Commercial Video Wall Display (LH55UECPLGC)

  • Samsung UEC Series 55 inch UE55C ultra thin 29.9mm edge lit LED video wall signage display
1 3

Samsung UEC Series 55" UE55C Ultra-Thin Edge-Lit LED Commercial Video Wall Display (LH55UECPLGC)

Samsung UEC Series 55" UE55C Ultra-Thin Edge-Lit LED Commercial Video Wall Display (LH55UECPLGC)

Ultra-Slim 29.9mm Cabinet Depth: Engineered with a razor-thin, lightweight design that enables highly integrated, low-profile wall installations that conform perfectly to strict modern interior design parameters.

Efficient Edge-Lit LED Backlight Technology: Lowers corporate power consumption and operational heat output while maintaining bright, uniform picture presentation across small or large multi-display grids.

Onboard MagicINFO S Media Player: Features a system-on-chip (SoC) storage array that plays high-definition video files natively, eliminating the physical footprint and hardware cost of external PCs.

PC-Free DisplayPort 1.2 Multi-Screen Loops: Employs high-bandwidth loop-through terminals to replicate an uncompressed 4K Ultra HD signal across a massive 2x2 or 5x5 video wall array without standalone matrix controllers.

Samsung
Brand : Samsung
Model : UE55C / LH55UECPLGC/XY

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

When an installation requires a thin profile to meet strict building codes or aesthetic limits, edge-lit design becomes essential. The Samsung UE55C is designed for elegant, space-constrained commercial areas across Dubai, Abu Dhabi, and the GCC region.

  • High-End Corporate Reception Areas: Adds an elegant digital back wall array behind main lobby reception desks without requiring thick wall recesses or custom drywall modifications.
  • Luxury Retail Stores & Boutiques: Fits beautifully into modern retail environments and window displays throughout premier shopping malls, maintaining a low profile that preserves floor space.
  • Executive Boardrooms & Conference Suites: Serves as a crisp, low-heat presentation display canvas that fits tightly to corporate meeting room walls, maintaining a professional workspace.
  • Modern Wayfinding & Directories: Forms sharp, vertical portrait or landscape message pillars inside transit stations, commercial towers, and hospitality lobbies to direct foot traffic clearly.
Samsung UEC Series 55 inch UE55C ultra thin 29.9mm edge lit LED video wall signage display
  • Specifications
  • Details

Key Features

The Samsung UEC Series UE55C delivers an elegant, spacesaving approach to multi-display video wall arrays by utilizing advanced edge-lit LED backlighting. Unlike traditional bulky direct-lit screens, this high-performance 55-inch module features a cabinet thickness of just 29.9 millimeters, making it one of the thinnest video wall modules on the commercial market. The thin design greatly reduces panel weight, making mounting simpler and reducing structural wall stress. Designed with an optimized narrow bezel setup, the UE55C links multiple panels together cleanly to create an engaging visual canvas. It features factory color and brightness matching to ensure beautiful image uniformity across the wall layout straight from the crate.

Technical Specifications & Performance Detail

  • Global Inventory and Asset Identifiers: Documented under primary manufacturing model designation UE55C, tracking regional GCC enterprise part numbers including LH55UECPLGC/ZN and LH55UECPLGC/XY.

  • Visual Panel and Native Resolution Structure: Built on a commercial-grade 55-inch edge-lit LED panel featuring a native Full HD resolution layout of 1920 x 1080 pixels per individual display module.

  • Luminance and Reflectivity Shielding: Outputs a steady 450 nits of commercial brightness, enhanced by a matte anti-glare haze treatment to maintain crisp visibility under localized interior spotlights.

  • Contrast Performance and Color Mechanics: Operates on a native 4000:1 static contrast ratio with an adaptive 100,000:1 dynamic contrast indexing pipeline, cleanly reproducing up to 1.07 billion colors.

  • Digital Matrix Control & Loop Architecture: Configured with native DisplayPort 1.2 input and loop-output terminals supporting standalone UHD scaling across multi-screen matrix configurations.

  • Physical Enclosure Border Metrics: Designed with a symmetric narrow outer bezel profiling 5.5 millimeters on the top/left sides and 5.5 millimeters on the bottom/right sides, resulting in an 11.0mm bezel-to-bezel seam line.

  • Versatile Multi-Generation Input Arrays: Equipped with dual HDMI digital inputs, DisplayPort 1.2, DVI-D, Component/Composite video (shared), stereo mini-audio ports, and a dedicated USB media slot.

  • Industrial System Network Controls: Built with continuous multi-device management circuits linking serial RS-232C control terminals alongside standard RJ-45 Ethernet infrastructure.

Enterprise Software & UC Platform Ecosystem Compatibility

  • Industrial Automation System Readiness: Fully compatible out of the box with centralized building automation loops including Crestron Connected, AMX, and Extron IP Link arrays.

  • Integrated Software Processing: Powered by Samsung's embedded System-on-Chip (SoC) running MagicINFO S Premium firmware for instant local device media looping.

  • Advanced Uniformity Calibration Toolsets: Fully compatible with Samsung Color Expert calibration software modules to modify local grayscale, white balance, and illumination levels across fields.

Regional Regulatory & Electrical Compliance

  • UAE Market Standardization: Holds official electronics safety clearance and energy conservation compliance certificates issued by the UAE Ministry of Industry and Advanced Technology (MoIAT).

  • Local Power Optimization: Wired with a rugged, fused UK 3-pin Type G power cord matched perfectly to regional electrical distribution infrastructure (220V - 240V at 50/60Hz).

  • International Facilities Sign-Off: Fully certified under international safety guidelines including UL 60950-1, EN60950-1, FCC Part 15 Class A, and CE marks for clean corporate real estate integration.

Logistics, Packaging & Spatial Handling Parameters

  • Net Unpacked Hardware Dimensions: Features outer physical chassis tracking a structural width of 1222.4 millimeters, a structural height of 693.2 millimeters, and an ultra-slim depth of 29.9 millimeters.

  • Gross Protective Shipping Dimensions: Shipped inside heavily padded freight-grade packaging tracking 1365 millimeters in width, 822 millimeters in height, and a protection thickness of 185 millimeters.

  • Net Hardware Mass Displacement: Weighs an incredibly light 13.3 kilograms per unmounted panel module, significantly lowering load parameters on standard commercial wall frames.

  • Gross Freight Transit Weight Infrastructure: Calculates a total boxed cargo shipping mass profile of 17.5 kilograms per display node, helping lower long-distance distribution costs across regional sites.


Streamline Your Commercial Display Infrastructure with Scalable Corporate Procurement

Deploying specialized digital signage setups requires an experienced hardware distribution partner capable of meeting strict installation timelines, precise logistics, and advanced engineering requirements. Trianze Tech is a premier commercial AV integration supplier across the United Arab Emirates. We deliver factory-certified high-brightness displays, professional video wall nodes, and core enterprise display systems directly to corporate networks, interior contractors, and commercial developers. We maintain a reliable local stock inventory to fulfill major commercial infrastructure rollouts swiftly, avoiding lengthy import delays.

Our professional supply framework is built to safeguard your corporate hardware investments while optimizing total cost of ownership. Enterprise clients purchasing multi-unit display configurations unlock specialized volume pricing models, flexible commercial credit arrangements, and extended enterprise hardware warranties. Beyond standard box logistics, our specialized technical support engineers offer pre-delivery calibration, media player staging, and matrix configuration testing before your units leave our distribution facility.

Secure Your Specialized Corporate Asset Pricing Today

Ensure absolute system reliability and professional image quality across your next visual project. Connect with the specialized enterprise sales and logistics department at Trianze Tech to request commercial wholesale quotes, project framework agreements, or complete hardware integration specifications. Let our B2B experts keep your digital signage project on schedule and within budget.

Key Features

The Samsung UEC Series UE55C delivers an elegant, spacesaving approach to multi-display video wall arrays by utilizing advanced edge-lit LED backlighting. Unlike traditional bulky direct-lit screens, this high-performance 55-inch module features a cabinet thickness of just 29.9 millimeters, making it one of the thinnest video wall modules on the commercial market. The thin design greatly reduces panel weight, making mounting simpler and reducing structural wall stress. Designed with an optimized narrow bezel setup, the UE55C links multiple panels together cleanly to create an engaging visual canvas. It features factory color and brightness matching to ensure beautiful image uniformity across the wall layout straight from the crate.

Technical Specifications & Performance Detail

  • Global Inventory and Asset Identifiers: Documented under primary manufacturing model designation UE55C, tracking regional GCC enterprise part numbers including LH55UECPLGC/ZN and LH55UECPLGC/XY.

  • Visual Panel and Native Resolution Structure: Built on a commercial-grade 55-inch edge-lit LED panel featuring a native Full HD resolution layout of 1920 x 1080 pixels per individual display module.

  • Luminance and Reflectivity Shielding: Outputs a steady 450 nits of commercial brightness, enhanced by a matte anti-glare haze treatment to maintain crisp visibility under localized interior spotlights.

  • Contrast Performance and Color Mechanics: Operates on a native 4000:1 static contrast ratio with an adaptive 100,000:1 dynamic contrast indexing pipeline, cleanly reproducing up to 1.07 billion colors.

  • Digital Matrix Control & Loop Architecture: Configured with native DisplayPort 1.2 input and loop-output terminals supporting standalone UHD scaling across multi-screen matrix configurations.

  • Physical Enclosure Border Metrics: Designed with a symmetric narrow outer bezel profiling 5.5 millimeters on the top/left sides and 5.5 millimeters on the bottom/right sides, resulting in an 11.0mm bezel-to-bezel seam line.

  • Versatile Multi-Generation Input Arrays: Equipped with dual HDMI digital inputs, DisplayPort 1.2, DVI-D, Component/Composite video (shared), stereo mini-audio ports, and a dedicated USB media slot.

  • Industrial System Network Controls: Built with continuous multi-device management circuits linking serial RS-232C control terminals alongside standard RJ-45 Ethernet infrastructure.

Enterprise Software & UC Platform Ecosystem Compatibility

  • Industrial Automation System Readiness: Fully compatible out of the box with centralized building automation loops including Crestron Connected, AMX, and Extron IP Link arrays.

  • Integrated Software Processing: Powered by Samsung's embedded System-on-Chip (SoC) running MagicINFO S Premium firmware for instant local device media looping.

  • Advanced Uniformity Calibration Toolsets: Fully compatible with Samsung Color Expert calibration software modules to modify local grayscale, white balance, and illumination levels across fields.

Regional Regulatory & Electrical Compliance

  • UAE Market Standardization: Holds official electronics safety clearance and energy conservation compliance certificates issued by the UAE Ministry of Industry and Advanced Technology (MoIAT).

  • Local Power Optimization: Wired with a rugged, fused UK 3-pin Type G power cord matched perfectly to regional electrical distribution infrastructure (220V - 240V at 50/60Hz).

  • International Facilities Sign-Off: Fully certified under international safety guidelines including UL 60950-1, EN60950-1, FCC Part 15 Class A, and CE marks for clean corporate real estate integration.

Logistics, Packaging & Spatial Handling Parameters

  • Net Unpacked Hardware Dimensions: Features outer physical chassis tracking a structural width of 1222.4 millimeters, a structural height of 693.2 millimeters, and an ultra-slim depth of 29.9 millimeters.

  • Gross Protective Shipping Dimensions: Shipped inside heavily padded freight-grade packaging tracking 1365 millimeters in width, 822 millimeters in height, and a protection thickness of 185 millimeters.

  • Net Hardware Mass Displacement: Weighs an incredibly light 13.3 kilograms per unmounted panel module, significantly lowering load parameters on standard commercial wall frames.

  • Gross Freight Transit Weight Infrastructure: Calculates a total boxed cargo shipping mass profile of 17.5 kilograms per display node, helping lower long-distance distribution costs across regional sites.


Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can source the Samsung UE55C directly from the official Trianze Tech B2B portal at trianzetech.ae. For volume corporate pricing models, specialized project estimates, commercial framework procurement, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please contact our dedicated enterprise account team directly via email at avsupport@trianzetech.ae, fill out our online inquiry portal, or call our direct commercial support line at +971 58 161 3661.
Traditional video wall configurations require a separate external media player or dedicated PC attached to the rear of every single screen, which multiplies equipment costs and introduces points of failure. The UEC Series display integrates the first-generation Samsung Smart Signage Platform (SSSP). This system features an onboard Cortex-A9 dual-core processor and internal flash storage that decodes high-definition media fields natively, letting IT administrators run standalone loops up to a 4x4 array with zero external computer hardware.
Yes. The LH55UECPLGC/XY is built with advanced DisplayPort 1.2 input and digital loop-out connections. When configuring large multi-panel arrays in Central Asia or North Africa, integration teams can pipe an uncompressed video signal into the initial monitor and loop it down the display line sequentially. This digital daisy-chain handles expansive multi-screen scaling up to a 10x10 video wall layout without signal drop-off, removing the need for external distribution amplifiers or hardware splitters.
Many standard high-speed video wall panels rely on IPS variants that offer a limited 1000:1 to 1200:1 native contrast boundary, which can make dark visual tones appear muddy or gray under bright overhead office track lighting. The UE55C utilizes an advanced commercial alignment layer that achieves a 5000:1 static contrast ratio. This ensures deeper black levels and excellent color separation, which is crucial for showing high-contrast branding graphics and intricate corporate data sets.
When uncalibrated commercial displays are mounted side-by-side, tiny variances in white balance and color temperatures can create an uneven "checkerboard" appearance that distracts viewers. Each LH55UECPLGC/XY undergoes multi-step factory color calibration before leaving the facility, matching white balance thresholds and color differences right out of the shipping container. If custom environments in Almaty or Doha require specialized tweaks, users can utilize Samsung Advanced Color Management (ACM) software to easily adjust parameters across the local network.
