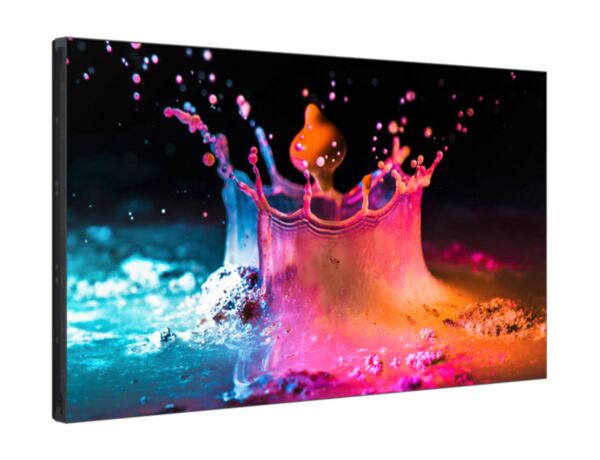

Samsung UDE-P Series 55" UD55E-P High-Brightness 24/7 Direct-Lit LED Commercial Video Wall Display

  • Samsung UDE-P Series 55 inch LH55UDEPLBB/UE high brightness 700 nits 24/7 operation video wall display
  • Close up view of the 3.5mm ultra narrow bezel layout on a Samsung UD55E-P professional digital signage panel
1 6

Samsung UDE-P Series 55" UD55E-P High-Brightness 24/7 Direct-Lit LED Commercial Video Wall Display

Samsung UDE-P Series 55" UD55E-P High-Brightness 24/7 Direct-Lit LED Commercial Video Wall Display

High-Impact 700-Nit Luminance Engine: Built with industrial direct-lit LED backlighting that maintains visibility beneath dense overhead lights or sunlit commercial spaces.

Ultra-Narrow 3.5mm Bezel-to-Bezel Seam: Minimizes visual gaps between panels (2.3mm top/left, 1.2mm bottom/right) to keep text, video paths, and graphics perfectly aligned.

Mission-Critical 24/7 Continuous Operation: Engineered with heavy-duty commercial cooling paths and durable panel materials to prevent image burn-in and heat distortion.

PC-Free 4K Multi-Display Daisy Chaining: Features integrated DisplayPort 1.2 and HDMI loop circuits to mirror and scale uncompressed UHD content without expensive standalone splitters.

Samsung
Brand : Samsung
Model : UD55E-P / LH55UDEPLBB/UE

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

When an enterprise environment requires non-stop 24/7 visibility with minimal seam distraction, high-brightness direct-lit displays become an absolute requirement. The Samsung UD55E-P is optimized for premium, high-traffic commercial environments across Dubai, Abu Dhabi, and the GCC region.

24/7 Security & Operations Command Centers: Displays multi-screen telemetry feeds, security maps, and network diagnostic flows with sharp, continuous legibility.

Premium Retail Showrooms & Malls: Forms an attention-grabbing, ultra-narrow advertising background wall placed inside multi-story shopping centers and large glass atriums.

High-Traffic Airport & Transit Terminals: Displays bright arrival schedules, baggage claims, and passenger directions clearly within naturally lit transportation terminals.

Broadcast Studios & Control Rooms: Serves as a flicker-free, color-calibrated digital background wall behind news desks and production sets.

Suggested Push-Pull Wall Bracket - VSVW13-46T

Samsung UDE-P Series 55 inch LH55UDEPLBB/UE high brightness 700 nits 24/7 operation video wall display
  • Specifications
  • Details

Key Features

The Samsung UDE-P Series UD55E-P offers an industrial-grade, high-performance display layout for deploying multi-panel matrix video walls that must operate reliably around the clock. Driven by an advanced Direct-Lit LED panel network, this premium 55-inch commercial display maintains a balanced, uniform 700 nits of high brightness. This ensures that critical data, corporate branding, and public messaging remain legible under strong ambient light. With an ultra-narrow 3.5mm combined bezel line, the UD55E-P forms a smooth digital wall with barely visible seams. Its industrial chassis structure incorporates heat dissipation tracks and a robust power management circuit, guaranteeing stable 24/7 performance in critical control hubs or high-traffic retail venues.

Technical Specifications & Performance Detail

  • Global Inventory and Asset Identifiers: Listed under primary manufacturing model code UD55E-P, matching regional GCC corporate supply specifications including LH55UDEPLBB/ZN and LH55UDEPLBB/XY.

  • Visual Panel and Native Resolution Structure: Built around a rugged 55-inch S-PVA direct-lit commercial LED display, delivering a native Full HD resolution of 1920 x 1080 pixels per module.

  • Luminance and Reflectivity Shielding: Produces a continuous 700 nits of brightness, paired with an advanced anti-glare haze filter to maintain crisp visibility under cross-lighting.

  • Contrast Performance and Color Mechanics: Operates with a 4000:1 static contrast ratio and an advanced color processor capable of rendering 16.7 million color shades accurately.

  • Digital Matrix Control & Loop Architecture: Equipped with high-bandwidth DisplayPort 1.2 and HDMI digital output ports, allowing an uncompressed 4K Ultra HD video stream to daisy-chain across multi-panel walls without external matrix hardware.

  • Physical Enclosure Border Metrics: Framed with an ultra-narrow bezel tracking 2.3 millimeters on the top/left edges and 1.2 millimeters on the bottom/right edges, arriving at a tight 3.5mm bezel-to-bezel joint line.

  • Versatile Multi-Generation Input Arrays: Outfitted with dual HDMI ports, DVI-D, DisplayPort 1.2, a local USB media player slot, and dedicated analog stereo mini-jacks.

  • Industrial System Network Controls: Built with reliable multi-device management circuits linking serial RS-232C control inputs/outputs alongside standard RJ-45 Ethernet network paths.

Enterprise Software & UC Platform Ecosystem Compatibility

  • Industrial Automation System Readiness: Fully compatible out of the box with centralized corporate control platforms including Crestron Connected, AMX, and Extron management lines.

  • Onboard Smart Signage Firmware: Powered by an integrated System-on-Chip (SoC) media controller for handling standalone, PC-free scheduling and automatic high-definition video loops.

  • Advanced Uniformity Calibration Toolsets: Integrates with Samsung Color Expert calibration software modules to adjust grayscale, white balance, and illumination levels across fields during on-site deployment.

Regional Regulatory & Electrical Compliance

  • UAE Market Standardization: Fully registered and compliant with the industrial safety and energy efficiency certifications dictated by the UAE Ministry of Industry and Advanced Technology (MoIAT).

  • Local Power Optimization: Ships standard with a durable, fused UK 3-pin Type G electrical power cord configured to match UAE national utility grid specifications (220V - 240V at 50/60Hz).

  • International Facilities Sign-Off: Certified under global electronic safety guidelines including UL 60950-1, EN60950-1, FCC Part 15 Class A, and CE marks for fast building clearance.

Logistics, Packaging & Spatial Handling Parameters

  • Net Unpacked Hardware Dimensions: Features precise structural casing measuring 1213.5 millimeters in width, 684.3 millimeters in height, and a rugged cabinet depth profile of 96.5 millimeters.

  • Gross Protective Shipping Dimensions: Shipped inside heavy-duty, freight-grade protective cartons measuring 1450 millimeters in width, 905 millimeters in height, and 385 millimeters in thickness.

  • Net Hardware Mass Displacement: Weighs 21.5 kilograms per unmounted display unit, providing excellent physical structural balance on pop-out matrix brackets.

  • Gross Freight Transit Weight Infrastructure: Reaches a total combined package shipping weight of 29.0 kilograms per crated cargo box, ensuring safe and efficient transport across regional logistics lines.


Streamline Your Commercial Display Infrastructure with Scalable Corporate Procurement

Deploying specialized digital signage setups requires an experienced hardware distribution partner capable of meeting strict installation timelines, precise logistics, and advanced engineering requirements. Trianze Tech is a premier commercial AV integration supplier across the United Arab Emirates. We deliver factory-certified high-brightness displays, professional video wall nodes, and core enterprise display systems directly to corporate networks, interior contractors, and commercial developers. We maintain a reliable local stock inventory to fulfill major commercial infrastructure rollouts swiftly, avoiding lengthy import delays.

Our professional supply framework is built to safeguard your corporate hardware investments while optimizing total cost of ownership. Enterprise clients purchasing multi-unit display configurations unlock specialized volume pricing models, flexible commercial credit arrangements, and extended enterprise hardware warranties. Beyond standard box logistics, our specialized technical support engineers offer pre-delivery calibration, media player staging, and matrix configuration testing before your units leave our distribution facility.

Secure Your Specialized Corporate Asset Pricing Today

Ensure absolute image continuity and long-term system reliability for your commercial project. Reach out to the corporate accounts and sales team at Trianze Tech today to organize standalone wholesale pricing quotes, custom regional supply agreements, or comprehensive technical integration data. Let our technology specialists bring your next big presentation space to life smoothly.

Key Features

The Samsung UDE-P Series UD55E-P offers an industrial-grade, high-performance display layout for deploying multi-panel matrix video walls that must operate reliably around the clock. Driven by an advanced Direct-Lit LED panel network, this premium 55-inch commercial display maintains a balanced, uniform 700 nits of high brightness. This ensures that critical data, corporate branding, and public messaging remain legible under strong ambient light. With an ultra-narrow 3.5mm combined bezel line, the UD55E-P forms a smooth digital wall with barely visible seams. Its industrial chassis structure incorporates heat dissipation tracks and a robust power management circuit, guaranteeing stable 24/7 performance in critical control hubs or high-traffic retail venues.

Technical Specifications & Performance Detail

  • Global Inventory and Asset Identifiers: Listed under primary manufacturing model code UD55E-P, matching regional GCC corporate supply specifications including LH55UDEPLBB/ZN and LH55UDEPLBB/XY.

  • Visual Panel and Native Resolution Structure: Built around a rugged 55-inch S-PVA direct-lit commercial LED display, delivering a native Full HD resolution of 1920 x 1080 pixels per module.

  • Luminance and Reflectivity Shielding: Produces a continuous 700 nits of brightness, paired with an advanced anti-glare haze filter to maintain crisp visibility under cross-lighting.

  • Contrast Performance and Color Mechanics: Operates with a 4000:1 static contrast ratio and an advanced color processor capable of rendering 16.7 million color shades accurately.

  • Digital Matrix Control & Loop Architecture: Equipped with high-bandwidth DisplayPort 1.2 and HDMI digital output ports, allowing an uncompressed 4K Ultra HD video stream to daisy-chain across multi-panel walls without external matrix hardware.

  • Physical Enclosure Border Metrics: Framed with an ultra-narrow bezel tracking 2.3 millimeters on the top/left edges and 1.2 millimeters on the bottom/right edges, arriving at a tight 3.5mm bezel-to-bezel joint line.

  • Versatile Multi-Generation Input Arrays: Outfitted with dual HDMI ports, DVI-D, DisplayPort 1.2, a local USB media player slot, and dedicated analog stereo mini-jacks.

  • Industrial System Network Controls: Built with reliable multi-device management circuits linking serial RS-232C control inputs/outputs alongside standard RJ-45 Ethernet network paths.

Enterprise Software & UC Platform Ecosystem Compatibility

  • Industrial Automation System Readiness: Fully compatible out of the box with centralized corporate control platforms including Crestron Connected, AMX, and Extron management lines.

  • Onboard Smart Signage Firmware: Powered by an integrated System-on-Chip (SoC) media controller for handling standalone, PC-free scheduling and automatic high-definition video loops.

  • Advanced Uniformity Calibration Toolsets: Integrates with Samsung Color Expert calibration software modules to adjust grayscale, white balance, and illumination levels across fields during on-site deployment.

Regional Regulatory & Electrical Compliance

  • UAE Market Standardization: Fully registered and compliant with the industrial safety and energy efficiency certifications dictated by the UAE Ministry of Industry and Advanced Technology (MoIAT).

  • Local Power Optimization: Ships standard with a durable, fused UK 3-pin Type G electrical power cord configured to match UAE national utility grid specifications (220V - 240V at 50/60Hz).

  • International Facilities Sign-Off: Certified under global electronic safety guidelines including UL 60950-1, EN60950-1, FCC Part 15 Class A, and CE marks for fast building clearance.

Logistics, Packaging & Spatial Handling Parameters

  • Net Unpacked Hardware Dimensions: Features precise structural casing measuring 1213.5 millimeters in width, 684.3 millimeters in height, and a rugged cabinet depth profile of 96.5 millimeters.

  • Gross Protective Shipping Dimensions: Shipped inside heavy-duty, freight-grade protective cartons measuring 1450 millimeters in width, 905 millimeters in height, and 385 millimeters in thickness.

  • Net Hardware Mass Displacement: Weighs 21.5 kilograms per unmounted display unit, providing excellent physical structural balance on pop-out matrix brackets.

  • Gross Freight Transit Weight Infrastructure: Reaches a total combined package shipping weight of 29.0 kilograms per crated cargo box, ensuring safe and efficient transport across regional logistics lines.


Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can source the Samsung UD55E-P directly from the official Trianze Tech B2B portal at trianzetech.ae. For volume corporate pricing models, specialized project estimates, commercial framework procurement, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please contact our dedicated enterprise account team directly via email at avsupport@trianzetech.ae, fill out our online inquiry portal, or call our direct commercial support line at +971 58 161 3661.
In brightly lit facilities, lesser-grade panels can suffer from light bleed, color drift, or localized cell darkening when running around the clock. The LH55UDEPLBB/UE pairs a uniform Direct-Lit LED architecture with 700 nits of brightness, applying physical reinforcement grids directly behind the liquid crystal layers. This structural backing dissipates internal operating heat evenly, maintaining a 4000:1 static contrast field without color distortion or light leakage over long operational spans.
When uncalibrated panels are linked into a single video wall matrix, color disparities turn the layout into a mismatched checkerboard. Each UDE-P screen undergoes advanced multi-step factory tuning that holds white balance differences strictly under 300 degrees Kelvin, while securing an industry-leading local uniformity of over 90 percent across 25 layout zones. This provides uniform, flawless color expression out of the box in critical locations like Almaty and Doha.
Yes. The LH55UDEPLBB/UE includes an onboard DisplayPort 1.2 digital matrix link. System integration crews can input a single uncompressed 4K input feed into the first monitor and daisy-chain the source down the display array sequentially. This digital loop handles configurations up to a 5x5 video wall setup seamlessly, completely avoiding the costs of standalone distribution amplifiers or external graphic cards.
Aligning multiple 55-inch panels down a massive flat wall can be a tedious process for installation crews. The UDE-P series integrates with a slim 39mm depth video wall mount featuring an integrated three-dimensional mechanical axis layout. Installers can turn dedicated adjustment screws to execute perfect X-axis (up-down), Y-axis (left-right), and Z-axis (push-pull pop-up) alignments, allowing for fast individual screen replacement or alignment calibration in transport nodes throughout Cairo and Casablanca.
