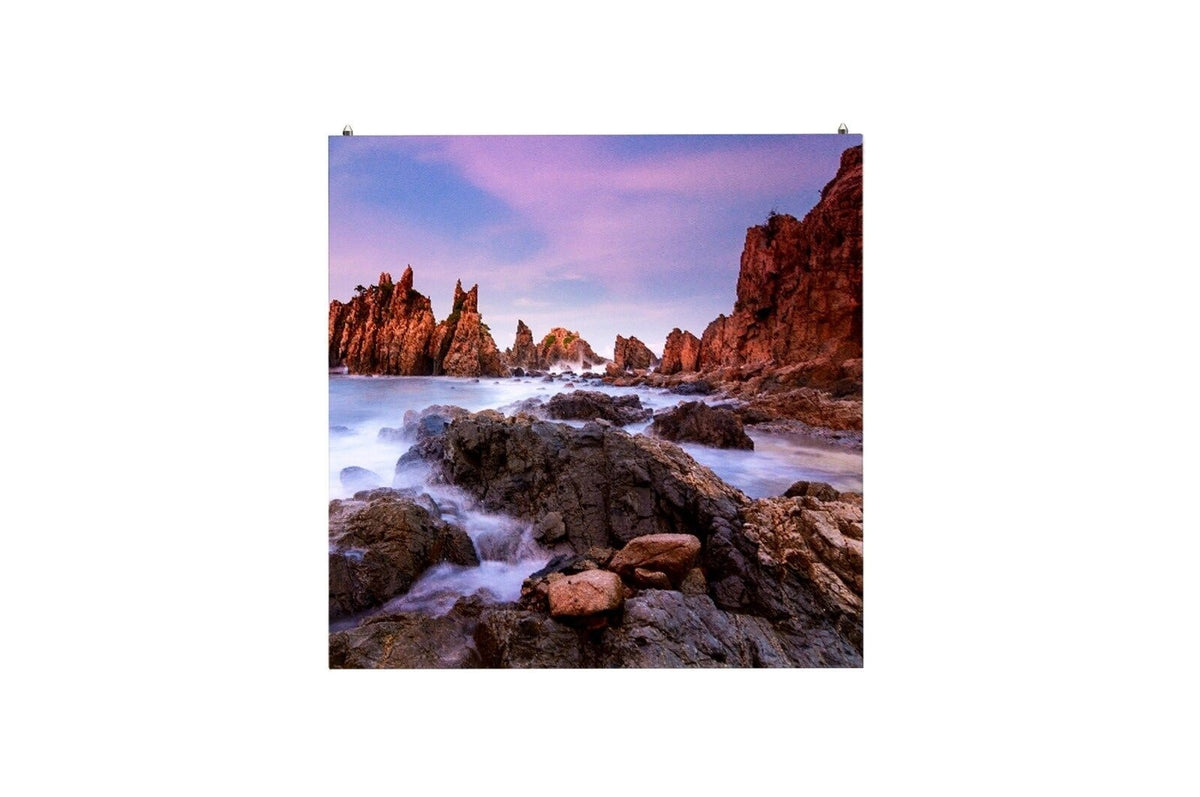

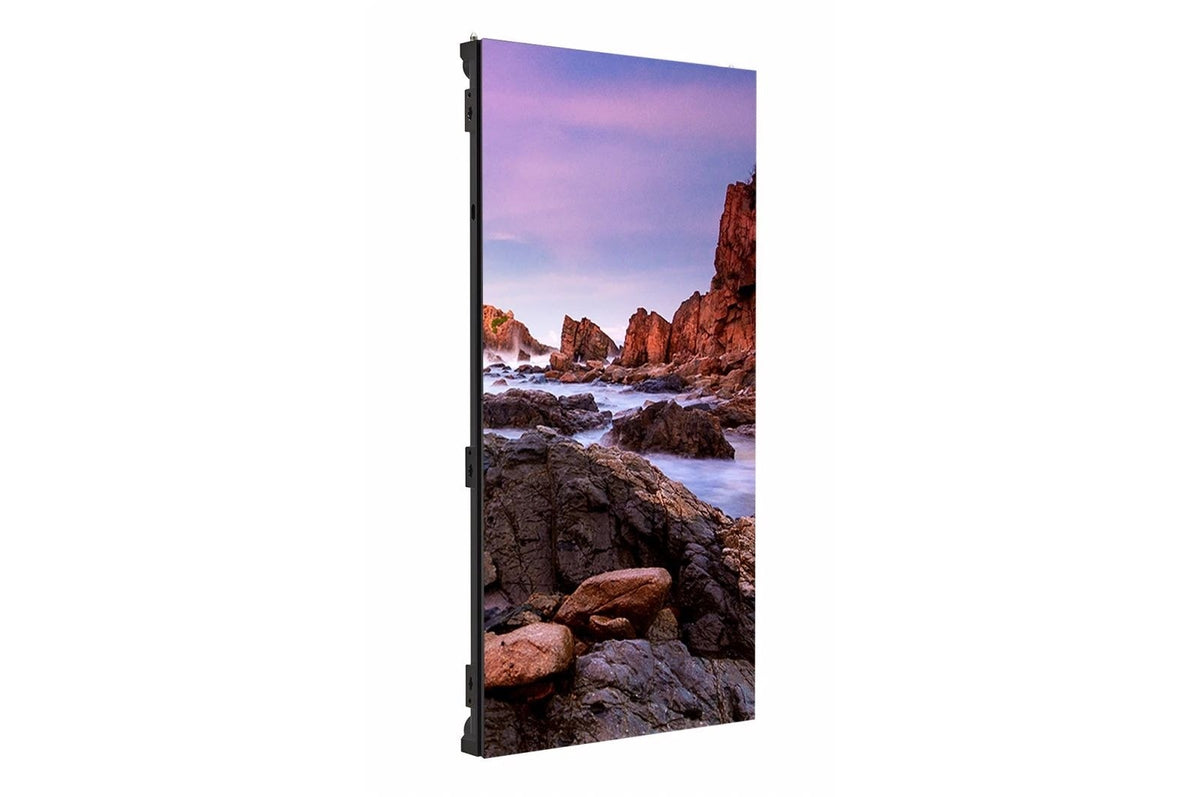

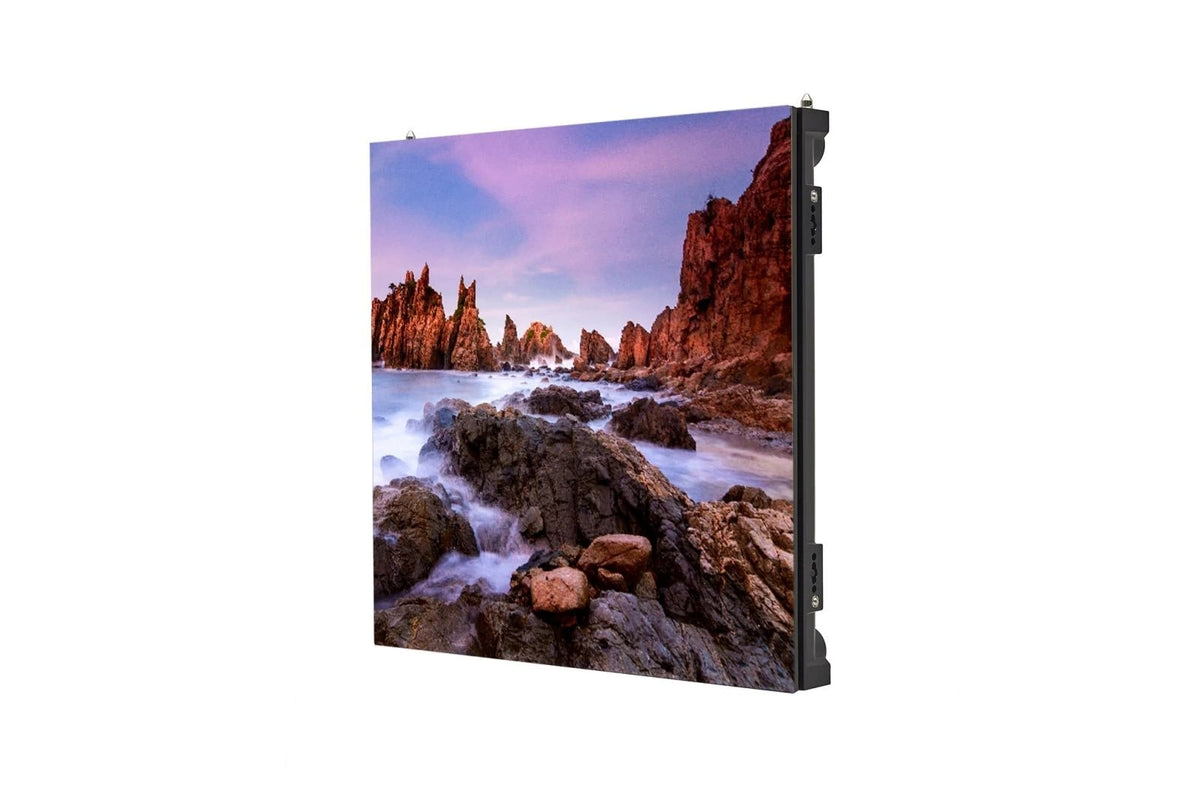

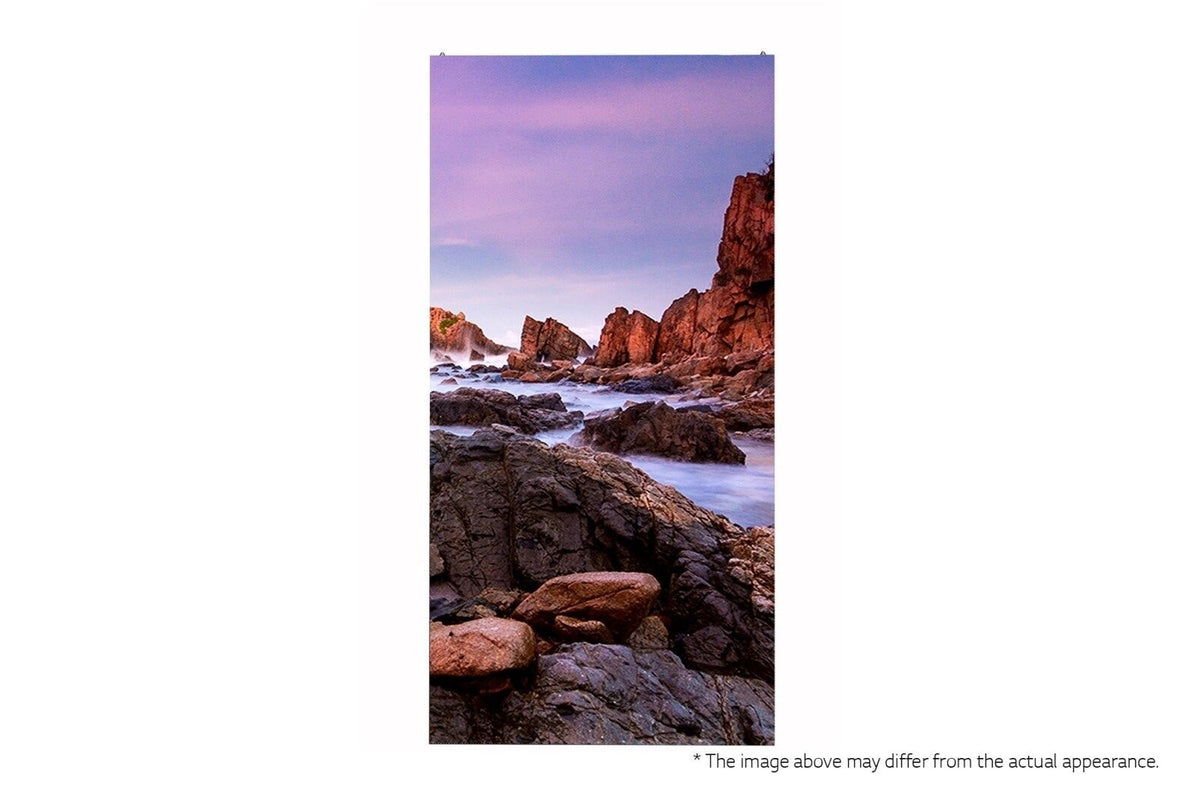

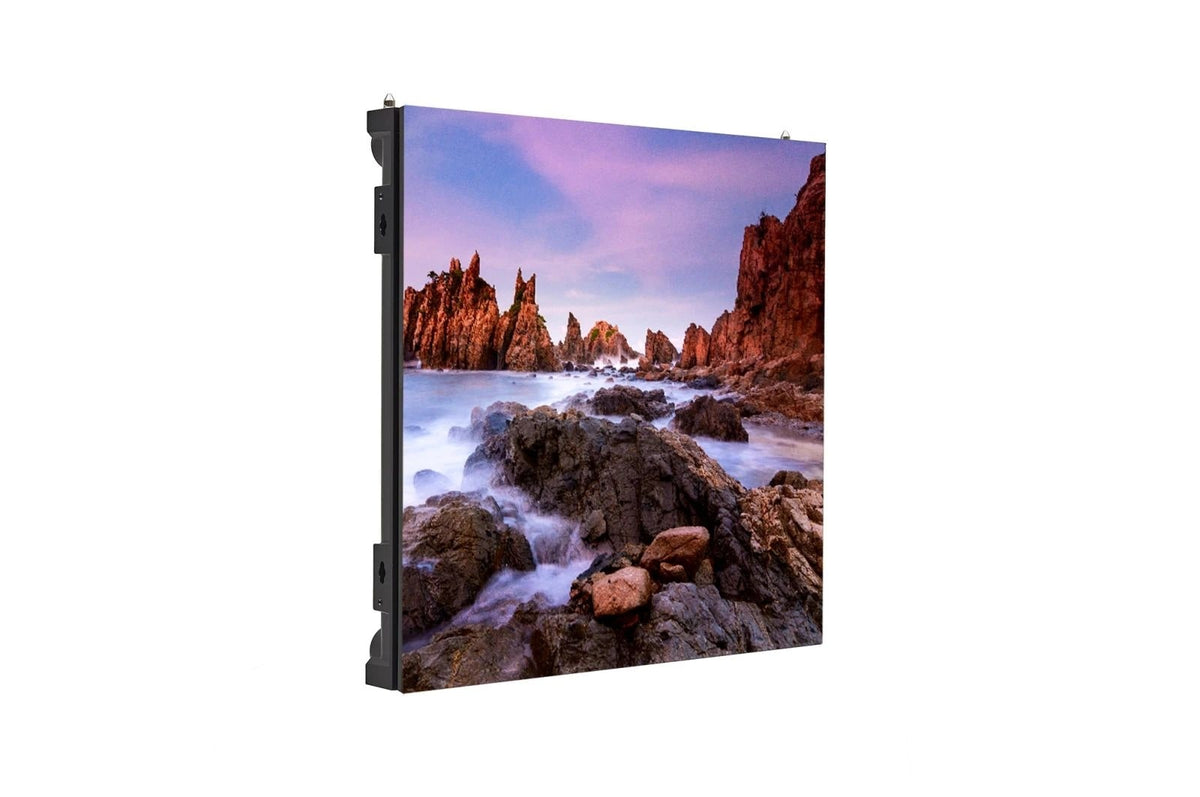

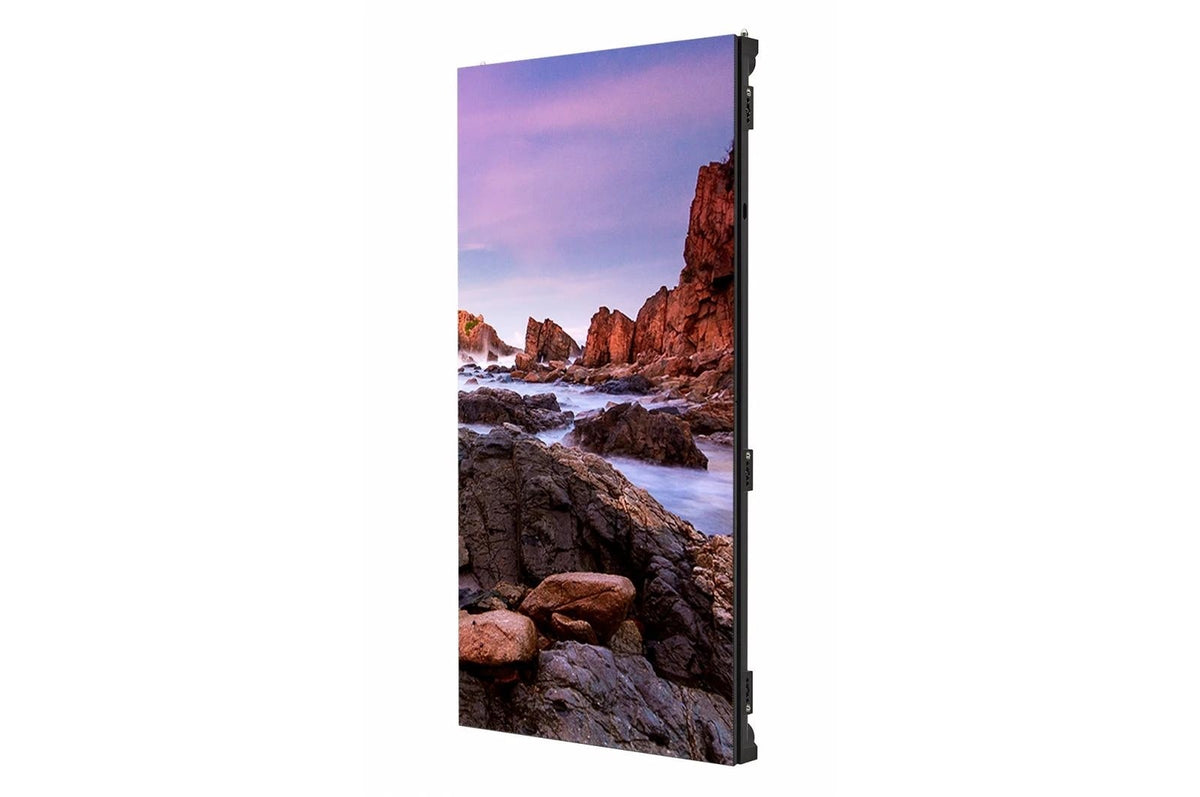

LG LSCA029-RK: 2.97mm Pixel Pitch Indoor LED Display Cabinet, Indoor LED Versatile Series
Model
:
LSCA029-RK
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG LSCA029-RK at a Glance
- Brand
- LG
- Model
- LSCA029-RK
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG LSCA029-RK Overview
The LG LSCA029-RK is an LG indoor LED display cabinet from the Indoor LED Versatile Series, with a 2.97 mm pixel pitch and 97% nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pixel Configuration: 3 in 1 SMD
- Pixel Pitch: 2.97 mm
- Module Resolution: 84x168
- Module Dimensions: 250x500
- Weight per Module: 1.30 kg
- LED Package Manufacturer: KL+Cu
Technical Specifications:
| Spec | Value |
|---|---|
| Model | LSCA029-RK |
| Brand | LG |
| Series | Indoor LED Versatile Series |
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch | 2.97 mm |
| Module Resolution | 84x168 |
| Module Dimensions | 250x500 |
| Weight per Module | 1.30 kg |
| LED Package Manufacturer | KL+Cu |
| No. of Modules per Unit Case | 2x2 |
| Unit Case Resolution | 168x336 |
| Unit Case Dimensions | 500x1000x65.6 |
| Unit Case Surface Area | 0.500 |
| Weight per Unit Case | 14.0 nit |
| Weight per Square Meter | 28.0 kg/ |
| Physical Pixel Density | 112,896 pixels/ |
| Flatness of Unit Case | +/-0.3 |
| Unit Case material | Die-casting Aluminum |
| Service access | Front or Rear (select one only) |
| Min. Brightness | 1,000 nit |
| Color Temperature | 3500 to 9000 |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 97% |
| Color Uniformity | +/-0.003CxCy |
| Contrast Ratio | 5,000 |
| Processing Depth | 14 bit |
| Power Consumption | 270 nit |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 2,880 Hz |
| Inrush Current | 160 Typ, A@VA |
| Leakage Current | 0.61 mA |
| LED Lifetime | 100,000 Half brightness |
| Operating Temperature | -10to +45 |
| Operating Humidity | 0 to 80%RH |
| IP rating Front | IP30 |
| IP rating Rear | IP30 |
Why Buy the LG LSCA029-RK from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the LSCA029-RK
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG LSCA029-RK: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG LSCA029-RK is an LG indoor LED display cabinet from the Indoor LED Versatile Series, with a 2.97 mm pixel pitch and 97% nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG LSCA029-RK, LG lists the following. Pixel Pitch: 2.97 mm; Min. Brightness: 1,000 nit; Color Temperature: 3500 to 9000; Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 97%.
For the LG LSCA029-RK, LG lists the following. Module Resolution: 84x168; Module Dimensions: 250x500; Weight per Module: 1.30 kg; No. of Modules per Unit Case: 2x2; Unit Case Resolution: 168x336.
For the LG LSCA029-RK, LG lists the following. Power Consumption: 270 nit; Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz.
For the LG LSCA029-RK, LG lists the following. Service access: Front or Rear (select one only); LED Lifetime: 100,000 Half brightness; Operating Temperature: -10to +45; Operating Humidity: 0 to 80%RH; IP rating Front: IP30.
Trianze Tech stocks the LG LSCA029-RK in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
