LG LSCC018-GZ: 1.88mm Pixel Pitch Indoor LED Display Cabinet, Indoor LED Ultra Slim Series
Model
:
LSCC018-GZ
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG LSCC018-GZ at a Glance
- Brand
- LG
- Model
- LSCC018-GZ
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases

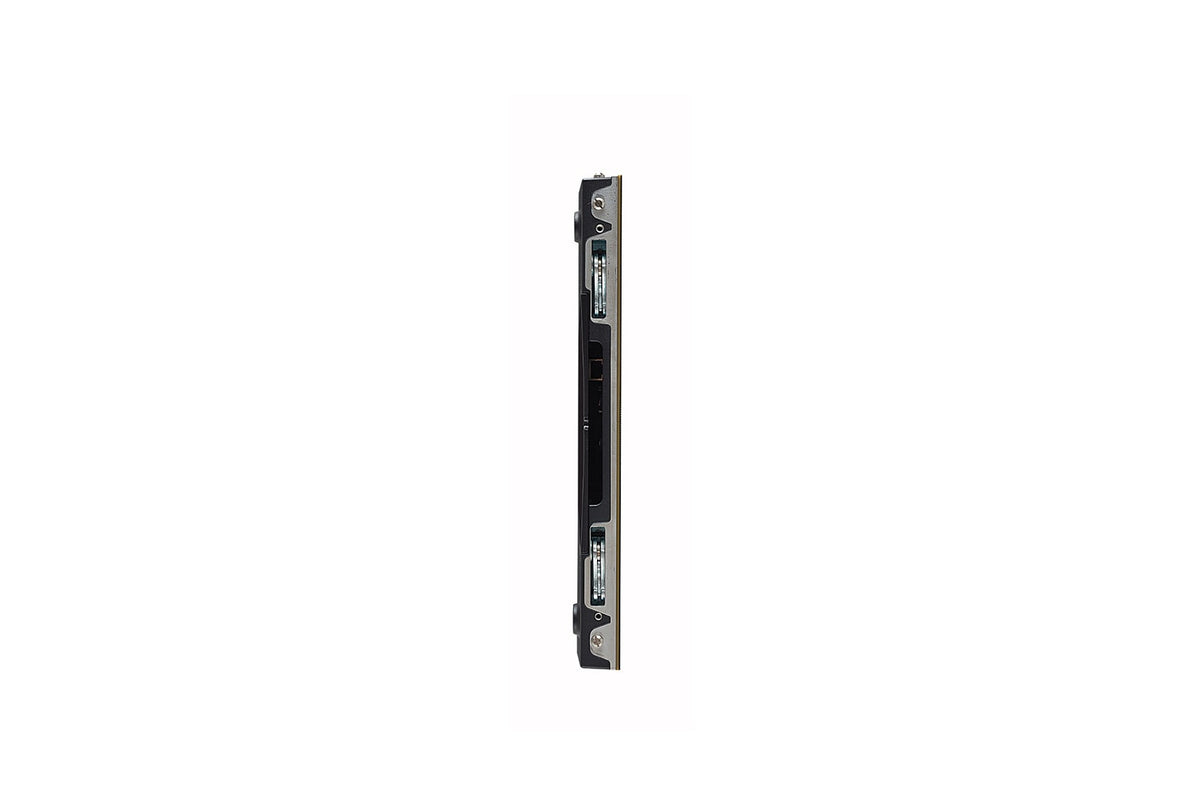

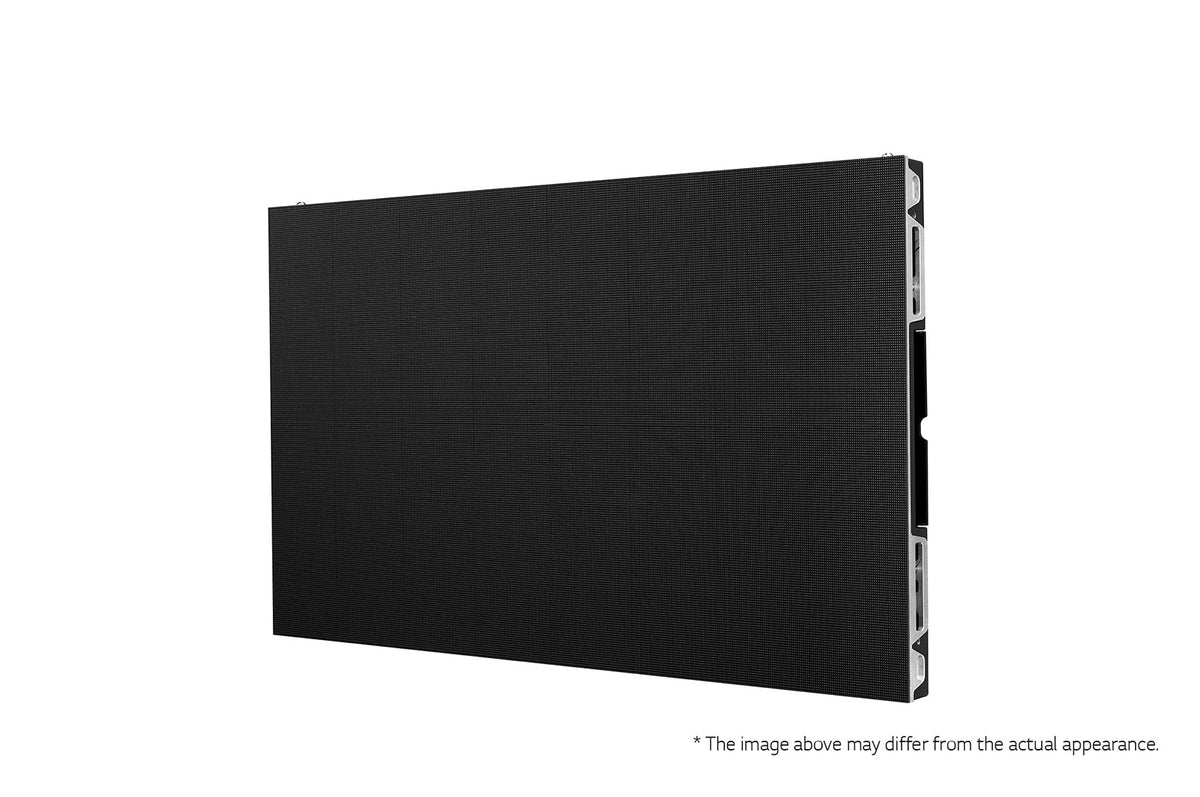

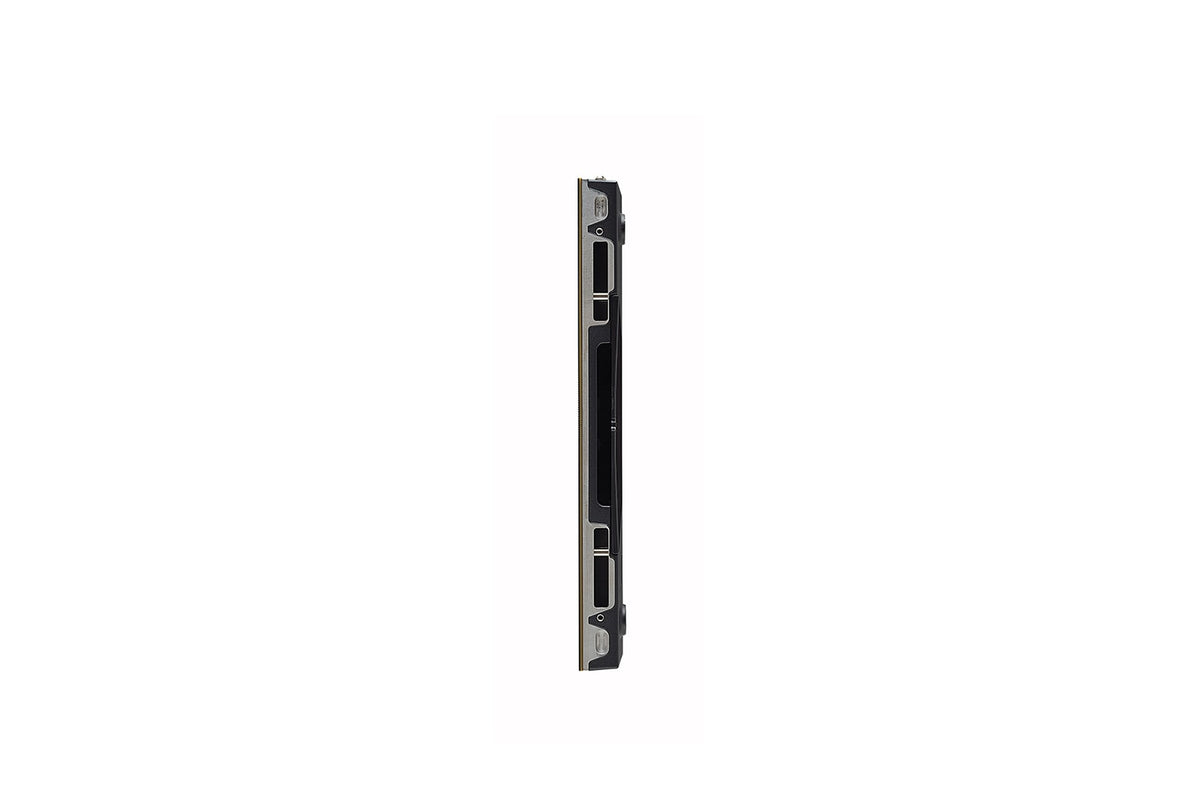

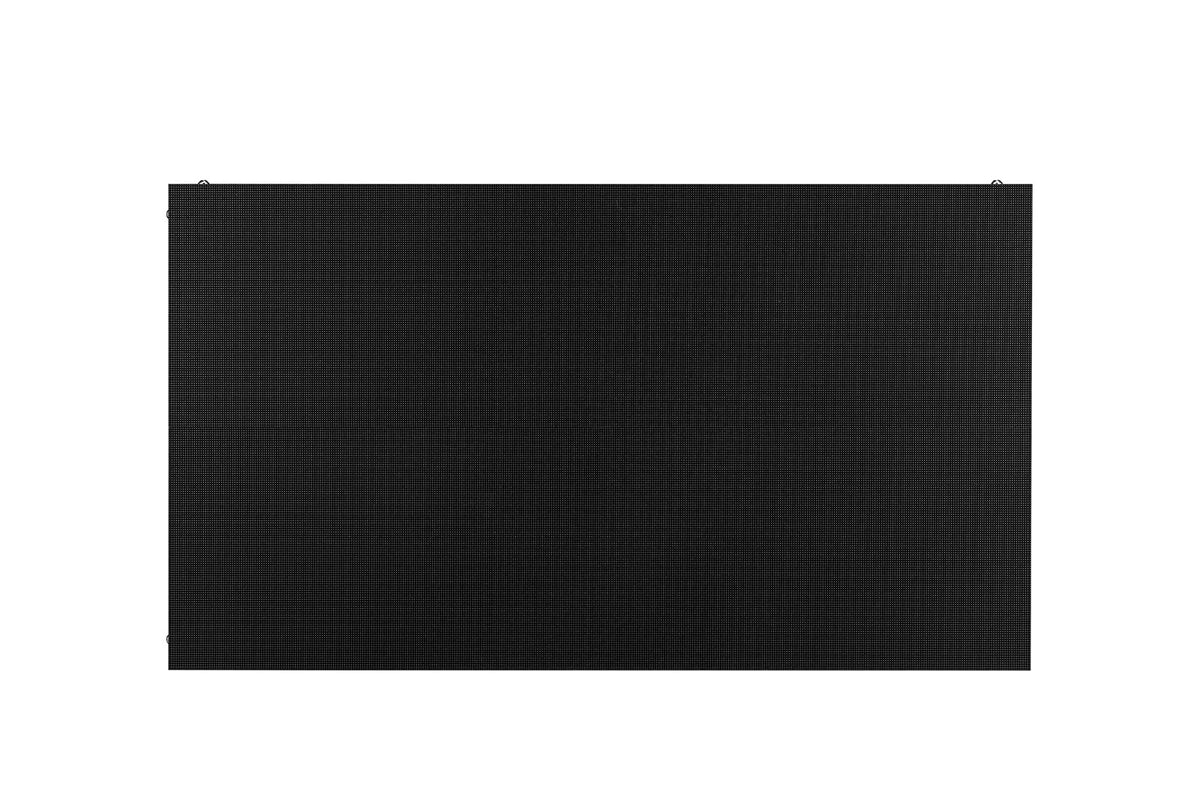

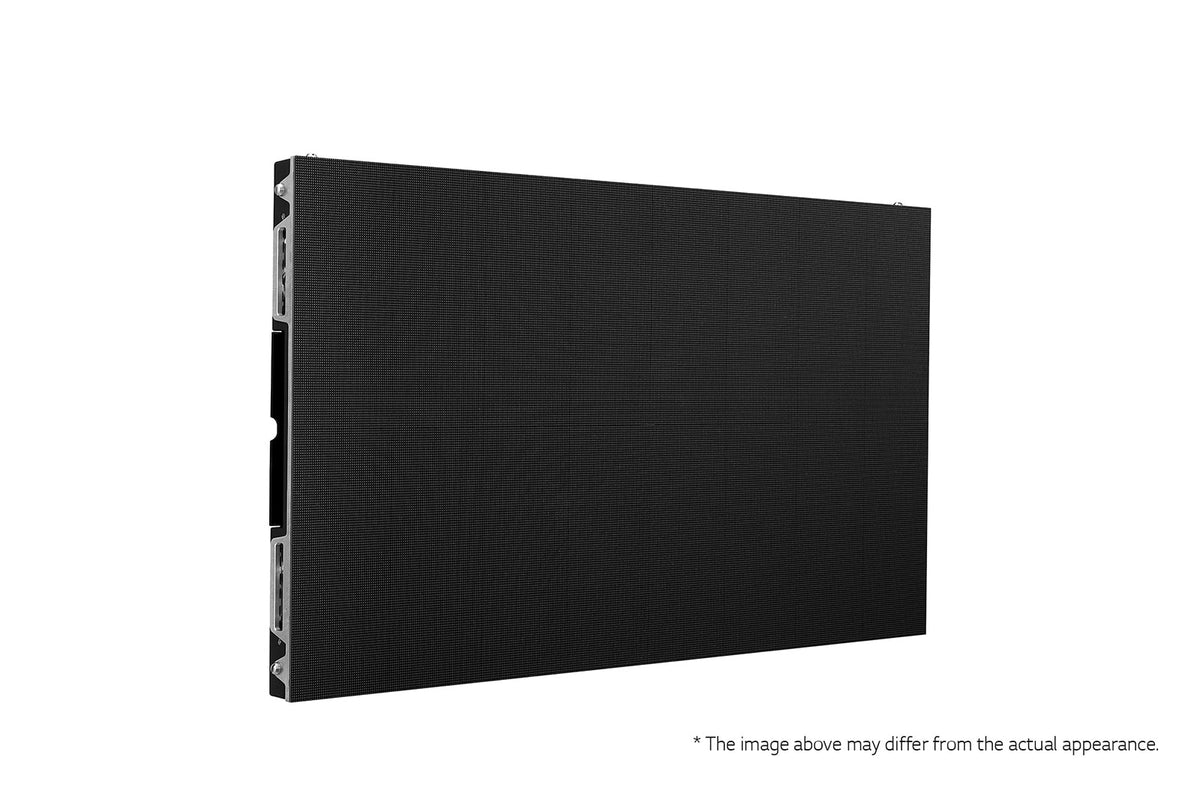

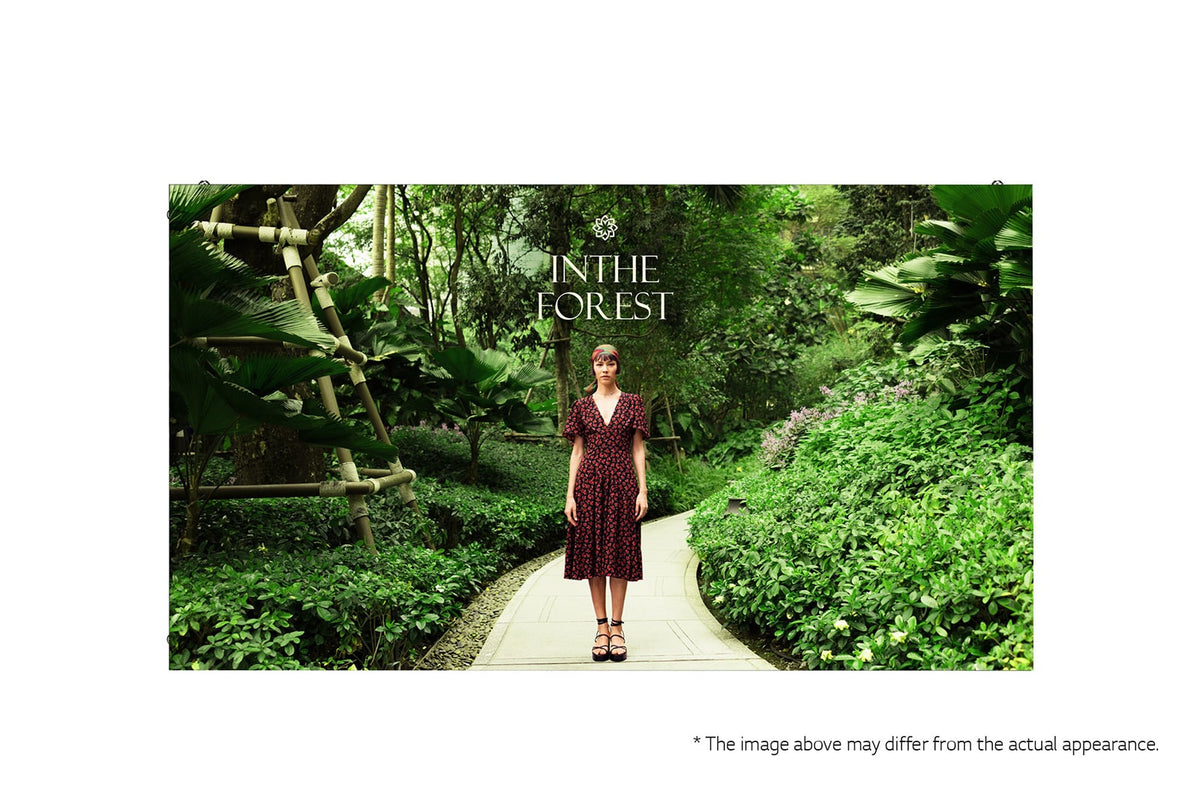

LG LSCC018-GZ Overview
The LG LSCC018-GZ is an LG indoor LED display cabinet from the Indoor LED Ultra Slim Series, with a 1.88 mm pixel pitch and Max. 800 nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pixel Configuration: Single SMD
- Pixel Pitch: 1.88 mm
- Module Resolution: 160x90
- Module Dimensions: 300x168.75
- Weight per Module: 0.60 kg
- No. of Modules per Cabinet: 1x2
Technical Specifications:
| Spec | Value |
|---|---|
| Model | LSCC018-GZ |
| Brand | LG |
| Series | Indoor LED Ultra Slim Series |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.88 mm |
| Module Resolution | 160x90 |
| Module Dimensions | 300x168.75 |
| Weight per Module | 0.60 kg |
| No. of Modules per Cabinet | 1x2 |
| Cabinet Resolution | 160x180 |
| Cabinet Dimensions | 300x337.5x61.8MAX (Cabinet Mounting depth changs for different curve) |
| Cabinet Surface Area | 0.1 m |
| Weight per Cabinet | 3.5weight changs for different curve |
| Weight per Square Meter | 33.98 kg/ |
| Physical Pixel Density | 2,84,444 pixels/ |
| Flatness of Cabinet | +/-0.1 |
| Cabinet Material | Die-casting Aluminum |
| Service access | Front |
| Brightness | Max. 800 |
| Color Temperature | 3500-9000K(default:6500K) |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 97% |
| Color Uniformity | +/-0.003CxCy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14 (HDR10, HDR10 Pro) |
| Power Consumption | 48 W/Cabinet |
| Heat Dissipation | 164 BTU/h/Cabinet |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime | 100,000 Half brightness |
| Operating Temperature | -10 to +45 |
| Operating Humidity | 0 to 80%RH |
| IP rating Front | IP30 |
| IP rating Rear | IP30 |
| Certification | CE, FCC, ETL, EMC Class-A |
| Environment | RoHS, REACH |
| Controller | CVCA |
| 90 degree corner cut | X |
| Receiver Card | A5s Plus |
| RV Card Manufacturer | NovaStar |
Why Buy the LG LSCC018-GZ from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the LSCC018-GZ
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG LSCC018-GZ: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG LSCC018-GZ is an LG indoor LED display cabinet from the Indoor LED Ultra Slim Series, with a 1.88 mm pixel pitch and Max. 800 nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG LSCC018-GZ, LG lists the following. Pixel Pitch: 1.88 mm; Brightness: Max. 800; Color Temperature: 3500-9000K(default:6500K); Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 97%.
For the LG LSCC018-GZ, LG lists the following. Module Resolution: 160x90; Module Dimensions: 300x168.75; Weight per Module: 0.60 kg; No. of Modules per Cabinet: 1x2; Cabinet Resolution: 160x180.
For the LG LSCC018-GZ, LG lists the following. Power Consumption: 48 W/Cabinet; Heat Dissipation: 164 BTU/h/Cabinet; Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz.
For the LG LSCC018-GZ, LG lists the following. Service access: Front; LED Lifetime: 100,000 Half brightness; Operating Temperature: -10 to +45; Operating Humidity: 0 to 80%RH; IP rating Front: IP30.
Trianze Tech stocks the LG LSCC018-GZ in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
