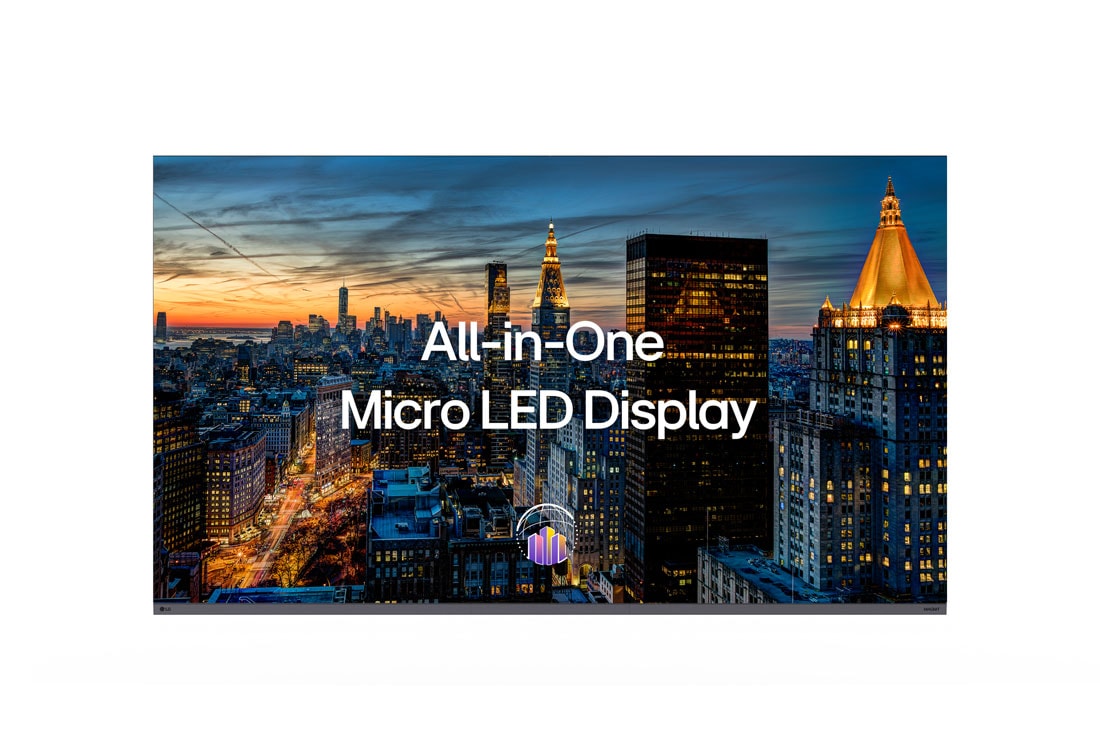

LG LAAA009-G3: 164 Inch 0.94mm Pixel Pitch 4K All-in-One LED Display with Embedded Controller
Model
:
LAAA009-G3
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG LAAA009-G3 at a Glance
- Brand
- LG
- Model
- LAAA009-G3
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG LAAA009-G3 Overview
The LG LAAA009-G3 is an LG all-in-one LED display from the LED Display Series, with a 0.94 mm pixel pitch and 500 / Peak 1,500 nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pixel Configuration: Micro
- Pixel Pitch: 0.94 mm
- Module Resolution: 320x120
- Module Dimensions: 300x112.5
- No. of Modules per Screen: 12x18(Total 216)
- Screen Resolution: 3,840x2,160
Technical Specifications:
| Spec | Value |
|---|---|
| Model | LAAA009-G3 |
| Brand | LG |
| Series | LED Display Series |
| Pixel Configuration | Micro |
| Pixel Pitch | 0.94 mm |
| Module Resolution | 320x120 |
| Module Dimensions | 300x112.5 |
| No. of Modules per Screen | 12x18(Total 216) |
| Screen Resolution | 3,840x2,160 |
| Screen Dimensions | 3,604x2,078.8x54.9 (Thickest 57.4) |
| Screen Surface Area | 7.29 |
| Weight of the screen | 258.4 |
| Physical Pixel Density | 1,137,778 pixels/m |
| Flatness of Cabinet | +/-0.2 |
| Cabinet Material | Steel |
| Service access | Front |
| Maximum brightness | 500 / Peak 1,500 |
| Color Temperature | 3,200 to 9,300 |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 95% |
| Color Uniformity | +/-0.015 Cx, Cy |
| Contrast Ratio | 40,000:1 @10lux |
| Processing Depth | 20 (HDR10, HDR10 Pro) |
| Power Consumption | 1,750 W/Screen |
| Heat Dissipation | 5,971 BTU/h/Screen |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime | 100,000 Half brightness |
| Operating Temperature | 0 to +40 |
| Operating Humidity | 10-80% RH |
| IP rating Front | IP50 |
| IP rating Rear | IP20 |
| Certification | Safety 62368-1 & 60950-1 EMC Class A |
| Speaker | Built-in (10 W + 10 W) |
| Environment | RoHS |
| Controller | Embedded(webOS) |
| I/O Port | HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out |
| Wi-Fi / BT | Yes / Yes |
| ETC | IR Remote(In-box), Magic Remote (In-box), Side by Side: Yes (1xN), HDCP 2.2, Crestron Connected |
Why Buy the LG LAAA009-G3 from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the LAAA009-G3
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG LAAA009-G3: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG LAAA009-G3 is an LG all-in-one LED display from the LED Display Series, with a 0.94 mm pixel pitch and 500 / Peak 1,500 nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG LAAA009-G3, LG lists the following. Pixel Pitch: 0.94 mm; Maximum brightness: 500 / Peak 1,500; Color Temperature: 3,200 to 9,300; Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 95%.
For the LG LAAA009-G3, LG lists the following. Module Resolution: 320x120; Module Dimensions: 300x112.5; No. of Modules per Screen: 12x18(Total 216); Screen Resolution: 3,840x2,160; Screen Dimensions: 3,604x2,078.8x54.9 (Thickest 57.4).
For the LG LAAA009-G3, LG lists the following. Power Consumption: 1,750 W/Screen; Heat Dissipation: 5,971 BTU/h/Screen; Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz.
For the LG LAAA009-G3, LG lists the following. Service access: Front; LED Lifetime: 100,000 Half brightness; Operating Temperature: 0 to +40; Operating Humidity: 10-80% RH; IP rating Front: IP50.
Trianze Tech stocks the LG LAAA009-G3 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
