LG GSPC029-GA: 2.98mm Pixel Pitch Outdoor LED Display Cabinet, Outdoor LED Series
Model
:
GSPC029-GA
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG GSPC029-GA at a Glance
- Brand
- LG
- Model
- GSPC029-GA
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG GSPC029-GA Overview

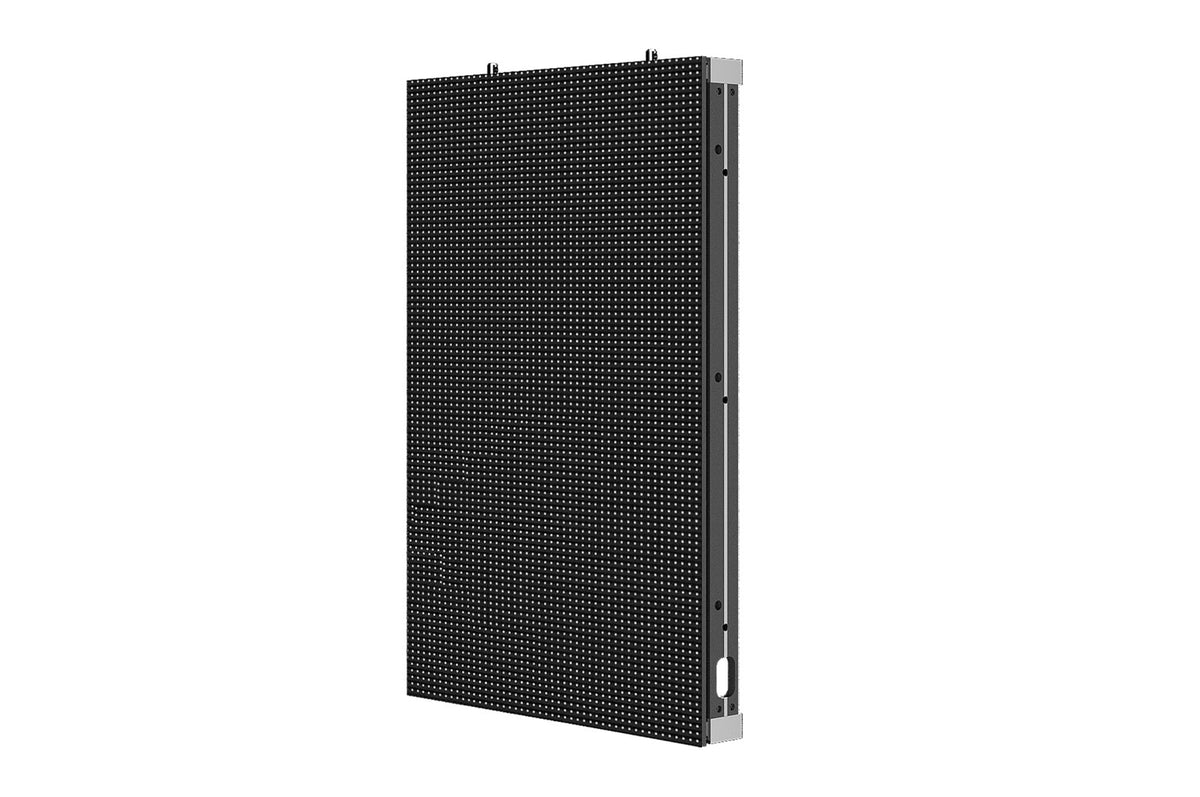

The LG GSPC029-GA is an LG outdoor LED display cabinet from the Outdoor LED Series, with a 2.98 mm pixel pitch and Max. 5,500 nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pitch Name: P2.9
- Pixel Configuration: Single SMD
- Pixel Pitch: P2.98
- Module Resolution: 84 x 84
- Module Dimensions: 250 x 250
- Weight per Module: 1 kg
Technical Specifications:
| Spec | Value |
|---|---|
| Model | GSPC029-GA |
| Brand | LG |
| Series | Outdoor LED Series |
| Pitch Name | P2.9 |
| Pixel Configuration | Single SMD |
| Pixel Pitch | P2.98 |
| Module Resolution | 84 x 84 |
| Module Dimensions | 250 x 250 |
| Weight per Module | 1 kg |
| No. of Modules per Cabinet | 2x4 |
| Cabinet Resolution | 168 x 336 |
| Cabinet Dimensions | 500 x 1,000 x 68 |
| Cabinet Surface Area | 0.5 |
| Weight per Cabinet | 16 nit |
| Weight per Square Meter | 32 kg/m |
| Physical Pixel Density | 112896 pixels/ |
| Flatness of Cabinet | +/-0.2 |
| Cabinet Material | Aluminum |
| Service access | Front & Rear |
| Brightness | Max. 5,500 |
| Color Temperature | 3,200 to 9,300 |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 97% |
| Color Uniformity | +/-0.003CxCy |
| Contrast Ratio | 10,000: 1 |
| Processing Depth | 14 (HDR10, HDR10 Pro) |
| Power Consumption | 260 W/Cabinet |
| Heat Dissipation | 887 BTU/h/Cabinet |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime | 100,000 Half brightness |
| Operating Temperature | -30 C to +50 C |
| Operating Humidity | 10 to 90%RH |
| IP rating Front | IP66 |
| IP rating Rear | IP66 |
| Certification | CE, CB, ETL, FCC, BIS, KC (TBD) |
| Environment | RoHS, REACH |
| Controller | CVGA / LCQT |
Why Buy the LG GSPC029-GA from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the GSPC029-GA
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG GSPC029-GA: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG GSPC029-GA is an LG outdoor LED display cabinet from the Outdoor LED Series, with a 2.98 mm pixel pitch and Max. 5,500 nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG GSPC029-GA, LG lists the following. Pixel Pitch: P2.98; Brightness: Max. 5,500; Color Temperature: 3,200 to 9,300; Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 97%.
For the LG GSPC029-GA, LG lists the following. Module Resolution: 84 x 84; Module Dimensions: 250 x 250; Weight per Module: 1 kg; No. of Modules per Cabinet: 2x4; Cabinet Resolution: 168 x 336.
For the LG GSPC029-GA, LG lists the following. Power Consumption: 260 W/Cabinet; Heat Dissipation: 887 BTU/h/Cabinet; Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz.
For the LG GSPC029-GA, LG lists the following. Service access: Front & Rear; LED Lifetime: 100,000 Half brightness; Operating Temperature: -30 C to +50 C; Operating Humidity: 10 to 90%RH; IP rating Front: IP66.
Trianze Tech stocks the LG GSPC029-GA in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
