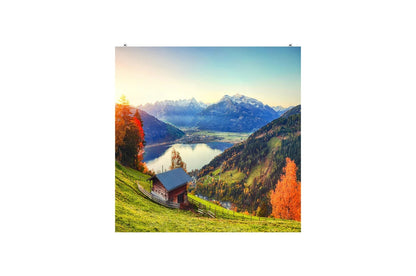

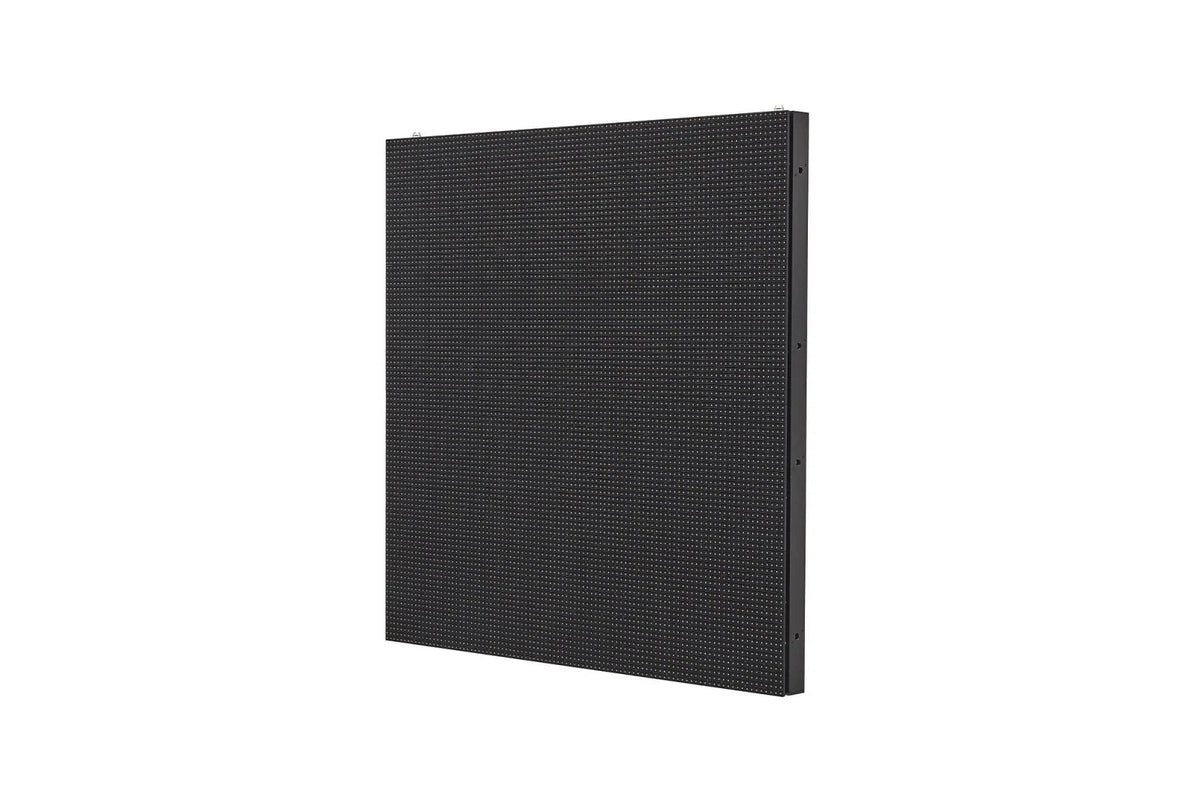

LG GSCD100-GR: 10.41mm Pixel Pitch Outdoor LED Display Cabinet, Outdoor LED Ultra Light Series
Model
:
GSCD100-GR
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG GSCD100-GR at a Glance
- Brand
- LG
- Model
- GSCD100-GR
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG GSCD100-GR Overview

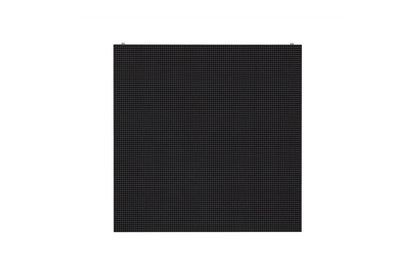

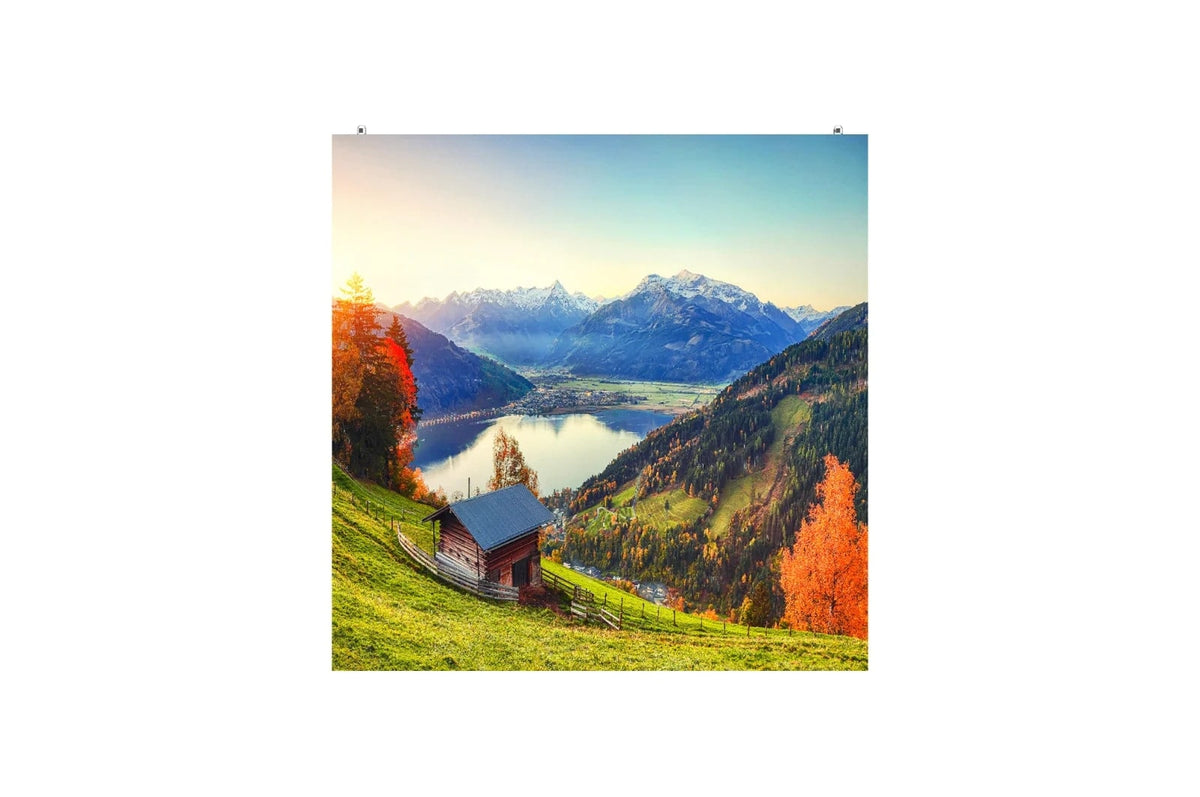

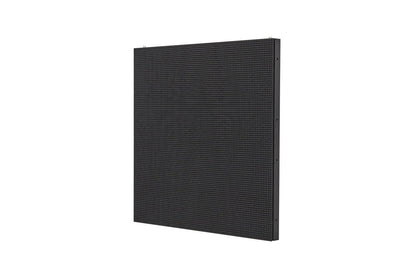

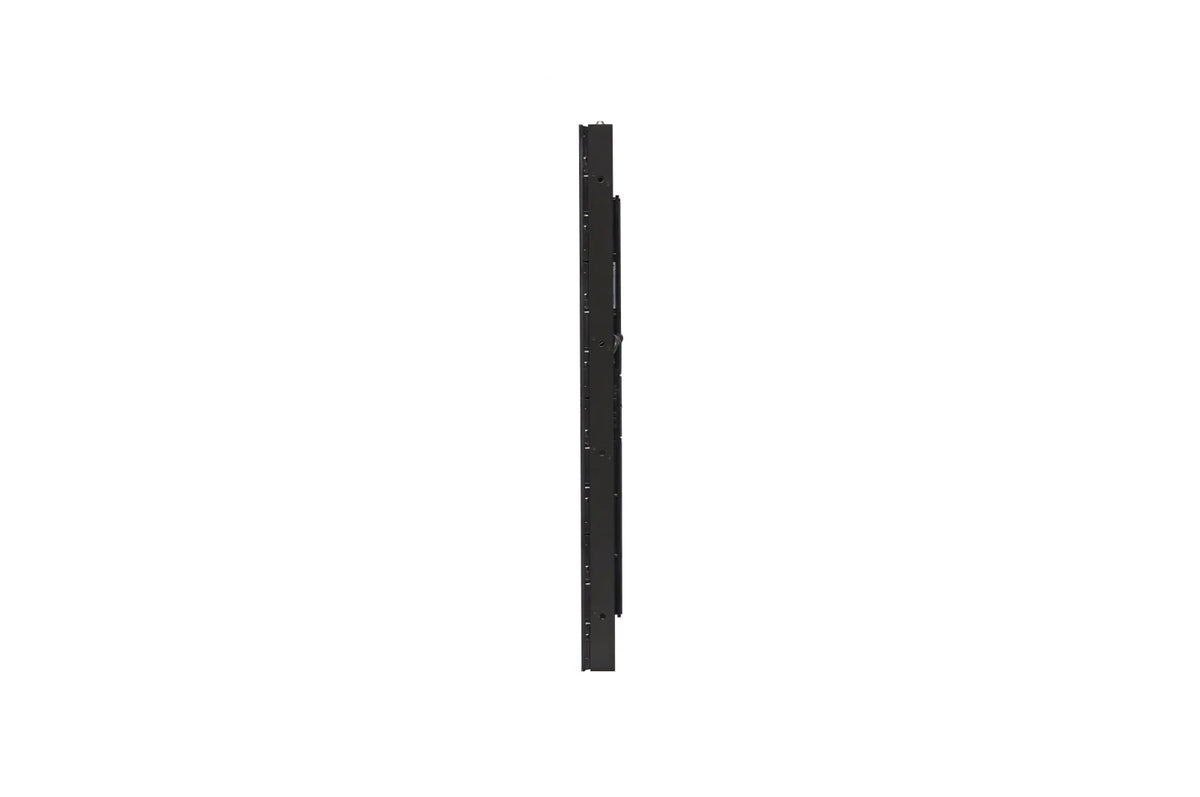

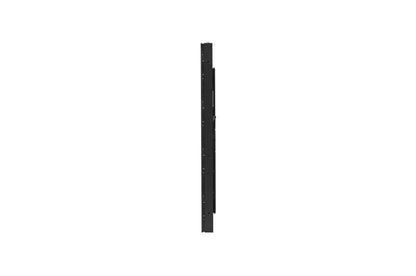

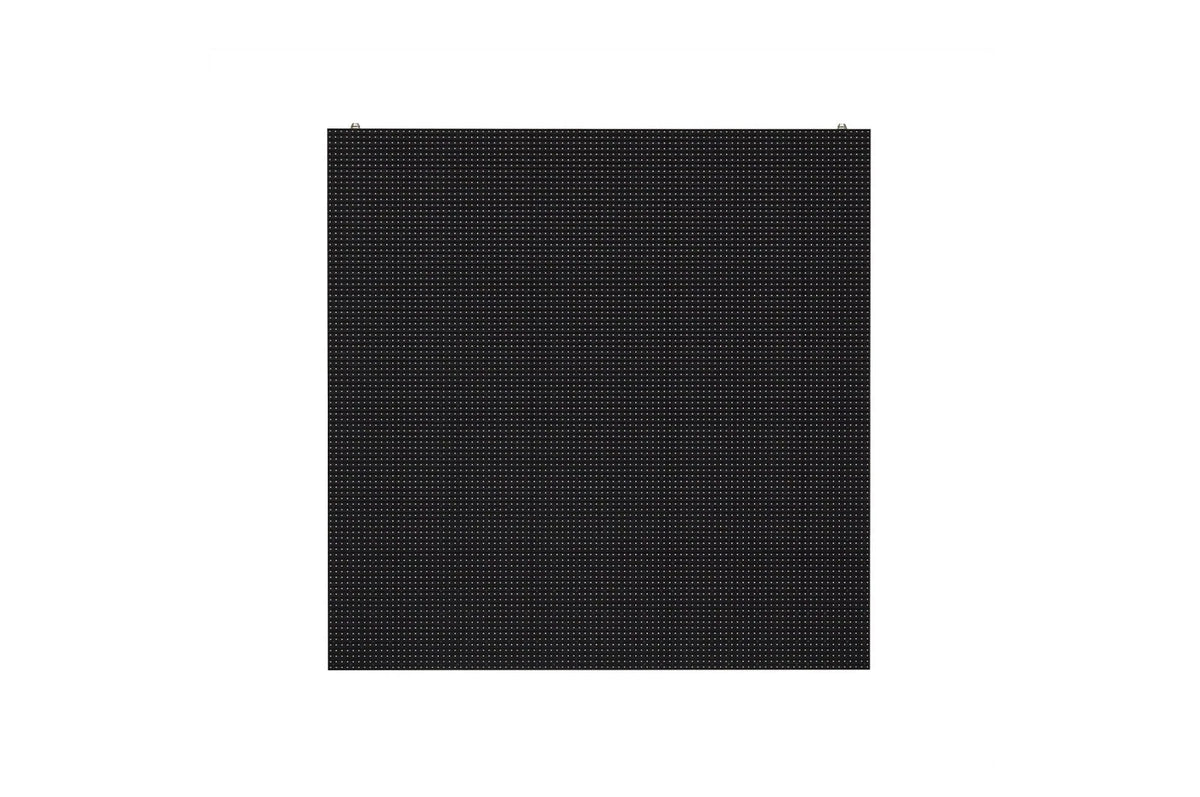

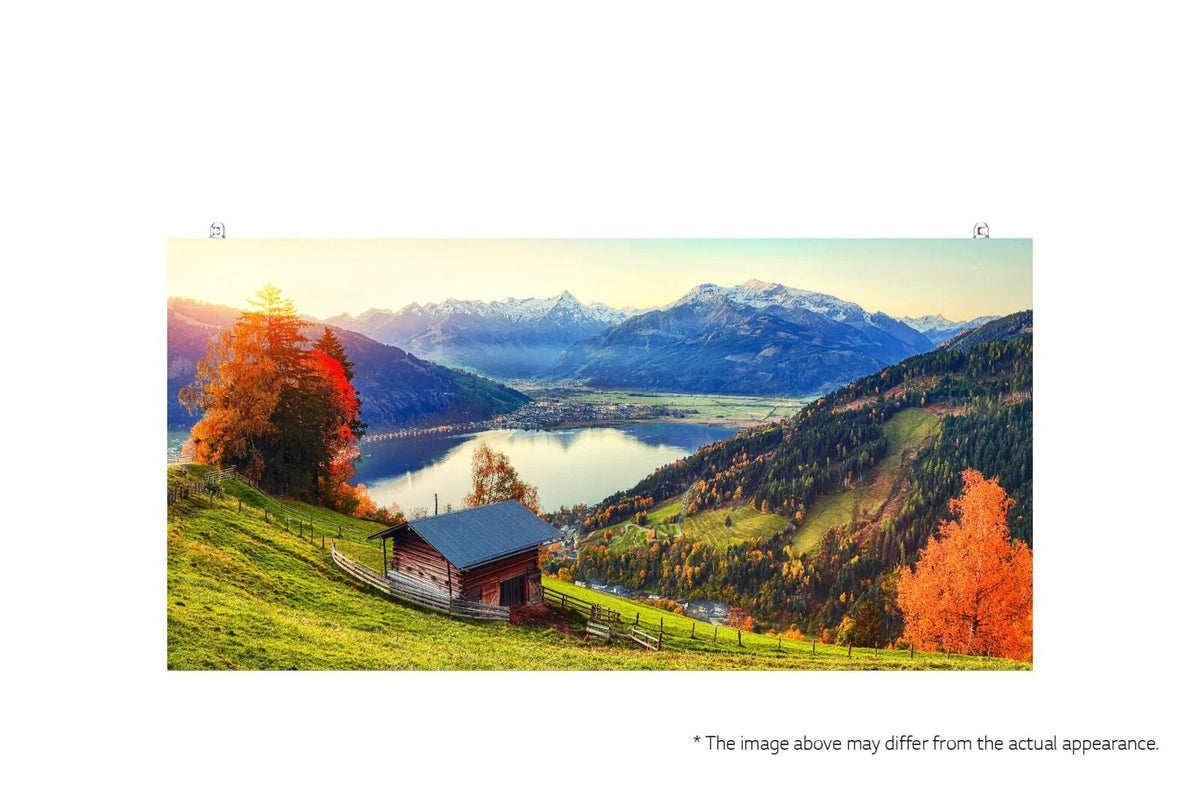

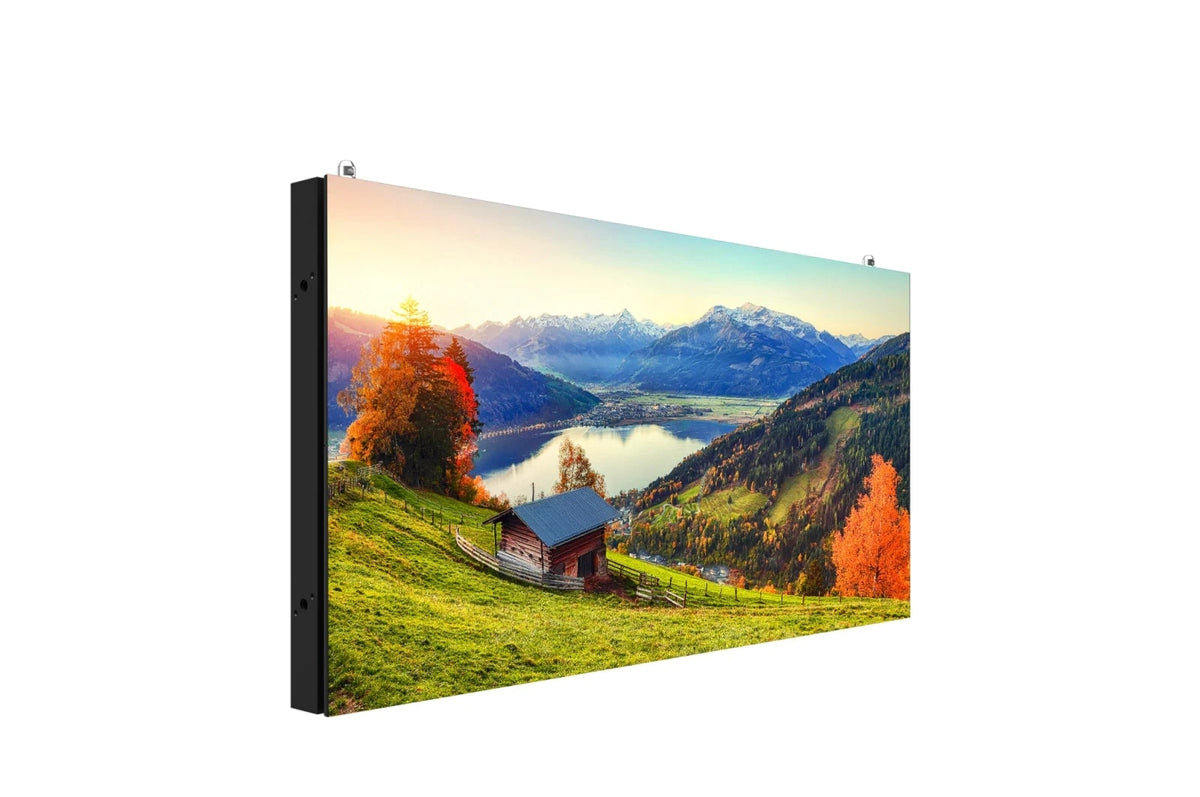

The LG GSCD100-GR is an LG outdoor LED display cabinet from the Outdoor LED Ultra Light Series, with a 10.41 mm pixel pitch and 7,000 cd/m nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pixel Configuration: 3 in 1 SMD
- Pixel Pitch: 10.41 mm
- Module Resolution: 48 x 24
- Module Dimensions: 500 x 250
- Weight per Module: 1.30 kg
- No. of Modules per Cabinet: 2 x 4 / 2 x 2 (Half-sized)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | GSCD100-GR |
| Brand | LG |
| Series | Outdoor LED Ultra Light Series |
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch | 10.41 mm |
| Module Resolution | 48 x 24 |
| Module Dimensions | 500 x 250 |
| Weight per Module | 1.30 kg |
| No. of Modules per Cabinet | 2 x 4 / 2 x 2 (Half-sized) |
| Cabinet Resolution | 96 x 96 / 96 x 48 (Half-sized) |
| Cabinet Dimensions | 1,000 x 1,000 x 85.1 mm / 1,000 x 500 x 85.1 mm (Half-sized) |
| Cabinet Surface Area | 1.000 / 0.500 (Half-sized) |
| Weight per Cabinet | 19.0 / 10.6 (Half-sized) |
| Weight per Square Meter | 19.0 / 21.2 (Half-sized) |
| Physical Pixel Density | 9,216 pixels/m |
| Flatness of Cabinet | +/-0.5 mm |
| Cabinet Material | Aluminum Profile |
| Service Access | Front or Rear (One Option Only) |
| Maximum brightness | 7,000 cd/m |
| Color Temperature | 3,200-9,300 (K) |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 97% |
| Color Uniformity | +/- 0.003 Cx,Cy |
| Contrast Ratio | 10,000 |
| Processing Depth | 16 bit |
| Power Consumption | 650 / 330 (Half-sized) |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Lifetime | 100,000 Hours to Half Brightness |
| Operating Temperature | -30 C to +50 C |
| Operating Humidity | 10-99%RH |
| IP rating Front / Rear | IP65 / IP65 |
| Connectivity, Input | HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0 |
| Connectivity, Output | Gigabit Ethernet x 16, RS-232C In/Out (4 Pin Phone-jack) |
| Connectivity, Control | RJ45 In (LAN) |
| Video, Resolution | 3,840 x 2,160 @ 60Hz |
| Video, Format | RGB / YCbCr4:4:4 / YCbCr4:2:2 |
| Feature | 8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10 |
| Software, Platform | webOS 4.0 w / Open API Support |
| Software, Setup and Maintenance | LG LED Assistant |
| Software, Content Management | LG SuperSign CMS |
| Software, Cloud Monitoring | LG ConnectedCare |
| Physical Specs, Dimensions | 443 x 63 x 307.5 EIA Standard Rack (2U) |
| Physical Specs, Weight | 4.9 kg |
| Power Specs, Power Supply | AC 100-240 V, 50/60 Hz |
| Power Specs, Power Type | Built-in Power |
| Power Specs, Power Consumption | 50 (Max.) |
| Environmental Conditions, Operation Temperature | 0 C to 40 C |
| Environmental Conditions, Operation Humidity | 10% to 80% |
| Certifications, Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
Why Buy the LG GSCD100-GR from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the GSCD100-GR
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG GSCD100-GR: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG GSCD100-GR is an LG outdoor LED display cabinet from the Outdoor LED Ultra Light Series, with a 10.41 mm pixel pitch and 7,000 cd/m nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG GSCD100-GR, LG lists the following. Pixel Pitch: 10.41 mm; Maximum brightness: 7,000 cd/m; Color Temperature: 3,200-9,300 (K); Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 97%.
For the LG GSCD100-GR, LG lists the following. Module Resolution: 48 x 24; Module Dimensions: 500 x 250; Weight per Module: 1.30 kg; No. of Modules per Cabinet: 2 x 4 / 2 x 2 (Half-sized); Cabinet Resolution: 96 x 96 / 96 x 48 (Half-sized).
For the LG GSCD100-GR, LG lists the following. Power Consumption: 650 / 330 (Half-sized); Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz; Power Specs, Power Supply: AC 100-240 V, 50/60 Hz.
For the LG GSCD100-GR, LG lists the following. Service Access: Front or Rear (One Option Only); Lifetime: 100,000 Hours to Half Brightness; Operating Temperature: -30 C to +50 C; Operating Humidity: 10-99%RH; IP rating Front / Rear: IP65 / IP65.
Trianze Tech stocks the LG GSCD100-GR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
