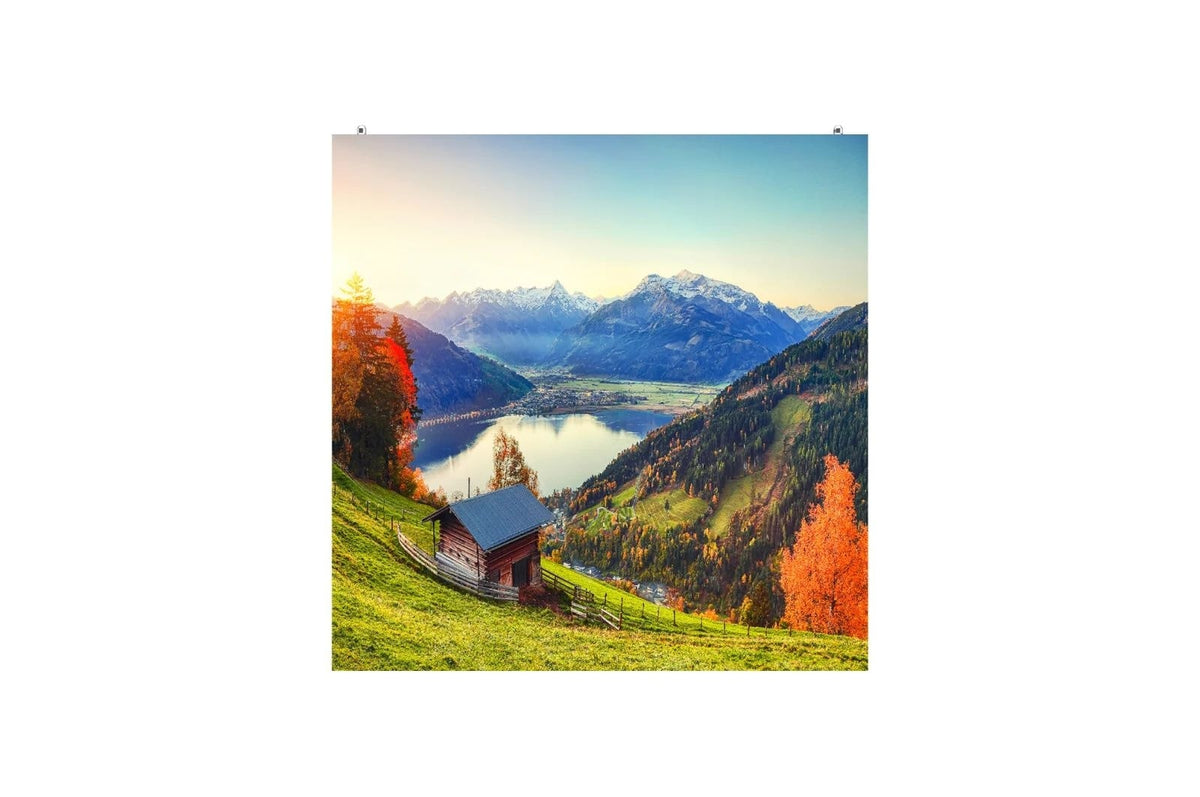

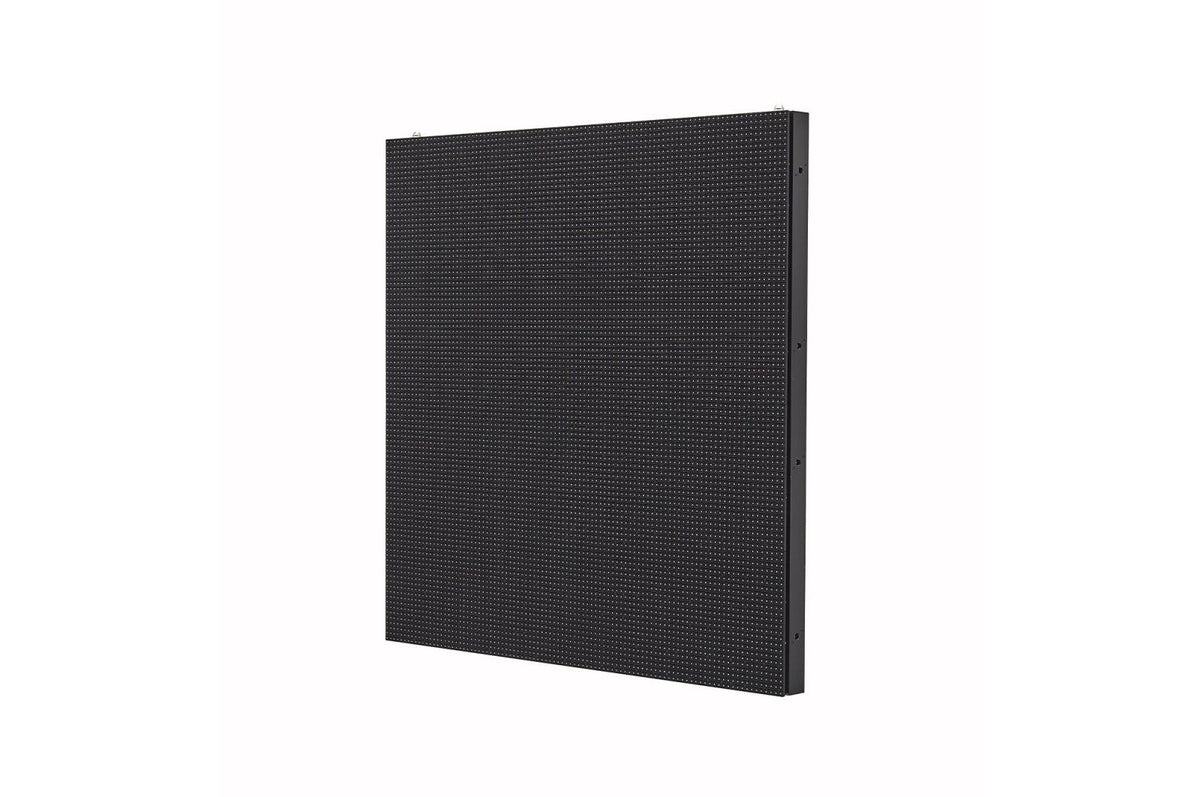

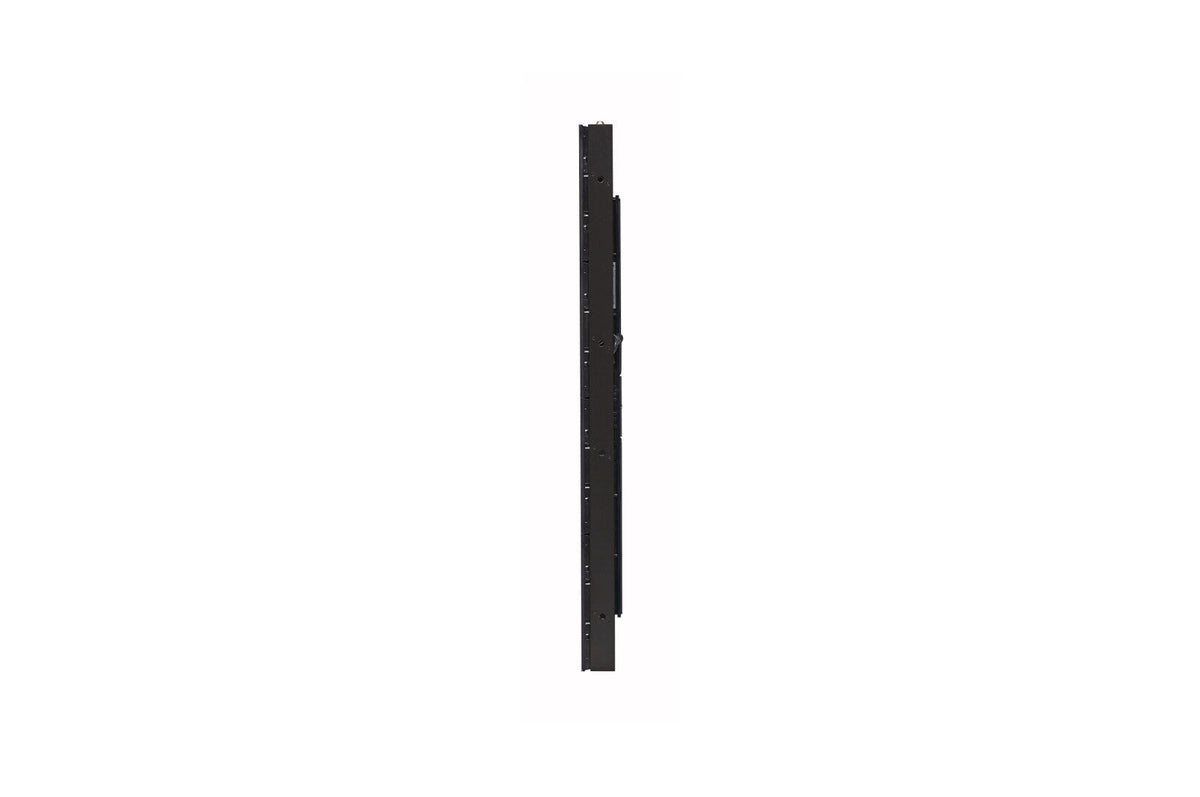

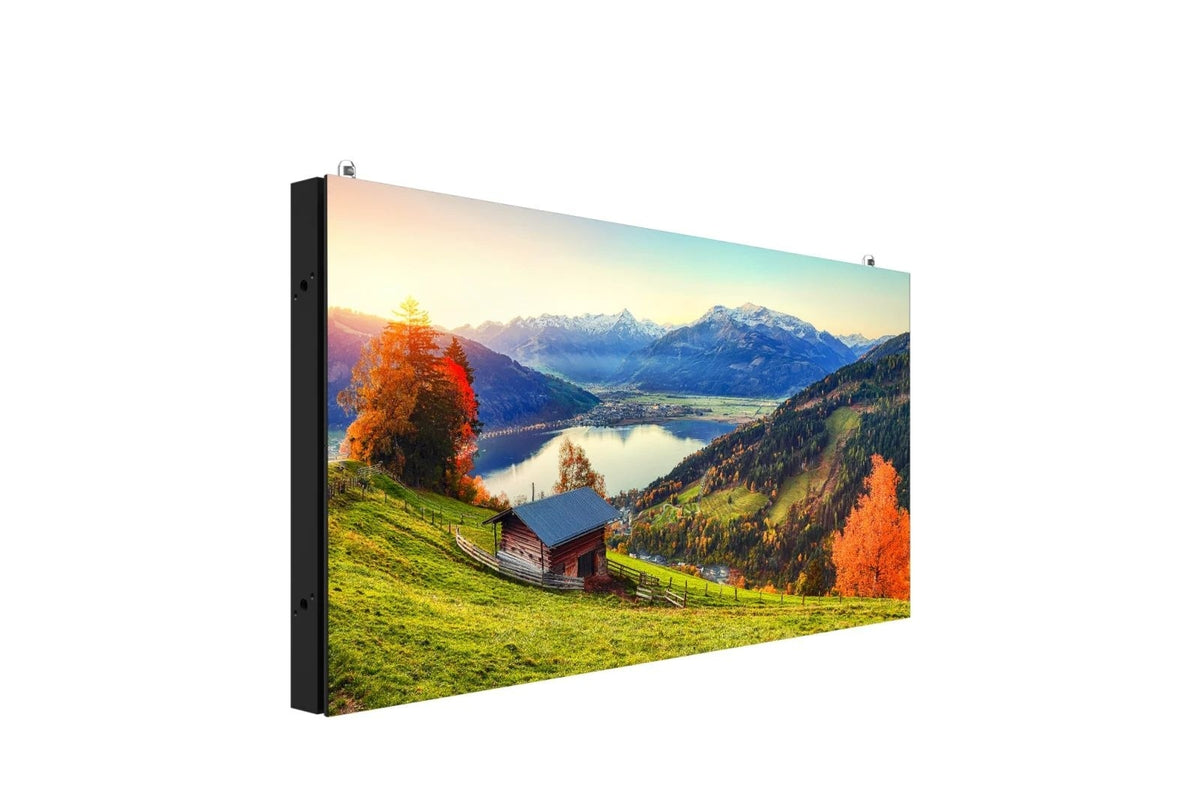

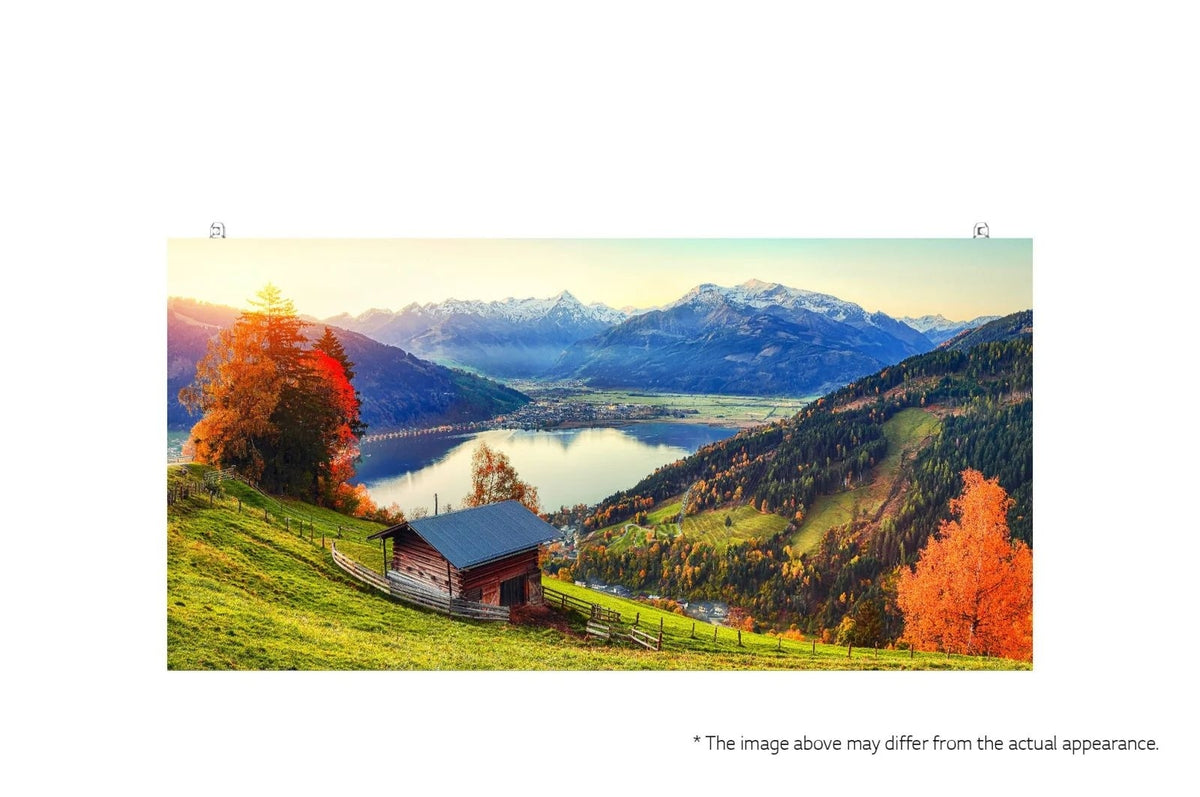

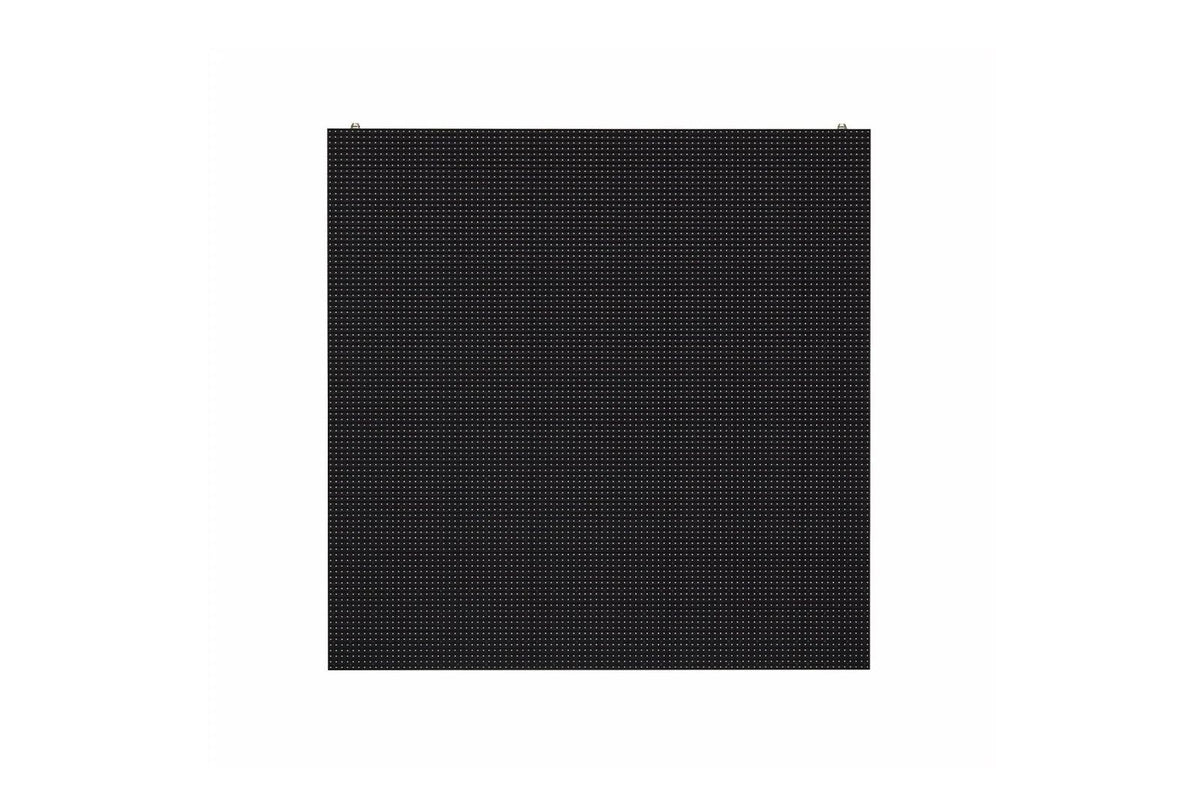

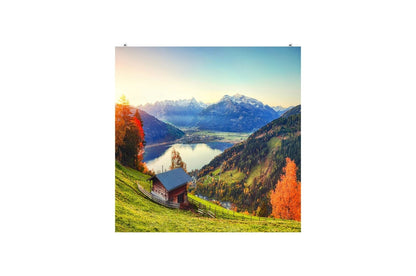

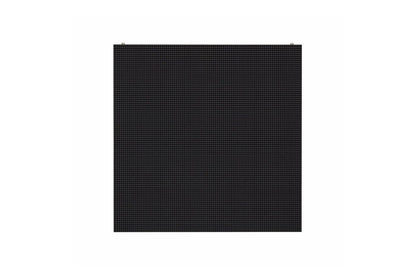

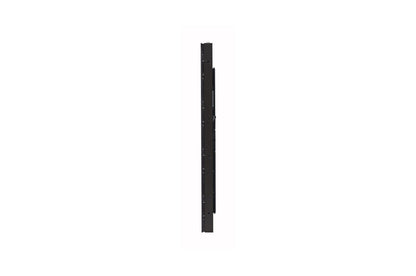

LG GSCD069-GR: 6.94mm Pixel Pitch Outdoor LED Display Cabinet, Outdoor LED Ultra Light Series
Model
:
GSCD069-GR
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG GSCD069-GR at a Glance
- Brand
- LG
- Model
- GSCD069-GR
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG GSCD069-GR Overview
The LG GSCD069-GR is an LG outdoor LED display cabinet from the Outdoor LED Ultra Light Series, with a 6.94 mm pixel pitch and 5,000 nit nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pixel Configuration: 3 in 1
- Pixel Pitch: 6.94 mm
- Module Resolution: 72x36
- Module Dimensions: 500x250
- Weight per Module: 1.30 kg
- No. of Modules per Cabinet: 2x4
Technical Specifications:
| Spec | Value |
|---|---|
| Model | GSCD069-GR |
| Brand | LG |
| Series | Outdoor LED Ultra Light Series |
| Pixel Configuration | 3 in 1 |
| Pixel Pitch | 6.94 mm |
| Module Resolution | 72x36 |
| Module Dimensions | 500x250 |
| Weight per Module | 1.30 kg |
| No. of Modules per Cabinet | 2x4 |
| Cabinet Resolution | 144x144 |
| Cabinet Dimensions | 1000x1000x84.4 |
| Cabinet Surface Area | 1.000 |
| Weight per Cabinet | 18.5 nit |
| Weight per Square Meter | 18.5 kg/m |
| Physical Pixel Density | 20,736 pixels/m |
| Flatness of Cabinet | +/-0.5 |
| Cabinet Material | Aluminum Profiles |
| Service access | Front or Rear (select one only) |
| Maximum brightness | 5,000 nit |
| Color Temperature | 3,200 to 9,300 |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 97% |
| Color Uniformity | +/-0.003CxCy |
| Contrast Ratio | 6,000 |
| Processing Depth | 14 (HDR10, HDR10 Pro) |
| Power Consumption | 680 W/Cabinet |
| Heat Dissipation | 2320 BTU/h/Cabinet |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime | 100,000 Half brightness |
| Operating Temperature | -30 C to +50 C |
| Operating Humidity | 10-99%RH |
| IP rating Front | IP65 |
| IP rating Rear | IP65 |
| Certification | CE,FCC,ETL |
| Environment | RoHS |
| Controller | CVCA |
| 90 degree corner cut | O |
Why Buy the LG GSCD069-GR from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the GSCD069-GR
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG GSCD069-GR: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG GSCD069-GR is an LG outdoor LED display cabinet from the Outdoor LED Ultra Light Series, with a 6.94 mm pixel pitch and 5,000 nit nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG GSCD069-GR, LG lists the following. Pixel Pitch: 6.94 mm; Maximum brightness: 5,000 nit; Color Temperature: 3,200 to 9,300; Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 97%.
For the LG GSCD069-GR, LG lists the following. Module Resolution: 72x36; Module Dimensions: 500x250; Weight per Module: 1.30 kg; No. of Modules per Cabinet: 2x4; Cabinet Resolution: 144x144.
For the LG GSCD069-GR, LG lists the following. Power Consumption: 680 W/Cabinet; Heat Dissipation: 2320 BTU/h/Cabinet; Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz.
For the LG GSCD069-GR, LG lists the following. Service access: Front or Rear (select one only); LED Lifetime: 100,000 Half brightness; Operating Temperature: -30 C to +50 C; Operating Humidity: 10-99%RH; IP rating Front: IP65.
Trianze Tech stocks the LG GSCD069-GR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
