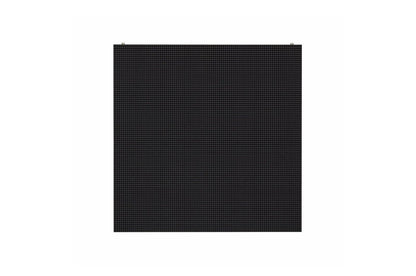

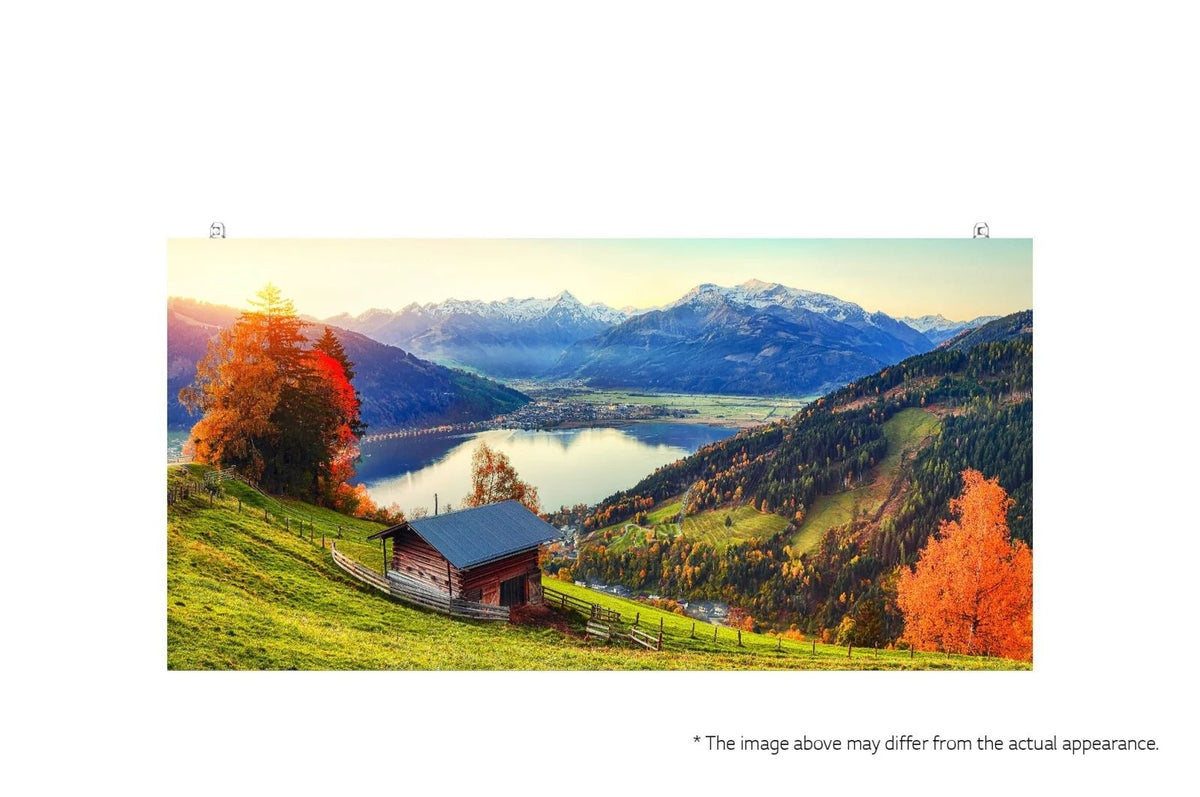

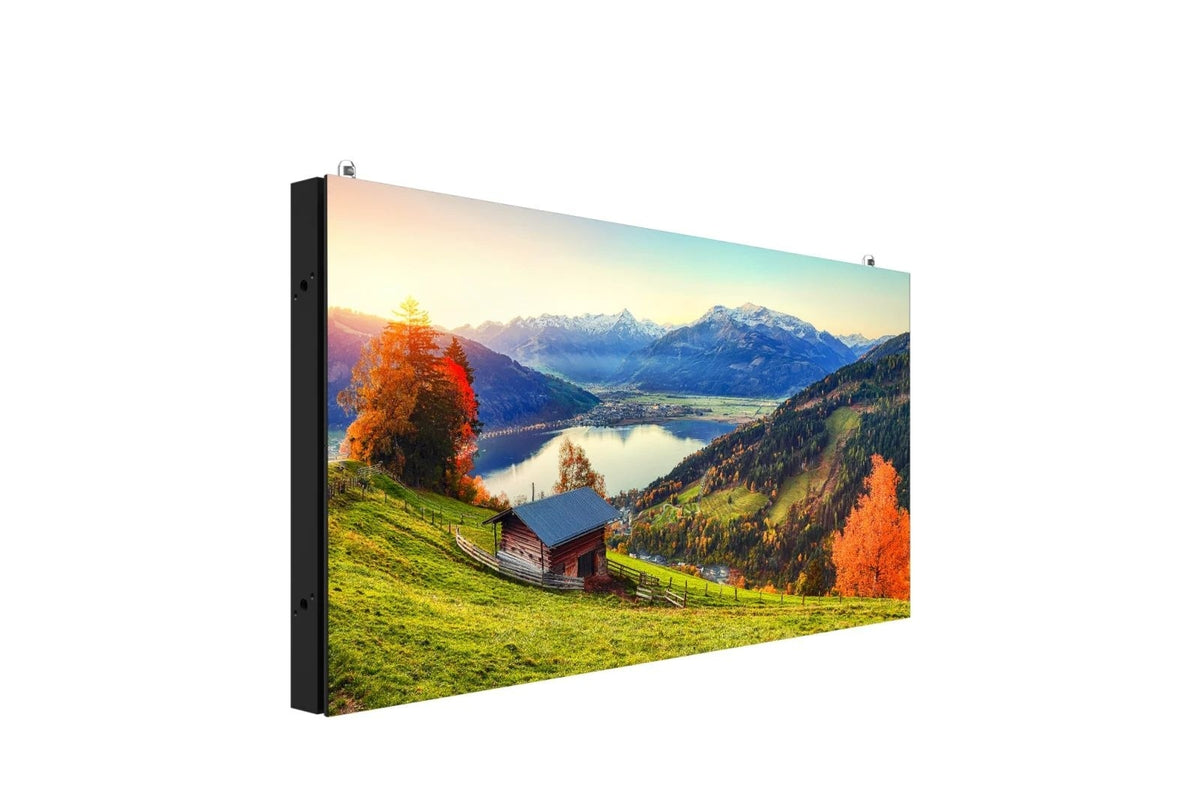

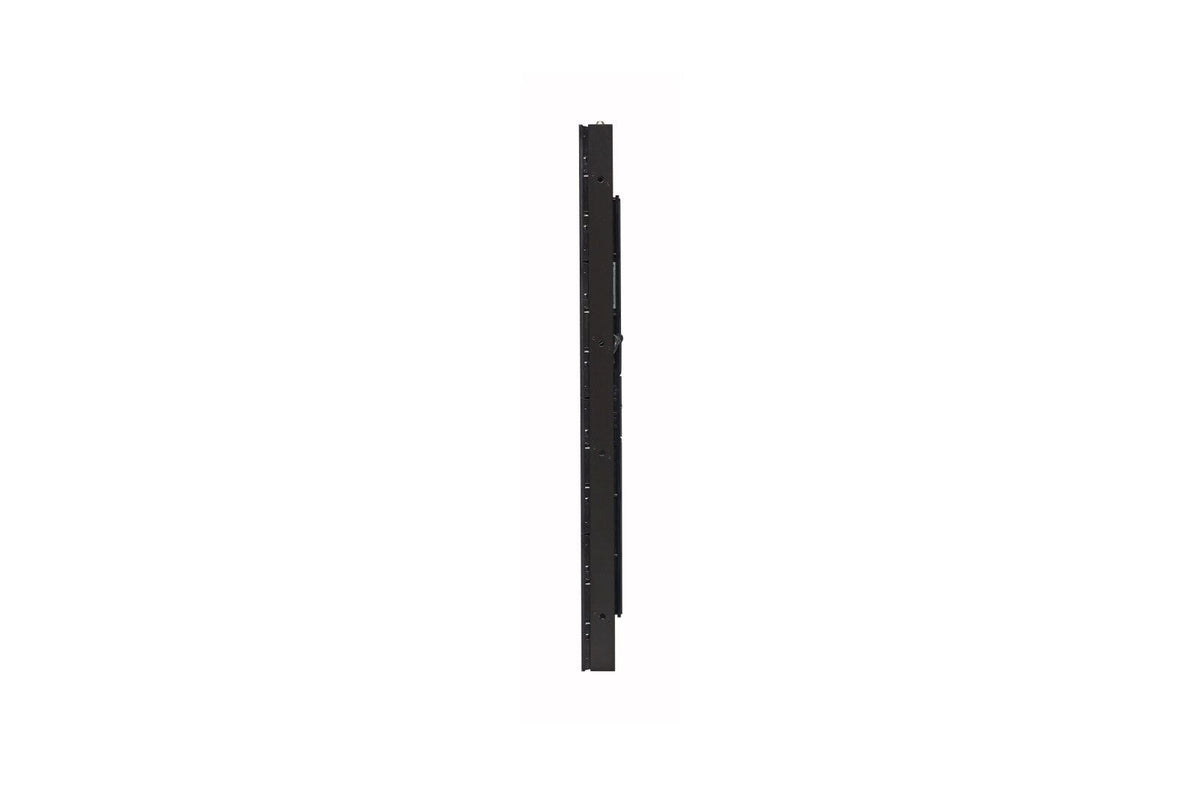

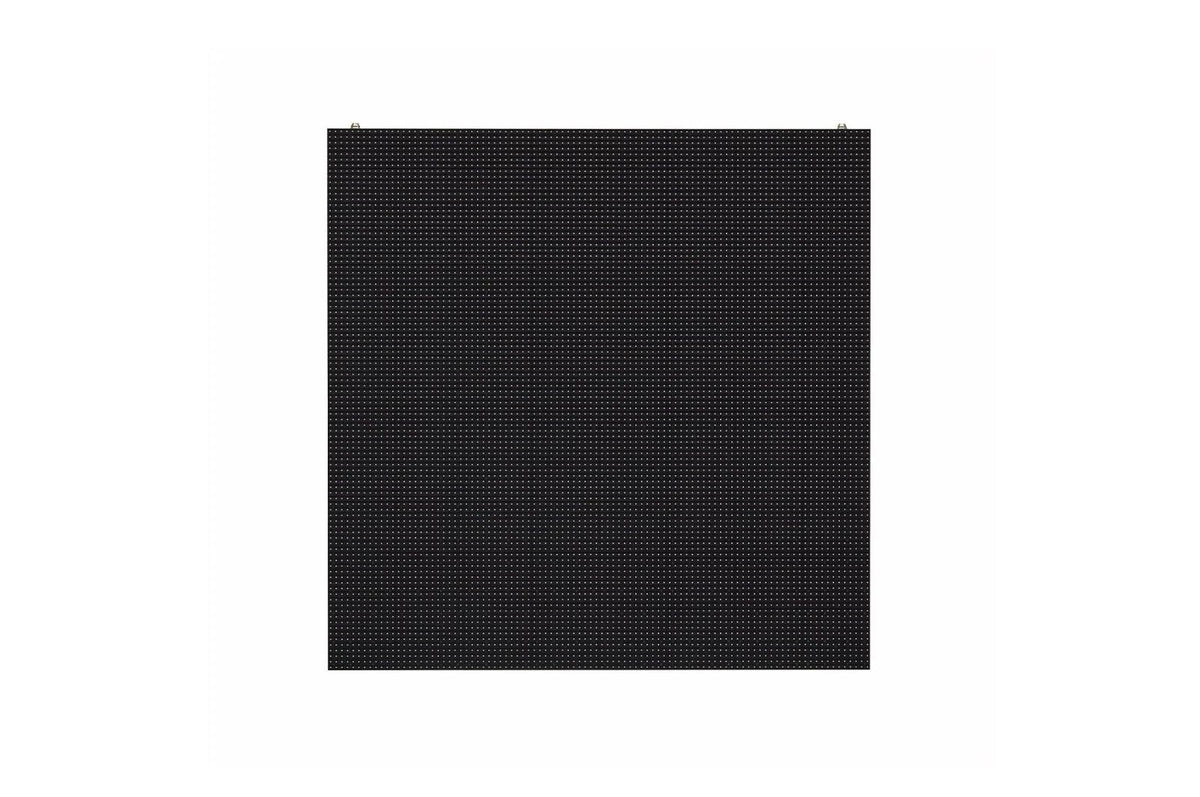

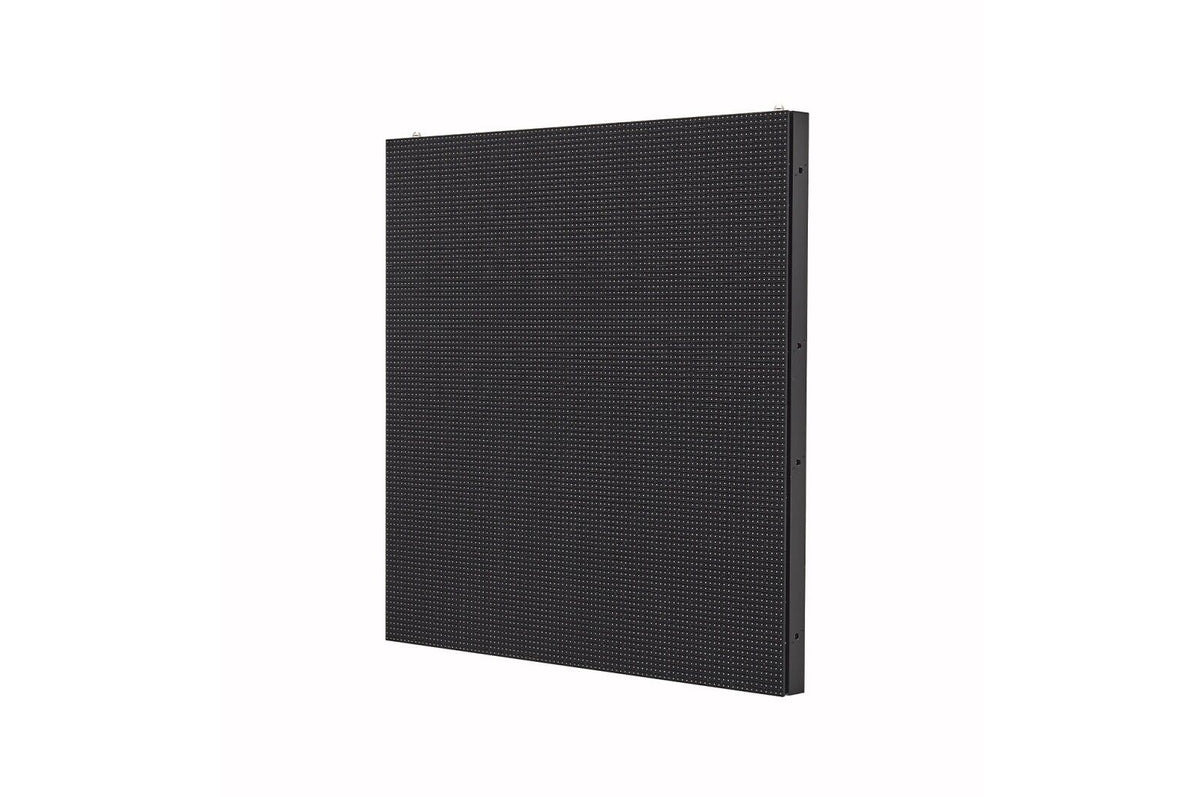

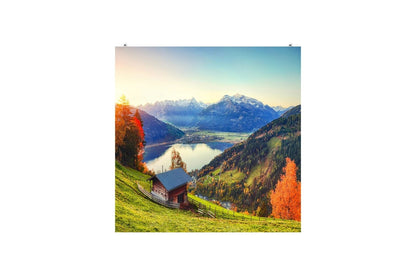

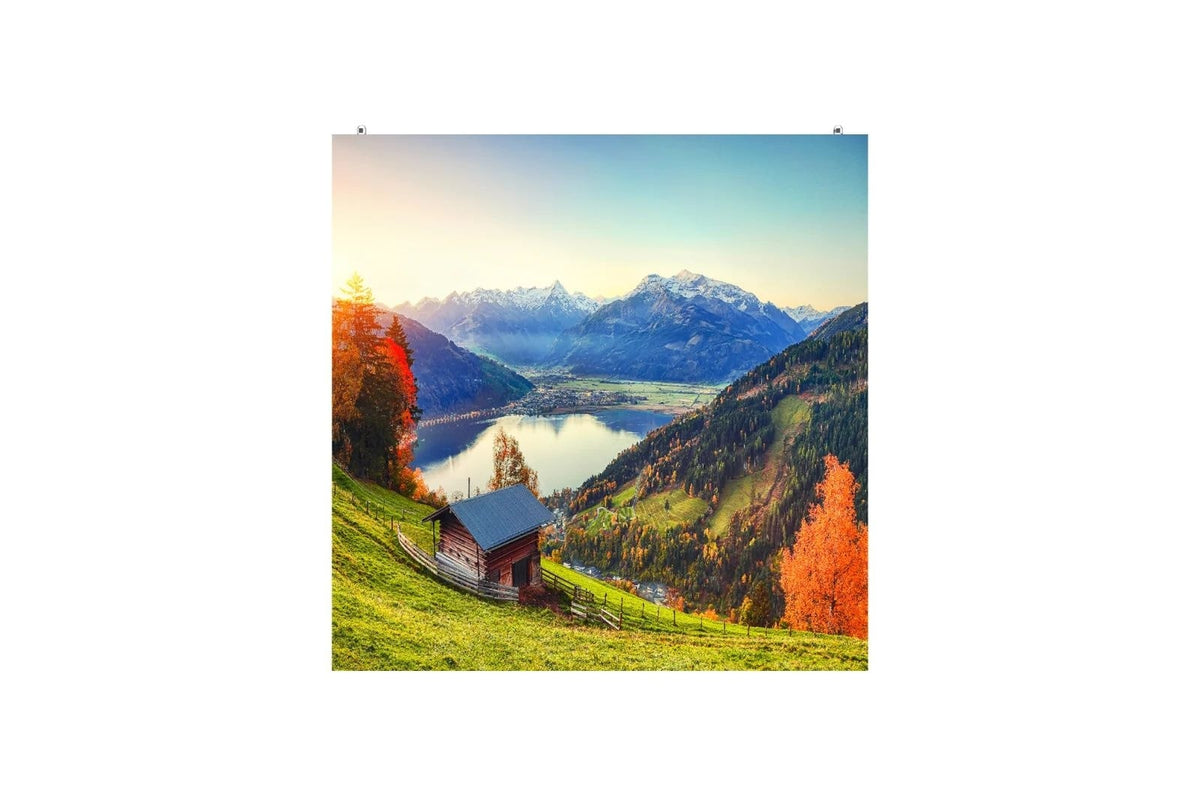

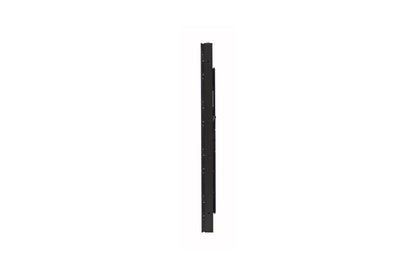

LG GSCD039-KK: 3.91mm Pixel Pitch Outdoor LED Display Cabinet, Outdoor LED Ultra Light Series
Model
:
GSCD039-KK
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG GSCD039-KK at a Glance
- Brand
- LG
- Model
- GSCD039-KK
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG GSCD039-KK Overview
The LG GSCD039-KK is an LG outdoor LED display cabinet from the Outdoor LED Ultra Light Series, with a 3.91 mm pixel pitch and 5,000 nit nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Pixel Configuration: Single SMD
- Pixel Pitch: 3.91 mm
- Module Resolution: 128x64
- Module Dimensions: 500x250mm
- Weight per Module: 1.35 kg
- No. of Modules per Cabinet: 2x4
Technical Specifications:
| Spec | Value |
|---|---|
| Model | GSCD039-KK |
| Brand | LG |
| Series | Outdoor LED Ultra Light Series |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 3.91 mm |
| Module Resolution | 128x64 |
| Module Dimensions | 500x250mm |
| Weight per Module | 1.35 kg |
| No. of Modules per Cabinet | 2x4 |
| Cabinet Resolution | 256x256 |
| Cabinet Dimensions | 1,000x1,000x86.4 |
| Cabinet Surface Area | 1 |
| Weight per Cabinet | 19.5 nit |
| Weight per Square Meter | 19.5 kg/m |
| Physical Pixel Density | 65,536 pixels/m |
| Flatness of Cabinet | +/-0.5 |
| Cabinet Material | Extrusion Aluminum |
| Service access | Front or Rear (select one only) |
| Maximum brightness | 5,000 nit |
| Color Temperature | 3,200 to 9,000 |
| Visual Viewing Angle | 160 Horizontal |
| Brightness Uniformity | 0.97 |
| Color Uniformity | +/-0.003Cx,Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 14 bit |
| Power Consumption | 660 W/Cabinet |
| Heat Dissipation | 2,252 BTU/h/Cabinet |
| Power Supply | 100 to 240 |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime | 50,000 Half brightness |
| Operating Humidity | 10 to 99%RH |
| IP Rating | IP65 / IP65 |
| IP rating Front | IP65 |
| IP rating Rear | IP65 |
| Certification | CE, FCC, ETL |
| Environment | RoHS |
| Controller | CVCA |
| 90 degree corner cut | O |
Why Buy the LG GSCD039-KK from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the GSCD039-KK
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG GSCD039-KK: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG GSCD039-KK is an LG outdoor LED display cabinet from the Outdoor LED Ultra Light Series, with a 3.91 mm pixel pitch and 5,000 nit nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG GSCD039-KK, LG lists the following. Pixel Pitch: 3.91 mm; Maximum brightness: 5,000 nit; Color Temperature: 3,200 to 9,000; Visual Viewing Angle: 160 Horizontal; Brightness Uniformity: 0.97.
For the LG GSCD039-KK, LG lists the following. Module Resolution: 128x64; Module Dimensions: 500x250mm; Weight per Module: 1.35 kg; No. of Modules per Cabinet: 2x4; Cabinet Resolution: 256x256.
For the LG GSCD039-KK, LG lists the following. Power Consumption: 660 W/Cabinet; Heat Dissipation: 2,252 BTU/h/Cabinet; Power Supply: 100 to 240; Frame Rate: 50 / 60 Hz.
For the LG GSCD039-KK, LG lists the following. Service access: Front or Rear (select one only); LED Lifetime: 50,000 Half brightness; Operating Humidity: 10 to 99%RH; IP Rating: IP65 / IP65; IP rating Front: IP65.
Trianze Tech stocks the LG GSCD039-KK in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
