LG GMBD040-GN2: 40mm Pixel Pitch Flexible Mesh LED Display
Model
:
GMBD040-GN2
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
LG GMBD040-GN2 at a Glance
- Brand
- LG
- Model
- GMBD040-GN2
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
LG GMBD040-GN2 Overview

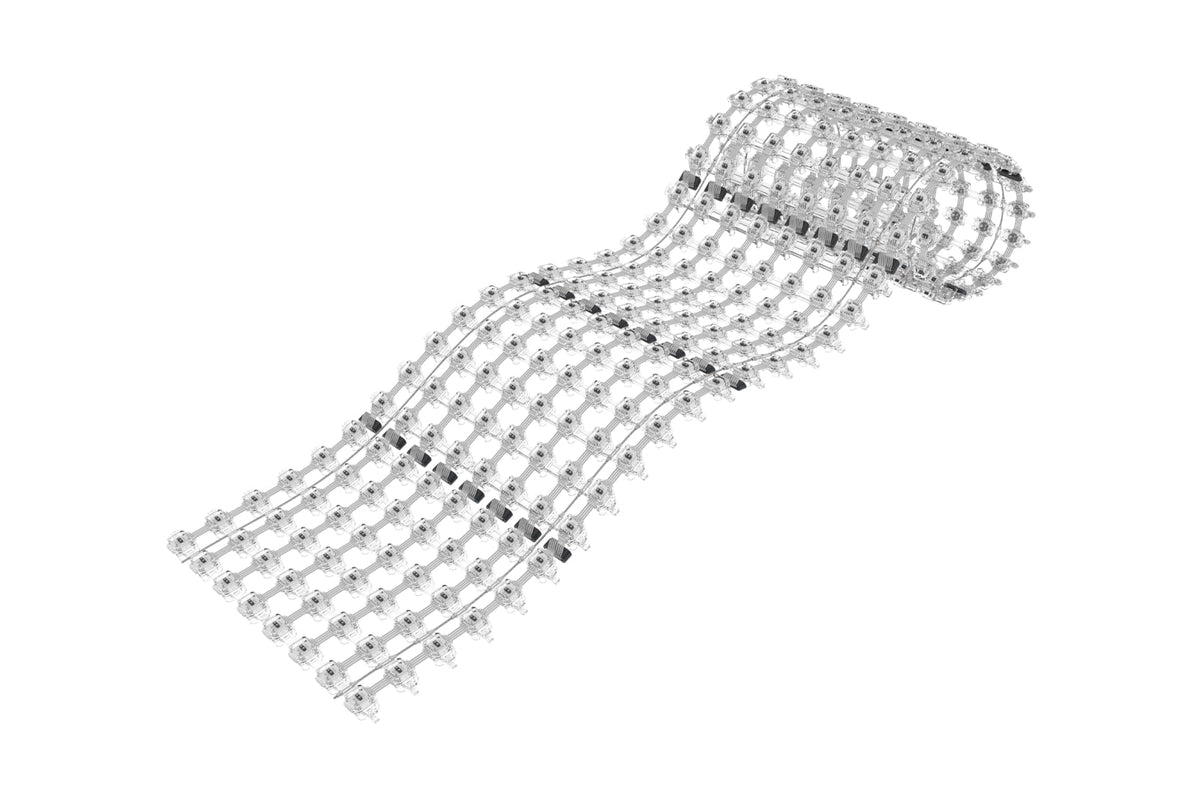

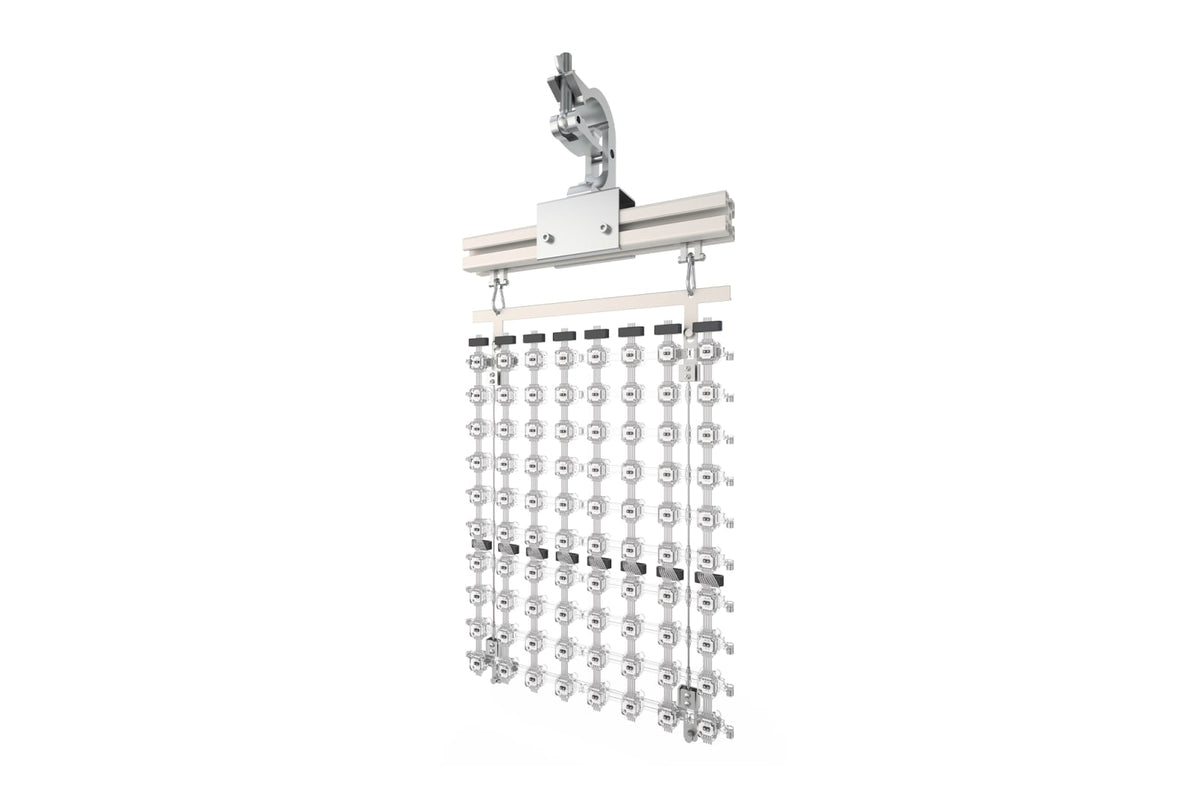

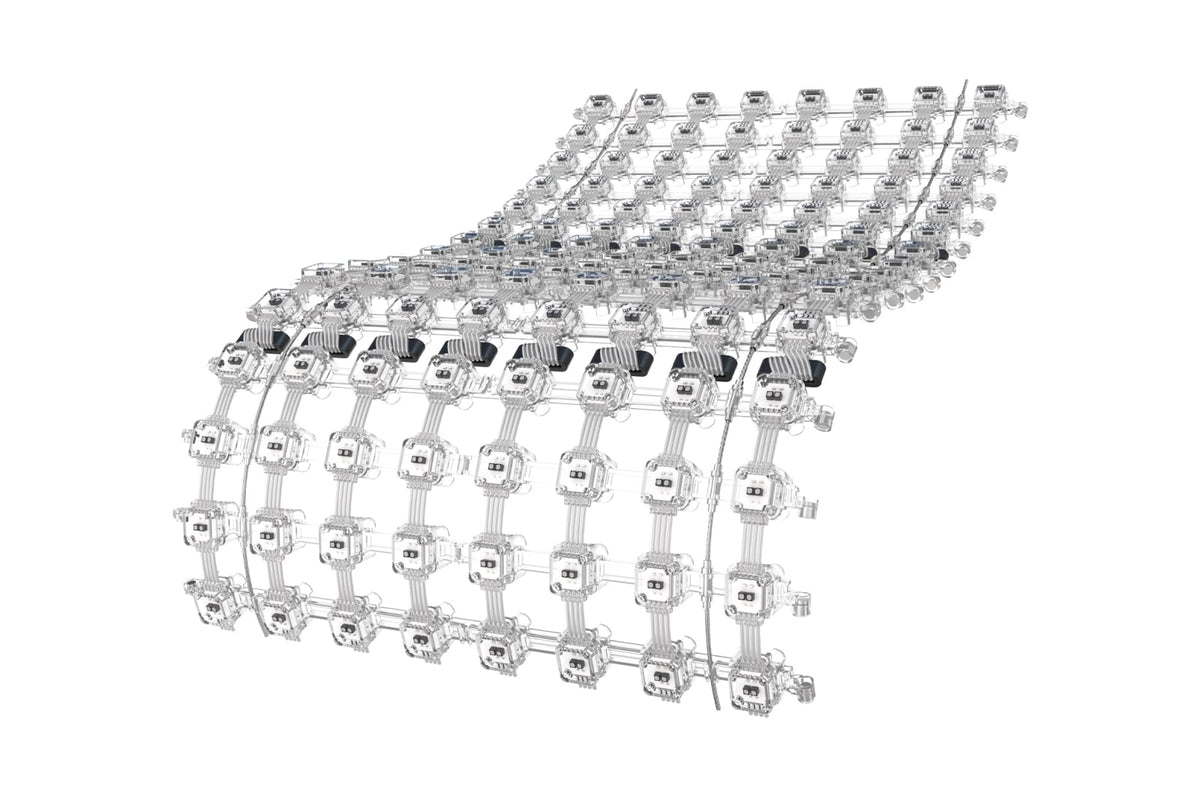

The LG GMBD040-GN2 is an LG flexible mesh LED display from the Flexible Mesh Outdoor LED Series, with a 40 mm pixel pitch and 3,000 nit nit brightness. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:

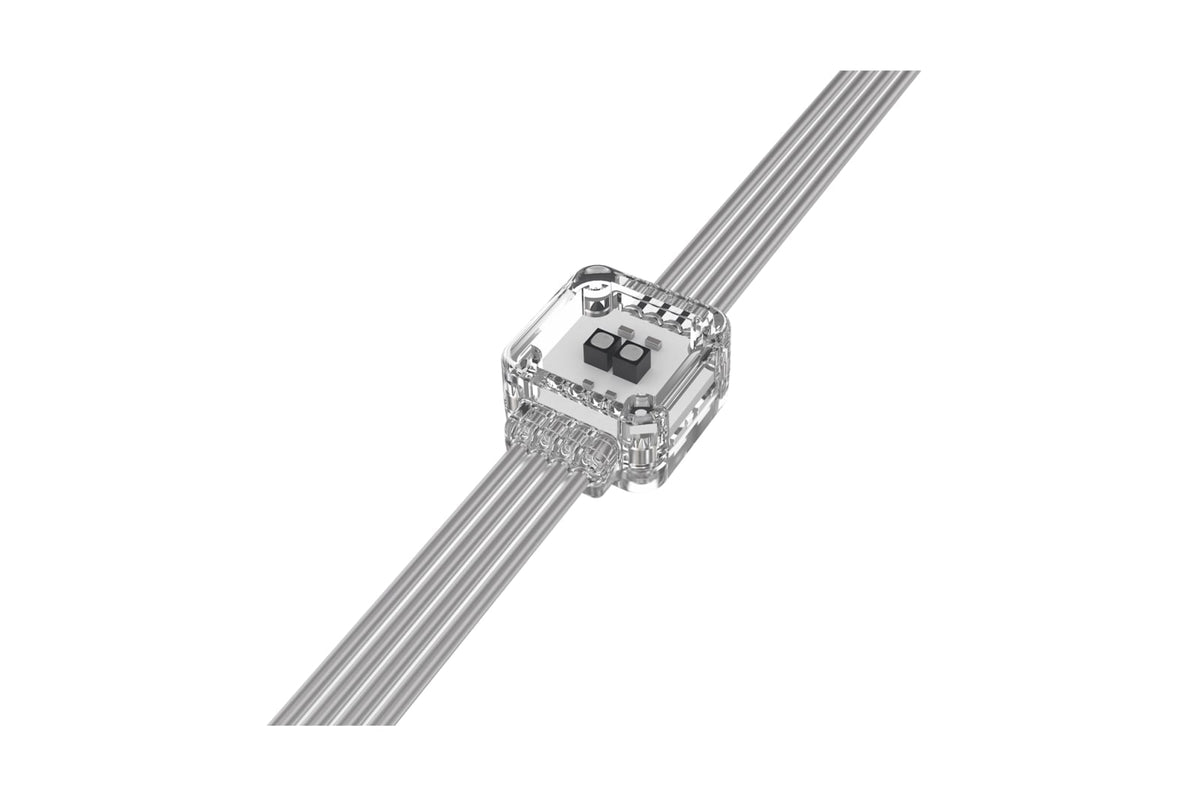

- Pixel Configuration: 2 in 1 SMD
- Pixel Pitch: 40.00 mm
- Module Resolution: 1x80
- Module Dimensions: 18x3,200
- Weight per Module: 0.48 kg
- No. of Modules per Cabinet: 8x1
Technical Specifications:
| Spec | Value |
|---|---|
| Model | GMBD040-GN2 |
| Brand | LG |
| Series | Flexible Mesh Outdoor LED Series |
| Pixel Configuration | 2 in 1 SMD |
| Pixel Pitch | 40.00 mm |
| Module Resolution | 1x80 |
| Module Dimensions | 18x3,200 |
| Weight per Module | 0.48 kg |
| No. of Modules per Cabinet | 8x1 |
| Cabinet Resolution | 8x80 |
| Cabinet Dimensions | 320x3,200 |
| Cabinet Surface Area | 1.024 |
| Weight per Cabinet | 6.4 nit |
| Weight per Square Meter | 6.4 kg/m |
| Physical Pixel Density | 625 pixels/m |
| Cabinet Material | Plastic body and silicon cable |
| Service access | Front and Rear |
| Maximum brightness | 3,000 nit |
| Color Temperature | 18,000-25,000 |
| Visual Viewing Angle | 120 Horizontal |
| Brightness Uniformity | 90% |
| Contrast Ratio | 20,000:1 |
| Processing Depth | 12 (HDR10, HDR10 Pro) |
| Power Consumption | 384 W/Cabinet |
| Heat Dissipation | 1,310 BTU/h/Cabinet |
| Power Supply | 9 V |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 20,000 Hz |
| LED Lifetime | 100,000 Half brightness |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10 to 90%RH |
| IP rating Front | IP66 |
| IP rating Rear | IP66 |
| Certification | CE, FCC, cTUVus, CB |
| Environment | RoHS, REACH |
| Controller | CVBA |
| 90 degree corner cut | Yes |
Why Buy the LG GMBD040-GN2 from Trianze Tech?
- Genuine LG LED signage from Trianze Tech, an authorized LG partner, sourced through authorized channels with local UAE support
- Pre-sales help sizing and planning the wall around the GMBD040-GN2
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation and content advice for retail, corporate and outdoor projects
What's Included and Support
Frequently asked
LG GMBD040-GN2: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The LG GMBD040-GN2 is an LG flexible mesh LED display from the Flexible Mesh Outdoor LED Series, with a 40 mm pixel pitch and 3,000 nit nit brightness. Trianze Tech supplies it in the UAE with project advice.
For the LG GMBD040-GN2, LG lists the following. Pixel Pitch: 40.00 mm; Maximum brightness: 3,000 nit; Color Temperature: 18,000-25,000; Visual Viewing Angle: 120 Horizontal; Brightness Uniformity: 90%.
For the LG GMBD040-GN2, LG lists the following. Module Resolution: 1x80; Module Dimensions: 18x3,200; Weight per Module: 0.48 kg; No. of Modules per Cabinet: 8x1; Cabinet Resolution: 8x80.
For the LG GMBD040-GN2, LG lists the following. Power Consumption: 384 W/Cabinet; Heat Dissipation: 1,310 BTU/h/Cabinet; Power Supply: 9 V; Frame Rate: 50 / 60 Hz.
For the LG GMBD040-GN2, LG lists the following. Service access: Front and Rear; LED Lifetime: 100,000 Half brightness; Operating Temperature: -40 to +60; Operating Humidity: 10 to 90%RH; IP rating Front: IP66.
Trianze Tech stocks the LG GMBD040-GN2 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
