Samsung UD46E-C UDE-C Series 46" 500-Nit Ultra-Slim Bezel 24/7 Professional Commercial Video Wall Display
Samsung UD46E-C UDE-C Series 46" 500-Nit Ultra-Slim Bezel 24/7 Professional Commercial Video Wall Display
Samsung UD46E-C UDE-C Series 46" 500-Nit Ultra-Slim Bezel 24/7 Professional Commercial Video Wall Display
Brand
:
Samsung
Model
:
UD46E-C / LH46UDECLBB/UE / LH46UDECLBB/EN
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung UD46E-C (UDE-C Series) represents a versatile and highly reliable solution for enterprise visual infrastructure where space efficiency is a priority. By integrating a 5.5mm ultra-slim bezel-to-bezel design, Samsung allows businesses in Dubai’s competitive retail and corporate sectors to deploy impactful digital canvases without the visual distraction of thick frames. The UD46E-C is particularly valued in the UAE for its advanced color management technology; each unit undergoes rigorous factory calibration to eliminate the color shifts often seen in multi-display arrays. This ensures that brand-critical content—such as luxury retail ads in Dubai Mall or data dashboards in DIFC boardrooms—remains visually consistent, vibrant, and professional across the entire installation.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional model identifier code UD46E-C, featuring the primary Middle East manufacturer part number code LH46UDECLBB/ZN alongside international engineering validation stock codes LH46UDECLBB/EN and LH46UDECLBB/GO.
- Visual Panel and Backlight Architecture: Features a premium 46-inch Direct-lit LED (D-LED) professional panel achieving a native Full HD resolution of 1920 x 1080 pixels, specifically designed to resist panel darkening even under continuous operation.
- Luminance and Anti-Glare Properties: Delivers a sustained brightness output of 500 nits, optimized for indoor UAE corporate environments, and includes a matte finish to reduce light glare and maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 3500:1 static contrast ratio that utilizes advanced 8-bit color processing to represent a wide spectrum of natural colors and deep black levels.
- Integrated Computing and Daisy-Chain Processing: Outfitted with an integrated chipset that supports DisplayPort 1.2 Loop-Out, allowing for the transmission of high-definition content across massive video walls without external distribution amplifiers.
- Physical Enclosure and Mounting Mechanics: Features an ultra-slim bezel width of 3.4mm (Top/Left) and 2.1mm (Bottom/Right), totaling 5.5mm bezel-to-bezel, with standard VESA 400 x 400 millimeter mounting points.

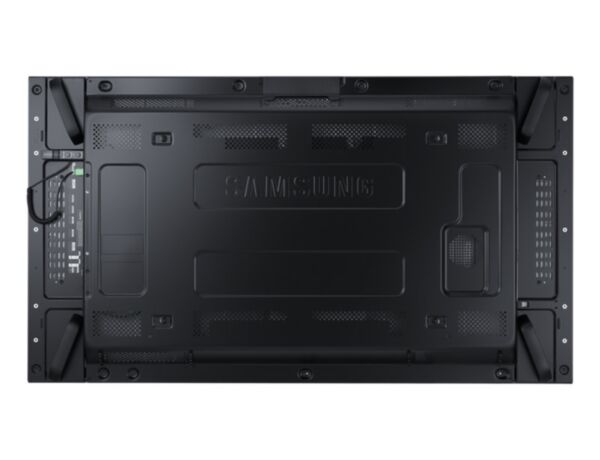

- Signal and Management Interface Ports: Configured with two HDMI input ports, one DisplayPort 1.2 input, one DVI-D port, a USB media slot, and industrial RJ-45 and RS-232C control ports for seamless integration into UAE building automation systems.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully compatible with hardware-based codecs for Microsoft Teams Rooms (MTR) and Zoom Rooms for enterprise-level video conferencing.
- Collaborative Endpoint Support: Native structural compatibility with Samsung MagicINFO software for remote content management and hardware health diagnostics across GCC regional offices.
- Automation Control Integration: Direct driver compatibility with Crestron Connected, Extron, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate acceptance in government and private sector facilities.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1022.1 millimeters, a total frame height of 576.6 millimeters, and a physical depth thickness of 96.6 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes with an outer shipping width of 1153 millimeters, a box height of 719 millimeters, and a package depth of 285 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 16.2 kilograms to ensure accurate spatial calibration for wall mounting.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 22.4 kilograms per crated cargo box to ensure seamless freight dispatching through regional GCC logistics routes.
Key Features
The Samsung UD46E-C (UDE-C Series) represents a versatile and highly reliable solution for enterprise visual infrastructure where space efficiency is a priority. By integrating a 5.5mm ultra-slim bezel-to-bezel design, Samsung allows businesses in Dubai’s competitive retail and corporate sectors to deploy impactful digital canvases without the visual distraction of thick frames. The UD46E-C is particularly valued in the UAE for its advanced color management technology; each unit undergoes rigorous factory calibration to eliminate the color shifts often seen in multi-display arrays. This ensures that brand-critical content—such as luxury retail ads in Dubai Mall or data dashboards in DIFC boardrooms—remains visually consistent, vibrant, and professional across the entire installation.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional model identifier code UD46E-C, featuring the primary Middle East manufacturer part number code LH46UDECLBB/ZN alongside international engineering validation stock codes LH46UDECLBB/EN and LH46UDECLBB/GO.
- Visual Panel and Backlight Architecture: Features a premium 46-inch Direct-lit LED (D-LED) professional panel achieving a native Full HD resolution of 1920 x 1080 pixels, specifically designed to resist panel darkening even under continuous operation.
- Luminance and Anti-Glare Properties: Delivers a sustained brightness output of 500 nits, optimized for indoor UAE corporate environments, and includes a matte finish to reduce light glare and maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 3500:1 static contrast ratio that utilizes advanced 8-bit color processing to represent a wide spectrum of natural colors and deep black levels.
- Integrated Computing and Daisy-Chain Processing: Outfitted with an integrated chipset that supports DisplayPort 1.2 Loop-Out, allowing for the transmission of high-definition content across massive video walls without external distribution amplifiers.
- Physical Enclosure and Mounting Mechanics: Features an ultra-slim bezel width of 3.4mm (Top/Left) and 2.1mm (Bottom/Right), totaling 5.5mm bezel-to-bezel, with standard VESA 400 x 400 millimeter mounting points.
- Signal and Management Interface Ports: Configured with two HDMI input ports, one DisplayPort 1.2 input, one DVI-D port, a USB media slot, and industrial RJ-45 and RS-232C control ports for seamless integration into UAE building automation systems.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully compatible with hardware-based codecs for Microsoft Teams Rooms (MTR) and Zoom Rooms for enterprise-level video conferencing.
- Collaborative Endpoint Support: Native structural compatibility with Samsung MagicINFO software for remote content management and hardware health diagnostics across GCC regional offices.
- Automation Control Integration: Direct driver compatibility with Crestron Connected, Extron, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate acceptance in government and private sector facilities.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1022.1 millimeters, a total frame height of 576.6 millimeters, and a physical depth thickness of 96.6 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes with an outer shipping width of 1153 millimeters, a box height of 719 millimeters, and a package depth of 285 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 16.2 kilograms to ensure accurate spatial calibration for wall mounting.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 22.4 kilograms per crated cargo box to ensure seamless freight dispatching through regional GCC logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung UD46E-C directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Deploying large 55-inch modules on narrow train platform columns or built-in retail kiosks can cause the monitors to overhang into walkways, violating code safety parameters. The UD46E-C features a compact 46-inch diagonal frame size that drastically reduces total width and height metrics. This ensures complex informational matrices remain highly visible in compact public layouts throughout Africa and the CIS region.
Traditional desktop or commercial monitors feature thick edge bezels that fragment graphs, texts, and geographic borders when tiled together. The LH46UDECLBB/UE features a narrow housing width measuring 3.7mm on the top/left and 1.8mm on the bottom/right sides. When mounted side-by-side, they form a clean 5.5mm bezel-to-bezel (B2B) intersection, ensuring that fine text strings and moving data graphics stay mathematically aligned across the multi-display layout.
Yes. The LH46UDECLBB/UE features built-in, hardware-accelerated DisplayPort 1.2 input and digital loop-out ports. Integration teams can route a single uncompressed UHD master feed into the first panel and daisy-chain the source down the display row line sequentially. This digital grid loop easily processes configurations up to a 5x5 video wall setup without dropping frames, completely avoiding the costs of distribution amplifiers or external splitter blocks.
If adjacent screens display slight variations in white balance or chromaticity right out of their packaging, the complete video wall array looks like a mismatched, unappealing checkerboard. Every single UDE-C panel undergoes systematic multi-step factory color calibration across 25 distinct sample points. This ensures a local uniformity rating of greater than 90 percent across the screen surface, giving technical crews in Almaty or Cairo perfectly aligned color matching on day one of operation.
