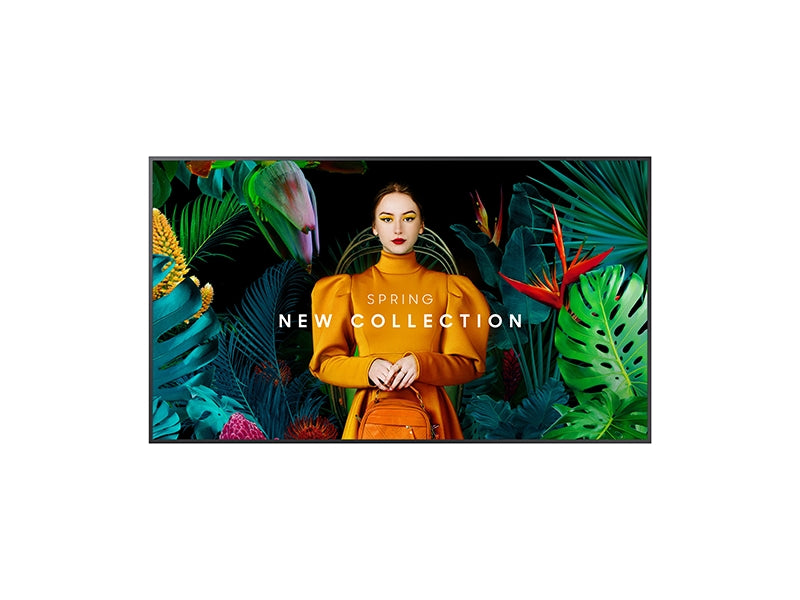

Samsung QMC Series 55" QM55C UHD 4K 24/7 Smart Tizen Professional Commercial Signage LED Display
Samsung QMC Series 55" QM55C UHD 4K 24/7 Smart Tizen Professional Commercial Signage LED Display
Samsung QMC Series 55" QM55C UHD 4K 24/7 Smart Tizen Professional Commercial Signage LED Display
Brand
:
Samsung
Model
:
QM55C (LH55QMCEBGCXGO / LH55QMCEBGCXUE)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung QM55C represents a major design breakthrough for large-format digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to just 28.5 millimeters, making it the slimmest 55-inch professional display in its class. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems without physical HDMI matrix routing hardware. Additionally, the QM55C features an intelligent 4K AI upscaling engine that enhances legacy content to professional UHD standards, guaranteeing flawless brand compliance across diverse corporate real estate configurations in Dubai and Abu Dhabi.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code QM55C, featuring the primary Middle East manufacturer part number code LH55QMCEBGCXUE (designated as the ZN or MG regional variant) alongside international engineering validation stock codes LH55QMCEBGCXGO and LH55QMCEBGCXXS.
- Visual Panel and Backlight Architecture: Features a premium 55-inch professional-grade panel that achieves a native resolution of 3840 x 2160 pixels (4K UHD) at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits, coupled with an advanced 25 percent haze non-glare glass coating that diffuses harsh light reflections to maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes ten-bit color depth processing to represent over one billion unique color coordinates across a 72 percent NTSC color gamut.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip that runs Tizen 7.0 operating system firmware, supported by 16 gigabytes of onboard flash storage memory.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, even bezel frame measuring 11.5 millimeters on all sides, complemented by perfectly centered VESA 200 x 200 millimeter physical mounting points that distribute display weight evenly.
- Signal and Management Interface Ports: Configured with three physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection jack, and dedicated RS-232C control input and output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for native integration with Microsoft Teams Rooms (MTR) and Zoom Rooms hardware configurations.
- Collaborative Endpoint Support: Built-in web-engine support for Cisco Webex endpoints and wireless screen-sharing protocols for DIFC executive boardrooms.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures an ultra-slim structural profile width of 1237.9 millimeters, a total frame height of 708.8 millimeters, and an absolute physical depth thickness of just 28.5 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1403 millimeters, an overall box height of 835 millimeters, and a package depth thickness of 148 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 15.7 kilograms to enable fast spatial calibration planning for structural wall surfaces.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 19.5 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes.
Key Features
The Samsung QM55C represents a major design breakthrough for large-format digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to just 28.5 millimeters, making it the slimmest 55-inch professional display in its class. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems without physical HDMI matrix routing hardware. Additionally, the QM55C features an intelligent 4K AI upscaling engine that enhances legacy content to professional UHD standards, guaranteeing flawless brand compliance across diverse corporate real estate configurations in Dubai and Abu Dhabi.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code QM55C, featuring the primary Middle East manufacturer part number code LH55QMCEBGCXUE (designated as the ZN or MG regional variant) alongside international engineering validation stock codes LH55QMCEBGCXGO and LH55QMCEBGCXXS.
- Visual Panel and Backlight Architecture: Features a premium 55-inch professional-grade panel that achieves a native resolution of 3840 x 2160 pixels (4K UHD) at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits, coupled with an advanced 25 percent haze non-glare glass coating that diffuses harsh light reflections to maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes ten-bit color depth processing to represent over one billion unique color coordinates across a 72 percent NTSC color gamut.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip that runs Tizen 7.0 operating system firmware, supported by 16 gigabytes of onboard flash storage memory.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, even bezel frame measuring 11.5 millimeters on all sides, complemented by perfectly centered VESA 200 x 200 millimeter physical mounting points that distribute display weight evenly.
- Signal and Management Interface Ports: Configured with three physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection jack, and dedicated RS-232C control input and output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for native integration with Microsoft Teams Rooms (MTR) and Zoom Rooms hardware configurations.
- Collaborative Endpoint Support: Built-in web-engine support for Cisco Webex endpoints and wireless screen-sharing protocols for DIFC executive boardrooms.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures an ultra-slim structural profile width of 1237.9 millimeters, a total frame height of 708.8 millimeters, and an absolute physical depth thickness of just 28.5 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1403 millimeters, an overall box height of 835 millimeters, and a package depth thickness of 148 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 15.7 kilograms to enable fast spatial calibration planning for structural wall surfaces.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 19.5 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM55C directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Legacy commercial monitors typically have bulky internal structures that result in a chassis thickness of 50mm to 100mm, causing them to protrude conspicuously from the wall unless a deep recess is cut. The QM55C utilizes a revolutionized 2nd-generation structural framework that packs the entire direct-lit panel and Tizen processor into a hyper-slim 28.5mm profile depth. This lets the screen sit flat against your wall like a flush frame, matching modern office layouts in corporate workspaces.
High-end retail storefronts, malls, and banking halls feature intense, directional LED track lighting arrays that can create blinding white mirror reflections on glossy screens, obscuring content. The QM55C uses a premium 25% anti-glare haze coating on the glass panel. This surface treatment diffuses incoming light blooms evenly, ensuring text strings, brand advertisements, and directories stay perfectly legible from wide 178-degree viewing angles.
Using external computers or unsecured media player sticks behind display panels creates loose connection risks and exposes networks to operating system vulnerabilities. The QM55C eliminates these threats by employing the SSSP 10.0 platform running Tizen 7.0 Enterprise OS, backed by multi-layered Samsung Knox security. Knox locks the system firmware directory, shields active data streams, and isolates software environments, ensuring compliance with strict enterprise IT protocols.
Running a high-luminance display continuously generates static fields that pull floating dust, clothing fibers, and airborne micro-particles through internal cooling vents. Over time, this dust buildup can blanket internal circuits, causing localized hot spots and accelerating component wear. The QM55C uses an IP5X certified dust-proof housing structure that completely seals off its internal optical components, drastically lowering maintenance callout fees and ensuring long-term operational life.
