Key Features

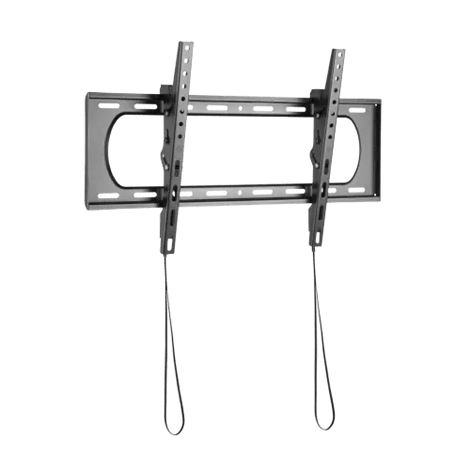

The VSYS VS01A-46T represents a fundamental design breakthrough in heavy-duty commercial AV integration, specifically engineered to solve the spatial and thermal challenges of mounting large-format, high-brightness screens in high-traffic environments. Unlike standard consumer brackets, this enterprise-grade mount features a massive open-architecture wall plate that drastically improves passive airflow. This prevents thermal throttling on 24/7 digital signage arrays, while simultaneously offering AV integrators unrestricted access to concealed power and data pathways. The proprietary toolless tilt mechanism and automatic spring-lock design ensure that even 86-inch, heavy-chassis displays can be mounted, serviced, or hot-swapped securely in seconds, making it the definitive space-saving structural solution for modern UAE corporate fit-outs.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: The core VS01A-46T model is fully stocked in our Dubai facility, identifiable via its regional Middle East MPN (VS-01A46T-ME) and international stock variants (VS-01A46T-INT), ensuring localized availability for rapid corporate deployments across the GCC without the delays of international freight.

• Supported Panel Types & Resolution: Structurally optimized to act as the perfect foundation for the heaviest commercial LCD, OLED, and direct-view LED panel types, effortlessly carrying high-density 4K UHD and 8K commercial displays up to 86 inches.

• Backlight, Nits & Haze Coating Compatibility: Built with the immense structural rigidity required to safely hold ultra-heavy, high-brightness commercial monitors (accommodating standard 500-nits up to extreme 700-nit/1000-nit D-LED backlight modules), while the +10°/-10° tilt maximizes the performance of advanced anti-glare haze coatings under harsh boardroom lighting.

• Contrast Ratio & Color Processing Depth Preservation: By eliminating flex and mechanical stress on the display chassis during positioning, the mount prevents micro-warping or backlight bleeding, perfectly preserving native contrast ratios, true black levels, and 10-bit color processing depths over the screen's lifespan.

• I/O Ports, Computing/OS Chips & Certifications: The wide-open wall plate design guarantees zero physical obstruction to critical rear components, allowing seamless access to recessed HDMI/LAN ports, integrated computing/OS chips (SoC), and OPS slot PCs, all while meeting rigorous structural certifications (strength-tested to 4 times its approved weight limit).

• Universal VESA Standards: Fully compatible with all major commercial mounting hole patterns, ranging from 50x50mm up to 600x400mm, with a maximum spread allowance of 645x402mm.

Enterprise Software & UC Platform Ecosystem Compatibility

• Microsoft Teams Rooms & Zoom Rooms: The low-profile depth and immense weight capacity provide the ideal structural backbone for heavy, camera-integrated interactive displays running Microsoft Teams Rooms and Zoom Rooms natively.

• Cisco Webex & Crestron Connected: Offers ample wall clearance and open rear architecture to seamlessly route the heavy data cabling and external IP control modules required for premium Cisco Webex boards and Crestron Connected AV ecosystems.

• Extron & AMX Routing Integration: The 60mm chassis depth provides dedicated spatial allowance for concealing Extron or AMX signal receivers, baluns, and micro-controllers directly behind the screen, keeping the boardroom wall completely wire-free.

Regional Regulatory & Electrical Compliance

• MoIAT Safety Standards: The hardware structure and cold-rolled steel manufacturing processes strictly comply with the United Arab Emirates Ministry of Industry and Advanced Technology (MoIAT) guidelines for heavy commercial infrastructure safety.

• Electrical Routing Safety: The open wall plate is specifically sized to safely frame recessed, native UK-standard 3-pin Type G electrical power cord sockets running 220V-240V, preventing severe power cord bend-radius violations.

• International Certifications: Manufactured under strict industrial quality controls bearing CB, CE, and RoHS compliance markers, ensuring all structural materials are free from hazardous substances and perfectly safe for indoor corporate environments.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Dimensions: The raw hardware measures exactly 60 millimeters in depth, 685 millimeters in width, and 425 millimeters in height when fully assembled and deployed against the wall.

• Gross Shipping Box Dimensions: The enterprise packaging is optimized for regional logistics, utilizing a condensed footprint measuring 700 millimeters in length, 440 millimeters in width, and 75 millimeters in depth to drastically reduce volume weight for local courier dispatch.

• Net Hardware Weight: The premium 1.8-millimeter cold-rolled steel construction yields a highly durable net product weight of exactly 3.2 kilograms.

• Gross Freight Shipping Weights: Fully packaged with all included masonry, drywall stud, and VESA hardware kits, the gross shipping weight totals exactly 3.8 kilograms, perfectly calibrated for bulk palletization across UAE supply chains.
