Key Features

The Samsung QM49F represents a significant engineering achievement in large-format digital infrastructure for the Middle Eastern enterprise market. By integrating advanced multi-source processing, Samsung allows UAE system integrators to replace complex multi-monitor setups with a single, seamless 49-inch 4K canvas. This display is specifically hardened for the GCC climate, utilizing an industrial-grade thermal management system and non-glare panel technology that ensures critical informational messaging and real-time data remains vibrant and clear. Whether deployed in a DIFC executive office for market analysis or an Abu Dhabi command center for 24/7 situational monitoring, the QM49F provides the ultimate balance of visual prestige and industrial resilience.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose model code QM49F, featuring the primary Middle East manufacturer part number code LH49QMFPLGC/ZN (frequently designated as the regional MG variant) alongside international engineering validation stock codes LH49QMFPLGC/EN and LH49QMFPLGC/GO. Trianze Tech maintains local stock to ensure rapid fulfillment for regional GCC project tenders requiring official regional warranty compliance.

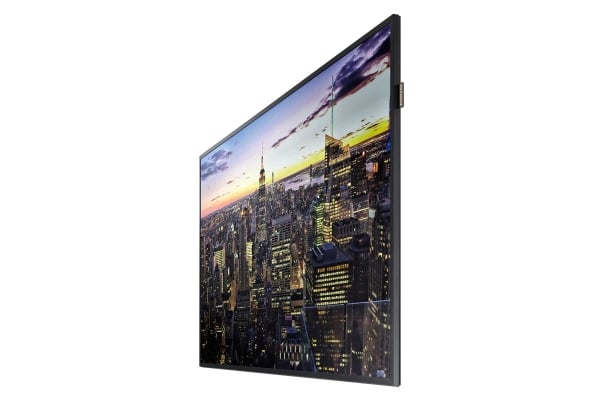

• Visual Panel and Backlight Architecture: Features a premium 49-inch Edge-Lit LED professional-grade panel achieving a native 4K UHD resolution of 3840 x 2160 pixels. The display utilizes a 60Hz refresh rate to ensure fluid motion for both high-end promotional video and detailed real-time data visualization.
• Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits (cd/m²), engineered specifically to remain visible in brightly lit UAE corporate atriums. The panel is outfitted with an advanced anti-reflective coating that diffuses harsh light reflections from floor-to-ceiling glass facades without sacrificing color depth or contrast.
• Contrast Performance and Color Depth: Engineered around a native 4700:1 static contrast ratio utilizing a 10-bit internal color processing engine. This architecture represents 1.07 billion unique color coordinates across a professional spectrum, providing the chromatic accuracy required for brand-sensitive retail and corporate assets.

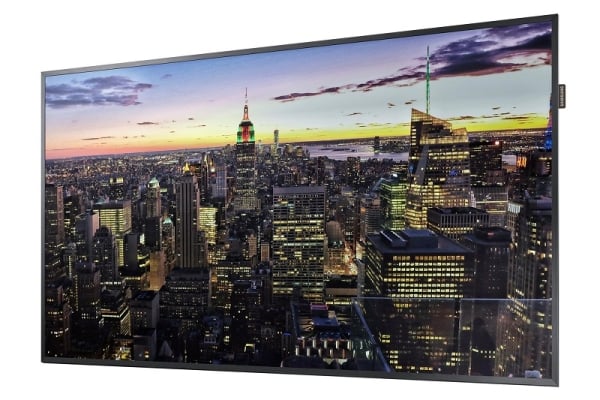

• Integrated Computing and Multi-Screen Logic: Equipped with an uncompressed internal processor supporting Picture-by-Picture (PBP) functionality. This allows up to four individual Full HD signals to be viewed concurrently on one screen, eliminating the need for external video processors in complex UAE monitoring environments.
• Physical Enclosure and Mounting Mechanics: Features a sophisticated symmetrical bezel frame designed for seamless integration into high-end fit-outs. This chassis is complemented by industrial-standard VESA 400 x 400 millimeter physical mounting points, specifically designed to distribute display weight evenly for secure structural installation on UAE wall systems.
• Signal and Management Interface Ports: Configured with four physical HDMI 2.0 (HDCP 2.2) input ports, two DisplayPort 1.2 interface terminals, and dedicated USB media slots. Control and automation are managed via an industrial RJ-45 Ethernet network connection jack and dedicated RS-232C control input/output loops for integration with centralized boardroom systems.

Enterprise Software & UC Platform Ecosystem Compatibility

• Unified Communications Platform Readiness: Fully validated for use with professional video conferencing endpoints such as Microsoft Teams Rooms (MTR), Zoom Rooms, and Cisco Webex, providing a high-detail visual endpoint for hybrid meetings.
• Collaborative Endpoint Support: Native structural compatibility with Samsung MagicINFO for centralized content scheduling and hardware health monitoring across UAE regional offices.
• Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
• Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety markers, ensuring immediate corporate facility acceptance for high-tier Dubai and Abu Dhabi real estate.

Logistics, Packaging & Spatial Handling Parameters

• • Net Unpacked Hardware Dimensions: Measures a structural width of 1099.4 millimeters, a total frame height of 634.0 millimeters, and an absolute physical depth thickness of 36.5 millimeters.
  • Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1230 millimeters, an overall box height of 740 millimeters, and a package depth thickness of 170 millimeters.
  • Net Hardware Weight: Tracks an unmounted, standalone display unit weight of exactly 13.2 kilograms.
  • Gross Freight Shipping Weights: Computes an aggregated total package mass scale of 17.5 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
