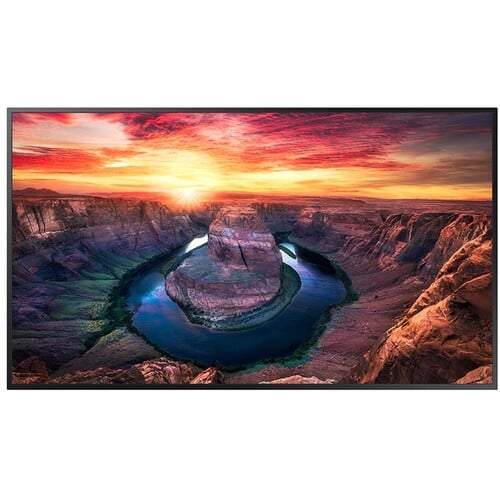

Samsung QM43B QMB Series 43" 500-Nit 4K UHD 24/7 Smart Slim-Design Professional Commercial Signage Display
Samsung QM43B QMB Series 43" 500-Nit 4K UHD 24/7 Smart Slim-Design Professional Commercial Signage Display
Samsung QM43B QMB Series 43" 500-Nit 4K UHD 24/7 Smart Slim-Design Professional Commercial Signage Display
Brand
:
Samsung
Model
:
QM43B (QM43B-G) / LH43QMBEBGCXZA / LH43QMBEBGCXUE
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
-
Key Features The Samsung QM43B represents a major design breakthrough for enterprise-level visual communication and professional Unified Communications (UC) across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to just 28.5 millimeters, making it the slimmest 43-inch professional display in its class. The QMB Series is specifically hardened for the GCC climate, utilizing an industrial-grade thermal management system and IP5X-certified dust shielding. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems, guaranteeing flawless collaborative efficiency in high-profile corporate real estate configurations in Dubai and Abu Dhabi.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose model code QM43B, featuring the primary Middle East manufacturer part number code LH43QMBBGCXUE (frequently designated as the regional ZN or MG variant) alongside international engineering validation stock codes LH43QMBBGCXGO and LH43QMBBGCXXS.
- Visual Panel and Backlight Architecture: Features a premium 43-inch Edge LED professional-grade panel achieving a native 4K UHD resolution of 3840 x 2160 pixels. The display utilizes a 60Hz refresh rate and a rapid 8ms response time to ensure fluid motion for both high-end promotional video and detailed data visualization.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits (cd/m²), engineered specifically to remain visible in brightly lit UAE corporate atriums. The panel is outfitted with an advanced 25 percent haze non-glare glass coating that effectively diffuses harsh light reflections from floor-to-ceiling glass facades.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio utilizing Dynamic Crystal Color processing. This architecture represents 1.07 billion unique color coordinates across a 10-bit spectrum, providing the chromatic accuracy required for brand-sensitive retail and corporate assets.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip (SoC) running the Tizen 7.0 operating system. This onboard computing engine is supported by 16 gigabytes of onboard flash storage memory, allowing for standalone content scheduling and playback.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, even bezel frame measuring exactly 9.2 millimeters. This ultra-slim chassis is complemented by perfectly centered VESA 200 x 200 millimeter physical mounting points that distribute display weight evenly.

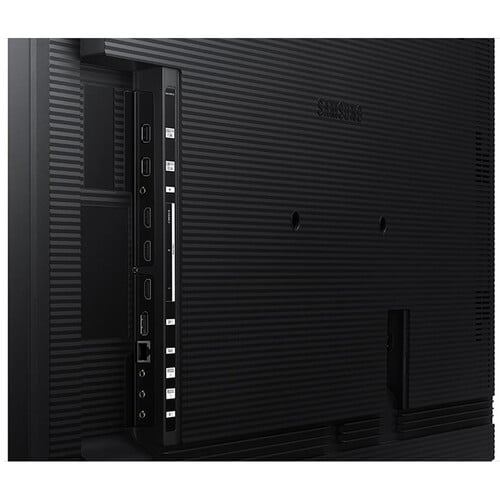

- Signal and Management Interface Ports: Configured with three physical HDMI 2.0 (HDCP 2.2) input ports, one DisplayPort 1.2 interface terminal, and two downstream USB 2.0 media slots. Control and automation are managed via an industrial RJ-45 Ethernet connection jack and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Specifically certified and validated for native integration with Cisco Webex Room Kits, allowing the display to be automatically recognized and configured by the Cisco codec.
- Collaborative Endpoint Support: Fully compatible with professional software ecosystems such as Microsoft Teams Rooms (MTR), Zoom Rooms, and Cisco Webex, as well as native web-engine support for wireless screen-sharing protocols.
- Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety markers, ensuring immediate corporate facility acceptance for high-tier Dubai and Abu Dhabi real estate.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 967.5 millimeters, a total frame height of 557.7 millimeters, and an absolute physical depth thickness of 28.5 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1095 millimeters, an overall box height of 676 millimeters, and a package depth thickness of 125 millimeters.
- Net Hardware Weight: Tracks an unmounted, standalone display unit weight of exactly 10.0 kilograms, ensuring a manageable load for standard UAE interior fit-out wall systems.
- Gross Freight Shipping Weights: Computes an aggregated total package mass scale of 13.0 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes.
-
Key Features The Samsung QM43B represents a major design breakthrough for enterprise-level visual communication and professional Unified Communications (UC) across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to just 28.5 millimeters, making it the slimmest 43-inch professional display in its class. The QMB Series is specifically hardened for the GCC climate, utilizing an industrial-grade thermal management system and IP5X-certified dust shielding. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems, guaranteeing flawless collaborative efficiency in high-profile corporate real estate configurations in Dubai and Abu Dhabi.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose model code QM43B, featuring the primary Middle East manufacturer part number code LH43QMBBGCXUE (frequently designated as the regional ZN or MG variant) alongside international engineering validation stock codes LH43QMBBGCXGO and LH43QMBBGCXXS.
- Visual Panel and Backlight Architecture: Features a premium 43-inch Edge LED professional-grade panel achieving a native 4K UHD resolution of 3840 x 2160 pixels. The display utilizes a 60Hz refresh rate and a rapid 8ms response time to ensure fluid motion for both high-end promotional video and detailed data visualization.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits (cd/m²), engineered specifically to remain visible in brightly lit UAE corporate atriums. The panel is outfitted with an advanced 25 percent haze non-glare glass coating that effectively diffuses harsh light reflections from floor-to-ceiling glass facades.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio utilizing Dynamic Crystal Color processing. This architecture represents 1.07 billion unique color coordinates across a 10-bit spectrum, providing the chromatic accuracy required for brand-sensitive retail and corporate assets.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip (SoC) running the Tizen 7.0 operating system. This onboard computing engine is supported by 16 gigabytes of onboard flash storage memory, allowing for standalone content scheduling and playback.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, even bezel frame measuring exactly 9.2 millimeters. This ultra-slim chassis is complemented by perfectly centered VESA 200 x 200 millimeter physical mounting points that distribute display weight evenly.
- Signal and Management Interface Ports: Configured with three physical HDMI 2.0 (HDCP 2.2) input ports, one DisplayPort 1.2 interface terminal, and two downstream USB 2.0 media slots. Control and automation are managed via an industrial RJ-45 Ethernet connection jack and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Specifically certified and validated for native integration with Cisco Webex Room Kits, allowing the display to be automatically recognized and configured by the Cisco codec.
- Collaborative Endpoint Support: Fully compatible with professional software ecosystems such as Microsoft Teams Rooms (MTR), Zoom Rooms, and Cisco Webex, as well as native web-engine support for wireless screen-sharing protocols.
- Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety markers, ensuring immediate corporate facility acceptance for high-tier Dubai and Abu Dhabi real estate.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 967.5 millimeters, a total frame height of 557.7 millimeters, and an absolute physical depth thickness of 28.5 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1095 millimeters, an overall box height of 676 millimeters, and a package depth thickness of 125 millimeters.
- Net Hardware Weight: Tracks an unmounted, standalone display unit weight of exactly 10.0 kilograms, ensuring a manageable load for standard UAE interior fit-out wall systems.
- Gross Freight Shipping Weights: Computes an aggregated total package mass scale of 13.0 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM43B directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Legacy 43-inch commercial displays usually feature bulky interior cooling designs and power components, leading to a chassis depth ranging between 55 mm to 90 mm. This causes the screen to stand out awkwardly when wall-mounted. The QM43B uses a redesigned 2nd-generation chassis that reduces its total thickness to a hyper-slim 28.5 mm. This ultra-thin profile allows the 43-inch screen to mount practically flush against the wall like a sleek brand frame, saving valuable space in corporate walkways and high-traffic retail environments.
On many large-format displays, the VESA mounting holes are shifted toward the lower third of the framework to balance landscape configurations. When rotated 90 degrees into a portrait position, this off-center pattern creates an unbalanced center of gravity, causing the monitor to tilt forward or strain mount brackets. The QM43B features perfectly centered VESA holes that distribute its weight evenly, preventing mechanical drift or alignment tilting over years of continuous portrait deployment.
Using external media sticks, unmanaged android players, or computing boxes behind digital signage displays creates vulnerable entry points for network intrusion. The Samsung QM43B closes these entry lanes by leveraging the Samsung Smart Signage Platform (SSSP 10.0) running Tizen 6.5 Enterprise OS, backed by multi-layered Samsung Knox security architecture. Knox encrypts data streams, locks the root firmware directory, and isolates system processes, ensuring full compliance with strict corporate IT protocols.
Monitors running 24/7 generate continuous static fields that draw floating airborne dust, clothing fibers, and micro-particles into rear ventilation tracks. This buildup can insulate internal circuits, leading to overheating and pixel degradation. The QM43B features an IP5X certified structural seal that protects its internal optical blocks and main processing board from dust contamination, lowering maintenance callout fees and extending the hardware's operational lifespan.
