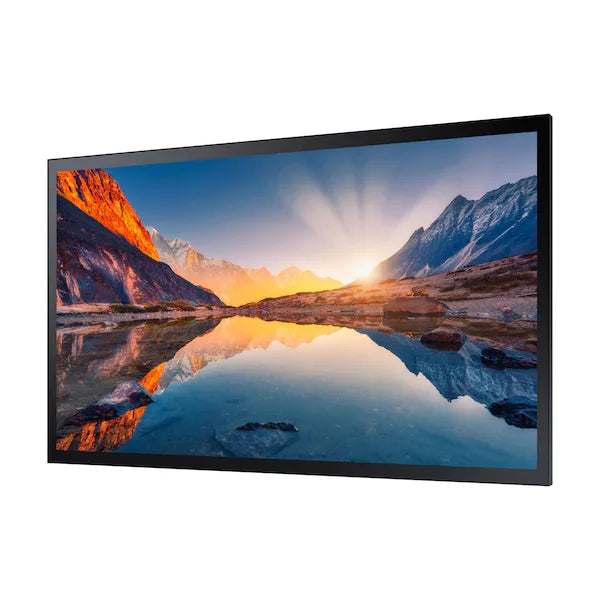

Samsung QMR-T Series 32" QM32R-T Full HD 24/7 Smart All-in-One Professional Commercial Touchscreen LED Display
Samsung QMR-T Series 32" QM32R-T Full HD 24/7 Smart All-in-One Professional Commercial Touchscreen LED Display
Samsung QMR-T Series 32" QM32R-T Full HD 24/7 Smart All-in-One Professional Commercial Touchscreen LED Display
Brand
:
Samsung
Model
:
QM32R-T (QM32RT) / LH32QMRTBGCXZA / LH32QMRTBGCXEN
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung QM32R-T represents a significant engineering achievement for compact interactive digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to accommodate a high-precision Capacitive Touch layer within a slim chassis, Samsung has created a 32-inch display that responds to user input with the speed and accuracy of a modern mobile device. This all-in-one solution is specifically hardened for the GCC climate, utilizing an industrial-grade thermal management system and non-glare panel technology that ensures critical wayfinding and informational messaging remains vibrant and clear. Whether deployed as a digital directory in DIFC or a self-service check-in point in an Abu Dhabi clinic, the QM32R-T provides the ultimate balance of visual prestige and interactive resilience.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose interactive model code QM32R-T, featuring the primary Middle East manufacturer part number code LH32QMRTBGCXUE (designated locally as the ZN or MG regional variant) alongside international engineering validation stock codes LH32QMRTBGCXGO and LH32QMRTBGCXXS.
- Visual Panel and Backlight Architecture: Features a premium 32-inch Edge LED professional-grade panel achieving a native Full HD resolution of 1920 x 1080 pixels at a standard 60Hz refresh rate.
- Interactive Touch Infrastructure: Outfitted with an Advanced Projective Capacitive (PCAP) touch system supporting up to 10 concurrent touch points with a rapid response time for fluid digital navigation.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 400 nits (touch-active), coupled with a professional non-glare coating to ensure legibility under the bright, glass-heavy interiors of Dubai office buildings.
- Contrast Performance and Color Depth: Engineered around a native 1100:1 static contrast ratio that utilizes Samsung’s color enhancement processing to represent 16.7 million unique color coordinates with professional-grade transitions.
- Integrated Computing and SoC Processing: Equipped with an uncompressed internal image processor running Tizen 4.0 (SSSP 6.0) firmware, supported by 8 gigabytes of onboard flash storage memory for standalone interactive application management.

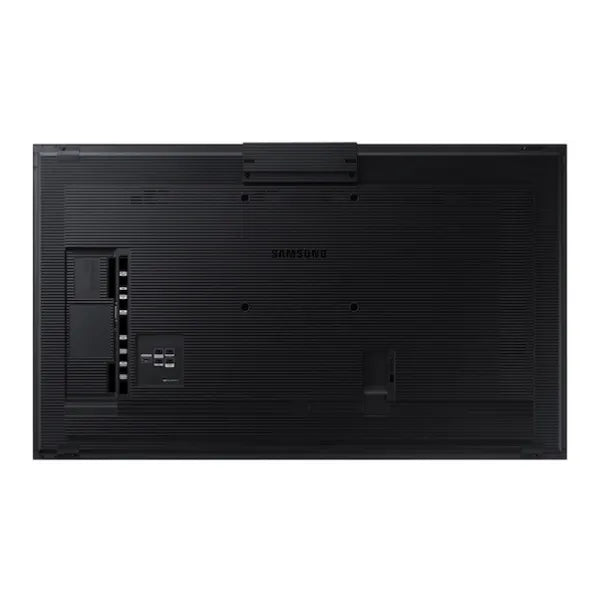

- Signal and Management Interface Ports: Configured with physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, two downstream USB 2.0 slots (including specialized Touch-Out), an industrial RJ-45 Ethernet connection, and dedicated RS-232C control loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for use with professional video conferencing and collaborative interactive software via external compute modules.
- Collaborative Endpoint Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized interactive content scheduling and remote hardware health monitoring across UAE regional offices.
- Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated building control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
-

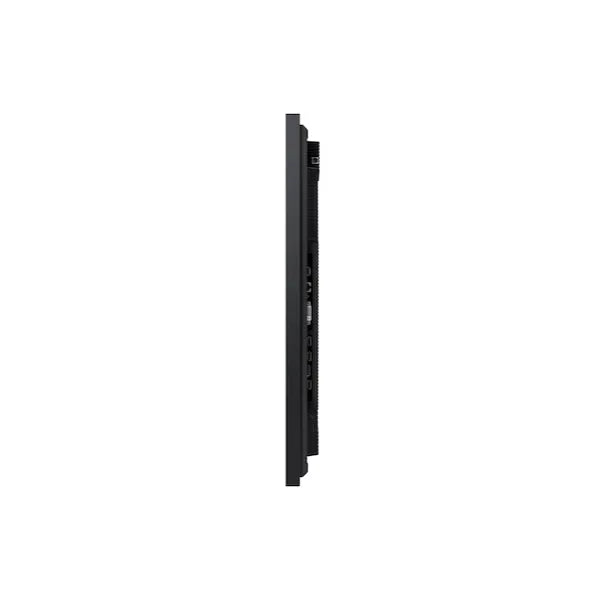

- Net Unpacked Hardware Dimensions: Measures a structural width of 733.4 millimeters, a total frame height of 433.8 millimeters, and an absolute physical depth thickness of 49.3 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 825 millimeters, an overall box height of 528 millimeters, and a package depth thickness of 145 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 8.3 kilograms to enable fast spatial calibration planning for structural wall surfaces and cabinetry.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 10.1 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes.
Key Features
The Samsung QM32R-T represents a significant engineering achievement for compact interactive digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to accommodate a high-precision Capacitive Touch layer within a slim chassis, Samsung has created a 32-inch display that responds to user input with the speed and accuracy of a modern mobile device. This all-in-one solution is specifically hardened for the GCC climate, utilizing an industrial-grade thermal management system and non-glare panel technology that ensures critical wayfinding and informational messaging remains vibrant and clear. Whether deployed as a digital directory in DIFC or a self-service check-in point in an Abu Dhabi clinic, the QM32R-T provides the ultimate balance of visual prestige and interactive resilience.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose interactive model code QM32R-T, featuring the primary Middle East manufacturer part number code LH32QMRTBGCXUE (designated locally as the ZN or MG regional variant) alongside international engineering validation stock codes LH32QMRTBGCXGO and LH32QMRTBGCXXS.
- Visual Panel and Backlight Architecture: Features a premium 32-inch Edge LED professional-grade panel achieving a native Full HD resolution of 1920 x 1080 pixels at a standard 60Hz refresh rate.
- Interactive Touch Infrastructure: Outfitted with an Advanced Projective Capacitive (PCAP) touch system supporting up to 10 concurrent touch points with a rapid response time for fluid digital navigation.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 400 nits (touch-active), coupled with a professional non-glare coating to ensure legibility under the bright, glass-heavy interiors of Dubai office buildings.
- Contrast Performance and Color Depth: Engineered around a native 1100:1 static contrast ratio that utilizes Samsung’s color enhancement processing to represent 16.7 million unique color coordinates with professional-grade transitions.
- Integrated Computing and SoC Processing: Equipped with an uncompressed internal image processor running Tizen 4.0 (SSSP 6.0) firmware, supported by 8 gigabytes of onboard flash storage memory for standalone interactive application management.
- Signal and Management Interface Ports: Configured with physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, two downstream USB 2.0 slots (including specialized Touch-Out), an industrial RJ-45 Ethernet connection, and dedicated RS-232C control loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for use with professional video conferencing and collaborative interactive software via external compute modules.
- Collaborative Endpoint Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized interactive content scheduling and remote hardware health monitoring across UAE regional offices.
- Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated building control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
-
- Net Unpacked Hardware Dimensions: Measures a structural width of 733.4 millimeters, a total frame height of 433.8 millimeters, and an absolute physical depth thickness of 49.3 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 825 millimeters, an overall box height of 528 millimeters, and a package depth thickness of 145 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 8.3 kilograms to enable fast spatial calibration planning for structural wall surfaces and cabinetry.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 10.1 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM32R-T directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
In spaces where larger interactive panels are too imposing, the compact 32-inch footprint strikes the perfect balance between high graphical presence and discrete placement. Its size is highly optimized for close-range individual interaction, providing a high pixel density that ensures fine text, registration forms, campus directories, and classroom schematics remain fully sharp without forcing users to stand back.
Legacy Infrared touch monitors use raised perimeter bezels containing optical sensors, which are easily confused by accumulated dust, grease, or direct sunlight. The Samsung QM32R-T uses Projected Capacitive (P-Cap) touch technology, embedding invisible capacitive sensor grids directly behind the flat glass layer. This design allows for a completely flat, bezel-free front look that matches modern smartphones and responds quickly to multi-touch commands without interference from dust or bright light.
Public touch screens are regularly exposed to harsh overhead spot lighting, large windows, and oily residue from users' fingers. A standard glossy screen causes heavy mirror-like reflections and sticky friction that hampers touch navigation. The QM32R-T incorporates a professional 25% anti-glare haze surface glass coating that diffuses incoming reflections to ensure the display text remains legible, while providing a low-friction, smooth-glide touch tactile feel.
Educational and training environments are filled with floating airborne micro-debris such as clothing lint, paper fibers, and dust particles. Displays operating continuously generate stable static electrical fields that pull these particles deep into internal electronics. The QM32R-T features an IP5X certified structural housing that seals off internal circuitry and optical blocks, ensuring that continuous dust exposure does not lead to overheating or component failures.
