Key Features

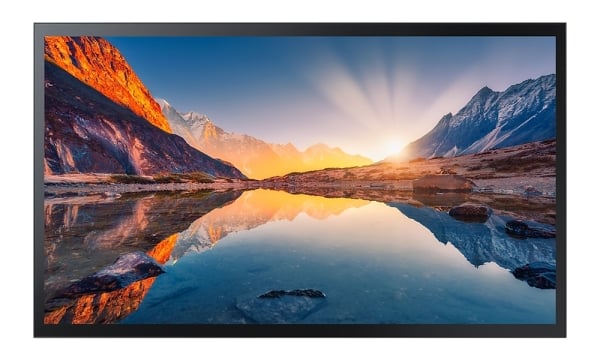

The Samsung QM32B-T represents a major design breakthrough for interactive digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to accommodate a high-precision Projective Capacitive (PCAP) Touch layer within a frame that is just 28.5 millimeters deep, Samsung has created a 32-inch display that responds to user input with the speed and accuracy of a modern smartphone while remaining virtually flush against the wall. This all-in-one solution is specifically engineered for the high-end huddle rooms of DIFC and digital concierge points in luxury Business Bay developments. The integrated non-glare glass and advanced thermal management system ensure that critical wayfinding and interactive menus remain perfectly visible and responsive, even under the intense artificial lighting and ambient temperatures common in premium GCC commercial facilities.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose interactive model code QM32B-T, featuring the primary Middle East manufacturer part number code LH32QMBTBGCXUE (frequently designated as the regional ZN or MG variant) alongside international engineering validation stock codes LH32QMBTBGCXGO and LH32QMBTBGCXXS. Trianze Tech maintains local inventory in Dubai to ensure rapid fulfillment for regional GCC and CIS project tenders requiring specific regional warranty markers.
• Visual Panel and Backlight Architecture: Features a premium 32-inch Edge LED professional-grade panel achieving a native Full HD resolution of 1920 x 1080 pixels at a standard 60Hz refresh rate.
• Interactive Touch Infrastructure: Outfitted with an Advanced Projective Capacitive (PCAP) touch system supporting up to 10 concurrent touch points. This technology provides a significantly more responsive interface than traditional infrared touch, facilitating a natural collaborative experience.
• Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 400 nits (touch-active), engineered specifically to remain visible in brightly lit UAE corporate atriums. The panel is outfitted with an advanced non-glare glass coating that effectively diffuses harsh light reflections from floor-to-ceiling glass facades.
• Contrast Performance and Color Depth: Engineered around a native 1100:1 static contrast ratio utilizing a 10-bit internal color processing engine to represent 16.7 million unique color coordinates with professional-grade transitions.
• Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip (SoC) running the Tizen 6.5 operating system, supported by 16 gigabytes of onboard flash storage memory.

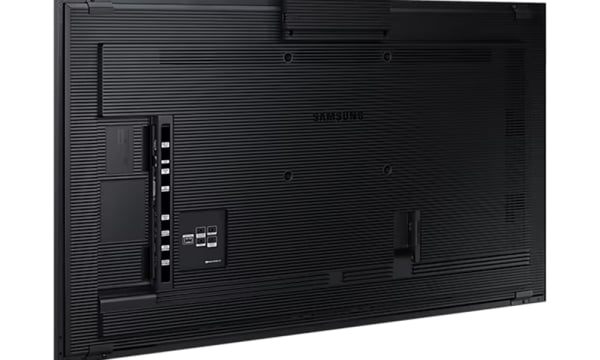

• Signal and Management Interface Ports: Configured with two physical HDMI 2.0 (HDCP 2.2) input ports, one DisplayPort 1.2 interface terminal, and two downstream USB 2.0 slots (including specialized Touch-Out). Control and automation are managed via an industrial RJ-45 Ethernet network connection jack and dedicated RS-232C control input/output loops.

Enterprise Software & UC Platform Ecosystem Compatibility

• Unified Communications Platform Readiness: Fully validated for use with professional video conferencing and collaborative interactive software such as Microsoft Teams Rooms (MTR) and Zoom Rooms via external compute modules.
• Collaborative Endpoint Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized content scheduling and hardware health monitoring across UAE regional offices.
• Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated building control architectures.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
• Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance in Dubai and Abu Dhabi.

Logistics, Packaging & Spatial Handling Parameters

• • Net Unpacked Hardware Dimensions: Measures a structural width of 733.4 millimeters, a total frame height of 433.8 millimeters, and an absolute physical depth thickness of just 28.5 millimeters.
  • Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 815 millimeters, an overall box height of 528 millimeters, and a package depth thickness of 145 millimeters.
  • Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 8.3 kilograms, allowing for efficient installation on standard UAE interior fit-out wall systems.
  • Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 10.1 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
