Key Features

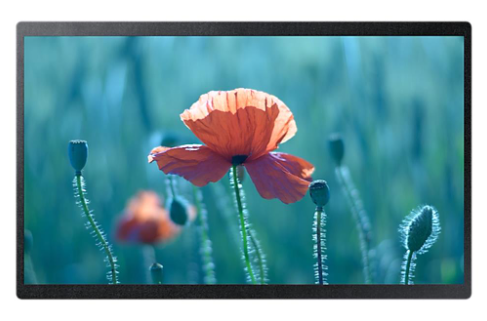

The Samsung QB24R-B represents a major design breakthrough for compact digital communication across the United Arab Emirates. By integrating professional-grade signage technology into a 24-inch form factor, Samsung has provided Dubai’s interior contractors and IT directors with the ideal solution for meeting room signage, digital concierge points, and retail shelf-edge engagement. The QB24R-B is specifically hardened for commercial use, featuring a non-glare panel that diffuses reflections from the intense overhead lighting common in UAE shopping malls and corporate lobbies. Built-in Knox security ensures that all content streaming across the local network remains encrypted, providing peace of mind for government and financial sector deployments in DIFC and ADGM.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Classified officially under the professional small-format model code QB24R-B, featuring the primary Middle East manufacturer part number code LH24QBRBGBGCXUE (designated locally as the regional ZN variant) alongside international stock variants LH24QBRBGBG. Trianze Tech maintains dedicated local inventory in Dubai to ensure rapid fulfillment for regional GCC and CIS project tenders.
• Visual Panel and Backlight Architecture: Features a professional-grade 23.8-inch Edge LED panel achieving a native Full HD resolution of 1920 x 1080 pixels. The display utilizes a 60Hz refresh rate and a rapid 14ms response time to ensure fluid motion for informational loops and interactive menus.
• Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 250 nits (cd/m²), specifically optimized for indoor close-viewing distances in controlled light environments. The panel is outfitted with an anti-reflective coating to diffuse standard lighting reflections and maintain text legibility.
• Contrast Performance and Color Depth: Engineered around a native 1000:1 static contrast ratio utilizing Samsung’s color enhancement engine to represent 16.7 million unique color coordinates for brand-accurate reproduction of corporate logos and promotional assets.
• Integrated Computing and SoC Processing: Equipped with an uncompressed System-on-Chip (SoC) running the Tizen 4.0 (SSSP 6.0) operating system. This onboard computing engine is supported by 8 gigabytes of onboard flash storage memory for standalone media playback.
• Physical Enclosure and Mounting Mechanics: Features a symmetrical, professional bezel frame measuring 17.9 millimeters on all sides, complemented by standard VESA 100 x 100 millimeter physical mounting points calibrated for wall-mount or cabinetry integration.

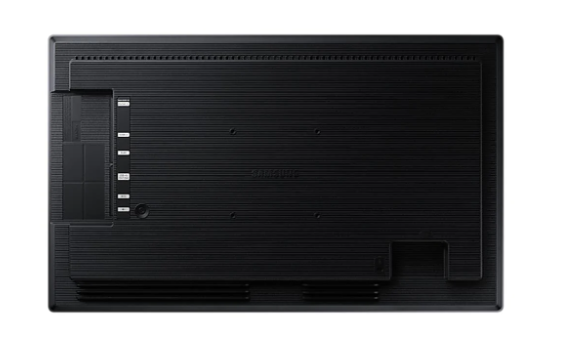

• Signal and Management Interface Ports: Configured with one physical HDMI 1.4 input port, one downstream USB 2.0 media slot, an industrial RJ-45 Ethernet connection jack, and dedicated RS-232C control input for centralized building automation integration.

Enterprise Software & UC Platform Ecosystem Compatibility

• Collaborative Management Support: Native structural compatibility with Samsung MagicINFO and Samsung VXT for centralized content scheduling and hardware health monitoring across UAE regional offices.
• Smart Office Readiness: Fully validated for use with professional meeting room scheduling applications and workspace management platforms commonly used in Business Bay and DIFC offices.
• Automation Control Integration: Direct structural compatibility with standard serial and network control protocols for integration into automated boardroom and hospitality systems across the GCC.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
• Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance in Dubai and Abu Dhabi.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Hardware Dimensions: Measures a structural width of 547.9 millimeters, a total frame height of 334.4 millimeters, and an absolute physical depth thickness of 34.6 millimeters.
• Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 622 millimeters, an overall box height of 419 millimeters, and a package depth thickness of 132 millimeters.
• Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 3.0 kilograms, allowing for efficient installation on lightweight partitions or retail joinery.
• Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 4.1 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
