Key Features

The Samsung QB13R represents a major design breakthrough for compact digital infrastructure across the United Arab Emirates. By integrating the high-performance Crystal Processor and the new Home UI, Samsung has provided Dubai’s interior fit-out contractors and IT directors with an intuitive, all-in-one solution for meeting room signs, digital concierge points, and retail shelf-edge engagement. This display is specifically hardened for commercial use, featuring a non-glare panel that diffuses reflections from the intense overhead lighting common in UAE shopping malls and corporate lobbies. Built-in Knox security ensures that all content streaming across the local network remains encrypted, providing professional-grade protection for government and financial sector deployments in DIFC and ADGM.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Classified officially under the professional small-format model code QB13R, featuring the primary Middle East manufacturer part number code LH13QBRBGBGCXUE (frequently designated locally as the regional ZN variant) alongside international stock variants LH13QBRBGBG. Trianze Tech maintains dedicated local inventory in Dubai to ensure rapid fulfillment for regional GCC and CIS project tenders requiring specific regional warranty markers.

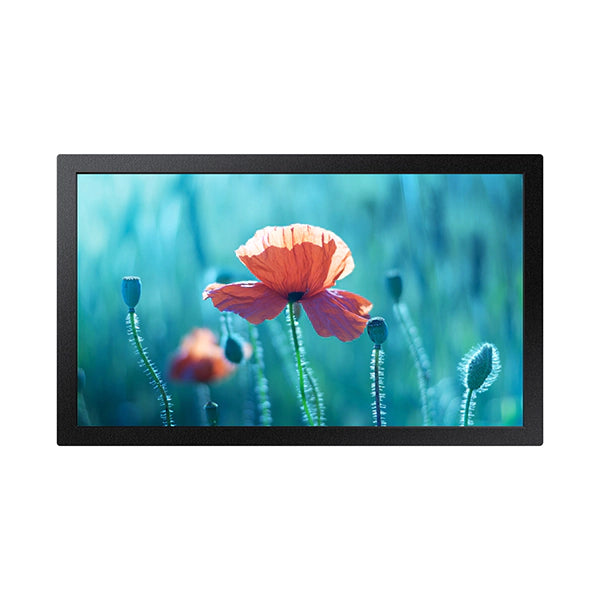

• Visual Panel and Backlight Architecture: Features a professional-grade 13-inch Edge LED panel achieving a native Full HD resolution of 1920 x 1080 pixels at a standard 60Hz refresh rate.
• Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 300 nits (cd/m²), specifically optimized for indoor close-viewing distances in controlled light environments. The panel is outfitted with an anti-reflective coating to diffuse standard lighting reflections and maintain text legibility.
• Contrast Performance and Color Depth: Engineered around a native 800:1 static contrast ratio utilizing Samsung’s color enhancement engine to represent 16.7 million unique color coordinates for brand-accurate reproduction of corporate logos.
• Integrated Computing and SoC Processing: Equipped with an uncompressed System-on-Chip (SoC) running the Tizen 4.0 (SSSP 6.0) operating system with the specialized Home UI for simplified navigation. This onboard computing engine is supported by 8 gigabytes of onboard flash storage memory.
• Physical Enclosure and Mounting Mechanics: Features a symmetrical, professional bezel frame measuring 17.9 millimeters on all sides, complemented by standard VESA 100 x 100 millimeter physical mounting points calibrated for wall-mount or cabinetry integration.

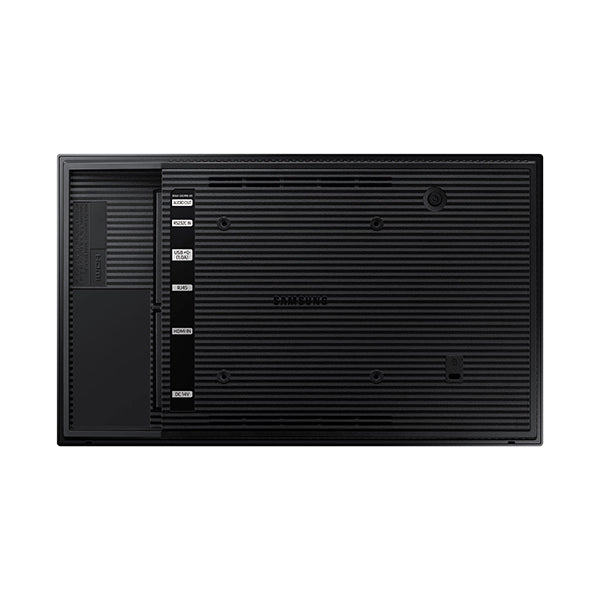

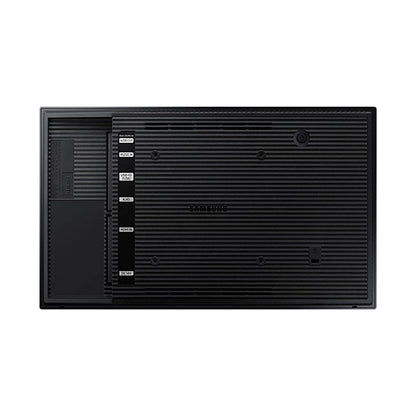

• Signal and Management Interface Ports: Configured with one physical HDMI 1.4 input port, one downstream USB 2.0 media slot, an industrial RJ-45 Ethernet connection jack, and dedicated RS-232C control input for centralized building automation integration.

Enterprise Software & UC Platform Ecosystem Compatibility

• Unified Communications & Office Readiness: Fully validated for use with professional meeting room scheduling applications and workspace management platforms commonly used in Business Bay and DIFC offices.
• Collaborative Management Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized content scheduling and hardware health monitoring across UAE regional offices.
• Automation Control Integration: Direct structural compatibility with standard serial and network control protocols for integration into automated boardroom and hospitality systems across the GCC.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
• Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance in Dubai and Abu Dhabi.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Hardware Dimensions: Measures a compact structural width of 322.0 millimeters, a total frame height of 193.5 millimeters, and an absolute physical depth thickness of 28.2 millimeters.
• Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 376 millimeters, an overall box height of 132 millimeters, and a package depth thickness of 246 millimeters.
• Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 0.9 kilograms, allowing for efficient installation on glass partitions or lightweight retail joinery.
• Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 1.5 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
