Key Features

The Samsung PEC Series 55” (LH55PECPLBC/UE) represents a major design breakthrough for elite digital infrastructure across the United Arab Emirates. By integrating high-efficiency Direct-LED technology within a space-saving chassis, Samsung has provided Dubai’s interior contractors and IT directors with a 55-inch display that delivers the punchy 700-nit brightness required for the region's sun-drenched interiors. The PE55C is specifically distinguished by its industrial-grade durability and IP5X-certified protection, ensuring the internal electronics remain safeguarded against the dust and thermal challenges common in GCC commercial corridors. Built-in multi-step factory calibration guarantees that every unit provides perfect color and brightness uniformity, making it the premier choice for high-profile corporate boardrooms in DIFC and ADGM.

Technical Specifications & Performance Detail

• • Global Inventory and Asset Identifiers: Classified officially under the professional premium model code PE55C, featuring the primary Middle East and European manufacturer part number code LH55PECPLBC/UE (designated locally as the regional PEC variant). Trianze Tech maintains dedicated local inventory in Dubai to ensure rapid fulfillment for regional GCC and CIS project tenders requiring specific regional warranty markers.
• Visual Panel and Backlight Architecture: Features a premium 55-inch Edge-lit LED professional-grade panel achieving a native Full HD resolution of 1920 x 1080 pixels at a standard 60Hz refresh rate.
• Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits (cd/m²), engineered specifically to remain visible in brightly lit UAE corporate atriums. The panel is outfitted with an advanced anti-reflective coating to diffuse harsh light reflections and maintain text legibility.
• Contrast Performance and Color processing: Engineered around a native 5000:1 static contrast ratio utilizing ten-bit internal color processing to represent 1.07 billion unique color coordinates across a professional NTSC spectrum.
• Integrated Computing and SoC Processing: Equipped with an uncompressed System-on-Chip (SoC) running the SSSP (Samsung Smart Signage Platform) firmware, supported by onboard flash storage memory for standalone content scheduling and playback.
• Physical Enclosure and Mounting Mechanics: Features a sophisticated symmetrical bezel frame measuring 11.5 millimeters, complemented by perfectly centered VESA 400 x 400 millimeter physical mounting points calibrated for secure structural installation.

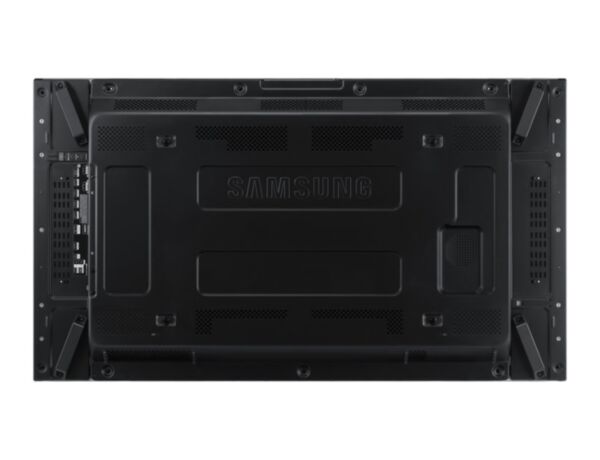

• Signal and Management Interface Ports: Configured with two physical HDMI input ports, one DisplayPort 1.2 terminal, one DVI-D terminal, one downstream USB 2.0 slot, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.

Enterprise Software & UC Platform Ecosystem Compatibility

• Signage Management Support: Native structural compatibility with Samsung MagicINFO for centralized content scheduling and hardware health monitoring across multi-site UAE branch locations.
• Unified Communications Readiness: Fully validated for use as a primary high-detail visual endpoint for Microsoft Teams and Zoom conferencing environments via external compute modules.
• Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
• Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance in Dubai and Abu Dhabi.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Hardware Dimensions: Measures a structural width of 1248.0 millimeters, a total frame height of 722.4 millimeters, and an absolute physical depth thickness of 29.9 millimeters.
• Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1381 millimeters, an overall box height of 861 millimeters, and a package depth thickness of 200 millimeters.
• Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 18.0 kilograms, allowing for efficient installation on standard UAE interior fit-out wall systems.
• Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 23.5 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
