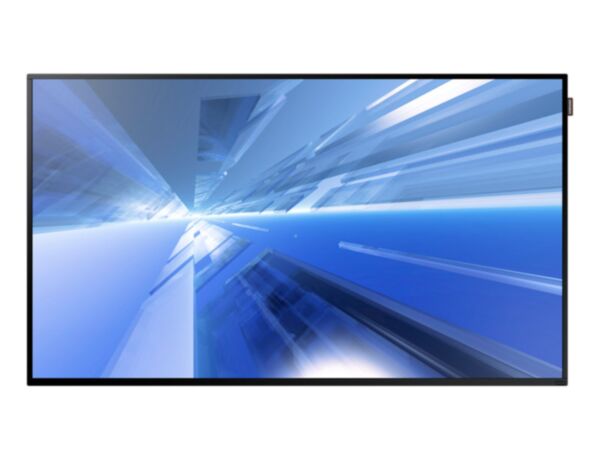

Samsung DH55E DHE Series 55" 700-Nit Slim Direct-Lit LED 24/7 Professional Commercial Signage Display
Samsung DH55E DHE Series 55" 700-Nit Slim Direct-Lit LED 24/7 Professional Commercial Signage Display
Samsung DH55E DHE Series 55" 700-Nit Slim Direct-Lit LED 24/7 Professional Commercial Signage Display
Brand
:
Samsung
Model
:
DH55E (LH55DHEPLGC/UE / LH55DHEPLGC)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features The Samsung DH55E represents a major design breakthrough for enterprise-level visual communication across the United Arab Emirates. By integrating high-efficiency Direct-Lit LED technology within a slim, space-saving chassis, Samsung has created a 55-inch display that delivers the punchy 700-nit brightness required for Dubai's sun-drenched interiors. The DHE Series is powered by the 3rd Generation Samsung Smart Signage Platform (SSSP), which allows UAE businesses to deploy, schedule, and manage content natively through an onboard system-on-chip. This eliminates the traditional costs associated with external media players and cabling, while the industrial-grade internal hardware ensures the display remains operational 24 hours a day in high-utilization environments like transportation terminals, healthcare facilities, and retail banking hubs.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code DH55E, featuring primary Gulf market manufacturer part number code LH55DHEPLGC/ZN alongside international engineering validation stock codes LH55DHEPLGC/EN and LH55DHEPLGC/GO.
- Visual Panel and Backlight Architecture: Features a premium 55-inch 60Hz Slim Direct-Lit LED panel achieving a native Full HD resolution of 1920 x 1080 pixels for crisp, high-definition visual clarity.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits, coupled with an advanced 2% haze anti-glare coating that diffuses harsh light reflections to maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 5000:1 static contrast ratio that utilizes 10-bit color processing to represent 1.07 billion unique color coordinates across a professional spectrum.
- Integrated Computing and SoC Processing: Equipped with a Quad-Core processor running MagicINFO S3 firmware, supported by 8GB of onboard flash storage memory and 1.5GB of DDR3 RAM.

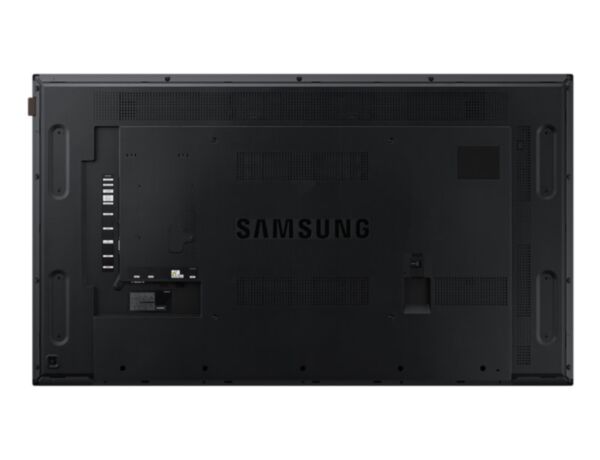

- Physical Enclosure and Mounting Mechanics: Features a symmetrical, ultra-slim bezel frame measuring 9.5mm (Top/Side) and 15.0mm (Bottom), complemented by VESA 400 x 400 millimeter mounting points.
- Signal and Management Interface Ports: Configured with physical HDMI 1.4 ports, DisplayPort 1.2, DVI-I, two downstream USB 2.0 slots, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for use as a high-brightness endpoint for Microsoft Teams Rooms (MTR) and Zoom Rooms via external compute modules.
- Content Management System Support: Native structural compatibility with Samsung MagicINFO for centralized content scheduling across multi-site UAE branch locations.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA markers.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1230.6 millimeters, a total frame height of 706.9 millimeters, and an absolute physical depth thickness of 49.9 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1348 millimeters, an overall box height of 810 millimeters, and a package depth of 148 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 15.4 kilograms to allow for fast spatial calibration and wall-mount planning.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 19.6 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional freight routes.
Key Features The Samsung DH55E represents a major design breakthrough for enterprise-level visual communication across the United Arab Emirates. By integrating high-efficiency Direct-Lit LED technology within a slim, space-saving chassis, Samsung has created a 55-inch display that delivers the punchy 700-nit brightness required for Dubai's sun-drenched interiors. The DHE Series is powered by the 3rd Generation Samsung Smart Signage Platform (SSSP), which allows UAE businesses to deploy, schedule, and manage content natively through an onboard system-on-chip. This eliminates the traditional costs associated with external media players and cabling, while the industrial-grade internal hardware ensures the display remains operational 24 hours a day in high-utilization environments like transportation terminals, healthcare facilities, and retail banking hubs.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code DH55E, featuring primary Gulf market manufacturer part number code LH55DHEPLGC/ZN alongside international engineering validation stock codes LH55DHEPLGC/EN and LH55DHEPLGC/GO.
- Visual Panel and Backlight Architecture: Features a premium 55-inch 60Hz Slim Direct-Lit LED panel achieving a native Full HD resolution of 1920 x 1080 pixels for crisp, high-definition visual clarity.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits, coupled with an advanced 2% haze anti-glare coating that diffuses harsh light reflections to maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 5000:1 static contrast ratio that utilizes 10-bit color processing to represent 1.07 billion unique color coordinates across a professional spectrum.
- Integrated Computing and SoC Processing: Equipped with a Quad-Core processor running MagicINFO S3 firmware, supported by 8GB of onboard flash storage memory and 1.5GB of DDR3 RAM.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, ultra-slim bezel frame measuring 9.5mm (Top/Side) and 15.0mm (Bottom), complemented by VESA 400 x 400 millimeter mounting points.
- Signal and Management Interface Ports: Configured with physical HDMI 1.4 ports, DisplayPort 1.2, DVI-I, two downstream USB 2.0 slots, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for use as a high-brightness endpoint for Microsoft Teams Rooms (MTR) and Zoom Rooms via external compute modules.
- Content Management System Support: Native structural compatibility with Samsung MagicINFO for centralized content scheduling across multi-site UAE branch locations.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA markers.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1230.6 millimeters, a total frame height of 706.9 millimeters, and an absolute physical depth thickness of 49.9 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1348 millimeters, an overall box height of 810 millimeters, and a package depth of 148 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 15.4 kilograms to allow for fast spatial calibration and wall-mount planning.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 19.6 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional freight routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung DH55E directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Attaching standalone media players behind a display panel complicates your cable mapping and creates more physical points of failure, such as loose HDMI plugs or hardware crashes. The DH55E resolves this operational challenge by embedding the SSSP Gen 3 hardware architecture driven by an internal quad-core CPU and MagicINFO S3 software. This allows network managers to stream, schedule, and cache content directly to the display natively, dropping hardware maintenance tickets across Africa and the CIS region.
Basic digital signage screens typically deliver a low 350-nit output, which easily washes out under direct afternoon sunlight or intense corporate lighting grids. The DH55E features an advanced Slim Direct-Lit LED panel that delivers a powerful 700 cd/m² (nits) of brightness. This heavy-duty lighting power cuts through reflections to preserve a clear static contrast field, keeping text strings, schedule graphics, and menu files completely legible.
Yes. To distribute high-definition content feeds down a line of multiple displays without introducing signal lag or frame stuttering, legacy systems require external matrix distribution servers. The LH55DHEPLGC/UE includes hardware-accelerated DisplayPort 1.2 input and digital loop-out routing. This enables technical teams to cascade an uncompressed source signal sequentially from panel to panel, natively scaling layouts up to a 10x10 array configuration without needing external signal amplifiers at sites in Almaty or Cairo.
In mission-critical monitoring spaces or finance rooms, standard low-contrast displays blur fine details, causing grey text to blend into dark backgrounds and causing operator eye strain. The DH55E boasts an industry-leading 5000:1 static contrast ratio, ensuring crisp division between deep blacks and sharp whites. This high performance guarantees that fine spreadsheets, real-time stock ticks, and detailed mapping vectors remain razor-sharp for continuous reading during around-the-clock shift cycles.
