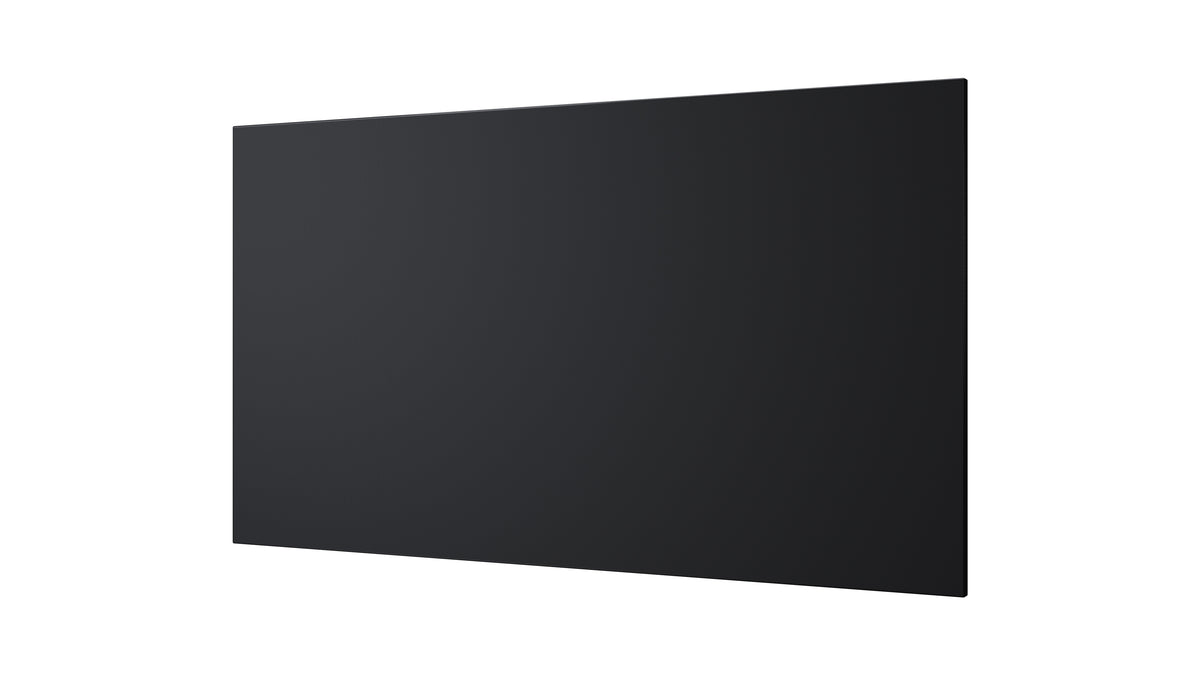

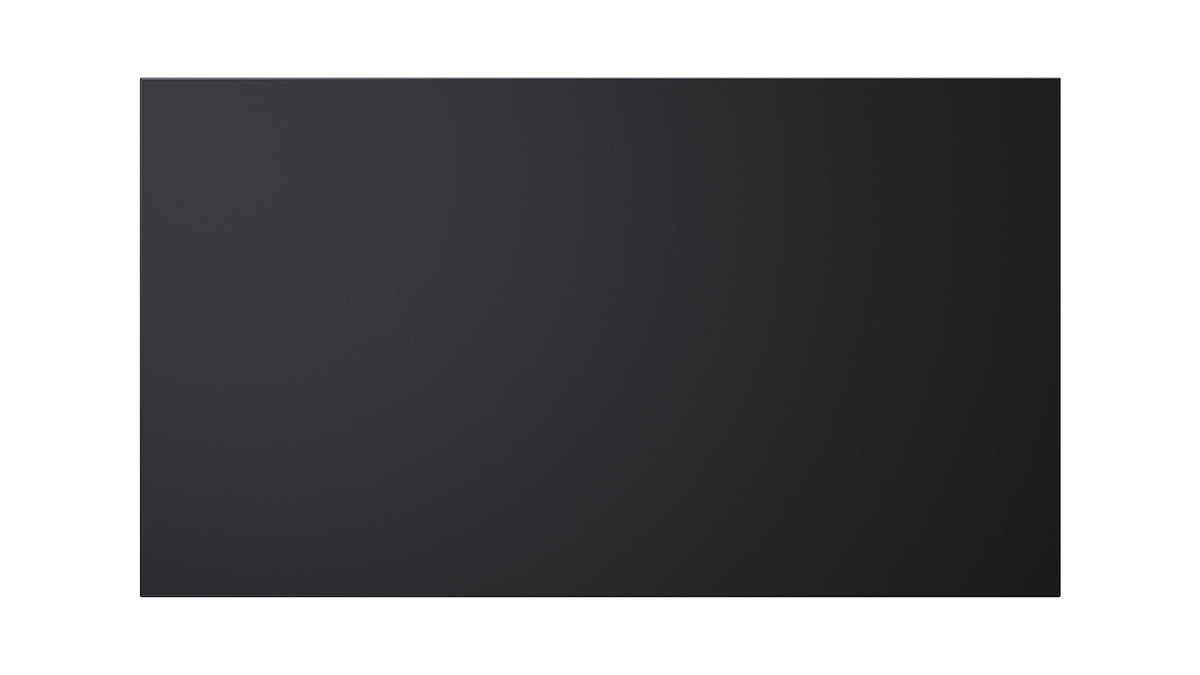

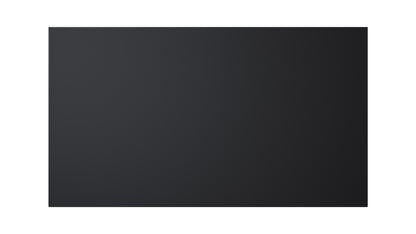

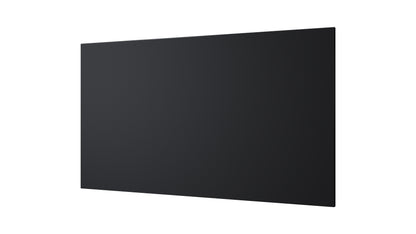

Panasonic TL-137AD15AW: 137 Inch Full HD Direct View LED Display, 1.58 mm Pixel Pitch
Model
:
TL-137AD15AW
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic TL-137AD15AW at a Glance
- Brand
- Panasonic
- Model
- TL-137AD15AW
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic TL-137AD15AW Overview
The Panasonic TL-137AD15AW is a 137 inch direct view LED display with Full HD resolution, 700 cd/m2 brightness and 3-in-1 SMD / 1.58 mm, with a separate control box. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Screen: 137-inch (2790.3 mm)
- Resolution: 1920 x 1080
- Brightness: 700 cd/m2
- Contrast ratio 4000:1
- Viewing angle 170 degrees/160 degrees
- Operating time: 24h / day
Technical Specifications:
| Spec | Value |
|---|---|
| Model | TL-137AD15AW |
| Type | Direct view led display |
| DISPLAY PANEL: Screen Size(Diagonal) | 137-inch (2790.3 mm) |
| DISPLAY PANEL: Brightness (typ.) | 700 cd/m2 |
| DISPLAY PANEL: Aspect ratio | 16:9 |
| DISPLAY PANEL: Effective Display Area (W x H) | 3040 x 1710 mm (119.69" x 67.32") |
| DISPLAY PANEL: Resolution | 1920 x 1080 |
| DISPLAY PANEL: Contrast Ratio (typ.) | 4000:1 |
| DISPLAY PANEL: Viewing Angle(H / V) | 170 degrees/160 degrees |
| DISPLAY PANEL: LED type / Pixel pitch | 3-in-1 SMD / 1.58 mm |
| CONNECTION TERMINAL(Control Box): AC Input | IEC C14 x 1 |
| CONNECTION TERMINAL(Control Box): HDMI IN | HDMI TYPE A Connector x 3 |
| CONNECTION TERMINAL(Control Box): HDMI OUT | HDMI TYPE A Connector x 1 |
| CONNECTION TERMINAL(Control Box): SERIAL IN | D-sub 9-pin x 1, RS-232C Compatible |
| CONNECTION TERMINAL(Control Box): IR IN | Stereo mini jack (dia. 3.5 mm) x 1 |
| CONNECTION TERMINAL(Control Box): AUDIO 1 IN (L / R) | Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER) |
| CONNECTION TERMINAL(Control Box): AUDIO OUT (L / R) | Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER) |
| CONNECTION TERMINAL(Control Box): DIGITAL AUDIO OUT | SPDIF x 1 |
| CONNECTION TERMINAL(Control Box): LAN | RJ45 x 1 for network connection, PJLinkTMsupported |
| CONNECTION TERMINAL(Control Box): USB TYPE A | USB Connector Type A x 1 (DC 5V/2A, USB 3.0 is supported) |
| CONNECTION TERMINAL(Control Box): SLOT | x 2Intel SDM specificationSLOT1: SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A, 12 V / Max 5.5 ASLOT2: SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A, 12 V / Max 2.75 A |
| CONNECTION TERMINAL(Display Panel): AC Input | IEC C14 x 5 |
| CONNECTION TERMINAL(Display Panel): VIDEO IN | RJ45 x 5 |
| CONNECTION TERMINAL(Power Box): AC Input | Neutrik (NAC3MP-HC) Rating 30 A x 1 |
| CONNECTION TERMINAL(Power Box): AC Output | IEC C13 x 6 |
| CONNECTION TERMINAL(Power Box): Control Signal | RJ45 x 1 |
| CONNECTION TERMINAL(Power Box): Sensor Input | Stereo Mini Jack (2.5 mm) x 1 |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Power Supply | AC 220 V, 240 V 50 Hz/60 Hz 13.5A |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Power Consumption | TBD |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): On Mode Average Power Consumption | TBD |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Power Off Condition | Approx.0.5 W |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Stand-by Condition | Approx.0.7 W |
| ELECTRICAL: Apparent power | 2787 VA |
| ELECTRICAL: Energy efficiency class for Europe | G class |
| MECHANICAL: Dimension(W x H x D)[Display Panel] | 3050 x 1720 x 75.5 mm (120.08" x 67.72" x2.97") |
| MECHANICAL: Weight[Display Panel] | Approx. 140.0 kg / 308.7 lbs |
Why Buy the Panasonic TL-137AD15AW from Trianze Tech?
- Genuine Panasonic direct view LED display supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the TL-137AD15AW
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic TL-137AD15AW: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic TL-137AD15AW, Panasonic lists the following. Screen size: 137-inch (2790.3 mm); Resolution: 1920 x 1080; Brightness: 700 cd/m2; Contrast ratio: 4000:1; Viewing angle: 170 degrees/160 degrees.
For the Panasonic TL-137AD15AW, Panasonic lists the following. AC Input: IEC C14 x 1; HDMI IN: HDMI TYPE A Connector x 3; HDMI OUT: HDMI TYPE A Connector x 1; SERIAL IN: D-sub 9-pin x 1, RS-232C Compatible; IR IN: Stereo mini jack (dia. 3.5 mm) x 1; AUDIO 1 IN (L / R): Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER); AUDIO OUT (L / R): Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER).
For the Panasonic TL-137AD15AW, Panasonic lists the following. Operating time: 24h / day; Orientation: Landscape; Tilting angle: 0 degrees.
For the Panasonic TL-137AD15AW, Panasonic lists the following. Weight: Approx. 140.0 kg / 308.7 lbs.
For the Panasonic TL-137AD15AW, Panasonic lists the following. Power supply: AC 220 V, 240 V 50 Hz/60 Hz 13.5A; Power consumption: TBD.
Trianze Tech stocks the Panasonic TL-137AD15AW in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
