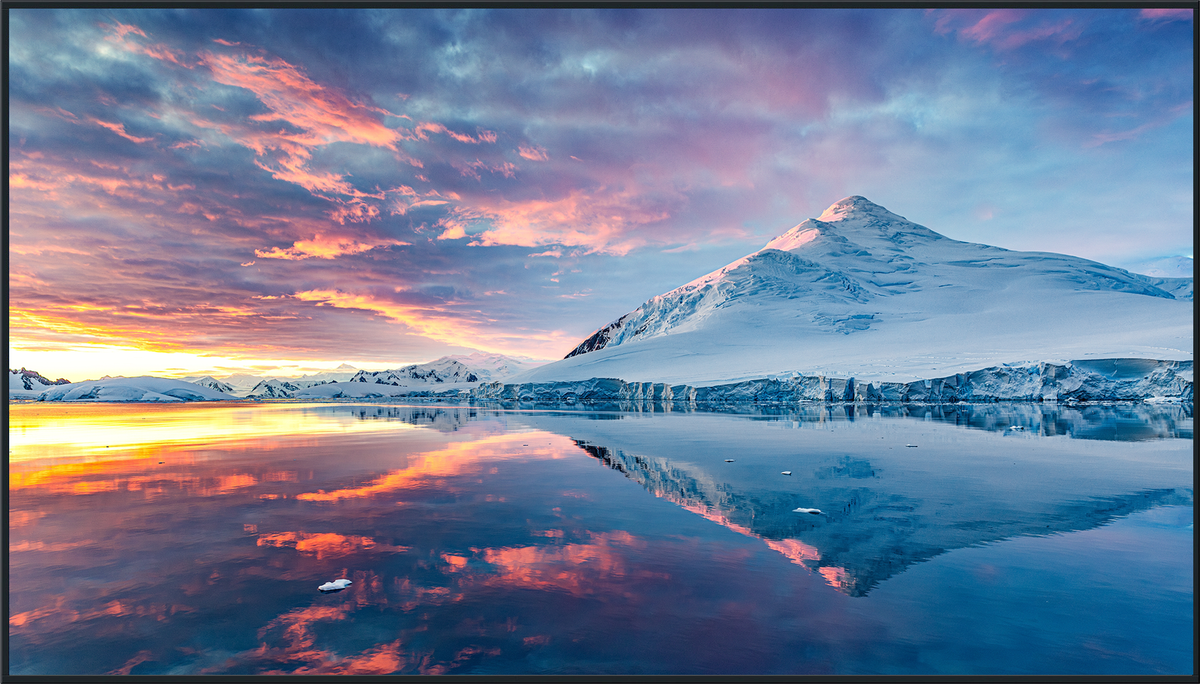

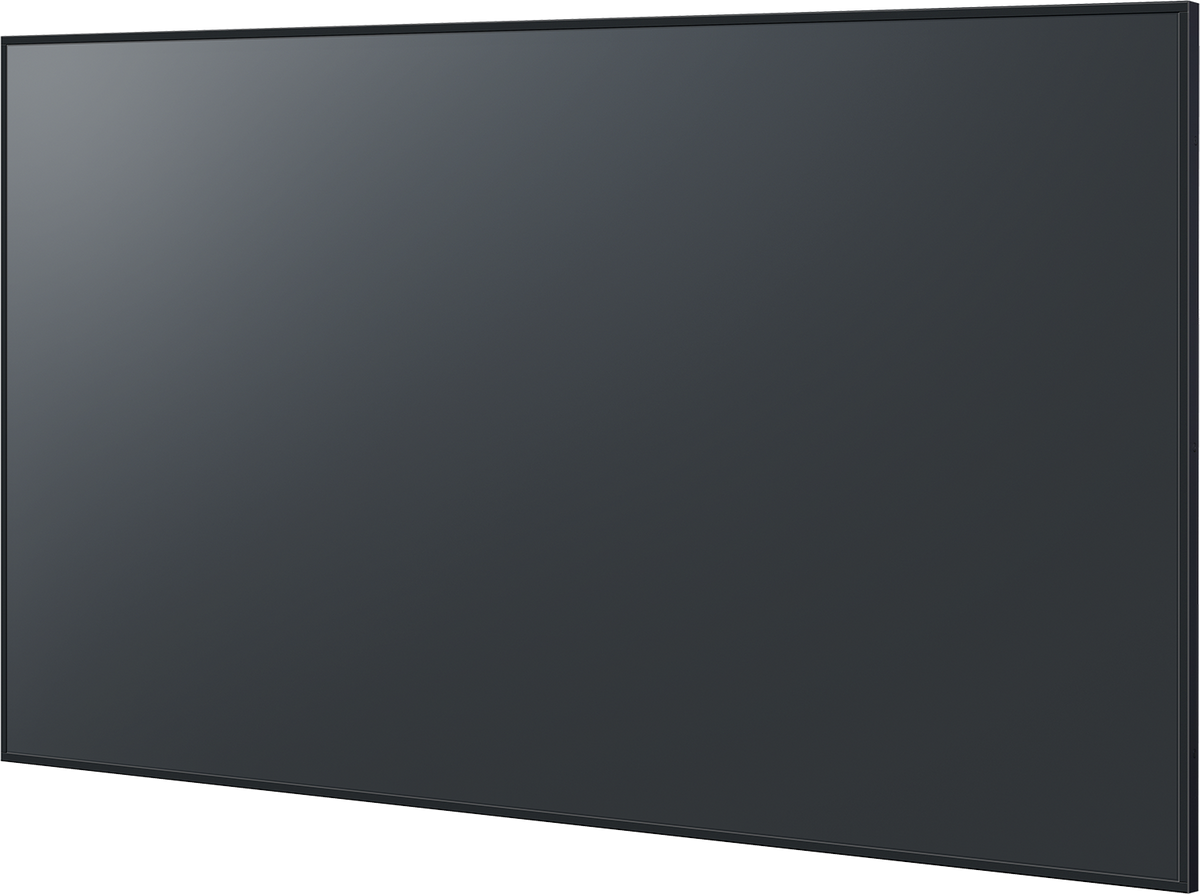

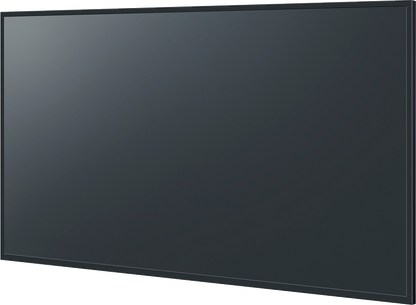

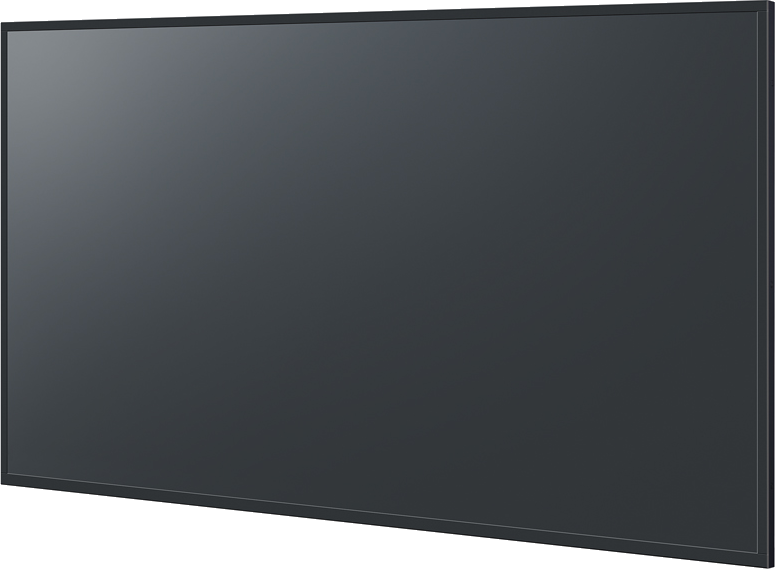

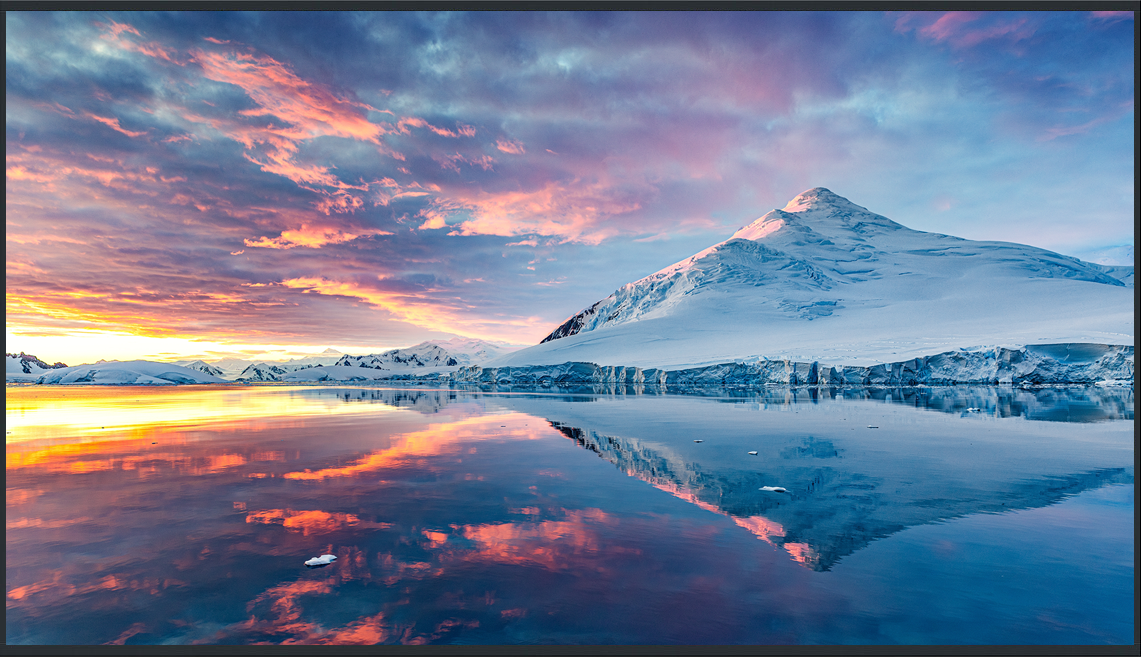

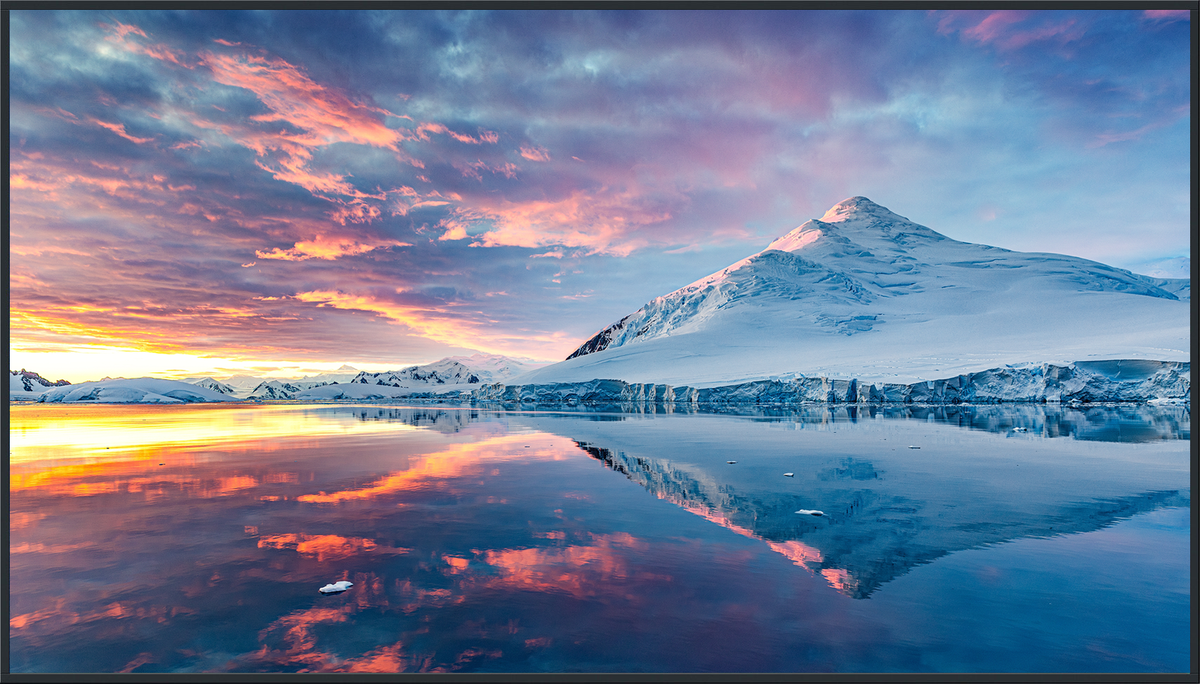

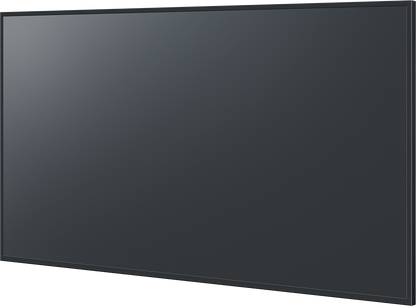

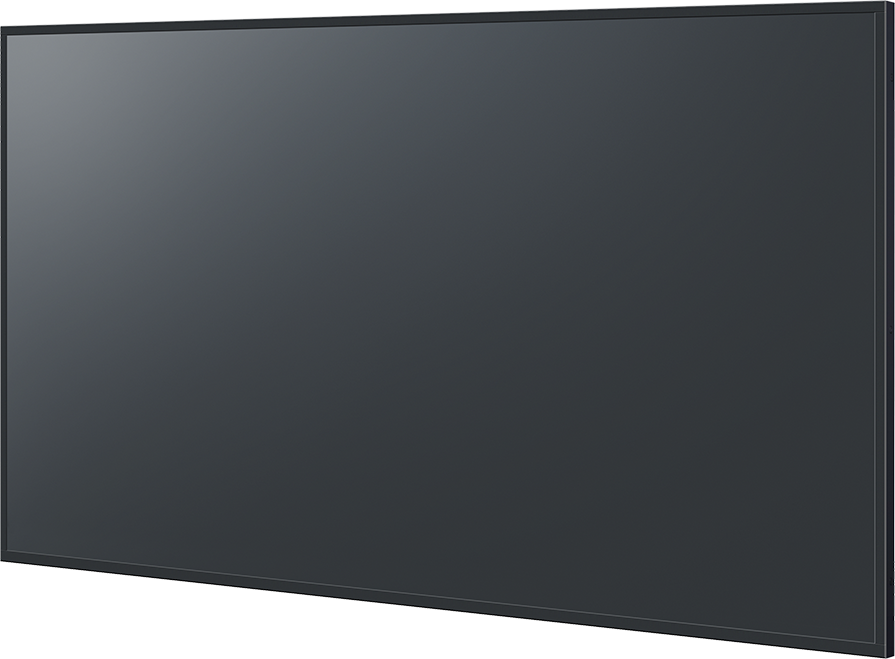

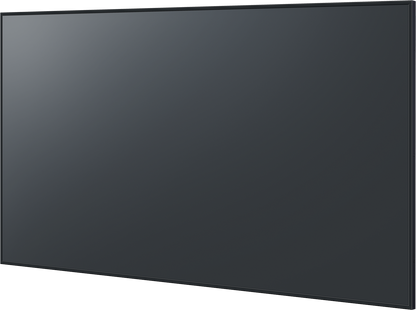

Panasonic TH-86EQ3: 86 Inch 4K UHD Professional Display, 500 cd/m2
Model
:
TH-86EQ3
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic TH-86EQ3 at a Glance
- Brand
- Panasonic
- Model
- TH-86EQ3
- Category
- Digital Signage Flat Panels
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic TH-86EQ3 Overview
The Panasonic TH-86EQ3 is a 86 inch 4K UHD professional display rated at 500 cd/m2 with 18h /day rated operation. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Screen: 86-inch class (85.6-inch / 2174.2 mm)
- Resolution: 3840 x 2160
- Brightness: 500 cd/m2
- Contrast ratio 1200:1
- Viewing angle 178 degrees/178 degrees (CR>10)
- Operating time: 18h /day
Technical Specifications:
| Spec | Value |
|---|---|
| Model | TH-86EQ3 |
| Type | Professional display |
| DISPLAY PANEL: Screen Size | 86-inch class (85.6-inch / 2174.2 mm) |
| DISPLAY PANEL: Brightness (typ.) | 500 cd/m2 |
| DISPLAY PANEL: Aspect ratio | 16:9 |
| DISPLAY PANEL: Effective Display Area (W x H) | 1895.0 x 1065.9 mm (74.60" x 41.96") |
| DISPLAY PANEL: Resolution | 3840 x 2160 |
| DISPLAY PANEL: Contrast Ratio (typ.) | 1200:1 |
| DISPLAY PANEL: Response Time (typ.) | 8.0 ms (G to G) |
| DISPLAY PANEL: Viewing Angle(H / V) | 178 degrees/178 degrees (CR>10) |
| DISPLAY PANEL: Panel Surface Treatment | Anti-glare type |
| DISPLAY PANEL: Haze | 25% |
| CONNECTION TERMINAL: HDMI IN | HDMI Type A Connector x 3 (HDCP 2.2 supported) |
| CONNECTION TERMINAL: PC IN | Mini D-sub 15-pin x 1 (Female) |
| CONNECTION TERMINAL: SERIAL IN | D-sub 9-pin x 1, RS-232C Compatible |
| CONNECTION TERMINAL: AUDIO 1 IN (L / R) | Stereo Mini Jack (M3) x 1 |
| CONNECTION TERMINAL: AUDIO OUT (L / R) | Pin Jack x 1 |
| CONNECTION TERMINAL: LAN | RJ45 x 1 10BASE-T/100BASE-TX |
| CONNECTION TERMINAL: USB TYPE A | USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported) |
| CONNECTION TERMINAL: RF In (ANTTENA / CABLE) | F Connector x 1 |
| AUDIO: Built in Speaker | 20 W [10 W+10 W] |
| ELECTRICAL: Power Supply | AC 110 to 240 V 50 Hz / 60 Hz |
| ELECTRICAL: Power Consumption | 336 W |
| ELECTRICAL: Power Off Condition | Approx. 0.3 W |
| ELECTRICAL: Stand-by Condition | Approx. 0.5 W |
| MECHANICAL: Dimension(W) | 1929 mm (75.95") |
| MECHANICAL: Dimension(H) | 1100 mm (43.31") |
| MECHANICAL: Dimension(D) | 70 mm (2.74") |
| MECHANICAL: Weight | Approx. 46.0 kg (101.5 lbs.) |
| MECHANICAL: Bezel Width(T) | 15.5 mm (0.61") |
| MECHANICAL: Bezel Width(B) | 15.5 mm (0.61") |
| MECHANICAL: Bezel Width(L) | 15.5 mm (0.61") |
| MECHANICAL: Bezel Width(R) | 15.5 mm (0.61") |
| MECHANICAL: Pitch for Wall-Hanging / Screw / Screw hole depth | VESA Compliant 600 x 400 mm (23.6" x 15.8") / M8 / 20 mm (0.8") |
| INSTALLATION: Orientation | Landscape / Portrait |
| INSTALLATION: Tilting Angle | 0 to 20 degrees forward with landscape setting |
Why Buy the Panasonic TH-86EQ3 from Trianze Tech?
- Genuine Panasonic professional display supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the TH-86EQ3
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic TH-86EQ3: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic TH-86EQ3, Panasonic lists the following. Screen size: 86-inch class (85.6-inch / 2174.2 mm); Resolution: 3840 x 2160; Brightness: 500 cd/m2; Contrast ratio: 1200:1; Viewing angle: 178 degrees/178 degrees (CR>10).
For the Panasonic TH-86EQ3, Panasonic lists the following. HDMI IN: HDMI Type A Connector x 3 (HDCP 2.2 supported); PC IN: Mini D-sub 15-pin x 1 (Female); SERIAL IN: D-sub 9-pin x 1, RS-232C Compatible; AUDIO 1 IN (L / R): Stereo Mini Jack (M3) x 1; AUDIO OUT (L / R): Pin Jack x 1; LAN: RJ45 x 1 10BASE-T/100BASE-TX; USB TYPE A: USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported).
For the Panasonic TH-86EQ3, Panasonic lists the following. Operating time: 18h /day; Orientation: Landscape / Portrait; Tilting angle: 0 to 20 degrees forward with landscape setting; Panel surface: Anti-glare type.
For the Panasonic TH-86EQ3, Panasonic lists the following. Weight: Approx. 46.0 kg (101.5 lbs.); Wall-hanging pitch: VESA Compliant 600 x 400 mm (23.6" x 15.8") / M8 / 20 mm (0.8").
For the Panasonic TH-86EQ3, Panasonic lists the following. Power supply: AC 110 to 240 V 50 Hz / 60 Hz; Power consumption: 336 W; Built-in speaker: 20 W [10 W+10 W].
Trianze Tech stocks the Panasonic TH-86EQ3 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
