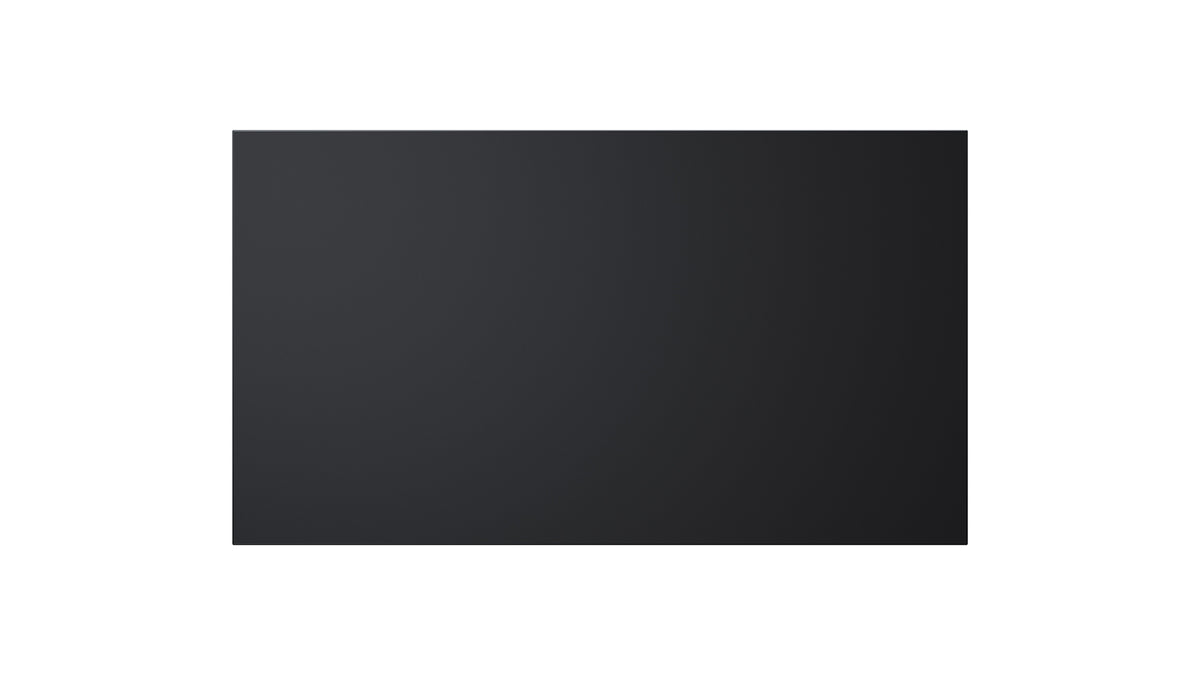

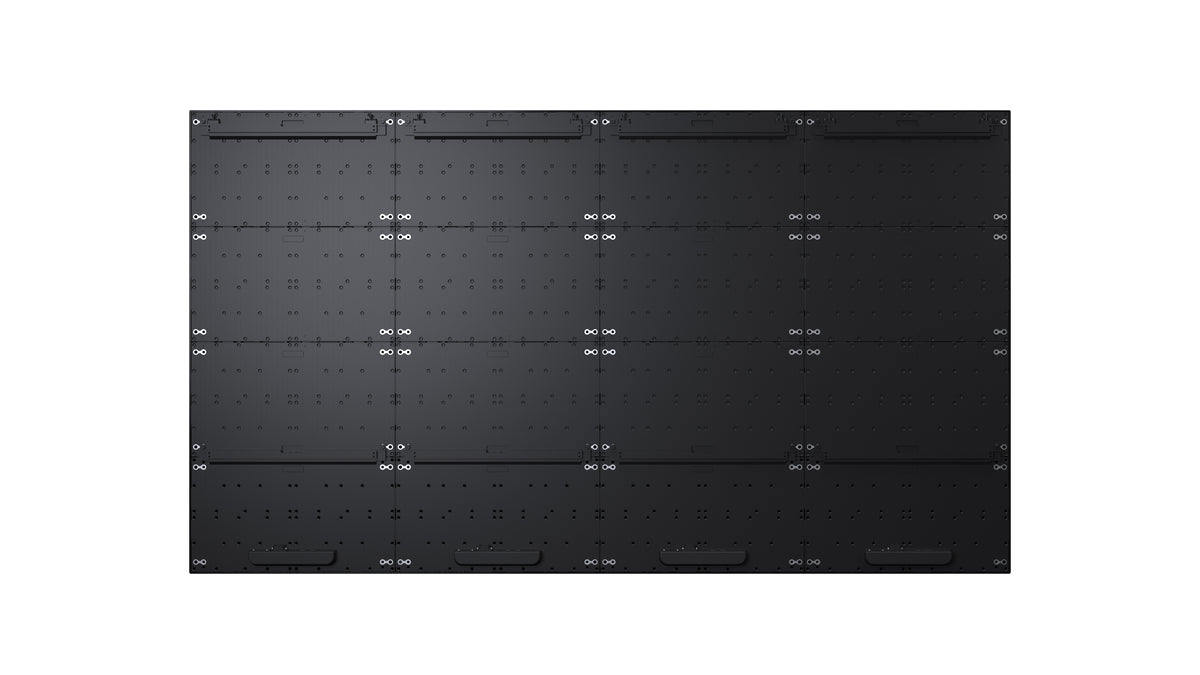

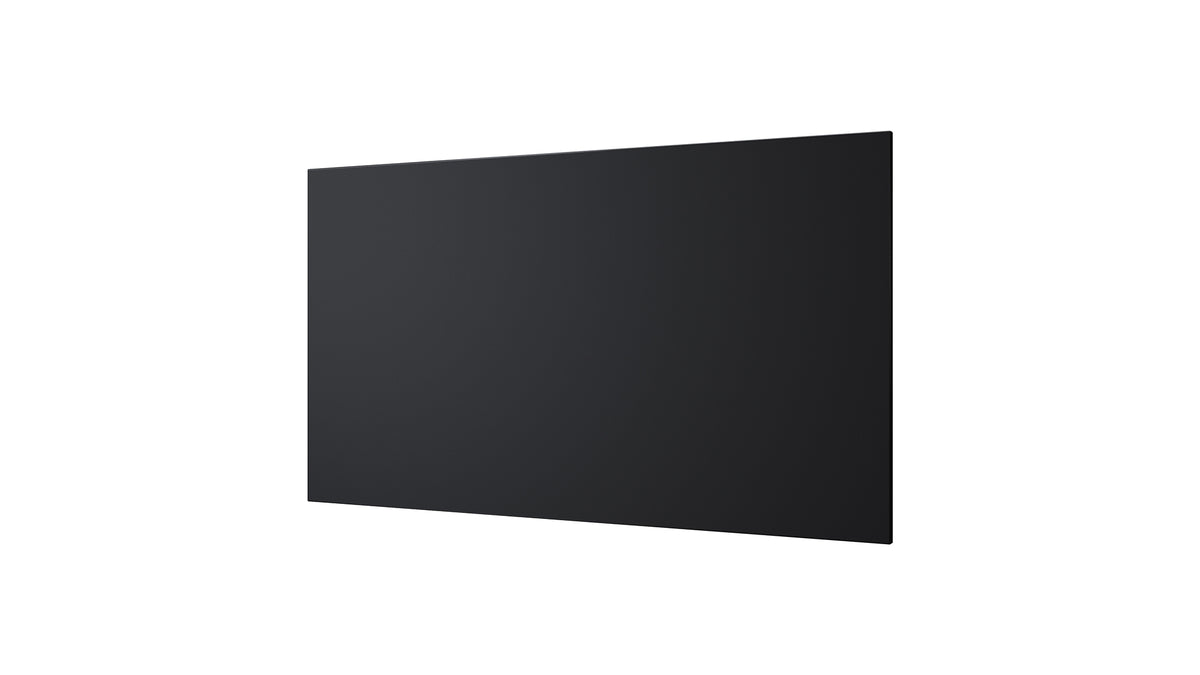

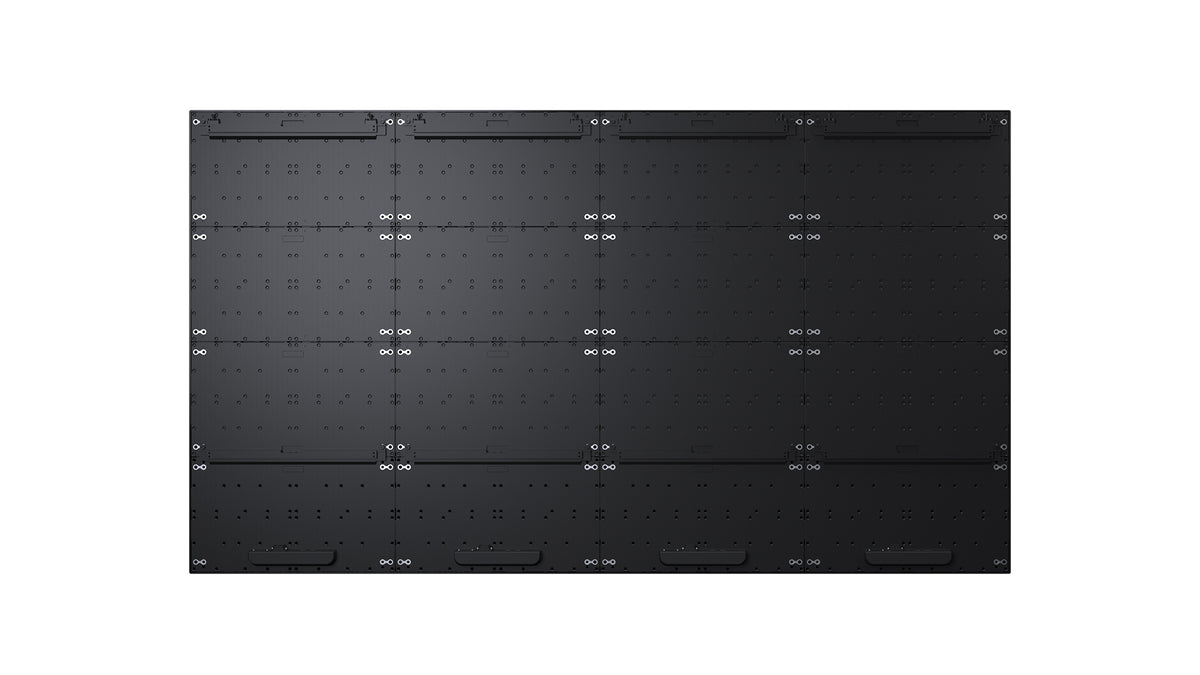

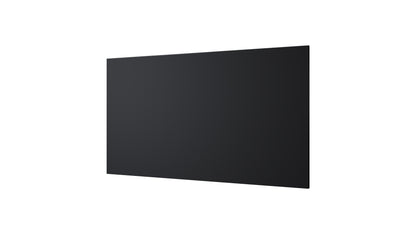

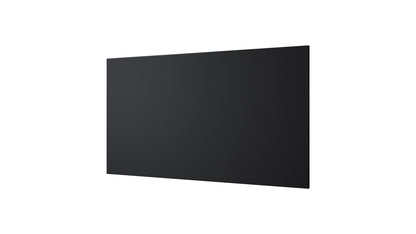

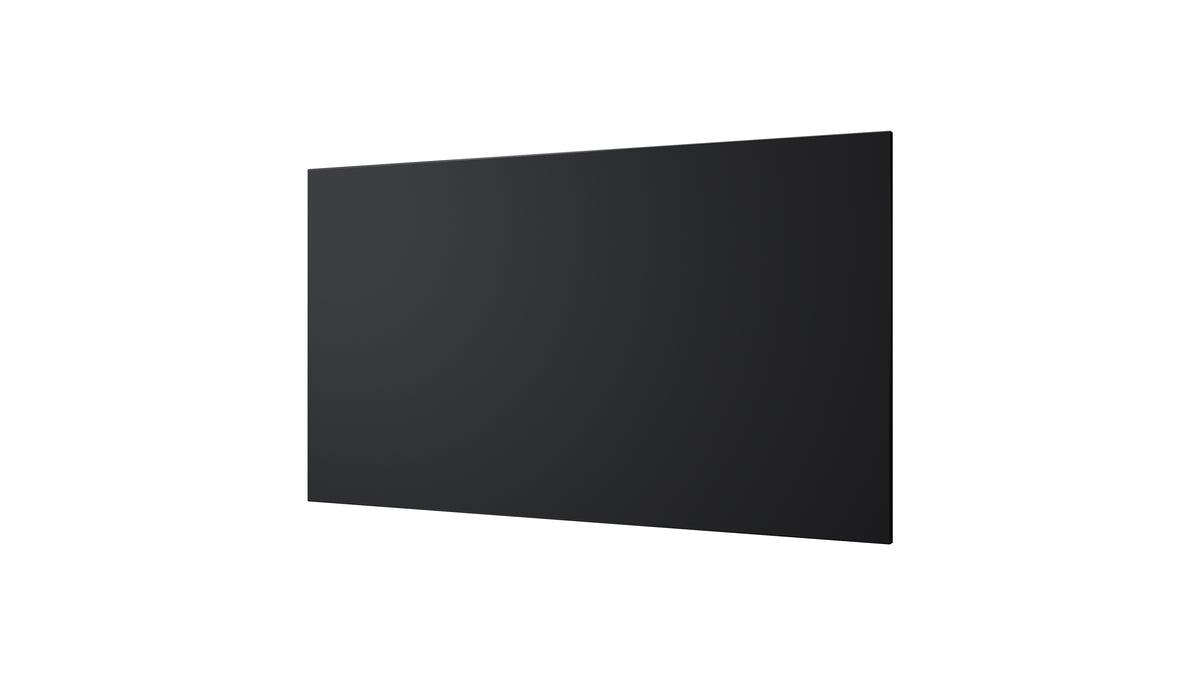

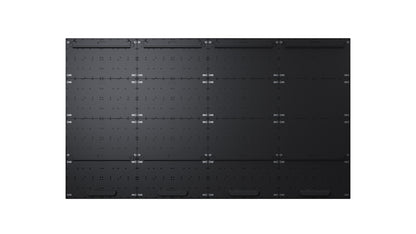

Panasonic TL-110AD12AW: 110 Inch Full HD Direct View LED Display, 1.27 mm Pixel Pitch
Brand
:Panasonic
Model
:
TL-110AD12AW
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic TL-110AD12AW at a Glance
- Brand
- Panasonic
- Model
- TL-110AD12AW
- Category
- Video Wall Displays & Packages
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic TL-110AD12AW Overview
The Panasonic TL-110AD12AW is a 110 inch direct view LED display with Full HD resolution, 700 cd/m2 brightness and 3-in-1 SMD / 1.27 mm, with a separate control box. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Screen: 110-inch (2790.3 mm/109.86")
- Resolution: 1920 x 1080
- Brightness: 700 cd/m2
- Contrast ratio 4000:1
- Viewing angle 170 degrees/160 degrees
- Operating time: 24h / day
Technical Specifications:
| Spec | Value |
|---|---|
| Model | TL-110AD12AW |
| Type | Direct view led display |
| DISPLAY PANEL: Screen Size(Diagonal) | 110-inch (2790.3 mm/109.86") |
| DISPLAY PANEL: Brightness (typ.) | 700 cd/m2 |
| DISPLAY PANEL: Aspect ratio | 16:9 |
| DISPLAY PANEL: Effective Display Area (W x H) | 2432 x 1368 mm (95.74" x 53.85") |
| DISPLAY PANEL: Resolution | 1920 x 1080 |
| DISPLAY PANEL: Contrast Ratio (typ.) | 4000:1 |
| DISPLAY PANEL: Viewing Angle(H / V) | 170 degrees/160 degrees |
| DISPLAY PANEL: LED type / Pixel pitch | 3-in-1 SMD / 1.27 mm |
| CONNECTION TERMINAL(Control Box): AC Input | IEC C14 x 1 |
| CONNECTION TERMINAL(Control Box): HDMI IN | HDMI TYPE A Connector x 3 |
| CONNECTION TERMINAL(Control Box): HDMI OUT | HDMI TYPE A Connector x 1 |
| CONNECTION TERMINAL(Control Box): SERIAL IN | D-sub 9-pin x 1, RS-232C Compatible |
| CONNECTION TERMINAL(Control Box): IR IN | Stereo mini jack (dia. 3.5 mm) x 1 |
| CONNECTION TERMINAL(Control Box): AUDIO 1 IN (L / R) | Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER) |
| CONNECTION TERMINAL(Control Box): AUDIO OUT (L / R) | Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER) |
| CONNECTION TERMINAL(Control Box): DIGITAL AUDIO OUT | SPDIF x 1 |
| CONNECTION TERMINAL(Control Box): LAN | RJ45 x 1 for network connection, PJLinkTMsupported |
| CONNECTION TERMINAL(Control Box): USB TYPE A | USB Connector Type A x 1 (DC 5V/2A, USB 3.0 is supported) |
| CONNECTION TERMINAL(Control Box): SLOT | x 2Intel SDM specificationSLOT1: SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A, 12 V / Max 5.5 ASLOT2: SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A, 12 V / Max 2.75 A |
| CONNECTION TERMINAL(Display Panel): AC Input | IEC C14 x 4 |
| CONNECTION TERMINAL(Display Panel): VIDEO IN | RJ45 x 4 |
| CONNECTION TERMINAL(Power Box): AC Input | Neutrik (NAC3MP-HC) Rating 30 A x 1 |
| CONNECTION TERMINAL(Power Box): AC Output | IEC C13 x 6 |
| CONNECTION TERMINAL(Power Box): Control Signal | RJ45 x 1 |
| CONNECTION TERMINAL(Power Box): Sensor Input | Stereo Mini Jack (2.5 mm) x 1 |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Power Supply | AC 220 V, 240 V 50 Hz/60 Hz 10.0 A |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Power Consumption | 1503 W (Shipping Condition) / 1980 W (Rated Condition) |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): On Mode Average Power Consumption | 708 W (Shipping Condition) |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Power Off Condition | Approx.0.5 W |
| ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box): Stand-by Condition | Approx.0.7 W |
| ELECTRICAL: Energy efficiency class for Europe | G class |
| MECHANICAL: Dimension(W x H x D)[Display Panel] | 2442 x 1378 x 30.5 mm (96.14" x 54.25" x 1.20") (Thickest: 65.5 mm / 2.58") |
| MECHANICAL: Weight[Display Panel] | Approx. 90.0 kg / 198.5 lbs. |
| MECHANICAL: Dimension(W x H x D)[Control box] | 441 x 62 x 696 mm (17.37" x 2.44" x 27.41") |
Why Buy the Panasonic TL-110AD12AW from Trianze Tech?
- Genuine Panasonic direct view LED display supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the TL-110AD12AW
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic TL-110AD12AW: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic TL-110AD12AW, Panasonic lists the following. Screen size: 110-inch (2790.3 mm/109.86"); Resolution: 1920 x 1080; Brightness: 700 cd/m2; Contrast ratio: 4000:1; Viewing angle: 170 degrees/160 degrees.
For the Panasonic TL-110AD12AW, Panasonic lists the following. AC Input: IEC C14 x 1; HDMI IN: HDMI TYPE A Connector x 3; HDMI OUT: HDMI TYPE A Connector x 1; SERIAL IN: D-sub 9-pin x 1, RS-232C Compatible; IR IN: Stereo mini jack (dia. 3.5 mm) x 1; AUDIO 1 IN (L / R): Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER); AUDIO OUT (L / R): Stereo mini jack (dia. 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER).
For the Panasonic TL-110AD12AW, Panasonic lists the following. Operating time: 24h / day; Orientation: Landscape; Tilting angle: 0 degrees.
For the Panasonic TL-110AD12AW, Panasonic lists the following. Weight: Approx. 90.0 kg / 198.5 lbs..
For the Panasonic TL-110AD12AW, Panasonic lists the following. Power supply: AC 220 V, 240 V 50 Hz/60 Hz 10.0 A; Power consumption: 1503 W (Shipping Condition) / 1980 W (Rated Condition).
Trianze Tech stocks the Panasonic TL-110AD12AW in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
More in LED All-in-One Displays
View all 21 products →-

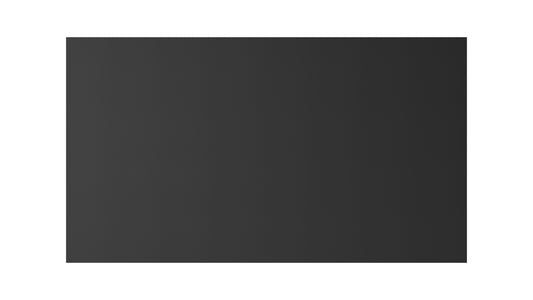

Panasonic TL-55LV12AW: 55 Inch 4K UHD Direct View LED Display, 1.26 mm Pixel Pitch
-

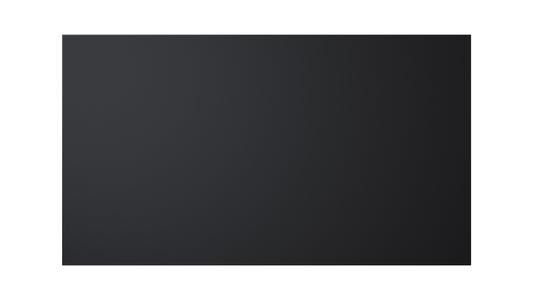

Panasonic TL-137AD15AW: 137 Inch Full HD Direct View LED Display, 1.58 mm Pixel Pitch
-

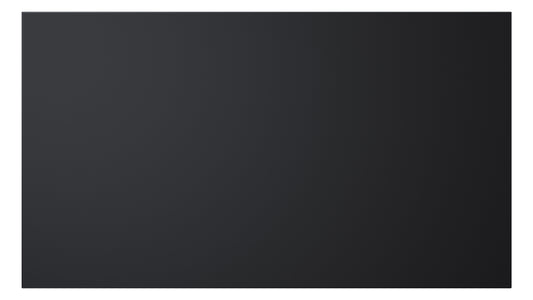

Panasonic TL-165AD19AW: 165 Inch Full HD Direct View LED Display, 1.90 mm Pixel Pitch
-

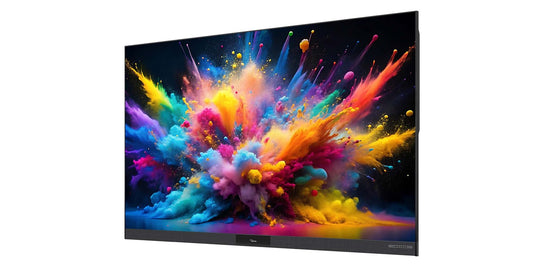

Optoma FHDC135: 135 Inch 1080p Full HD All-in-One COB LED Display
