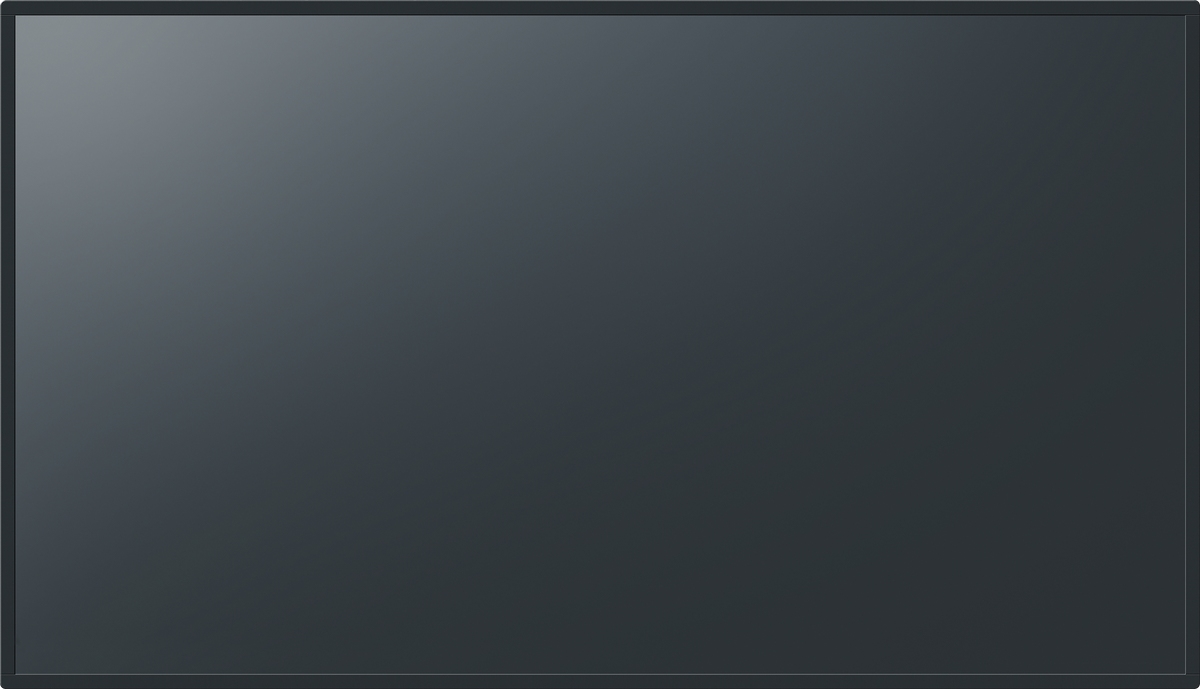

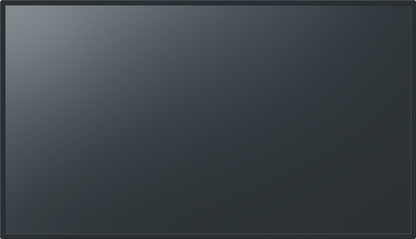

Panasonic TH-55SQ3: 55 Inch 4K UHD Professional Display, 500 cd/m2
Model
:
TH-55SQ3
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic TH-55SQ3 at a Glance
- Brand
- Panasonic
- Model
- TH-55SQ3
- Category
- Digital Signage Flat Panels
- Solution
- Digital Signage
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic TH-55SQ3 Overview
The Panasonic TH-55SQ3 is a 55 inch 4K UHD professional display rated at 500 cd/m2 with 24h /day rated operation. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Screen: 55-inch class (54.63-inch / 1387.8 mm)
- Resolution: 3840 x 2160
- Brightness: 500 cd/m2
- Contrast ratio 5000:1
- Viewing angle 178 degrees/178 degrees (CR>10)
- Operating time: 24h /day
Technical Specifications:
| Spec | Value |
|---|---|
| Model | TH-55SQ3 |
| Type | Professional display |
| DISPLAY PANEL: Screen Size | 55-inch class (54.63-inch / 1387.8 mm) |
| DISPLAY PANEL: Brightness (typ.) | 500 cd/m2 |
| DISPLAY PANEL: Aspect ratio | 16:9 |
| DISPLAY PANEL: Effective Display Area (W x H) | 1209.6 x 680.4 mm (47.62" x 26.78") |
| DISPLAY PANEL: Resolution | 3840 x 2160 |
| DISPLAY PANEL: Contrast Ratio (typ.) | 5000:1 |
| DISPLAY PANEL: Response Time (typ.) | 6.5 ms (G to G) |
| DISPLAY PANEL: Viewing Angle(H / V) | 178 degrees/178 degrees (CR>10) |
| DISPLAY PANEL: Panel Surface Treatment | Anti-glare type |
| DISPLAY PANEL: Haze | 25% |
| CONNECTION TERMINAL: HDMI IN | HDMI Type A Connector x 3 (HDCP 2.2 supported) |
| CONNECTION TERMINAL: PC IN | Mini D-sub 15-pin x 1 (DDC2B) |
| CONNECTION TERMINAL: SERIAL IN | External control terminal D-sub 9-pin x 1 (Male), RS232C Compatible |
| CONNECTION TERMINAL: AUDIO 1 IN (L / R) | Stereo Mini Jack (dia. 3.5 mm) x 1 |
| CONNECTION TERMINAL: AUDIO OUT (L / R) | RCA Pin Jack x 2 |
| CONNECTION TERMINAL: LAN | RJ45 x 1 compatible with PJLink, 10BASE-T/100BASE-TX |
| CONNECTION TERMINAL: USB TYPE A | USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported) |
| AUDIO: Built in Speaker | 20 W [10 W+10 W] |
| ELECTRICAL: Power Supply | AC 110-240 V 50/60 Hz1.9-1.0 A |
| ELECTRICAL: Power Consumption | 142 W(Shipping Condition) |
| ELECTRICAL: On Mode Average Power Consumption | 138 W |
| ELECTRICAL: Power Off Condition | Approx. 0.3 W |
| ELECTRICAL: Stand-by Condition | Approx. 0.5 W |
| MECHANICAL: Dimension(W) | 1242 mm (48.89") |
| MECHANICAL: Dimension(H) | 713 mm (28.06") |
| MECHANICAL: Dimension(D) | 66 mm (2.60") |
| MECHANICAL: Weight | Approx. 15.6 kg (34.4 lbs.) |
| MECHANICAL: Bezel Width(T) | 13.9 mm (0.55") |
| MECHANICAL: Bezel Width(B) | 13.9 mm (0.55") |
| MECHANICAL: Bezel Width(L) | 13.9 mm (0.55") |
| MECHANICAL: Bezel Width(R) | 13.9 mm (0.55") |
| MECHANICAL: Pitch for Wall-Hanging / Screw / Screw hole depth | VESA Compliant 400 x 400 mm (15.8" x 15.8") / M6 / 18 mm (0.71") |
| INSTALLATION: Orientation | Landscape / Portrait |
| INSTALLATION: Tilting Angle | 0 to 20 degrees forward / backward with landscape / portrait setting |
Why Buy the Panasonic TH-55SQ3 from Trianze Tech?
- Genuine Panasonic professional display supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the TH-55SQ3
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic TH-55SQ3: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic TH-55SQ3, Panasonic lists the following. Screen size: 55-inch class (54.63-inch / 1387.8 mm); Resolution: 3840 x 2160; Brightness: 500 cd/m2; Contrast ratio: 5000:1; Viewing angle: 178 degrees/178 degrees (CR>10).
For the Panasonic TH-55SQ3, Panasonic lists the following. HDMI IN: HDMI Type A Connector x 3 (HDCP 2.2 supported); PC IN: Mini D-sub 15-pin x 1 (DDC2B); SERIAL IN: External control terminal D-sub 9-pin x 1 (Male), RS232C Compatible; AUDIO 1 IN (L / R): Stereo Mini Jack (dia. 3.5 mm) x 1; AUDIO OUT (L / R): RCA Pin Jack x 2; LAN: RJ45 x 1 compatible with PJLink, 10BASE-T/100BASE-TX; USB TYPE A: USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported).
For the Panasonic TH-55SQ3, Panasonic lists the following. Operating time: 24h /day; Orientation: Landscape / Portrait; Tilting angle: 0 to 20 degrees forward / backward with landscape / portrait setting; Panel surface: Anti-glare type.
For the Panasonic TH-55SQ3, Panasonic lists the following. Weight: Approx. 15.6 kg (34.4 lbs.); Wall-hanging pitch: VESA Compliant 400 x 400 mm (15.8" x 15.8") / M6 / 18 mm (0.71").
For the Panasonic TH-55SQ3, Panasonic lists the following. Power supply: AC 110-240 V 50/60 Hz1.9-1.0 A; Power consumption: 142 W(Shipping Condition); Built-in speaker: 20 W [10 W+10 W].
Trianze Tech stocks the Panasonic TH-55SQ3 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
