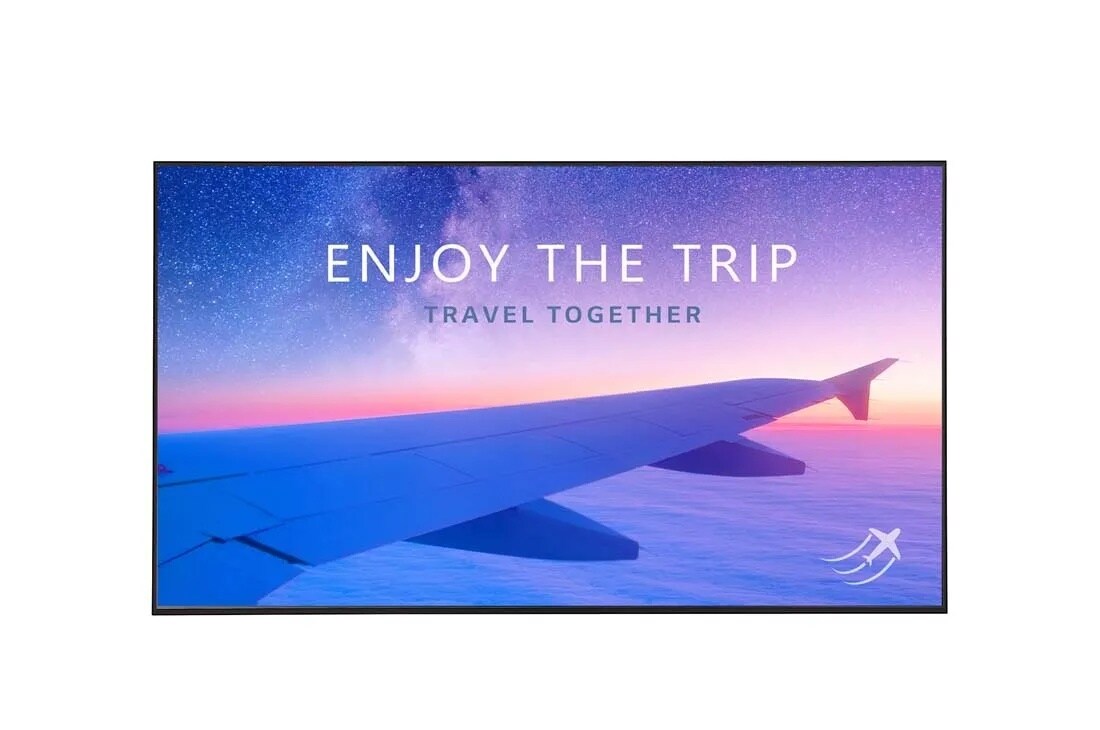

  • LG 86UH7N-E UHD digital signage display front view

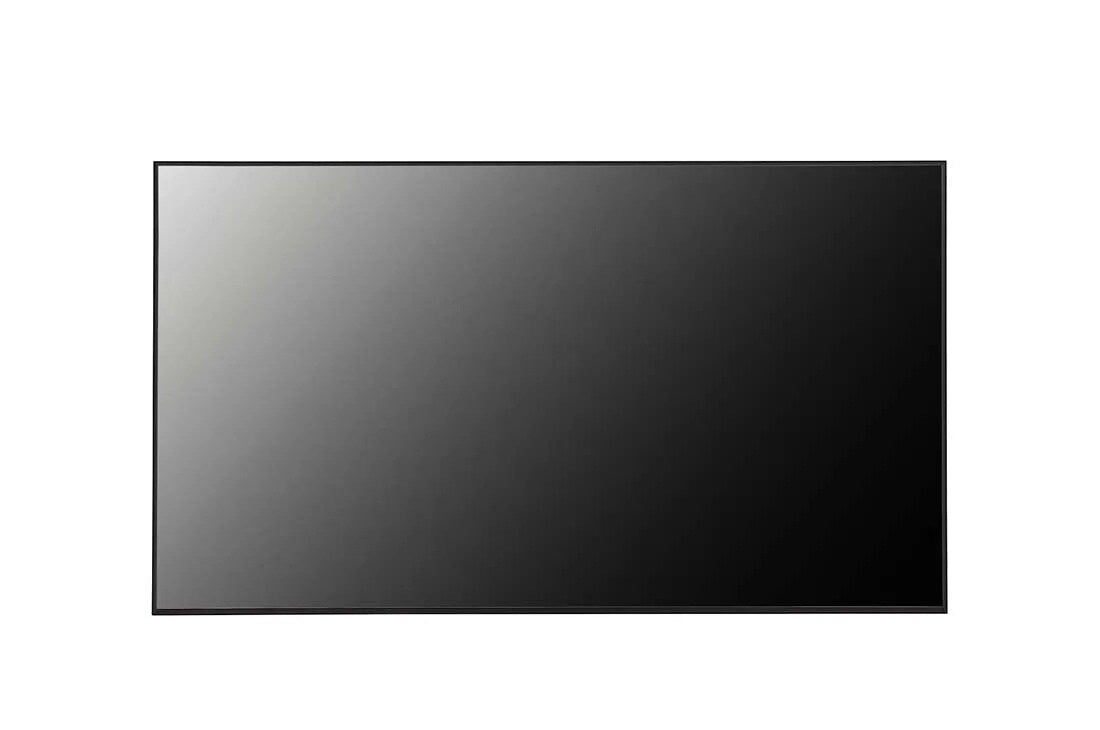

  • LG 86UH7N-E display front view without content

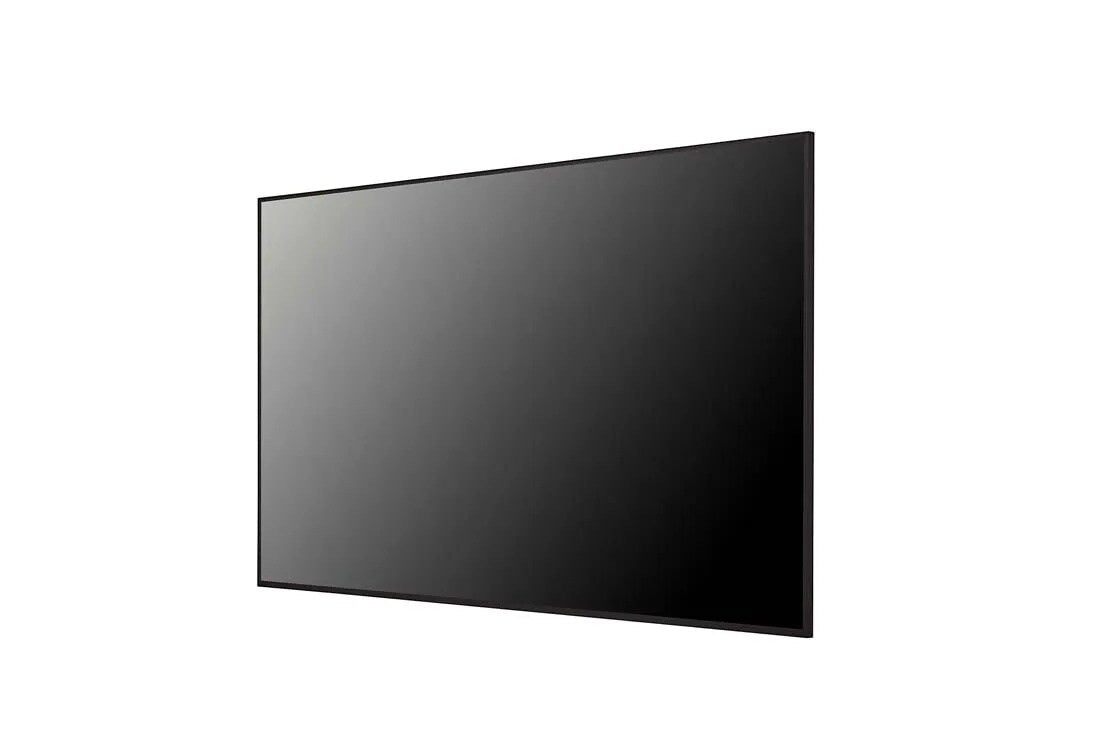

  • LG 86UH7N-E display front right angle view

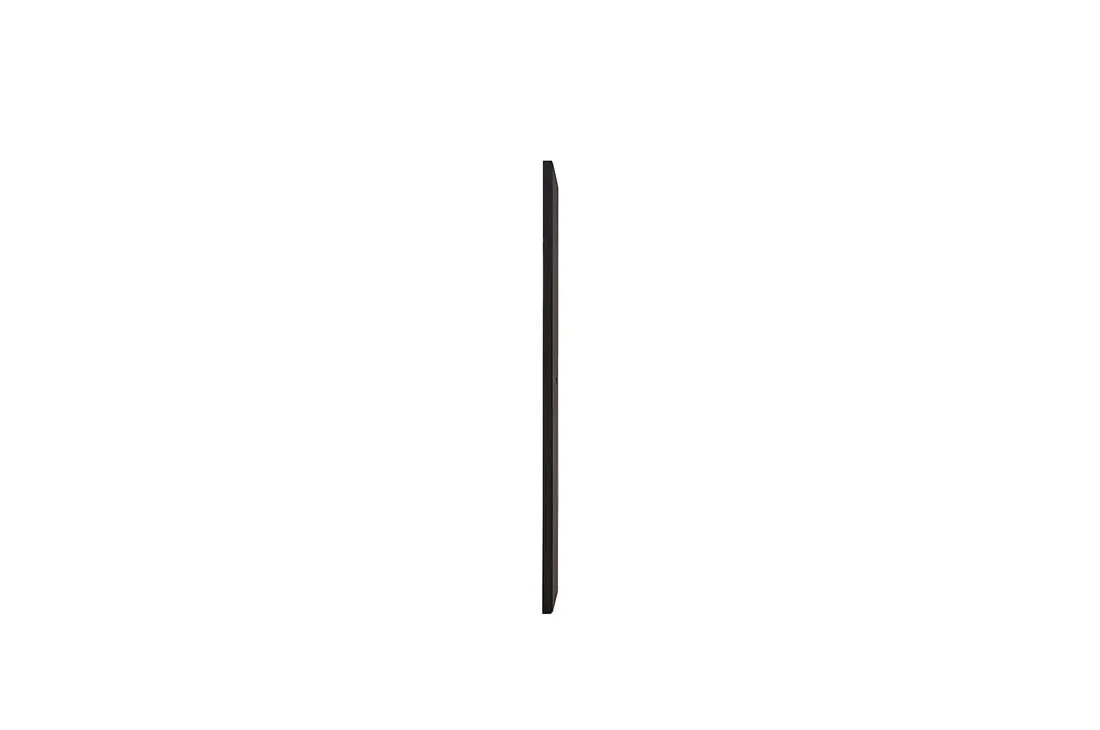

  • LG 86UH7N-E display right side profile view
1 4

LG 86UH7N-E 86 Inch UHD Digital Signage Display

  • 120Hz Refresh Rate: Delivers exceptionally smooth content playback for a flagship 86 inch display.
  • Enhanced Kernel Protection Security: ISO/IEC 15408 EAL2 certified to protect data from external access.
  • Fire Resistant Outer Cover: Meets fire flame spread resistance standards for public space installation.
  • webOS 6.0 with SuperSign CMS: Streamlined content management for retail and corporate signage.
Brand :LG
Model : 86UH7N-E

Part of Our Solution Strategic Digital Signage & Managed Video Walls
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Auditoriums: Large panel size and 120Hz refresh suit high visibility presentation spaces.
  • Transit Hubs: Fire safety certification suits public transportation installations.
  • Premium Retail Installations: Creates a striking flagship storefront display.
  • Corporate Lobbies: Delivers an immersive large scale branding centerpiece.
LG 86UH7N-E display front view without content
LG 86UH7N-E
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

LG 86UH7N-E 86 Inch UHD Digital Signage Display

A flagship large format UHD signage display with a 120Hz panel, built for auditoriums, transit hubs, and premium retail installations across Dubai, Abu Dhabi, and the UAE.

Key Features:

  • 86 inch IPS panel with 700 cd/m2 brightness and 25 percent haze anti-glare treatment
  • 120Hz refresh rate for exceptionally smooth content playback
  • LG webOS 6.0 smart platform compatible with SuperSign CMS
  • Enhanced Kernel Protection (EKP) security, ISO/IEC 15408 Common Criteria EAL2 certified
  • Fire resistant outer cover suited to installation in public spaces

Technical Specifications:

Technical Parameter Specification
Brand & Model LG 86UH7N-E
Panel Technology 86 inch IPS, Edge Backlight
Native Resolution 3840 x 2160 (UHD)
Brightness 700 cd/m2 Typical
Surface Treatment (Haze) 25 percent
Contrast Ratio 1100:1 Static, 1,000,000:1 Dynamic
Refresh Rate 120Hz
Color Depth 10-bit, 1.07 Billion Colors
Viewing Angle 178 x 178 Degrees
Smart Platform LG webOS 6.0
Internal Memory 16GB
Connectivity 2x HDMI, DisplayPort, USB-C, USB 2.0, RS232C, RJ45, Built in Wi-Fi and Bluetooth
Audio Built in Speakers, 2x 10W
Fire Safety Case Top Class A1, Back Cover Class A2 (EN13501-1)
Operation Duty Cycle 24 Hours / 7 Days
Lifetime Up to 50,000 Hours
Security Enhanced Kernel Protection (EKP), ISO/IEC 15408 EAL2 Certified
Control & Integration Crestron Certified, Cisco Certified, SuperSign CMS
VESA Mount Standard 600mm x 400mm
Tile Mode Up to 15 x 15
Warranty 3 Year Limited

Why Buy the LG 86UH7N-E from Trianze Tech?

  • Genuine LG stock with full manufacturer warranty
  • Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
  • Dedicated AV integration support for retail and corporate signage
  • Competitive pricing with flexible corporate and government quotes

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Package Contents

  • 1x LG 86UH7N-E signage display
  • Remote controller, power cord, quick start guide, phone to RS-232C gender adapter, USB-C cable, cable holders

Warranty

  • 3 year limited warranty, honoured in the UAE through Trianze Tech

Sustainability

  • EPEAT registered and Carbon Trust verified, with recycled resin used in the back cover

Expandability

  • VESA 600 x 400 mount supports a wide range of large format commercial mounting brackets
  • Tile mode supports scaling up to a 15x15 matrix for future video wall configurations

Distribution

  • Stocked and distributed in the UAE by Trianze Tech, serving auditoriums, transit hubs, and premium retail clients across Dubai, Abu Dhabi, and the GCC

Recommended Wall Mount (Fixed)

This display uses a 600 x 400mm VESA pattern. The VSYS VS01A-46F Fixed Wall Mount supports displays up to 86 inches and 80kg with matching VESA range. Available as an optional add-on.

Recommended Wall Mount (Swivel / Full-Motion)

For adjustable viewing angles, the VSYS VS02D-696 Full-Motion Mount supports displays up to 120 inches and 120kg, with full tilt and swivel range. Available as an optional add-on.

Recommended Floor Stand

For a mobile installation, the VSYS VFS44-610TW Mobile Cart supports 60-100 inch displays up to 100kg. Available as an optional add-on.

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It steps up to 700 nits of brightness from the 500 nit typical of earlier generations, along with webOS 6.0, Enhanced Kernel Protection security, and hidden power inlets for closer wall mounting.
It includes LG Enhanced Kernel Protection (EKP) technology and is ISO/IEC 15408 Common Criteria EAL2 certified.
With hidden power inlets and a slim bracket, it can be mounted as close as approximately 13mm from the wall.
Yes, it is Crestron Certified and Cisco Certified compatible for professional AV integration.
It is rated for up to 50,000 hours of operation, backed by a 3 year limited warranty.
