Key Features

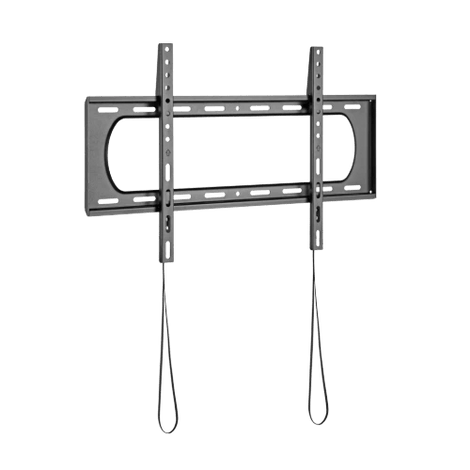

The VSYS VS01A-46F is a foundational breakthrough in high-density, flush-mount commercial AV integration. Designed specifically to solve the architectural challenges of mounting ultra-heavy, large-format screens in modern, space-conscious environments, this fixed wall mount delivers an astonishingly slim 30mm profile without sacrificing structural integrity. Unlike standard brackets, the VS01A-46F utilizes a massive open-architecture frame that natively frames recessed power outlets and data ports, offering integrators completely unrestricted access to hidden cable pathways. Combined with its proprietary automatic spring-lock engagement system, the mount ensures that even the heaviest 86-inch interactive panels or 24/7 high-brightness retail displays can be securely locked in place or serviced in seconds, making it the definitive hardware choice for pristine corporate fit-outs across the UAE.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: The core VS01A-46F model is fully stocked and warehoused at our primary Dubai facility, trackable via its regional Middle East MPN (VS-01A46F-ME) and international stock variants (VS-01A46F-INT), guaranteeing that enterprise procurement teams receive immediate localized availability without volatile cross-border shipping delays.

• Supported Panel Types & Resolution: Structurally reinforced to accommodate the heaviest commercial panel technologies, effortlessly carrying high-density 4K UHD, 8K, OLED, and direct-view LED commercial displays ranging from 37 inches up to a massive 86 inches.

• Backlight, Nits & Haze Coating Compatibility: Built with the immense 80kg structural rigidity required to safely support ultra-heavy, high-brightness commercial monitors (ranging from standard 500-nits to extreme 1000-nit D-LED backlight arrays), ensuring zero mechanical sag behind high-end anti-glare display models.

• Contrast Ratio & Color Processing Depth Preservation: The exceptionally stiff 1.8mm cold-rolled steel chassis entirely eliminates micro-flexing and mechanical chassis stress once mounted, perfectly preserving the screen's native contrast ratios, true black levels, and 10-bit color processing depths across the display's entire lifespan.

• I/O Ports, Computing/OS Chips & Certifications: The strategic open-center plate guarantees completely unhindered physical access to recessed wall cavities, rear-facing HDMI/LAN ports, integrated System-on-Chip (SoC) boards, and OPS slot PCs, all while passing rigorous industrial strength testing certified to hold four times its approved weight rating.

• Universal VESA Standards: Highly adaptable and fully compliant with all major commercial mounting hole patterns, spanning from an entry-level 50x50mm up to a maximum spread allowance of 654x402mm (supporting native VESA 600x400mm configurations).

Enterprise Software & UC Platform Ecosystem Compatibility

• Microsoft Teams Rooms & Zoom Rooms: The heavy-duty weight limit and completely rigid flush-mount design provide the perfect, vibration-free structural backbone for large, camera-integrated interactive displays running Microsoft Teams Rooms and Zoom Rooms natively.

• Cisco Webex & Crestron Connected: Provides the necessary wall plate architecture to flawlessly route the heavy-duty data cabling, external IP control nodes, and sensor accessories demanded by premium Cisco Webex boards and Crestron Connected AV ecosystems.

• Extron & AMX Routing Integration: The 30mm profile depth strategically allows for localized in-wall recess boxes, providing a clean wireway for concealing Extron or AMX signal receivers, baluns, and micro-controllers directly behind the fixed screen to keep boardroom aesthetics spotless.

Regional Regulatory & Electrical Compliance

• MoIAT Safety Standards: The hardware structure and cold-rolled steel manufacturing processes strictly comply with the United Arab Emirates Ministry of Industry and Advanced Technology (MoIAT) guidelines for heavy commercial infrastructure safety in public spaces.

• Electrical Routing Safety: The expanded open wall plate is specifically sized to safely frame recessed, native UK-standard 3-pin Type G electrical power cord sockets running 220V-240V, eliminating severe power cord bend-radius violations behind flush-mounted displays.

• International Certifications: Forged under strict industrial quality controls bearing comprehensive CB, CE, CA 65, UL, and RoHS compliance markers, ensuring all structural materials and fine-texture powder coatings are free from hazardous substances and entirely safe for corporate environments.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Dimensions: The raw hardware measures an ultra-slim 30 millimeters in depth, exactly 685 millimeters in width, and 425 millimeters in height when fully assembled and anchored against the drywall or masonry.

• Gross Shipping Box Dimensions: The enterprise packaging is highly condensed and optimized for rapid regional logistics, utilizing a minimal footprint measuring 700 millimeters in length, 440 millimeters in width, and a sleek 45 millimeters in depth to drastically reduce volume weight metrics for local courier fleets.

• Net Hardware Weight: The premium 1.8-millimeter cold-rolled steel construction yields a highly durable, yet manageable net product weight of exactly 2.8 kilograms.

• Gross Freight Shipping Weights: Fully packaged alongside all requisite masonry anchors, drywall stud hardware, and VESA mounting kits, the gross shipping weight totals exactly 3.4 kilograms, flawlessly calibrated for high-volume bulk palletization across UAE supply chains.
