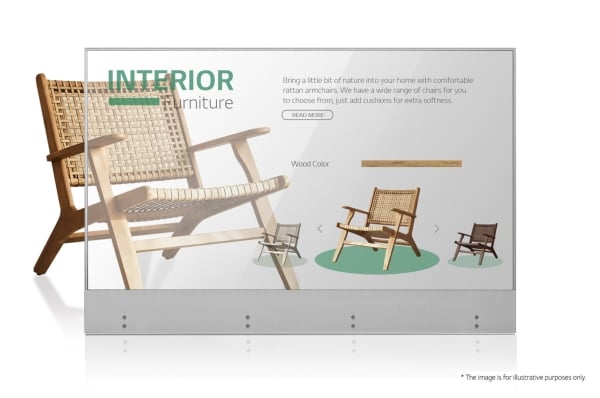

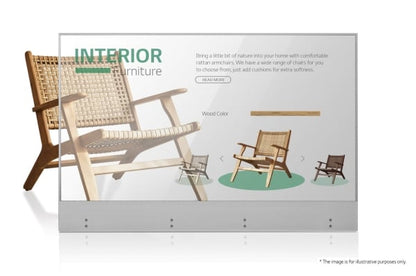

  • LG 55EW5TK-A 55 inch transparent OLED touch signage display front view UAE Dubai

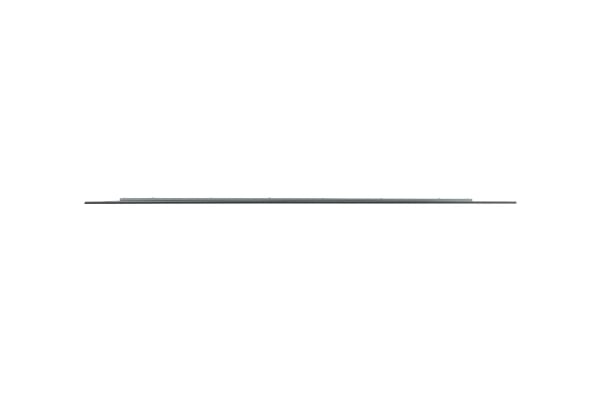

  • LG 55EW5TK-A transparent OLED display side view
  • LG 55EW5TK-A touch signage front angle view
  • LG 55EW5TK-A display showing transparency effect
  • LG 55EW5TK-A signage box processing unit
  • LG 55EW5TK-A mounted retail installation example
  • LG 55EW5TK-A rear panel connectivity ports
  • LG 55EW5TK-A close up of P-Cap touch glass
  • LG 55EW5TK-A museum exhibition display setup
  • LG 55EW5TK-A full transparent OLED unit view
  • LG 55EW5TK-A transparent display alternate angle
1 11

LG 55EW5TK-A 55 Inch Transparent OLED Touch Signage Display with 33% Transparency, 400 Nit Brightness, P-Cap Touch, webOS 4.0 and 18/7 Operation for Retail, Museums and Futuristic Presentations (55EW5TK-A)

  • 55-Inch Transparent OLED Panel with 33% transparency, letting background objects remain visible through the active display
  • Self-Lighting OLED Pixels with no backlight layer, achieving 400 nit brightness and a 150,000:1 contrast ratio
  • P-Cap Multi-Touch with up to 10 simultaneous touch points, 120ms response time and anti-fingerprint tempered glass
  • Ultra-Slim 7.4mm Panel Depth in a semi-assembled design for flexible architectural and retail installation
  • Full HD 1920 x 1080 at 120Hz with 1ms response time and BT709 120% color gamut coverage
  • webOS 4.0 Smart Platform with 16GB internal memory, embedded CMS, and gapless content playback
  • Crestron Connected Certified with SNMP, Wake on LAN, HDMI-CEC, and LG SuperSignCMS compatibility
  • 18/7 Commercial Operation Rating for continuous use in high-traffic public environments
  • HDMI, DisplayPort, USB, RS-232C, and LAN connectivity with DisplayPort loop-out for daisy chain configurations
  • 3-Year Manufacturer Warranty, available in UAE from Trianze Tech with full installation and integration support
LG
Brand :LG
Model : 55EW5TK-A

Part of Our Solution Interactive Education & Next-Gen Training Centers
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

APPLICATIONS AND USE CASES

  • Luxury Retail Displays for product showcasing with digital content layered over physical merchandise
  • Museum and Exhibition Halls for interactive artefact information overlaid on physical objects
  • Hotel Lobbies and Reception Areas for brand storytelling and guest information on architectural glass
  • Corporate Showrooms and Experience Centres for immersive product and technology demonstrations
  • Airport and Transit Retail for premium passenger engagement in duty-free and concession spaces
LG 55EW5TK-A transparent OLED display side view
LG 55EW5TK-A
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

LG 55EW5TK-A 55 Inch Transparent OLED Touch Signage Display

A transparent OLED touch signage display that lets background objects remain visible through vivid on screen content, built for retail, museum, and hospitality environments across Dubai, Abu Dhabi, and the wider GCC.

Key Features:

  • 55 inch transparent OLED panel with 33 percent transparency
  • Self lighting OLED pixels with no backlight, 400 nit brightness and 150,000:1 contrast
  • P-Cap multi touch with up to 10 simultaneous points and anti fingerprint tempered glass
  • Ultra slim 7.4mm panel depth in a semi assembled design
  • webOS 4.0 platform with embedded content management system

Technical Specifications:

Technical Parameter

Specification Details

Brand and Model

LG 55EW5TK-A Transparent OLED Touch Signage

Panel Technology

OLED Self-Lighting Pixels, No Backlight

Screen Size

55 Inches

Native Resolution

1920 x 1080 Full HD

Aspect Ratio

16:9

Refresh Rate

120Hz

Brightness

150 nit APL 100% / 400 nit APL 25% without Glass

Contrast Ratio

150,000:1

Color Gamut

BT709 120%

Color Depth

1.07 Billion Colors 10-bit

Response Time

1ms G to G / 8ms MPRT

Viewing Angle H x V

178 x 178 Degrees

Transparency

33% Typical with P-Cap Touch Film

Surface Treatment

Hard Coating 2H Anti-Glare Anti-Fingerprint

Touch Technology

P-Cap Projected Capacitive Touch

Touch Points

Maximum 10 Points Multi-Touch

Touch Response Time

120ms or Less

Touch Accuracy

3.5mm

Touch Interface

USB 2.0

Touch Protection Glass

3.0T Tempered Anti-Glare Anti-Fingerprint

Touch Glass Transmission

84% Typical

OS Support for Touch

Windows 8.1 and Windows 10

Operating System

webOS 4.0

Internal Memory

16GB

Input Connectivity

HDMI HDCP 1.4, DisplayPort HDCP 1.3, RS-232C In, RJ45 LAN, IR In, USB 2.0 Type A x2

Output Connectivity

DisplayPort Out, Audio Out, Touch USB 2.0 Type B, RS-232C Out with IR Out, RJ45 LAN

Content Management

Embedded CMS with Local Content Scheduling and Group Manager

Software Compatibility

LG SuperSignCMS, SuperSignControl, SuperSignMedia Editor, LG ConnectedCare

Third Party Compatibility

Crestron Connected Certified

Smart Features

USB Plug and Play, Fail Over, Video Tag, Screen Rotation, Gapless Playback, SNMP, Auto Set ID, Wake on LAN, HDMI-CEC, Pro:Idiom, Status Mailing

Orientation Support

Portrait and Landscape

Operation Hours

18 Hours per Day 7 Days per Week Moving Content Only

Power Supply

AC 100 to 240V 50/60Hz Built-In

Power Consumption Typical

280W

Power Consumption Max

300W

Bezel Width

7.9mm Top Right Left / 144.5mm Bottom

Bezel Color

Matt Silver

Panel Dimensions W x H x D

1225.5 x 832.9 x 7.4mm Head Panel

Signage Box Dimensions W x H x D

782.8 x 238.4 x 34.7mm

Weight Head Panel

12.9 kg

Weight Signage Box

3.4 kg

Operating Temperature

0 to 40 Degrees Celsius

Operating Humidity

10% to 80%

EMC Certification

FCC Class A / CE / KC

Safety Certification

IEC 60950-1 / EN 60950-1 / UL 60950-1

Warranty

3-Year Manufacturer Warranty

Why Buy the LG 55EW5TK-A from Trianze Tech?

  • Genuine LG stock with full manufacturer warranty
  • Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
  • Dedicated AV integration support for classrooms and boardrooms
  • Competitive pricing with flexible corporate and government quotes

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Package Contents

  • 1x LG 55EW5TK-A transparent OLED touch signage display
  • Signage box processing unit, power cable, and mounting hardware

Warranty

  • Manufacturer warranty, honoured in the UAE through Trianze Tech

Sustainability

  • Self-lighting OLED pixels eliminate the backlight layer, reducing power draw compared to conventional LCD signage of the same size

Expandability

  • Semi-assembled design allows the display panel and signage box to be installed separately for custom architectural integration
  • LG SuperSignCMS and ConnectedCare compatibility supports centralized management across multi-site deployments

Distribution

  • Stocked and distributed in the UAE by Trianze Tech, serving retail, museum, hospitality, and corporate clients across Dubai, Abu Dhabi, and the GCC

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The best place to buy the LG 55EW5TK-A in the UAE is through Trianze Tech, the region's leading commercial AV integration and enterprise display distribution specialist. Trianze Tech supplies genuine manufacturer-warranted LG commercial display hardware with fast local delivery across Dubai, Abu Dhabi, Sharjah, and the wider GCC. The 55EW5TK-A is a complex semi-assembled display system that requires professional installation planning, and Trianze Tech provides complete end-to-end project support from site survey and architectural integration design through commissioning, content management setup, and long-term technical support. Request a quote at trianzetech.com or contact the team on WhatsApp at +971 58 161 3661.
The transparency is a direct result of OLED panel technology. LCD displays require a physical backlight unit and liquid crystal layer to produce images, both of which are completely opaque. OLED pixels emit their own light individually with no backlight required, so the panel can be constructed without any opaque layer behind it. When OLED pixels are switched off, light passes directly through the display from behind. The 55EW5TK-A achieves 33% transparency even with the P-Cap touch sensor film installed, which is more than three times what transparent LCD technology can achieve, and produces a significantly more vivid, high-contrast overlay image on the transparent background.
Content with dark or black backgrounds works best because OLED pixels that are fully switched off become completely transparent, allowing the background to show through clearly. Graphics, text, animations, and video elements with black backgrounds will appear to float in mid-air in front of whatever is behind the screen. Bright white full-screen content should be used sparingly as it reduces the visible transparency of the panel. LG rates the display for moving content operation at 18 hours per day, so static images should be avoided for extended periods to protect the OLED panel from image retention, which is standard practice for all OLED commercial displays.
Yes. The 55EW5TK-A officially supports both portrait and landscape installation orientations and includes screen rotation functionality in the webOS 4.0 software platform, allowing the displayed content to be rotated to match the physical installation orientation. The semi-assembled design separating the main panel from the signage box gives installers additional flexibility in how the processing unit is positioned relative to the display head. Installation accessories are not supplied by LG and must be sourced separately, which is one reason why working with an experienced integration partner like Trianze Tech is strongly recommended for this product.
The difference is substantial across every performance metric. Transparent LCD displays typically achieve only 8 to 10% transparency versus 33% for the OLED model, producing a noticeably milky and washed-out see-through effect. LCD displays also require a backlight that competes with ambient light, limiting brightness and contrast in the transparent zones. The 55EW5TK-A delivers 150,000:1 contrast with true pixel-level black by simply switching pixels off, producing sharp, vivid overlay graphics with no visible haze in the transparent areas. The 1ms response time and 120Hz refresh rate keep animated and video content crisp in ways that transparent LCD technology cannot match. For premium retail, museum, and corporate showroom environments in the UAE where first impressions directly influence purchasing decisions, the visual quality difference between the two technologies is immediately obvious to any viewer.
