d&b audiotechnik Z5794.000: XSL12 Compression Mode Transport Cart Package with 4x XSL12 Line Array Loudspeakers
Model
:
Z5794.000 XSL12 Compression Cart Package
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Z5794.000 XSL12 Compression Cart Package

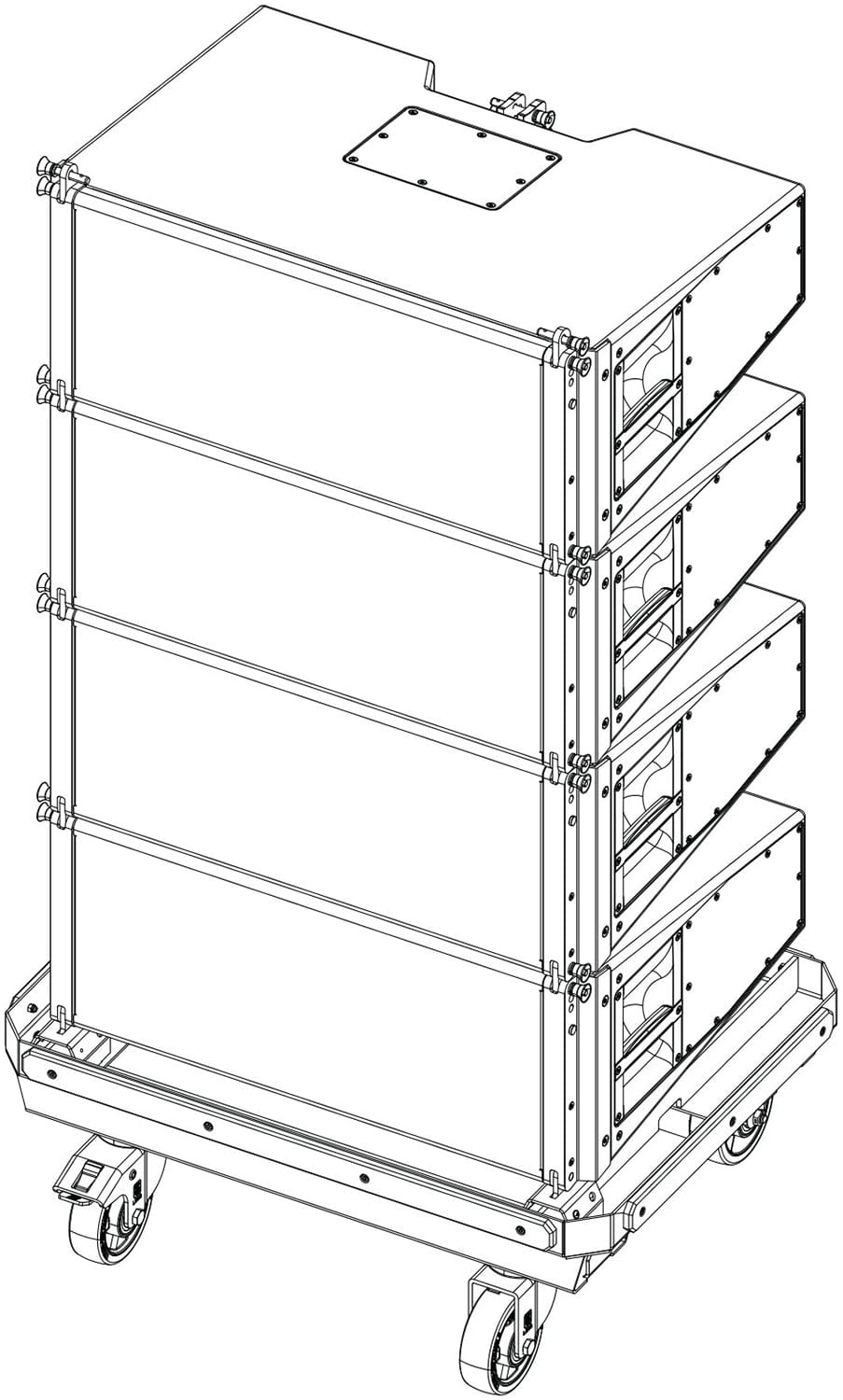

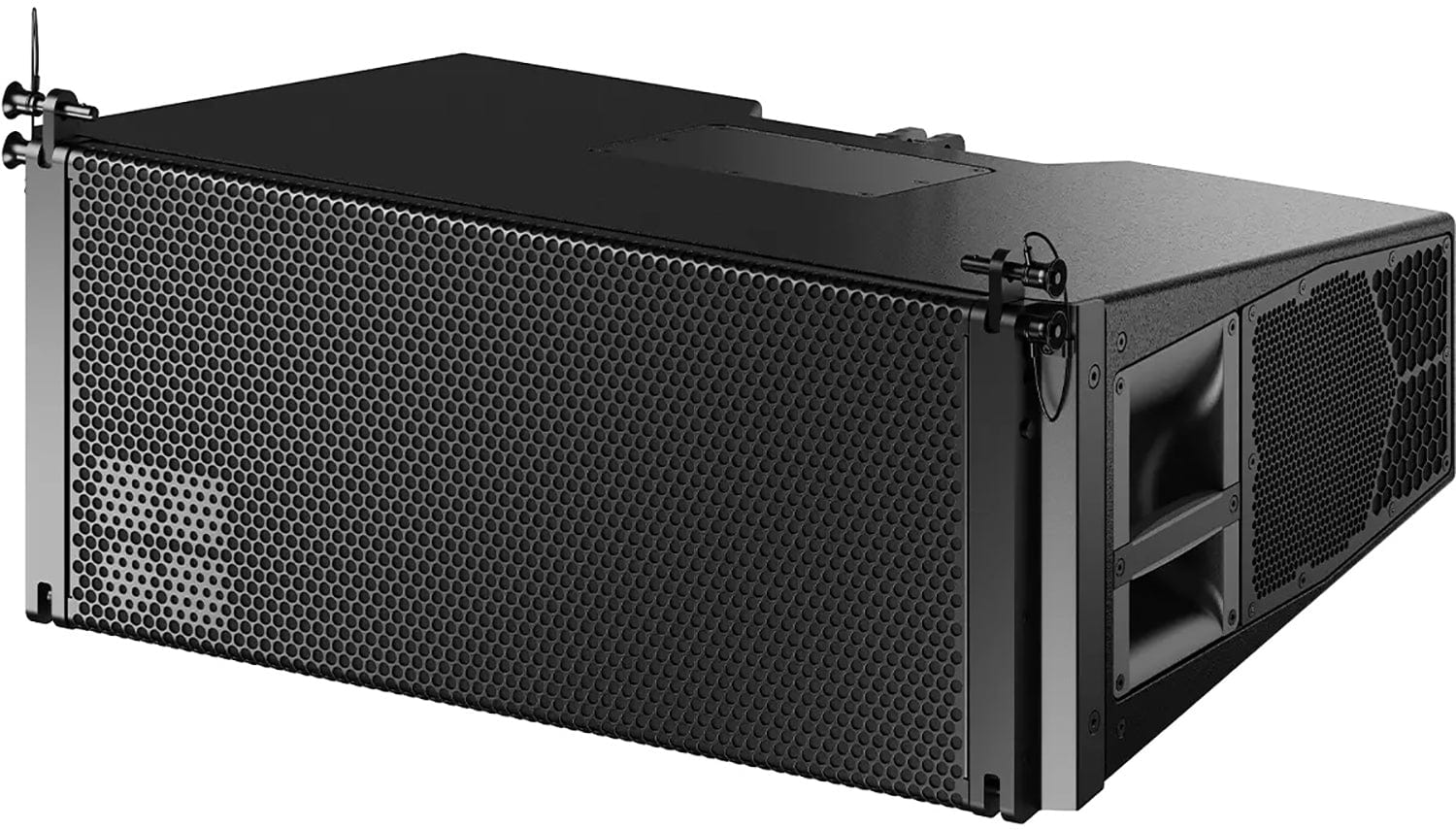

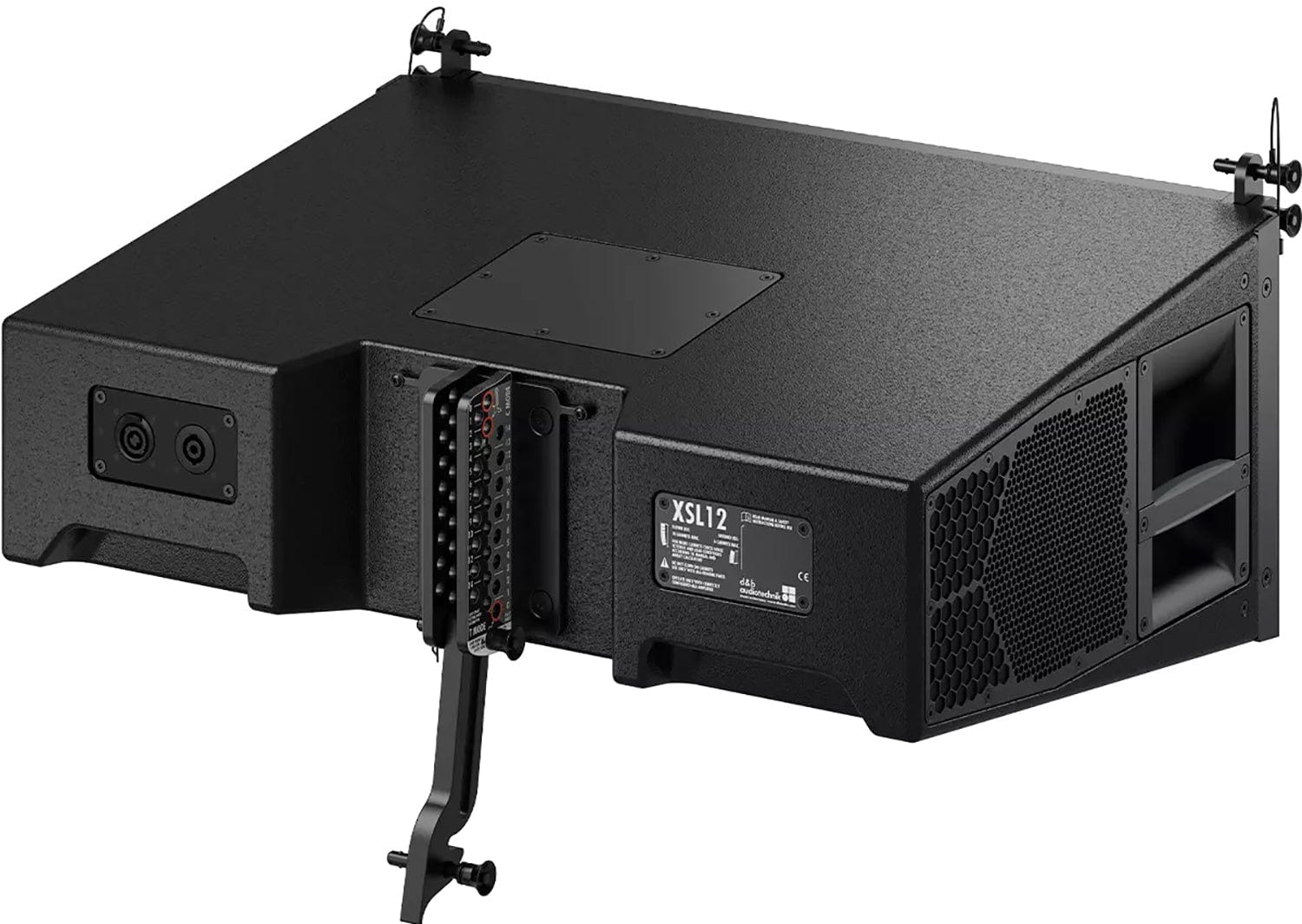

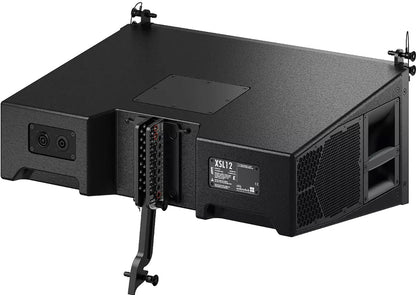

The d&b audiotechnik Z5794.000 XSL12 Compression Cart Package combines a transport cart for compression mode with four XSL12 line array loudspeakers (Z0772.000). The XSL12 is a mobile line array module for small to medium scale sound reinforcement and can also serve as fill or delay for GSL and KSL systems. It produces a 120 degree horizontal dispersion with seamless directivity from 60 Hz to above 18 kHz. Trianze Tech supplies the Z5794.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Transport cart plus 4x XSL12 line array loudspeakers
- 140 dB max SPL with D40, D80 or 40D
- 60 Hz to 18 kHz (minus 5 dB, standard)
- 120 degree horizontal dispersion
- Splay angles 0 to 14 degrees in 1 degree steps
- Driven by D40 or D80 amplifiers
Technical Specifications:
| Spec | Value |
|---|---|
| Package | Cart plus 4x Z0772.000 XSL12 |
| Max SPL | 140 dB with D40/D80/40D |
| Frequency Response | 60 Hz to 18 kHz (standard), 90 Hz to 18 kHz (CUT) |
| Horizontal Dispersion | 120 degrees |
| Components | 2x 8 in front LF, 2x 6.5 in side LF, 1x 6.5 in MF, 2x 1 in exit HF compression drivers |
| Impedance | 8 ohms front LF, 8 ohms side LF/MF/HF |
| Power Handling | 400/1200 W front LF, 300/850 W side LF/MF/HF |
| Connections | 2x NLT4 F/M |
| Cabinet Size and Weight | 283 x 700 x 507 mm, 39 kg (86 lb) each |
Why Buy the d&b audiotechnik Z5794.000 XSL12 Compression Cart Package from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5794.000 XSL12 Compression Cart Package with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5794.000 package includes a compression mode transport cart and four XSL12 loudspeakers (Z0772.000) with NLT4 F/M connections.
The XSL12 reaches a maximum sound pressure of 140 dB with a D40, D80 or 40D amplifier (1 m, free field, pink noise with crest factor 4, one speaker driven).
The XSL12 covers 60 Hz to 18 kHz at minus 5 dB in standard mode, and 90 Hz to 18 kHz in CUT mode.
The XSL12 is driven by the d&b D40 or D80. One amplifier drives two cabinets with Array Processing, or four cabinets in Line or Arc mode.
Up to 24 cabinets in compression mode (22 in tension mode) can be flown from XSL Flying frames, and up to twelve from the smaller XSL Mounting frames.
Trianze Tech supplies the d&b audiotechnik Z5794.000 XSL12 Compression Cart Package in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
