d&b audiotechnik Y8: High Performance 2-Way Passive Line Array Loudspeaker, 2x 8 in, 80 Degree, 139 dB
Model
:
Y8 Line Array Loudspeaker
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Y8 High Performance 2-Way Passive Line Array Loudspeaker
The compact d&b audiotechnik Y8 is a 2-way passive line array loudspeaker for vertical columns. Two 8 in drivers in a dipole arrangement and a central 1.4 in compression driver with a wave transformer give full bandwidth from 54 Hz to 19 kHz, with 80 degree horizontal directivity controlled down to 500 Hz. Arrays of up to twenty four cabinets use splay angles from 0 to 14 degrees in 1 degree steps, alone or with Y12 and Y-SUB cabinets. Trianze Tech supplies the Y8 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2x 8 in neodymium drivers in dipole arrangement
- 1.4 in exit compression driver with wave transformer
- 80 degree horizontal dispersion controlled to 500 Hz
- Up to 139 dB max SPL with D40/D80/40D

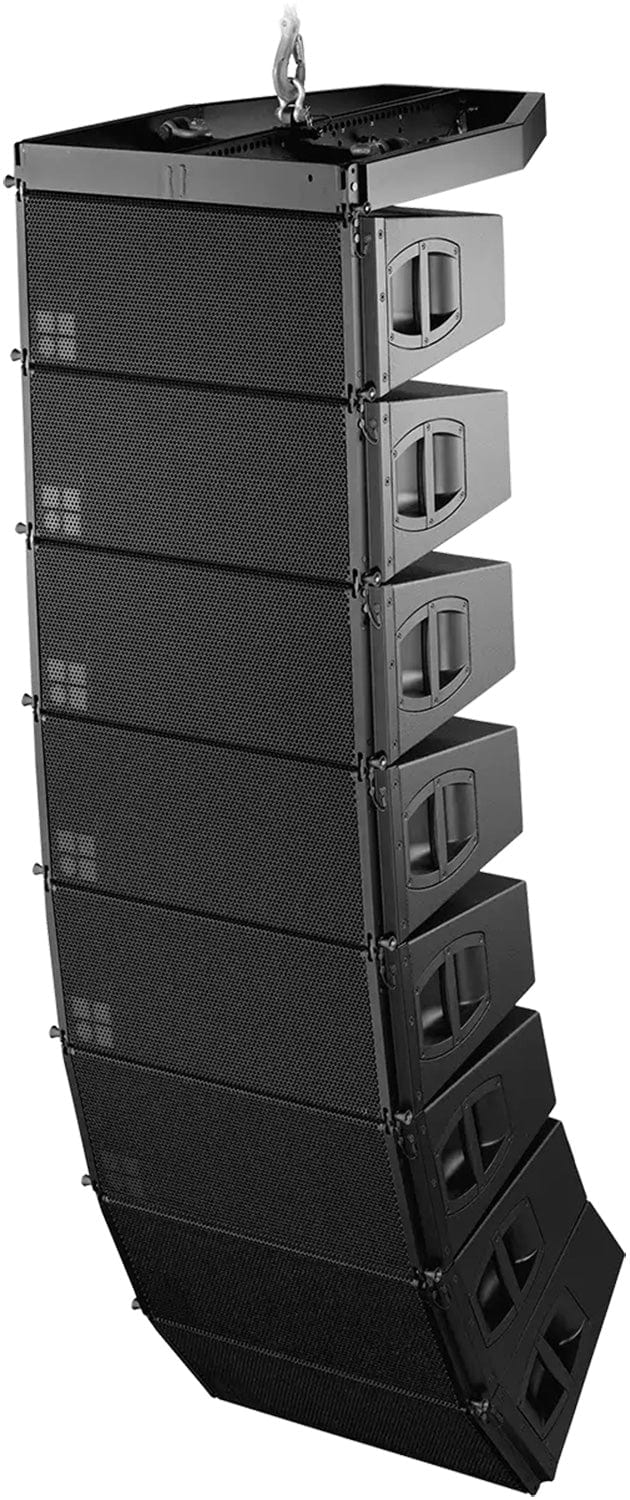

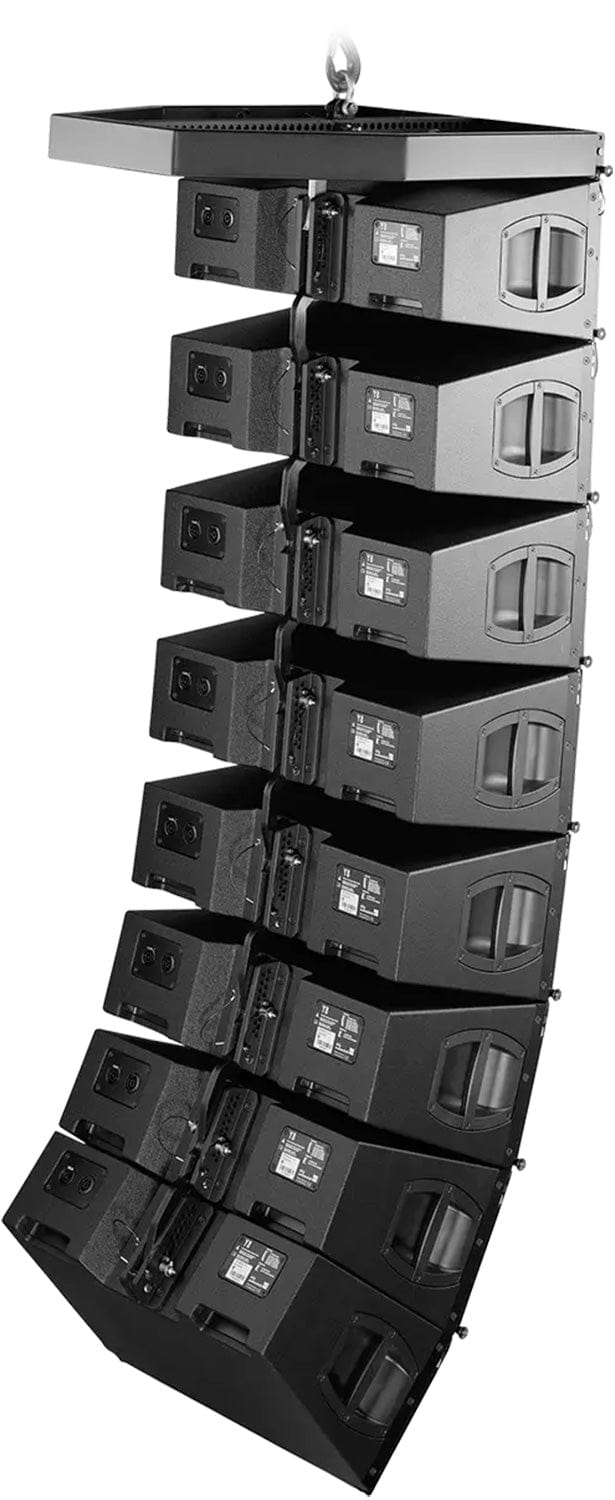

- Arrays of up to 24 cabinets, 0 to 14 degree splay
- Integrated three point rigging, PCP finish
Technical Specifications:
| Spec | Value |
|---|---|
| Configuration | 2-way passive line array |
| Frequency Response | 54 Hz to 19 kHz (standard), 100 Hz to 19 kHz (CUT) |
| Max SPL | 134 dB (10D), 137 dB (D20/30D), 139 dB (D40/D80/40D) |
| Impedance | 8 ohms |
| Power Handling | 400/1600 W |
| Dispersion | 80 degrees horizontal |
| Splay | 0 to 14 degrees, 1 degree steps |
| Components | 2x 8 in, 1.4 in compression driver, passive crossover |
| Connections | 2x NLT4 F/M (optional 2x NL4 or 2x EP5) |
| Dimensions | 257 x 630 x 375 mm |
| Weight | 20 kg (44 lb) |
Why Buy the d&b audiotechnik Y8 Line Array Loudspeaker from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y8 Line Array Loudspeaker with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Y8 covers 54 Hz to 19 kHz at minus 5 dB in standard mode, and 100 Hz to 19 kHz in CUT mode.
The Y8 reaches a maximum SPL of 134 dB with a 10D, 137 dB with a D20 or 30D, and 139 dB with a D40, D80 or 40D amplifier.
The Y8 supports vertical arrays of up to twenty four loudspeakers, with splay angles from 0 to 14 degrees in 1 degree steps, using its integrated three point rigging.
Yes. The Y8 can be used in columns of only Y8 loudspeakers or combined with Y12 and Y-SUB cabinets.
The Y8 measures 257 x 630 x 375 mm (10 x 24.8 x 14.8 in) and weighs 20 kg (44 lb). It has an 8 ohm nominal impedance, 400/1600 W power handling and two cabinets can run per amplifier channel.
Trianze Tech supplies the d&b audiotechnik Y8 Line Array Loudspeaker in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
