d&b audiotechnik Z5793.000: XSL8 Compression Mode Transport Cart Package with 4 x XSL8 Line Array Loudspeakers
Model
:
Z5793.000 XSL8 Cart Package
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Z5793.000 XSL8 Compression Mode Transport Cart Package

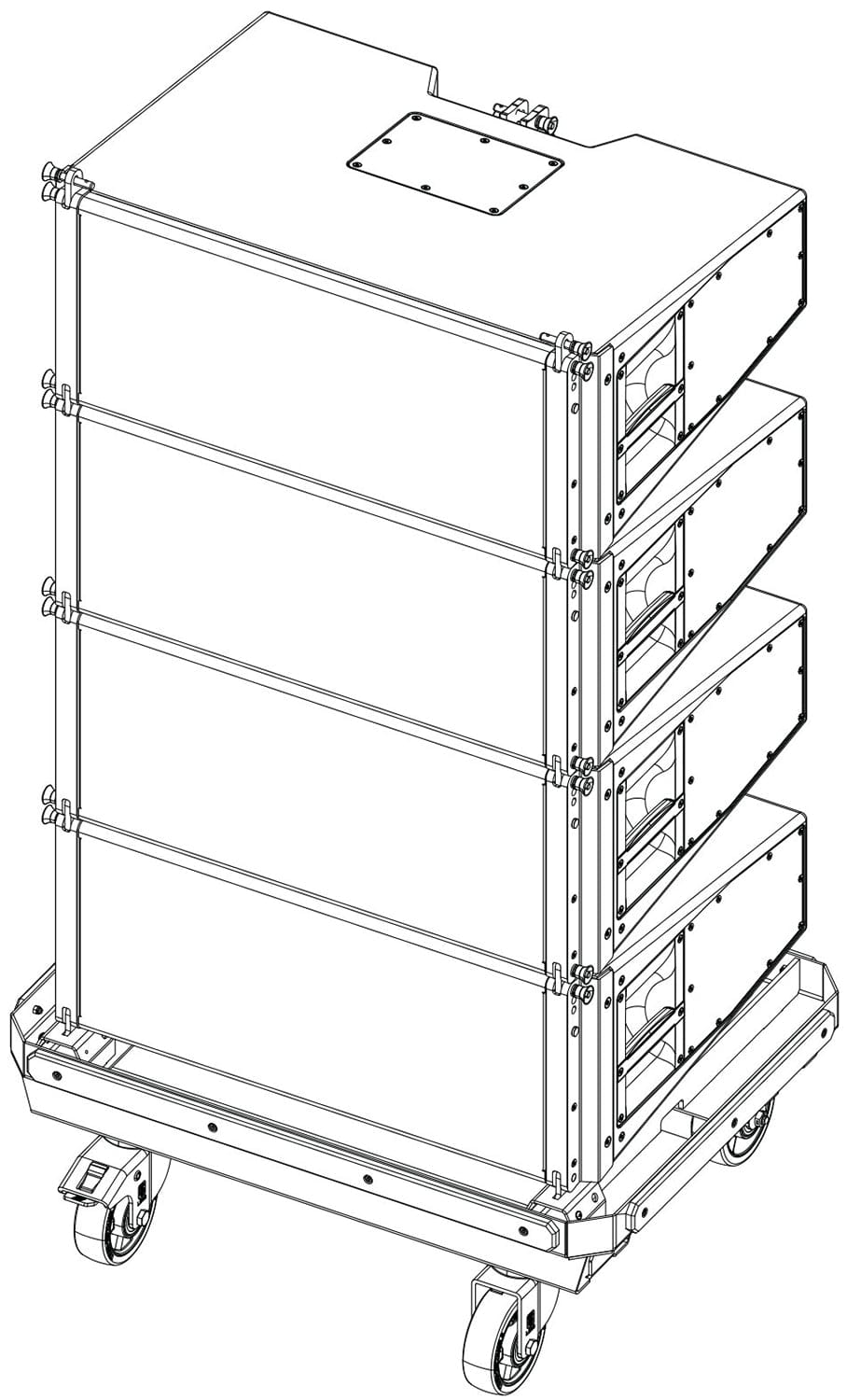

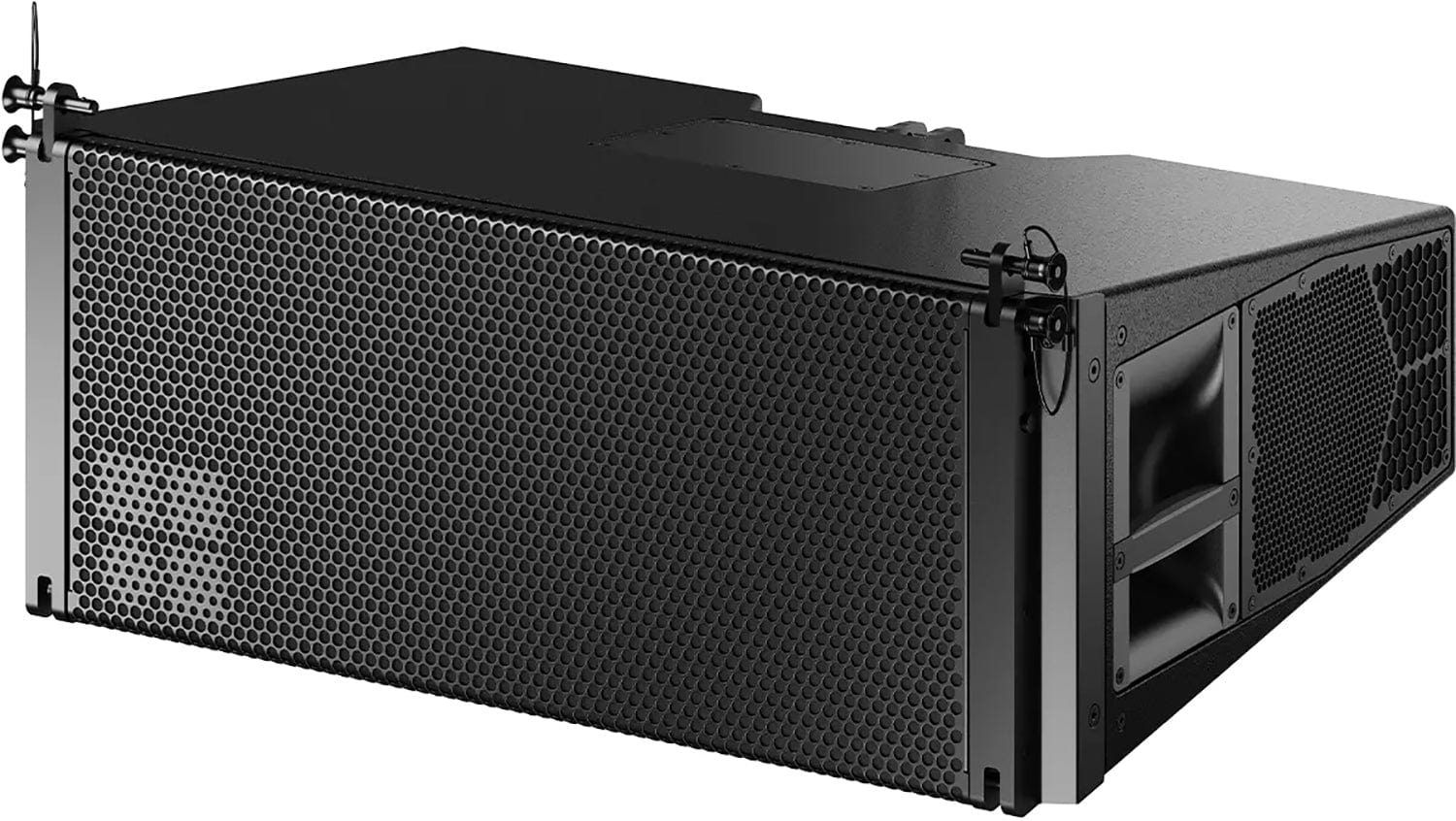

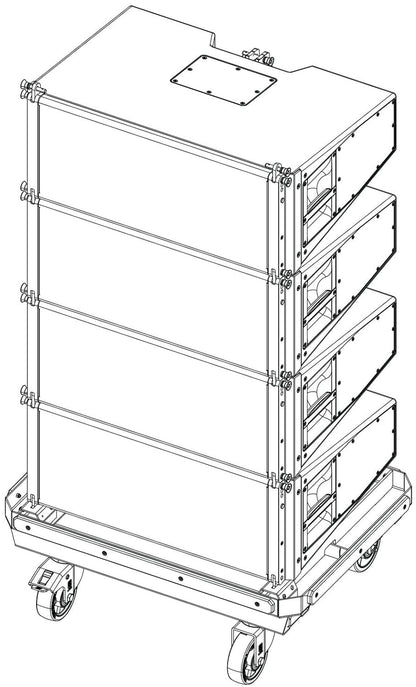

The d&b audiotechnik Z5793.000 package combines a compression mode transport cart for the XSL8 with 4 x Z0770.000 XSL8 loudspeakers (NLT4 F/M). The XSL8 is a mobile line array module for small to medium scale sound reinforcement that can also supplement GSL and KSL systems as fill and delay. It houses two 8 in front LF drivers, two 6.5 in side firing LF drivers, a horn loaded 6.5 in MF driver and two 1 in exit HF drivers with 2 in voice coils, giving an 80 degree horizontal dispersion and response from 60 Hz to 18 kHz. Trianze Tech supplies the Z5793.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Transport cart plus 4 x XSL8 loudspeakers
- 141 dB max SPL with D40, D80 or 40D
- 60 Hz to 18 kHz (90 Hz in CUT mode)
- 80 degree constant directivity horizontal
- Splay 0 to 14 degrees in 1 degree steps
- Rigging direct from the cart in compression or tension mode
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5793.000 |
| Package | Compression mode cart plus 4 x Z0770.000 XSL8 |
| Max SPL | 141 dB with D40/D80/40D |
| Frequency Response | 60 Hz to 18 kHz (90 Hz to 18 kHz CUT) |
| Dispersion | 80 degree horizontal |
| Splay Angles | 0 to 14 degrees, 1 degree steps |
| Components | 2 x 8 in LF, 2 x 6.5 in side LF, 1 x 6.5 in MF, 2 x 1 in HF |
| Impedance | 8 ohms front LF, 8 ohms side LF/MF/HF |
| Power Handling | 400/1200 W front LF, 300/850 W side LF/MF/HF |
| Connections | 2 x NLT4 F/M per cabinet |
| Cabinet Size | 283 x 700 x 507 mm |
| Cabinet Weight | 39 kg (86 lb) |
Why Buy the d&b audiotechnik Z5793.000 XSL8 Cart Package from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5793.000 XSL8 Cart Package with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5793.000 package includes the XSL8 compression mode transport cart and 4 x Z0770.000 XSL8 loudspeakers with NLT4 F/M connections.
The XSL8 loudspeakers in the d&b audiotechnik Z5793.000 package reach a maximum sound pressure of 141 dB with a D40, D80 or 40D amplifier.
The XSL8 covers 60 Hz to 18 kHz at -5 dB in standard mode, and 90 Hz to 18 kHz in CUT mode.
Each D40, D80 or 40D drives 2 XSL8 cabinets with Array Processing, or 4 cabinets in Line or Arc mode.
Each XSL8 cabinet weighs 39 kg (86 lb) and measures 283 x 700 x 507 mm.
Trianze Tech supplies the d&b audiotechnik Z5793.000 XSL8 Cart Package in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
