d&b audiotechnik Z5782.000: XSL-GSUB Cart Package with 2x XSL-GSUB Ground Stack Cardioid Subwoofers
Model
:
Z5782.000 XSL-GSUB Cart Package
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Z5782.000 XSL-GSUB Cart Package

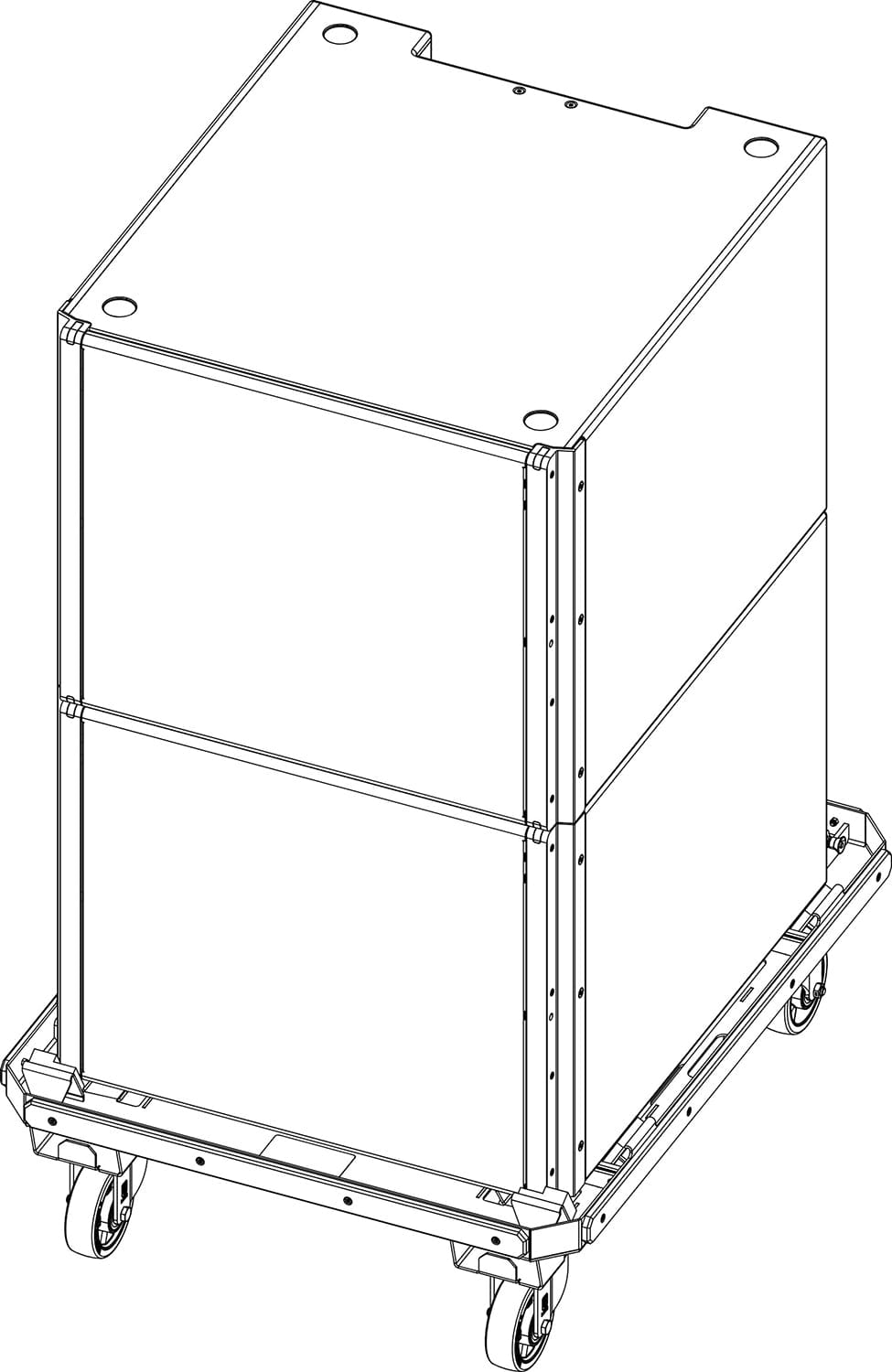

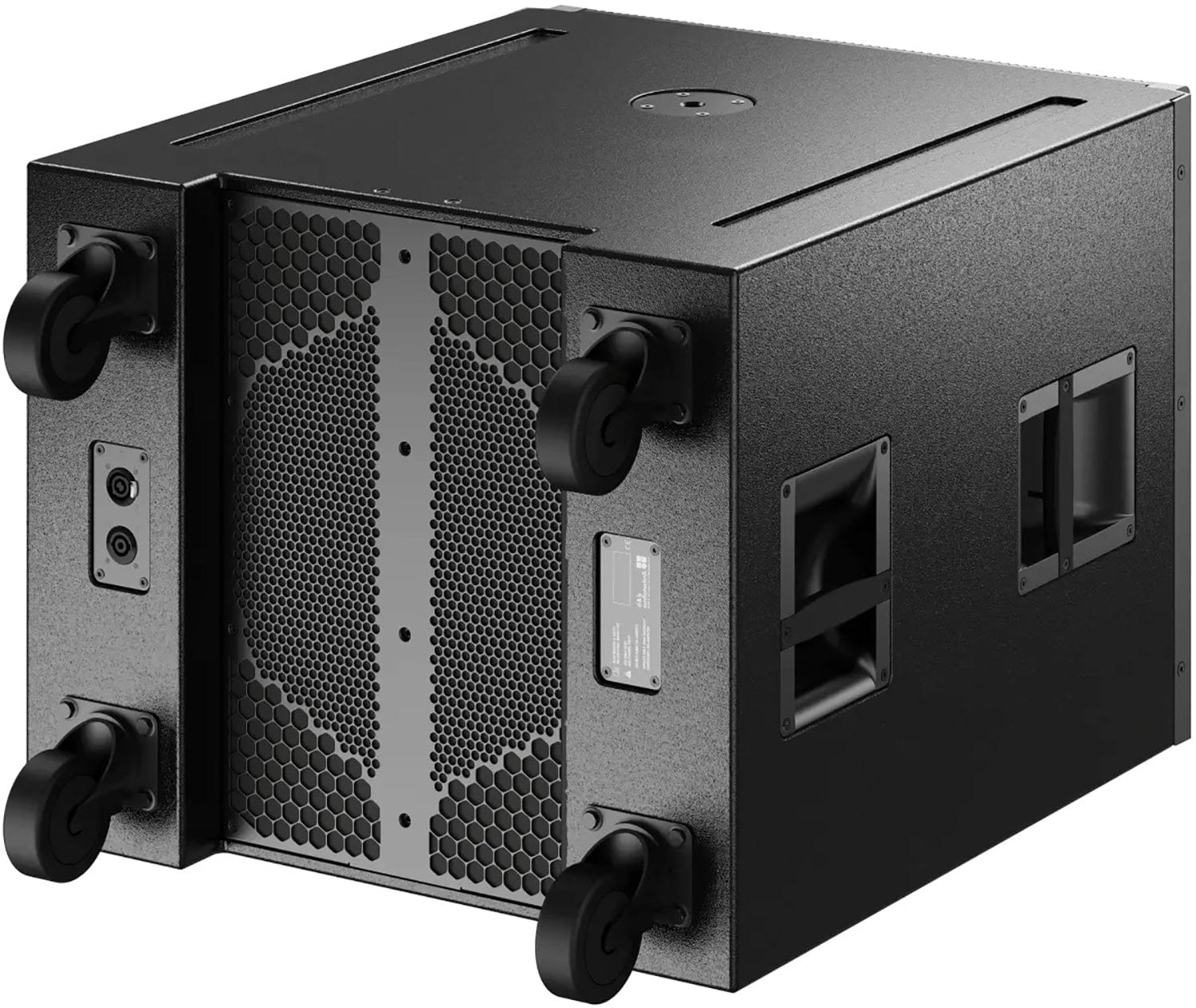

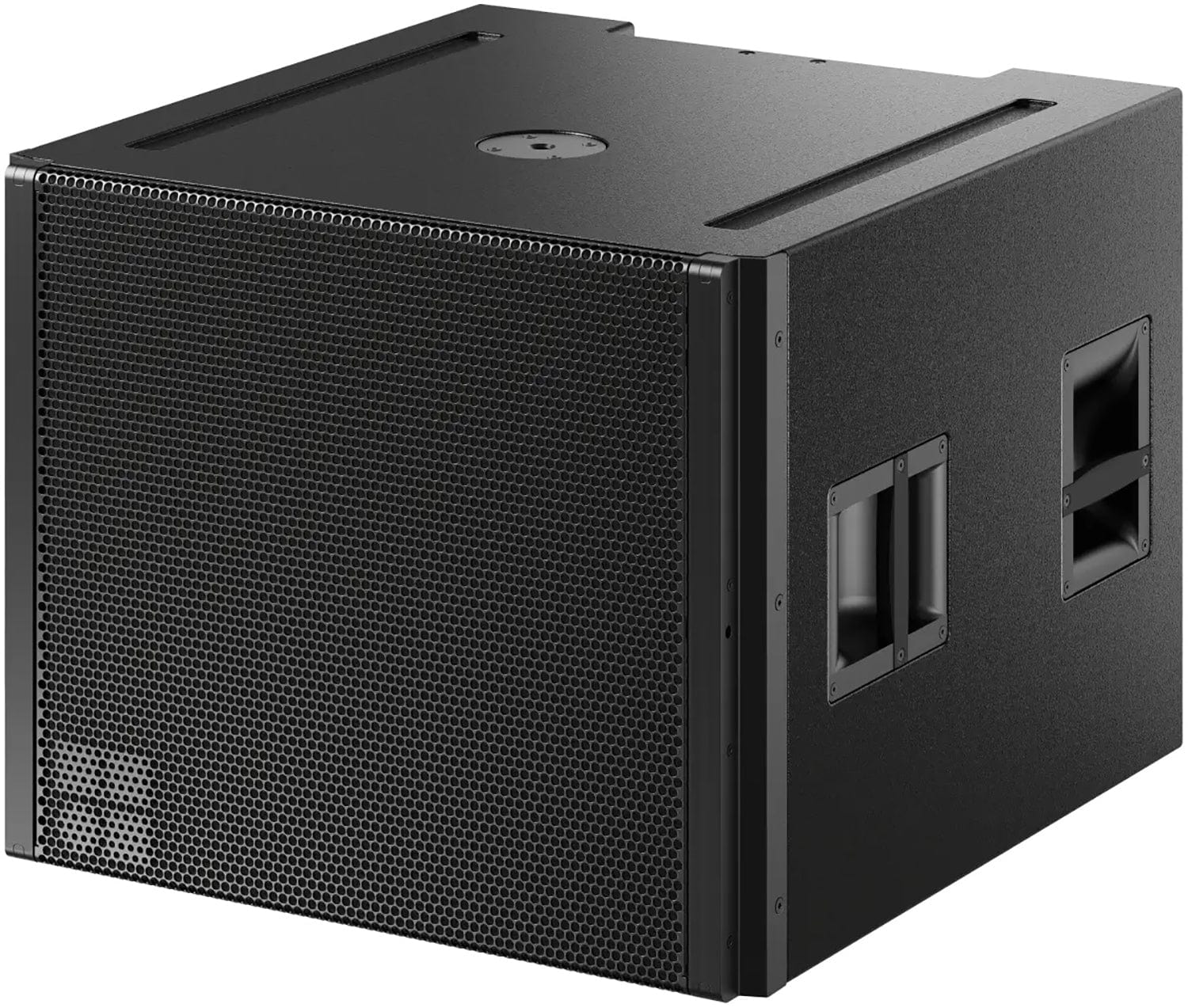

The d&b audiotechnik Z5782.000 XSL-GSUB Cart Package combines a transport cart with two XSL-GSUB cardioid subwoofers (Z0775.000). The XSL-GSUB supplements XSL8 and XSL12 loudspeakers, is intended for ground stacking only and has no rigging components, and its cardioid pattern reduces energy behind the system for accurate low frequency reproduction from 37 Hz to 110 Hz. Trianze Tech supplies the Z5782.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Transport cart plus 2x XSL-GSUB cardioid subwoofers
- 137 dB max SPL with D40, D80 or 40D
- 37 Hz to 110 Hz (35 Hz to 85 Hz INFRA mode)
- 18 in front and 12 in rear long excursion drivers
- Ground stack design with runners and locating recesses
- Marine plywood with PCP finish
Technical Specifications:
| Spec | Value |
|---|---|
| Package | Cart plus 2x Z0775.000 XSL-GSUB |
| Max SPL | 137 dB with D40/D80/40D |
| Frequency Response | 37 Hz to 110 Hz (standard), 35 Hz to 85 Hz (INFRA) |
| Components | 1x 18 in front LF, 1x 12 in rear LF |
| Impedance | 8 ohms front, 16 ohms rear |
| Power Handling | 700/1500 W front, 400/800 W rear |
| Connections | NLT4 F/M |
| Cabinet Weight | 62 kg (136 lb) each |
Why Buy the d&b audiotechnik Z5782.000 XSL-GSUB Cart Package from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5782.000 XSL-GSUB Cart Package with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5782.000 package includes a transport cart and two XSL-GSUB subwoofers (Z0775.000) with NLT4 F/M connections.
No. The XSL-GSUB has no rigging components and is intended for ground stacking only. Runners on the bottom and matching recesses on the top keep stacked cabinets in place. The flown version is the XSL-SUB.
The XSL-GSUB covers 37 Hz to 110 Hz at minus 5 dB in standard mode, and 35 Hz to 85 Hz in INFRA mode.
The XSL-GSUB reaches a maximum sound pressure of 137 dB with a D40, D80 or 40D amplifier, and up to four cabinets run per amplifier.
Each d&b XSL-GSUB weighs 62 kg (136 lb).
Trianze Tech supplies the d&b audiotechnik Z5782.000 XSL-GSUB Cart Package in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
