d&b audiotechnik Z5576.050: 18 RU Touring Rack Assembly for 6 x D80 Amplifiers with NEMA Mains Panel and DS10 Bridge
Model
:
Z5576.050 D80 Touring Rack
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Z5576.050 D80 Touring Rack Assembly, NEMA

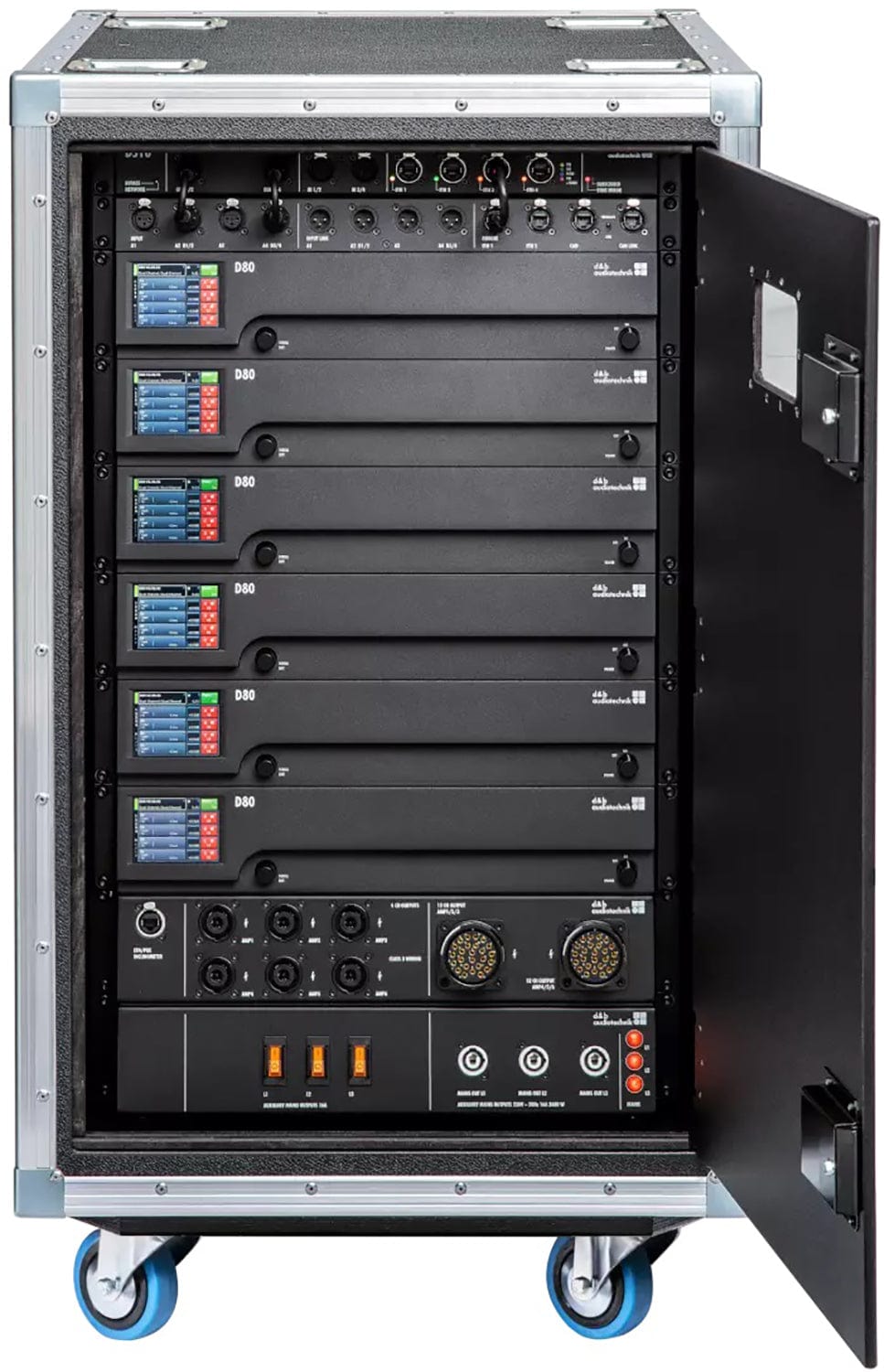

The d&b audiotechnik Z5576.050 is a D80 touring rack assembly for large scale mobile sound reinforcement, designed as a closed and prewired 18 RU system rack with mains power distribution and connector interfaces for 6 x D80 amplifiers. It includes a 2 x 30 A NEMA mains distribution device (Z5577.001), a Z5578 loudspeaker connector panel with a PoE enabled etherCON for a direct inclinometer connection, a Z5338 I/O panel with four Ethernet or CAN network connectors, and a d&b DS10 Audio Network Bridge for direct connection to Dante. Trianze Tech supplies the Z5576.050 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Closed, prewired 18 RU rack for 6 x D80 amplifiers
- 2 x 30 A NEMA mains distribution (Z5577.001)
- Z5578 loudspeaker panel with PoE etherCON for an inclinometer
- Z5338 I/O panel with four Ethernet or CAN connectors
- DS10 Audio Network Bridge for Dante
- Built for large scale mobile systems
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5576.050 |
| Type | D80 touring rack assembly, NEMA |
| Rack Height | 18 RU |
| Amplifier Capacity | 6 x D80 |
| Mains Distribution | Z5577.001, 2 x 30 A NEMA |
| Loudspeaker Panel | Z5578 with PoE etherCON |
| I/O Panel | Z5338, analog and digital audio, 4 x network |
| Network Bridge | DS10 (Z4010), Dante |
| Dimensions (H x W x D) | 1060 x 600 x 780 mm |
| Total Weight | 210 kg (463 lb) including all amplifiers |
Why Buy the d&b audiotechnik Z5576.050 D80 Touring Rack from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5576.050 D80 Touring Rack with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5576.050 is an 18 RU rack providing mains distribution and connector interfaces for 6 x D80 amplifiers.
Yes. The d&b audiotechnik Z5576.050 includes a d&b DS10 Audio Network Bridge for direct connection to the Dante audio network.
The d&b audiotechnik Z5576.050 uses a 2 x 30 A NEMA mains power distribution device (Z5577.001). Trianze Tech confirms the mains configuration for UAE use at time of order.
The Z5578 loudspeaker connector panel in the d&b audiotechnik Z5576.050 includes a PoE enabled etherCON for direct connection of an inclinometer.
The d&b audiotechnik Z5576.050 measures 1060 x 600 x 780 mm, with a total weight of 210 kg (463 lb) including all amplifiers.
Trianze Tech supplies the d&b audiotechnik Z5576.050 D80 Touring Rack in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
