d&b audiotechnik Z5571.551: Touring Rack Assembly for 3 x D80 Amplifiers with Mains Distribution and I/O Panel
Model
:
Z5571.551 D80 Touring Rack
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

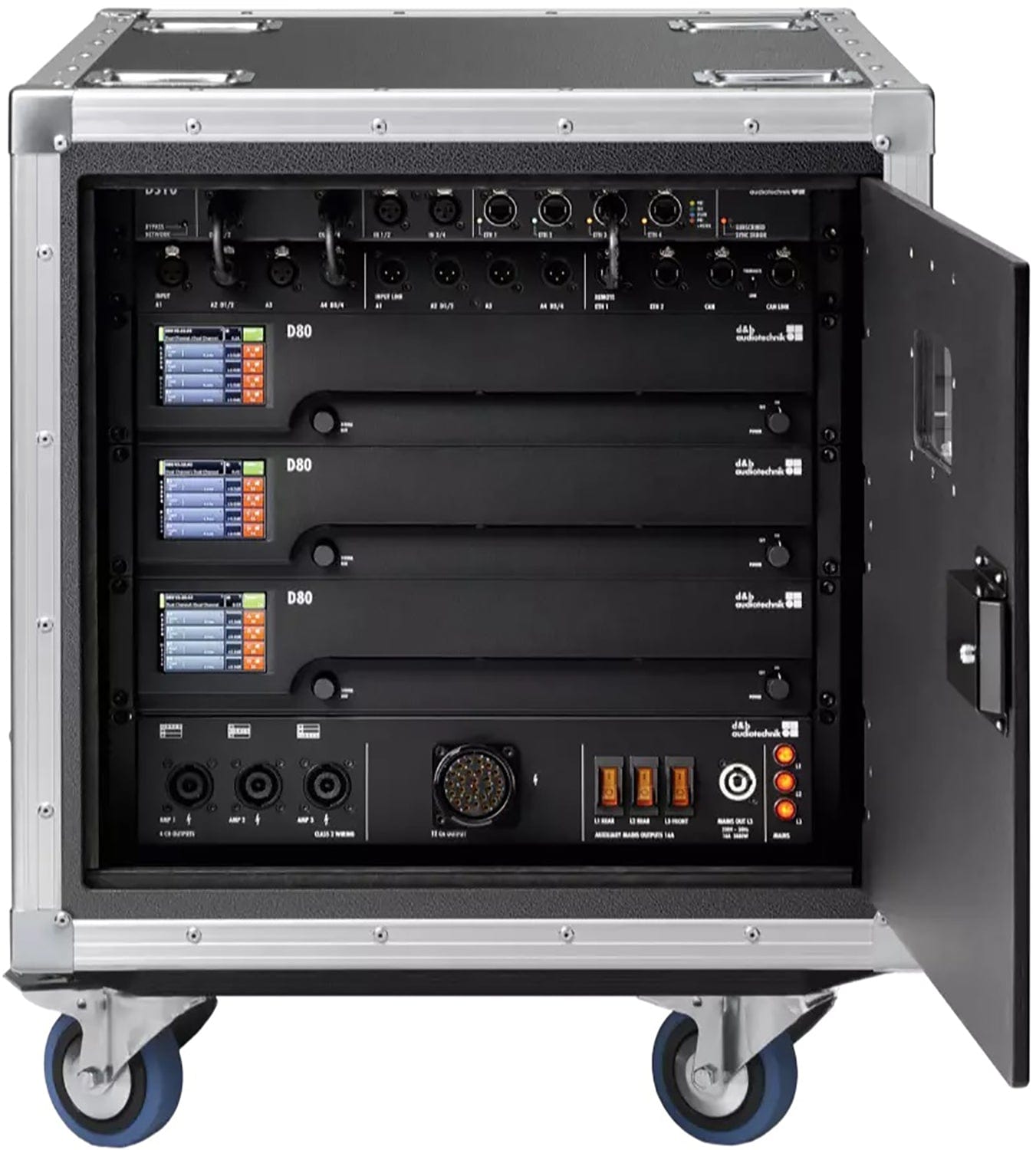

d&b audiotechnik Z5571.551 D80 Touring Rack Assembly
The d&b audiotechnik Z5571.551 belongs to the D80 touring rack assemblies, closed system racks that provide mains power distribution and connector interfaces for 3 x D80 amplifiers. The rack is equipped with a mains power distribution device that also serves as the loudspeaker connector panel, and a Z5338 I/O panel for analog and digital audio signals with four network connectors for Ethernet or CAN remote control. A d&b DS10 Audio Network Bridge can be included for direct Dante connection. Trianze Tech supplies the Z5571.551 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Closed system rack for 3 x D80 amplifiers
- Mains distribution that doubles as loudspeaker connector panel
- Z5338 I/O panel with four Ethernet or CAN connectors
- DS10 Audio Network Bridge option for Dante
- 71 kg net, 128 kg with D80 amplifiers
- Original d&b touring rack assembly
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5571.551 |
| Type | D80 touring rack assembly |
| Amplifier Capacity | 3 x D80 |
| I/O Panel | Z5338, analog and digital audio, 4 x network |
| Network Bridge | DS10 (Z4010), Dante, as specified |
| Mains Type | Confirm at order (listing title NEMA, source text CEE) |
| Dimensions (H x W x D) | 710 x 600 x 715 mm |
| Net Weight | 71 kg (156.5 lb) without D80 |
| Total Weight | 128 kg (282.2 lb) with D80 |
Why Buy the d&b audiotechnik Z5571.551 D80 Touring Rack from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5571.551 D80 Touring Rack with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5571.551 provides mains distribution and connector interfaces for 3 x D80 amplifiers.
The d&b audiotechnik Z5571.551 weighs 71 kg (156.5 lb) without D80 amplifiers and 128 kg (282.2 lb) with them, and measures 710 x 600 x 715 mm.
The d&b audiotechnik Z5571.551 includes the Z5338 I/O panel for analog and digital audio signals, with four network connectors for Ethernet or CAN remote control.
The listing title for the d&b audiotechnik Z5571.551 says NEMA while the source text describes the CEE assembly. Trianze Tech confirms the mains version at time of order.
A d&b DS10 Audio Network Bridge can be included with the d&b audiotechnik Z5571.551 for direct Dante connection. Trianze Tech confirms the configuration at time of order.
Trianze Tech supplies the d&b audiotechnik Z5571.551 D80 Touring Rack in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
