d&b audiotechnik Z5570.050: Touring Rack Assembly for 3 x D80 Amplifiers with Mains Distribution and Z5338 I/O Panel
Model
:
Z5570.050 D80 Touring Rack
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

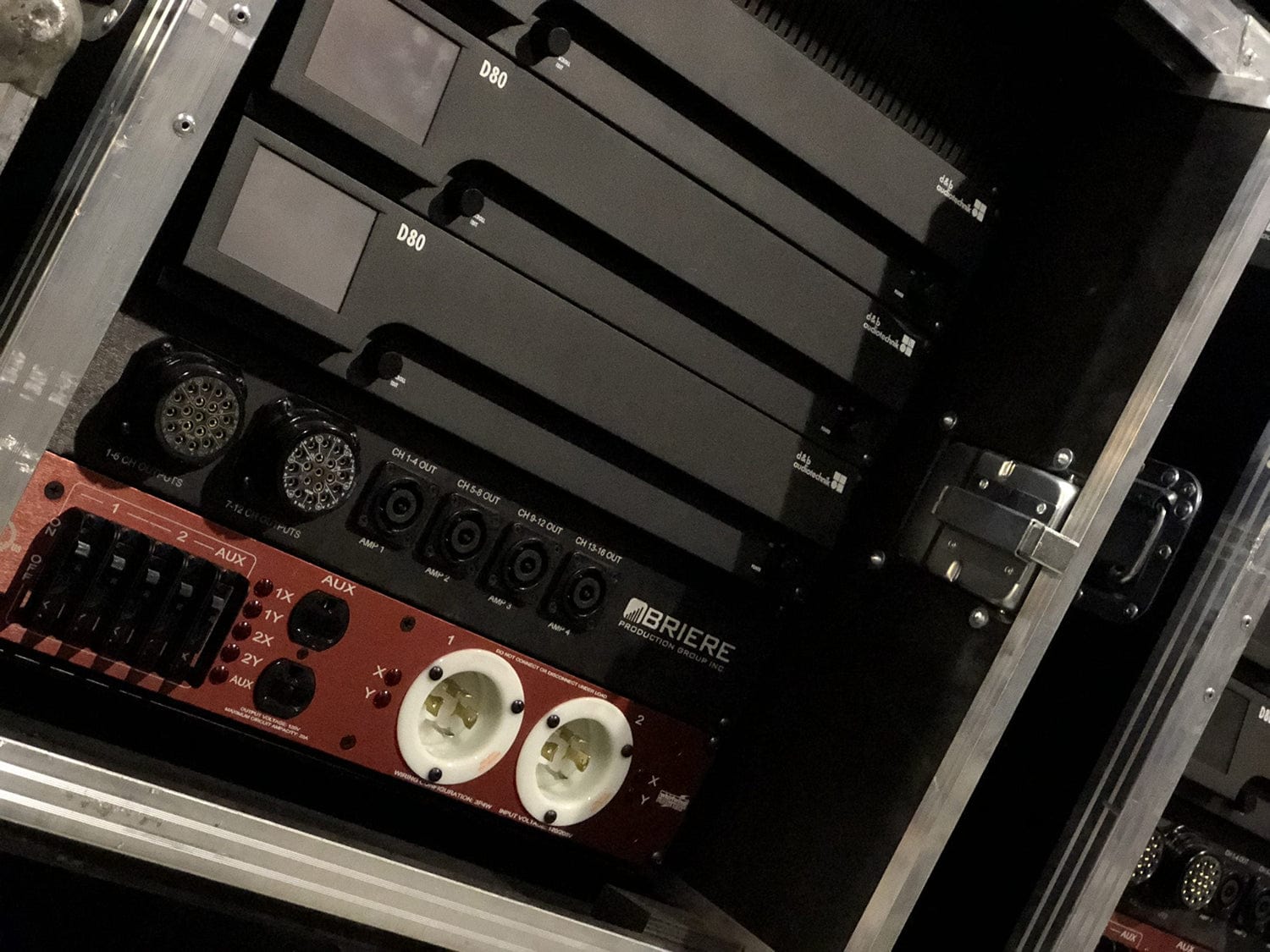

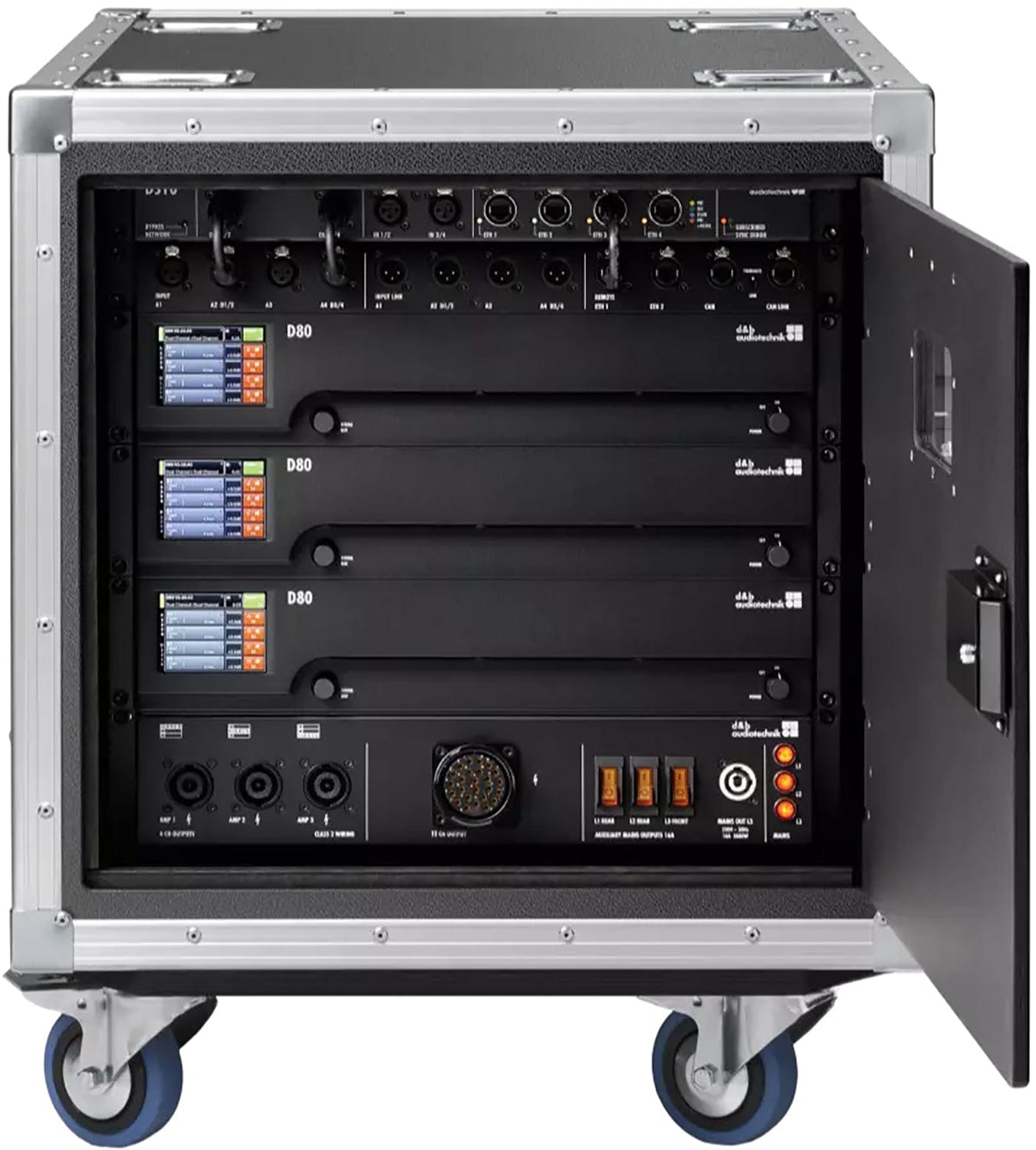

d&b audiotechnik Z5570.050 D80 Touring Rack Assembly
The d&b audiotechnik Z5570.050 belongs to the Z5570/71 D80 touring rack assemblies, closed system racks that provide mains power distribution and connector interfaces for 3 x D80 amplifiers. The rack uses a mains power distribution device that also serves as the loudspeaker connector panel, and a Z5338 I/O panel for analog and digital audio with four network connectors for Ethernet or CAN remote control. Its store title names the NEMA mains panel, while the source text describes the CEE assembly, so the mains version is confirmed at order. Trianze Tech supplies the Z5570.050 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Closed system rack for 3 x D80 amplifiers
- Mains distribution that doubles as loudspeaker connector panel
- Z5338 I/O panel with four Ethernet or CAN connectors
- 710 x 600 x 715 mm
- 71 kg net, 128 kg with D80 amplifiers
- Original d&b touring rack assembly
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5570.050 |
| Type | D80 touring rack assembly |
| Amplifier Capacity | 3 x D80 |
| I/O Panel | Z5338, analog and digital audio, 4 x network |
| Mains Type | Confirm at order (listing title NEMA, source text CEE) |
| Dimensions (H x W x D) | 710 x 600 x 715 mm |
| Net Weight | 71 kg (156.5 lb) without D80 |
| Total Weight | 128 kg (282.2 lb) with D80 |
Why Buy the d&b audiotechnik Z5570.050 D80 Touring Rack from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5570.050 D80 Touring Rack with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5570.050 provides mains distribution and connector interfaces for 3 x D80 amplifiers.
The d&b audiotechnik Z5570.050 weighs 71 kg (156.5 lb) without D80 amplifiers and 128 kg (282.2 lb) with three D80 fitted.
The d&b audiotechnik Z5570.050 measures 710 x 600 x 715 mm (28 x 23.6 x 28.2 in) height by width by depth.
The d&b audiotechnik Z5570.050 uses the Z5338 I/O panel for analog and digital audio, with four network connectors for Ethernet or CAN remote control.
The store title for the d&b audiotechnik Z5570.050 says NEMA mains panel, while the source text describes the CEE assembly. Trianze Tech confirms the mains version at time of order.
Trianze Tech supplies the d&b audiotechnik Z5570.050 D80 Touring Rack in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
